In good condition, tested and working, supplied as pictured in a protective case. Huge range of options as per pictures. Please carefully read the detailed description below re what is included in the sale.

Note the pictures are of the actual product you will receive.

Included in the sale:

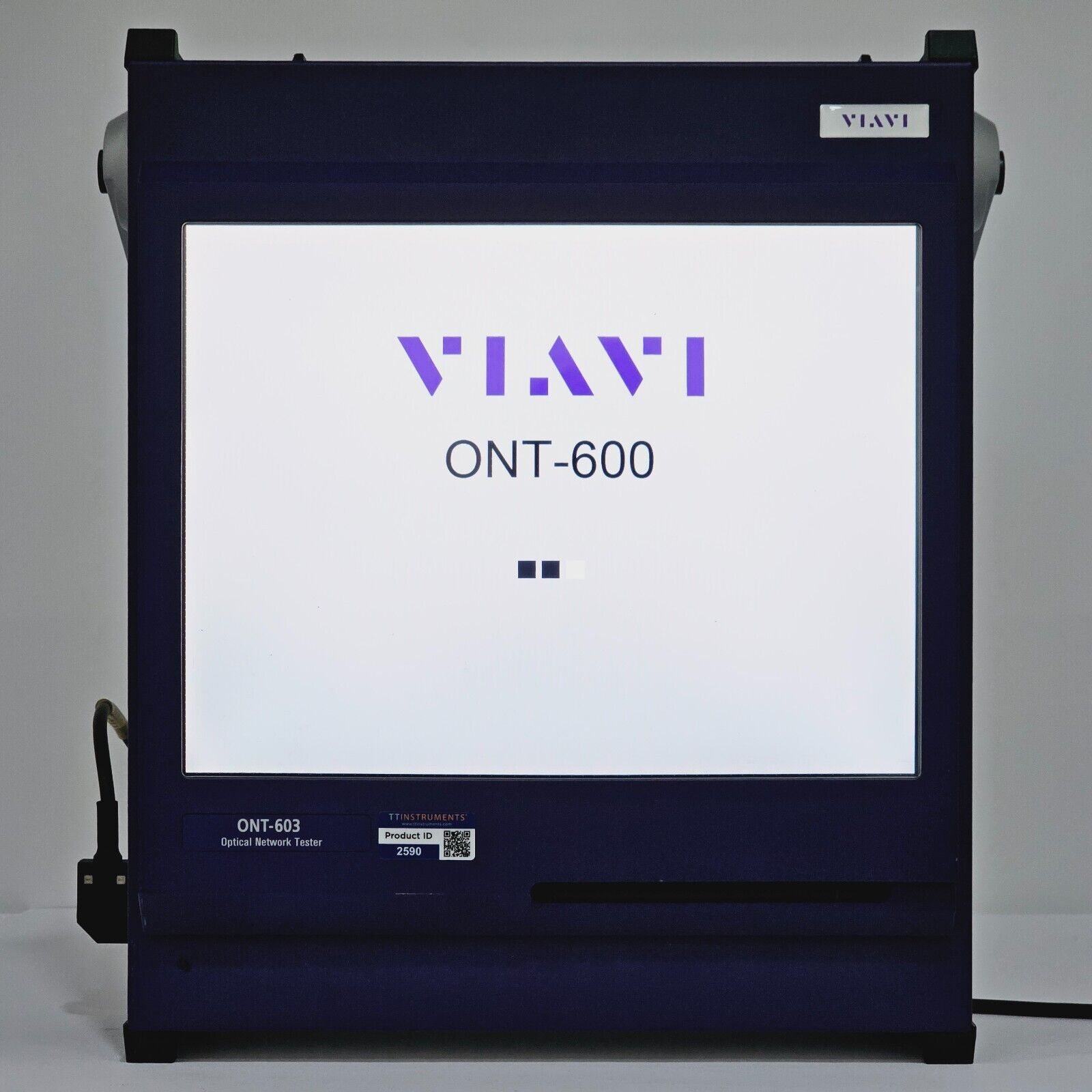

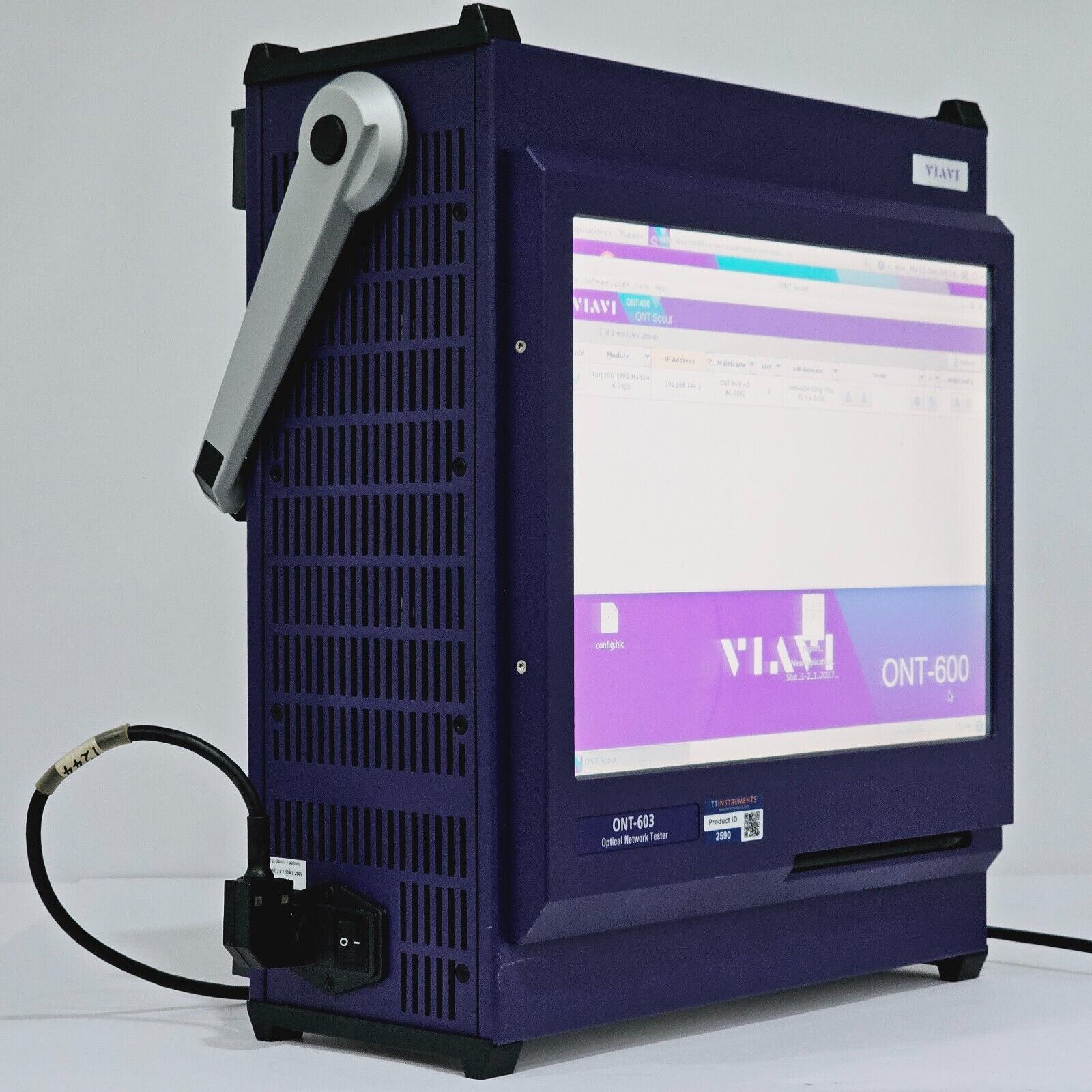

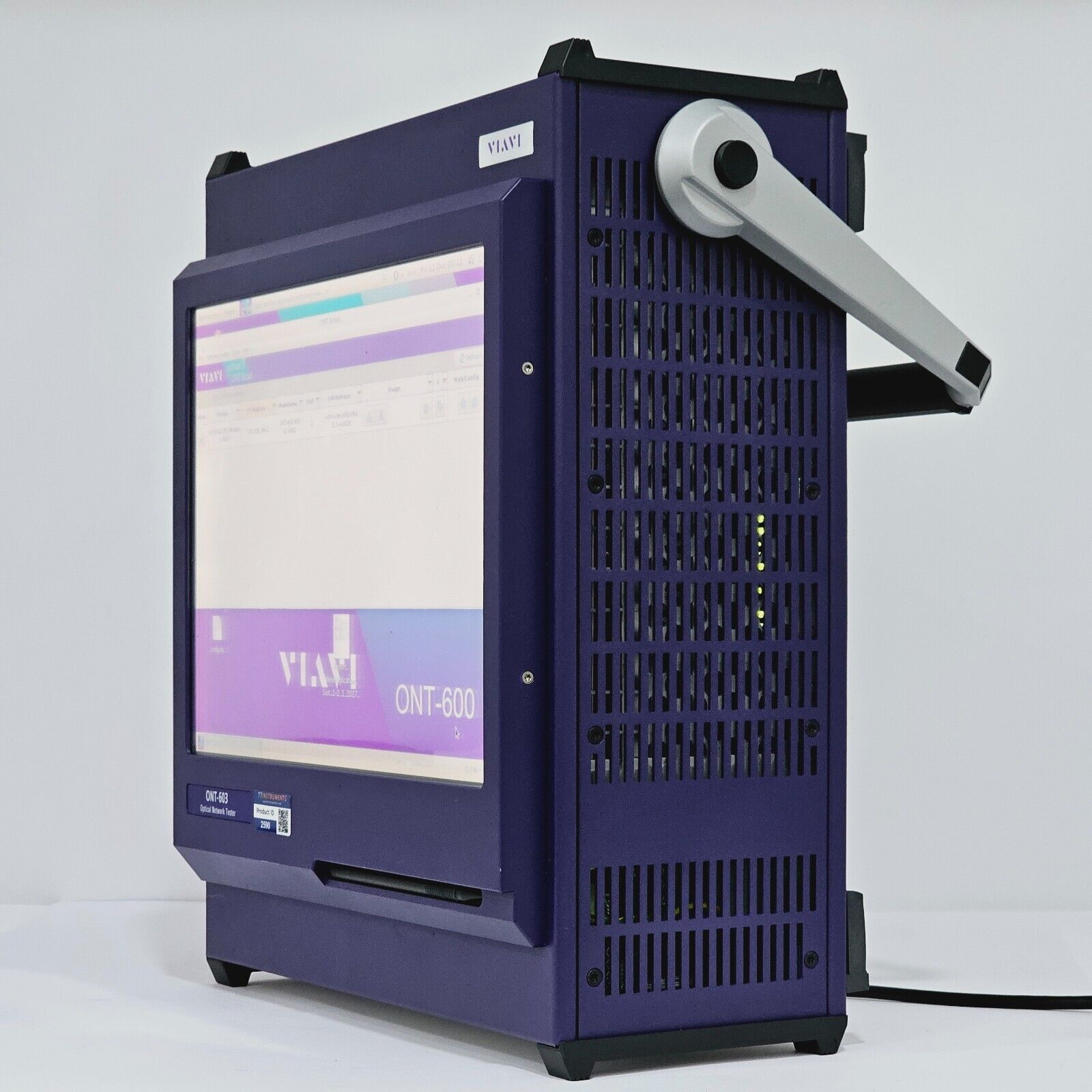

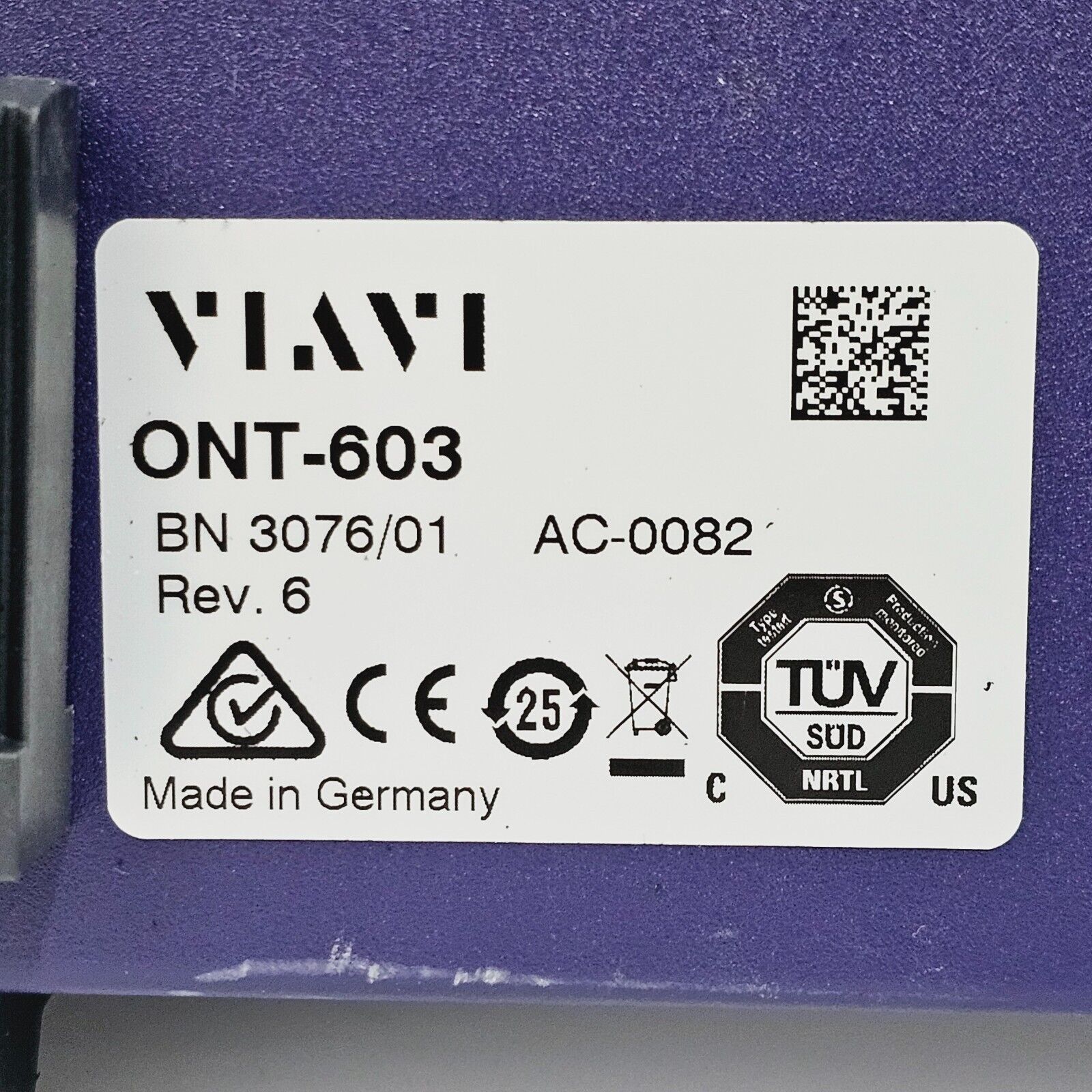

• Viavi JDSU ONT-600 / 603D Platform - 3076/01 - AC-0082 - Rev. 6

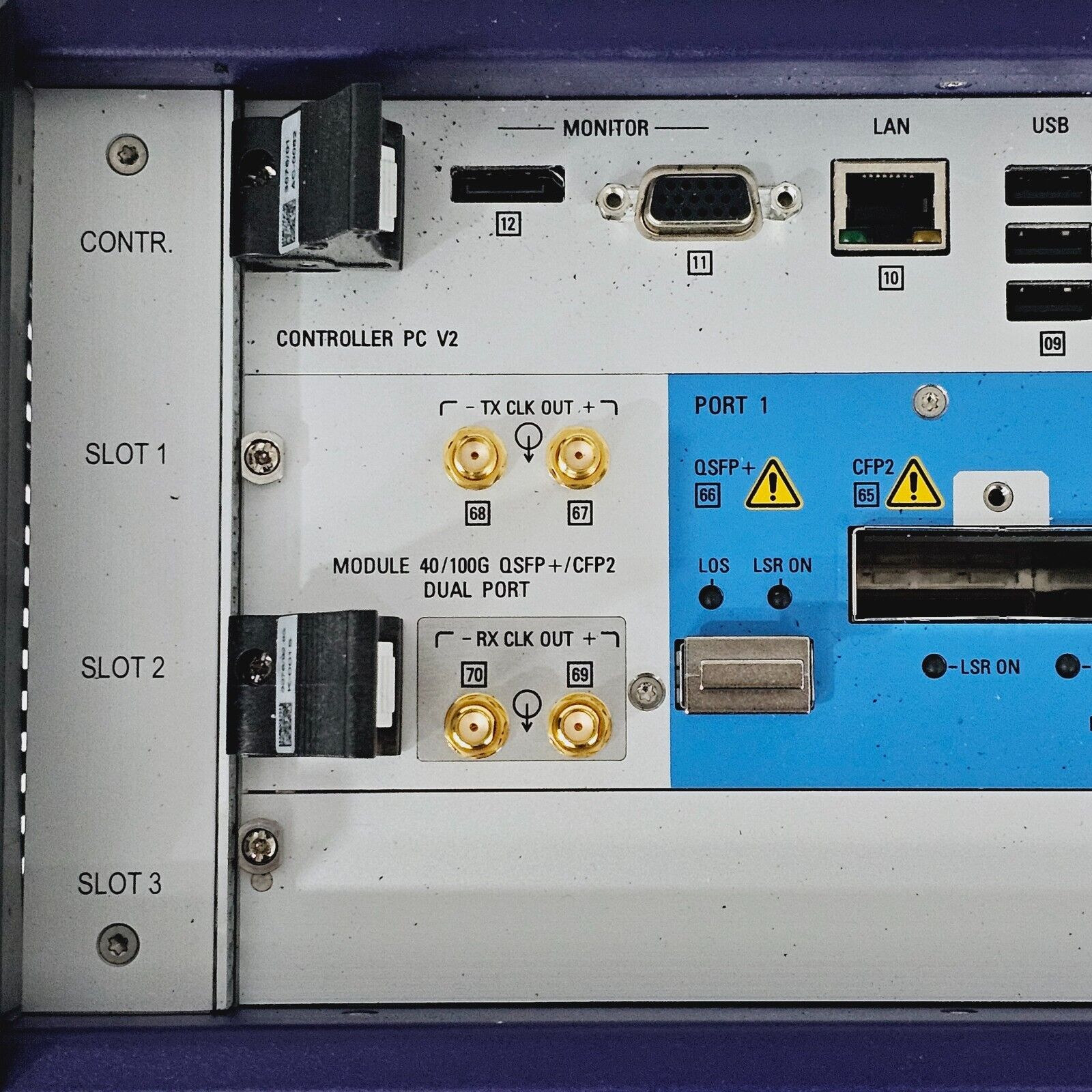

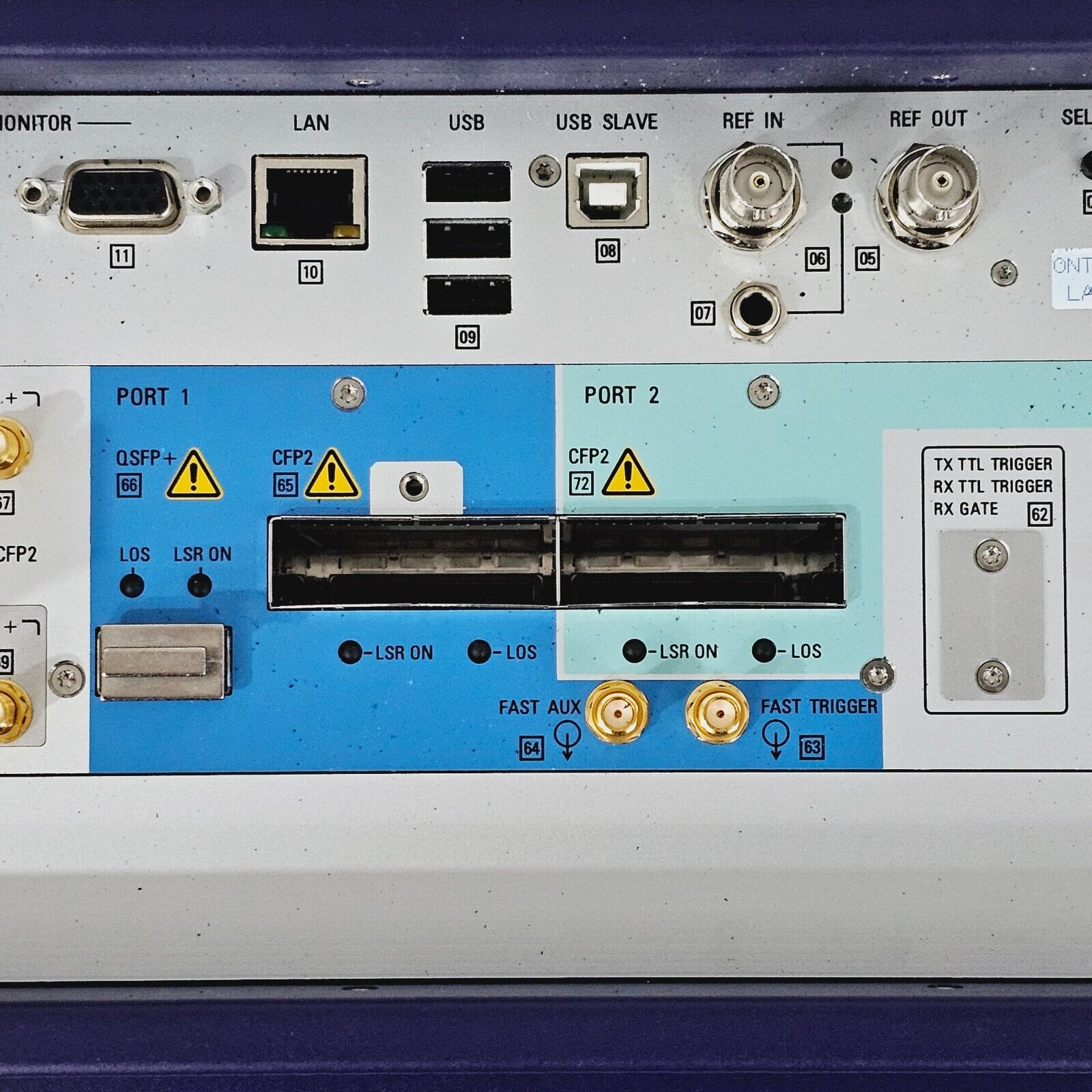

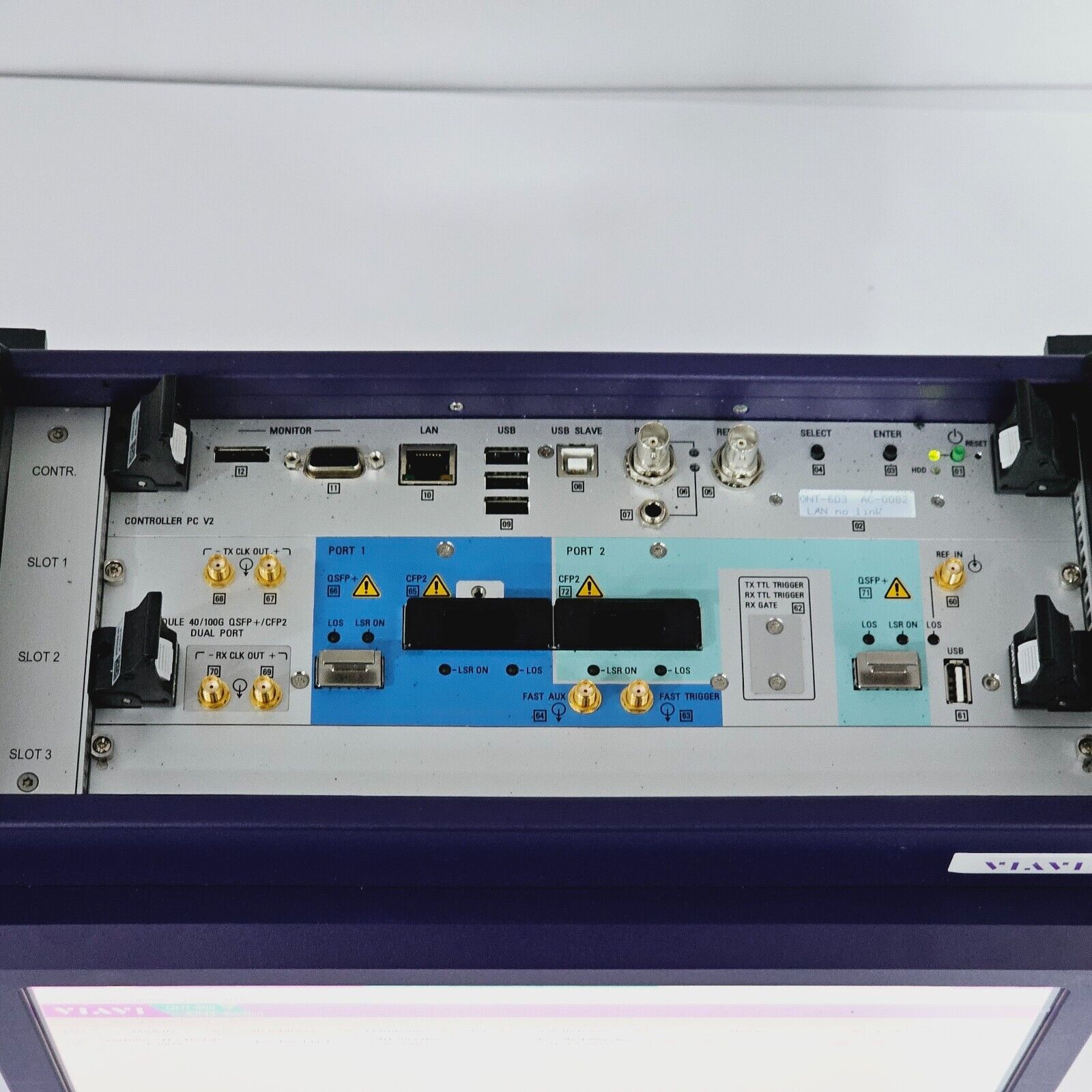

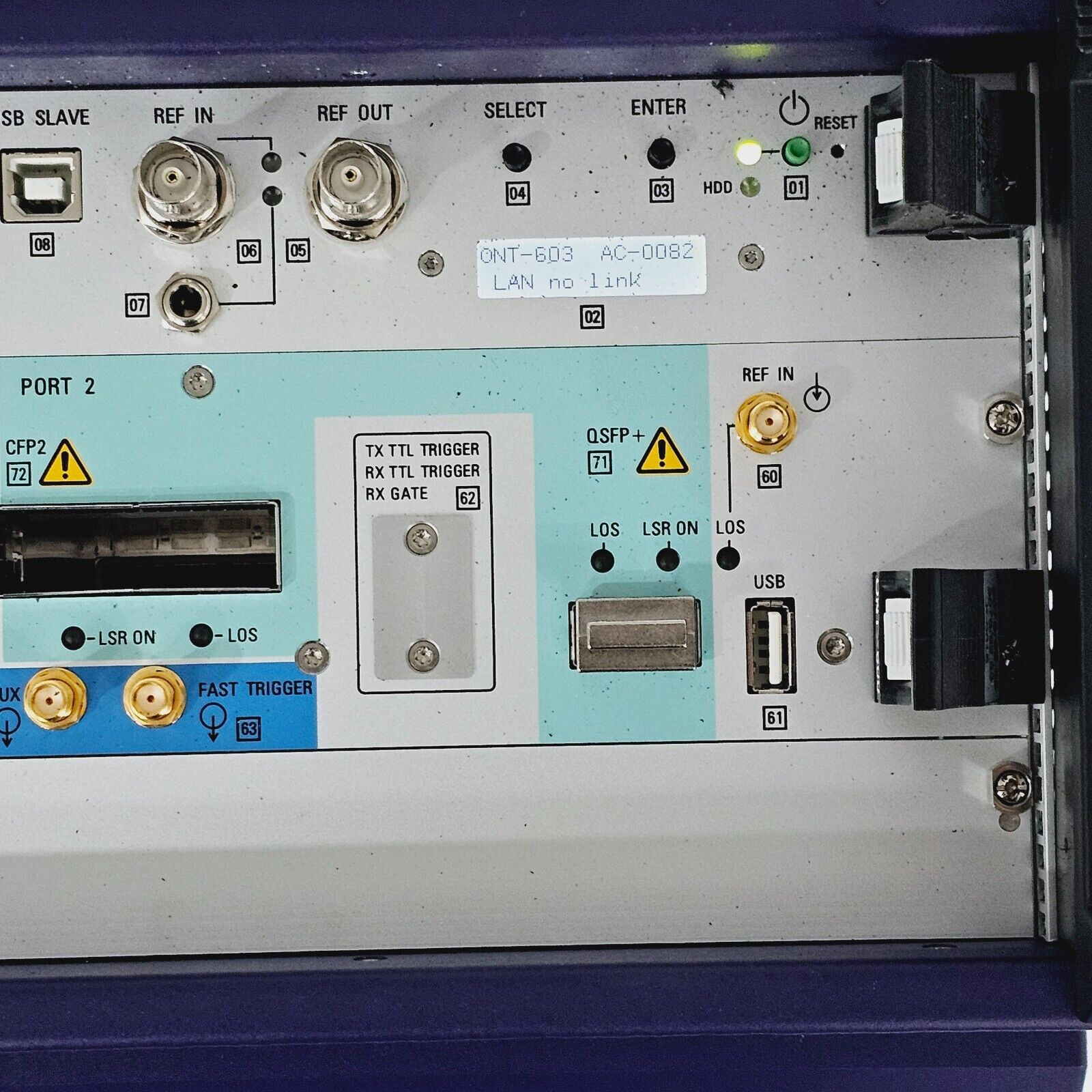

• 40/100G CFP2 DUAL PORT Module
• Operating Manual & CD

Unless pictured or listed above, any CFP/Transceiver/Accessory is NOT included, please ensure it is suitable for your needs before purchase, you can of course purchase additional parts separately.

Please review the tabs titled manufacturer's description and resources for further information.

The VIAVI ONT Product Family supports testing and verification for new high-speed network elements across a wide range of technologies and scenarios. Our test platforms help manufacturers scale to meet the growth demands of network-driven services, while accounting for ever-evolving technology.

All application modules share the same GUI and identical automation and scripting, so that they can be used throughout the product development cycles.

Applications

• Detailed hardware level testing with unframed and protocol based traffic.
• 25G, 50G, 100G and 400G Optical Modules validation: electrical lanes stressing (clock offset variation, TX pre-emphasis and RX equalization manipulation, dynamic skew) per IEEE standards, MDIO/I2C management interface verification (peek/poke, HW pins control, MDIO/I2C Dump)
• Support for OTN, Ethernet, Fibre Channel, CPRI, and SONET/SDH
• Qualify PTP (IEEE 1588) implementations in optical networks and equipment
• Full service disruption and latency measurements for all supported technologies
• Equipment Manufacturers: Support for R&D, SVT (system verification/test), and production environments covering the entire product life cycle
• Service Providers: Conduct product qualification and benchmark testing before deployments and bring to the field for first office applications (FOA)
• Data Centers: Fully verify data center interconnect elements and long-haul transmission elements for quality and performance and fully stress and verify pluggable optics including active optical cables.

Key Features

• Multiple mainframe options including rackmount, desktop, and modules with built-in display for mobile test needs.
• Supports testing of all major transport technologies for equipment manufacturers, service providers, and data centers
• OTN: up to OTU4 with ODU Muxing down to ODU0; ODUflex, ODU multichannel, and FlexO
• Ethernet: Gigabit Ethernet up to 400 GE and FlexE fully supported with full stress/margin analysis
• SDH/SONET: 155 Mbps up to 40G
• Fibre Channel: 1/2/4/8/10/16G FC
• CPRI unframed and framed testing: CPRI line bit rate option 1 (614.40 Mbps) up to option 9 (12.165 Gbps)
• Most accurate latency and service disruptions measurements for OTN, Ethernet, CPRI, Fibre Channel, and SONET/SDH
• Browser-oriented graphical user interface (GUI)
• Full multitasking operation
• Full automation support via CLI or with drivers and libraries for LabWindows CVI, LabView, Python and Tcl/Tk

The VIAVI ONT 100G solution?s flexible design enables quicker and more thorough testing using less equipment. Three modules are available: the CFP version for validating CFP-related products and system equipment, the CFP2 version for deep analysis of CFP2-related products and systems, and the cost-effective dual-port CFP2 version for deeper system testing and a special test application for sophisticated test signals. The CFP-based test module is an indispensable tool for product development, system verification, and new service deployment testing. The industry?s first CFP2 test module, with its advanced error analysis application, gives designers unprecedented insight into the root causes for bit errors and greatly reduces CFP2 technology cost, space, and development time. The dual-port CFP2 module produces up to 1.2 T of real-time traffic when fully loaded into the ONT-612 mainframe.

Benefits

• Enables the development of 100G products based on CFP and CFP2 technologies
• Quickly identifies root causes for bit errors
• Fully evaluates CFP and CFP2 transponder?s true performance, including tolerance to skew variation?the world?s only solution for testing dynamic skew
• Evaluates multichannel performance up to 32 times faster than traditional single-channel method
• Saves on CapEx with broadest mapping and multiplexing testing support
• Improves test efficiency with intuitive GUI design and strong automation support

Applications

• Validate CFP2, CFP and QSFP+ transponder validation and test
• Validate 40 G/100G Ethernet Layers 1-2-3
• Develop and validate OTN (OTU3/OTU4)
• Test 100 G routers with OTU4 client interfaces
• Assess signal integrity in both photonic and electronic domain
• Turning up and deploying services

Key Features

• Advanced CFP2, CFP, and QSFP+ testing
• Unique CFP and CFP2 stress test application and CFP2 error analysis application
• Dynamic skew variation
• 40 GE, 100 GE, OTU3/3e1/3e2, OTU4, and STL-256.4
• OTU4 with 100 GE client and OTU3 with 40 GE transcoded into OPU3
• 100 G wrapper/de-wrapper testing with built-in or external 100 GE traffic
• ODU0 and ODUflex up to OTU4
• OTN multistage multiplexing
• OTN multi-channel testing
• GFP-T and GFP-F mapping for OTN
• Electrical connectivity with adaptors for component-level testing

For the manufacturer datasheet, please click here
