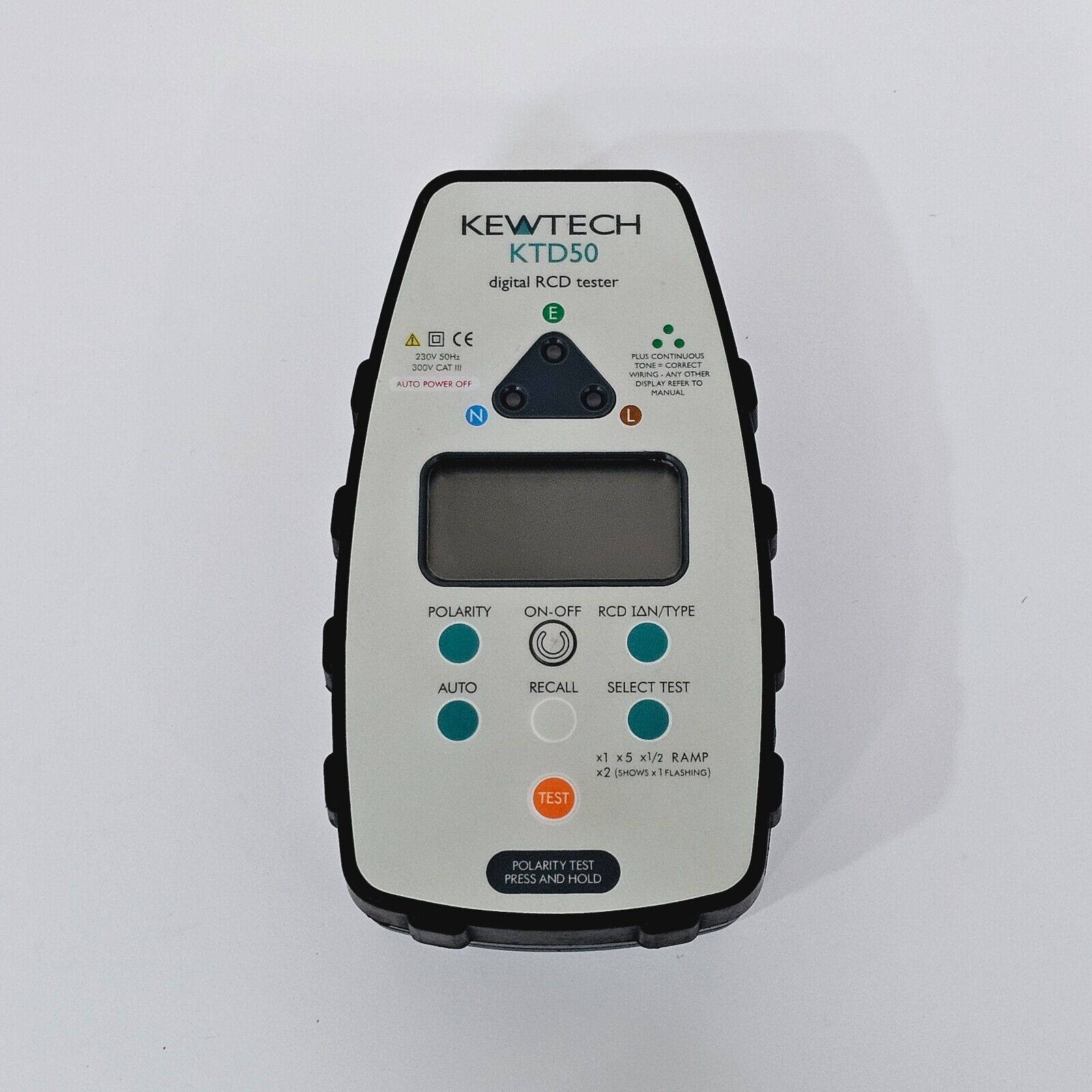

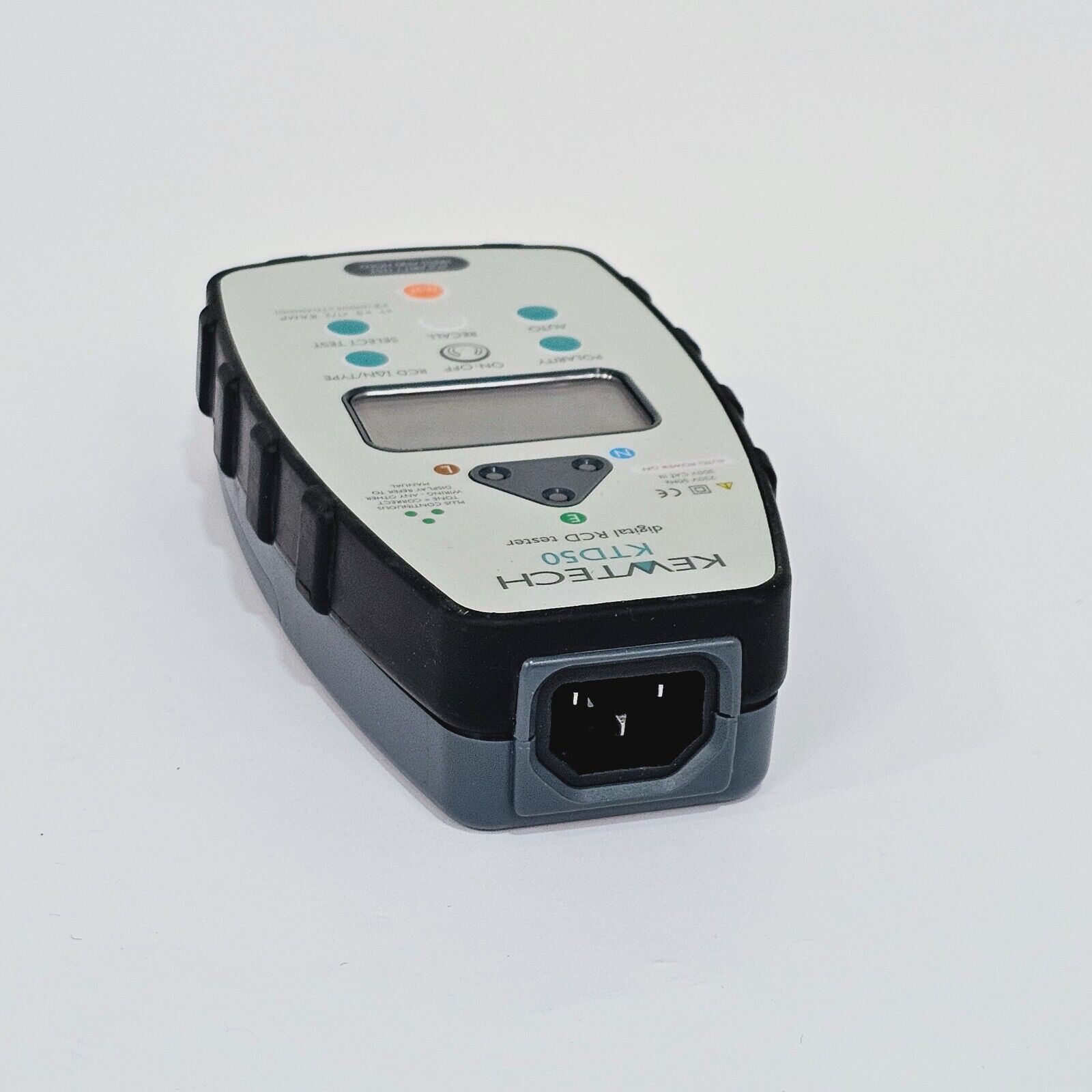

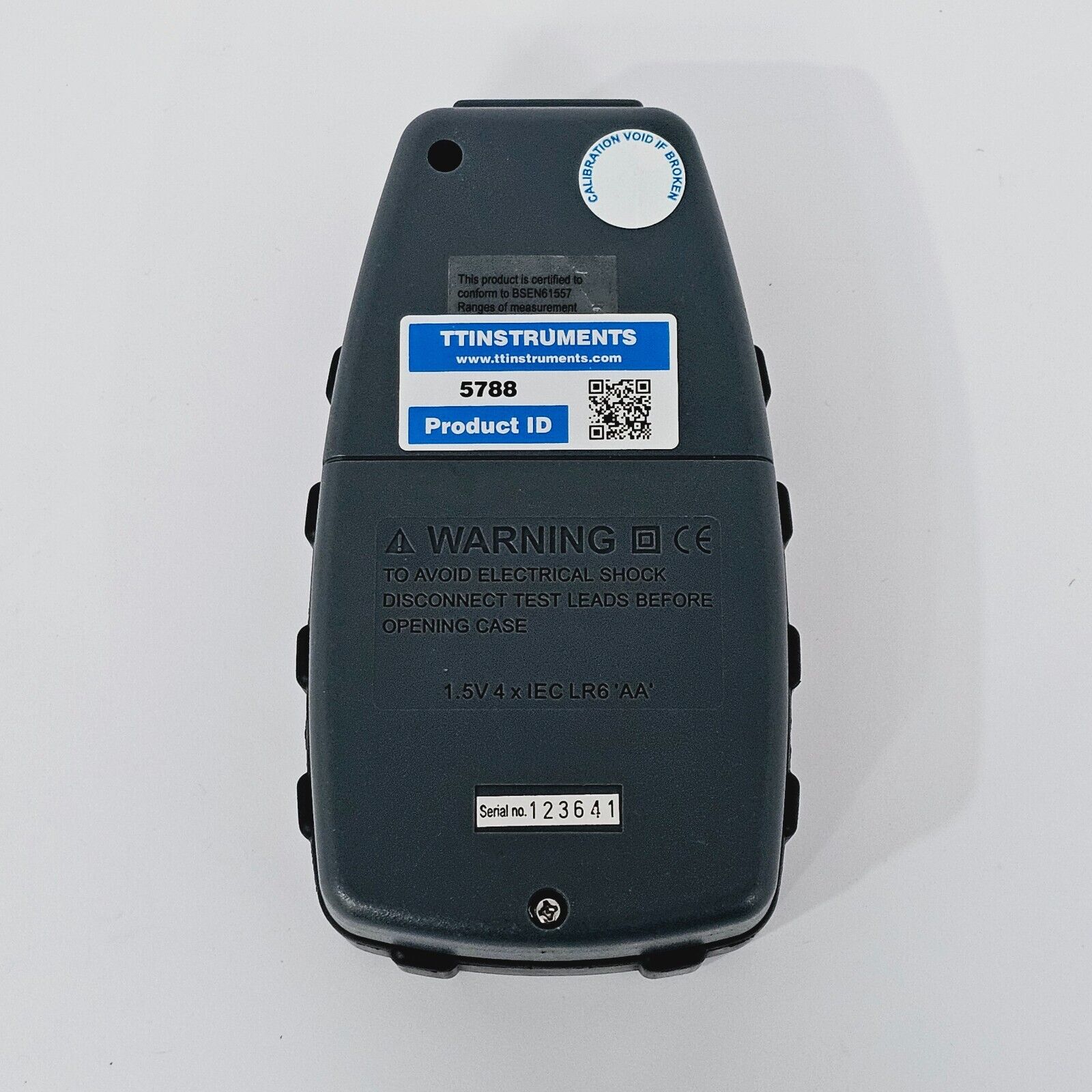

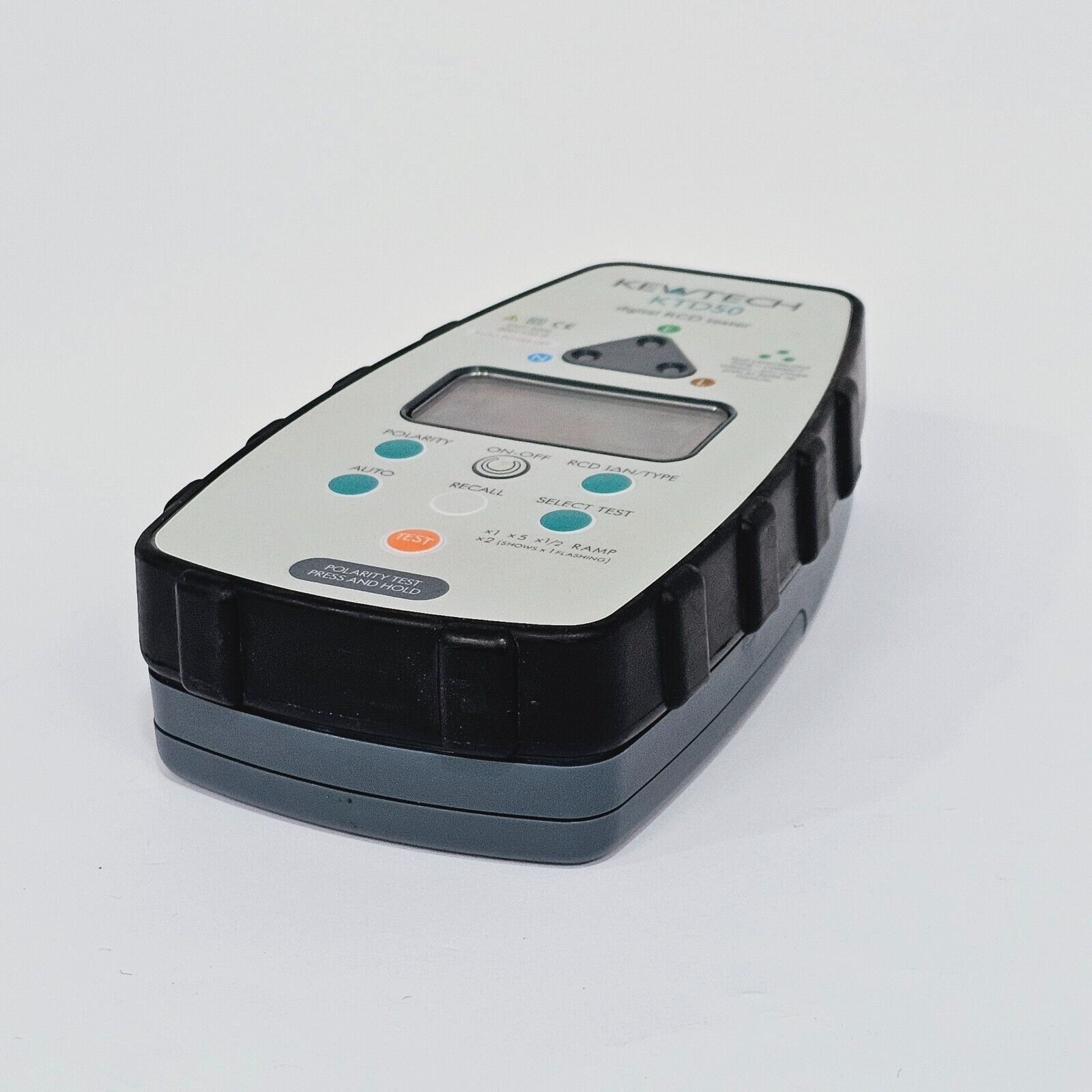

Kewtech KTD50 Digital RCD tester

Condition: Used

Note we have multiple units so cosmetically they may differ a little. Batteries or leads are NOT included.

KTD50 Digital RCD Tester with Auto-Test

Comprehensive RCD tester

Includes RCD ramp and auto-test

Full socket tester functionality built in

Unique mains supply polarity test (checks that line and neutral are not switched at the supply)

Measures mains voltage

Special x 2 I ∆N RCD function

Tests selective RCDs

The Kewtech KTD50 is a comprehensive RCD tester that tests type AC and ACS RCDs from 30mA to 500mA (see specifications below). Special RCD features include an auto, ramp and x 2 I ∆N test. In the auto-test mode the instrument automatically runs through all the six standard tests whilst the operator only has to stand by the RCD and reset it every time it trips. All the result can be viewed using the recall button. The ramp test slowly increases tripping current until the RCD trips. The display is in mA. It will show up RCDs that are out of specification and those that will be susceptible to nuisance tripping. It can also be used to indicate which circuits have high leakage currents. The x 2 I ∆N test satisfies the advisory note for verification of disconnection times as in teh 17th Edition regulation 411.3.2.2 The Kewtech KTD50 also measures main voltage an incorporates a full socket trester that checks for 18 socket wiring conditions.Last but note least this tester has the unique feature of a mains polarity test. It will check tghat the mains incoming supply is not in the very hazardous condition of line/ phase reversal.

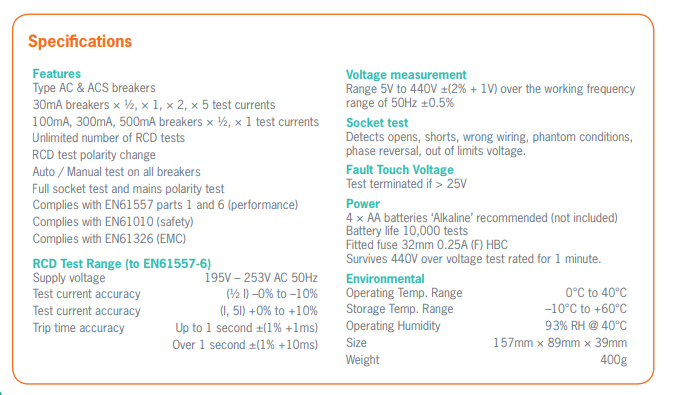

Please refer to the manufacturer’s website for further information on this product.
