The images provided are of the actual item you will receive. Please review them carefully for cosmetic condition.

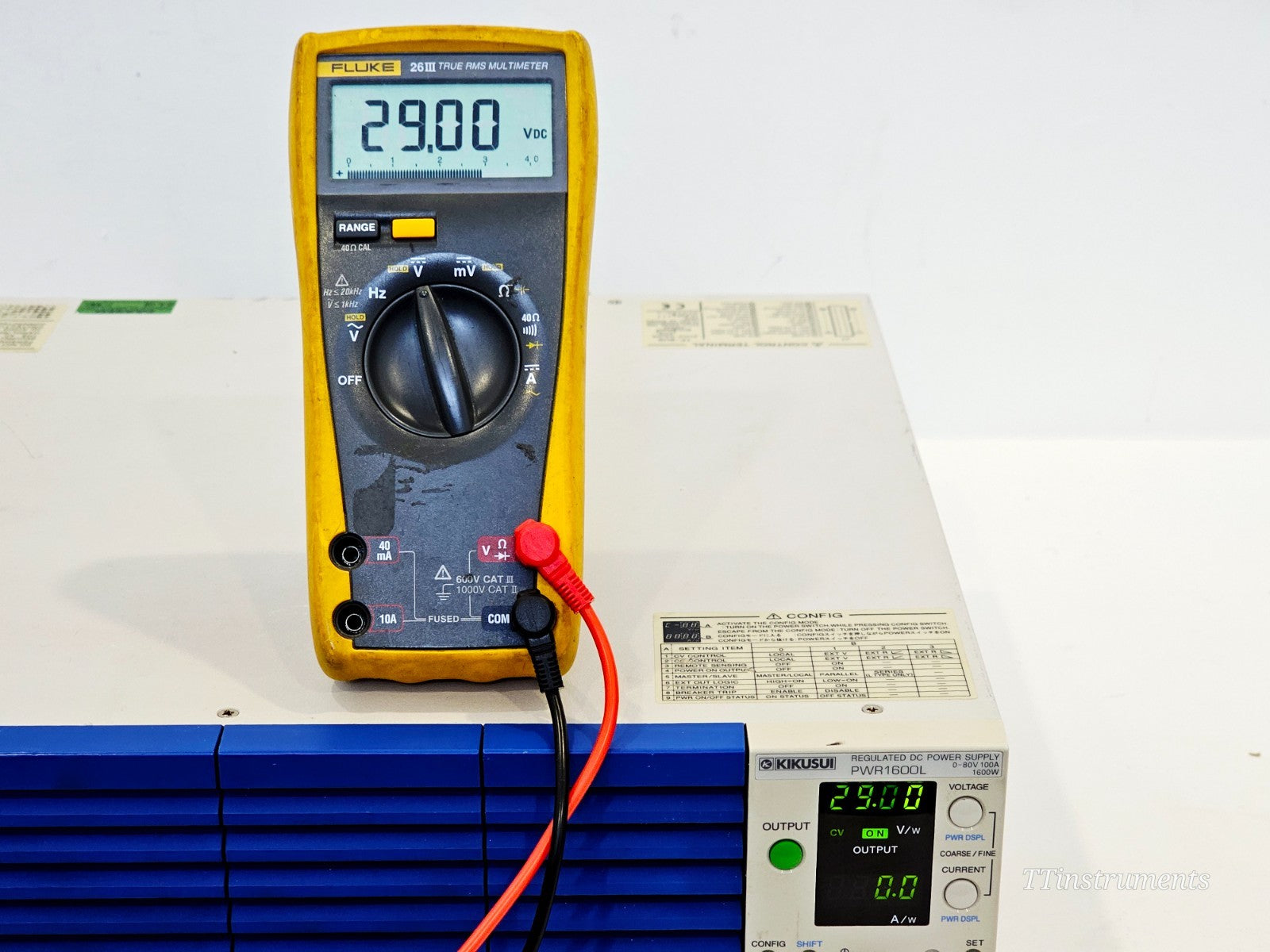

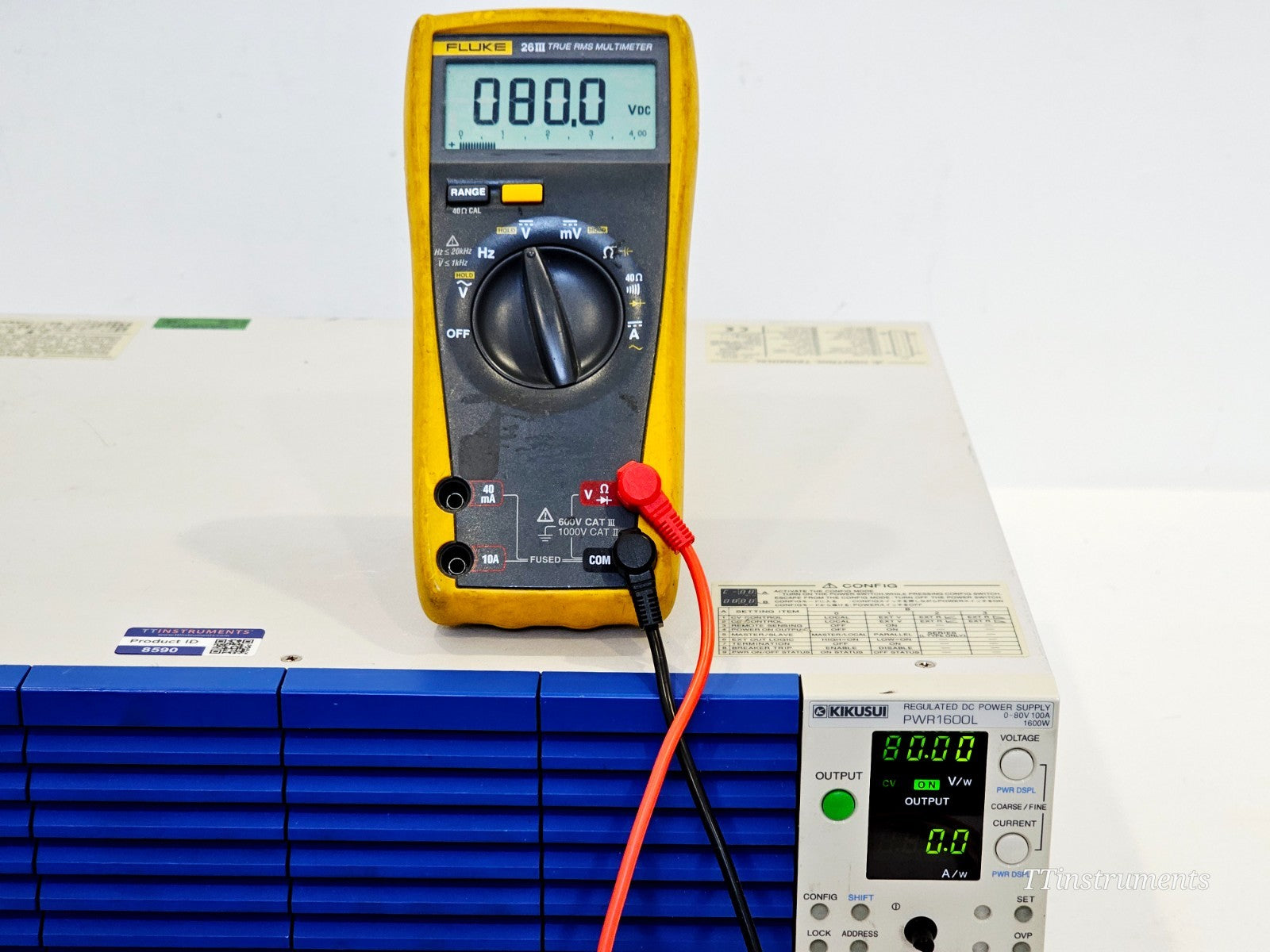

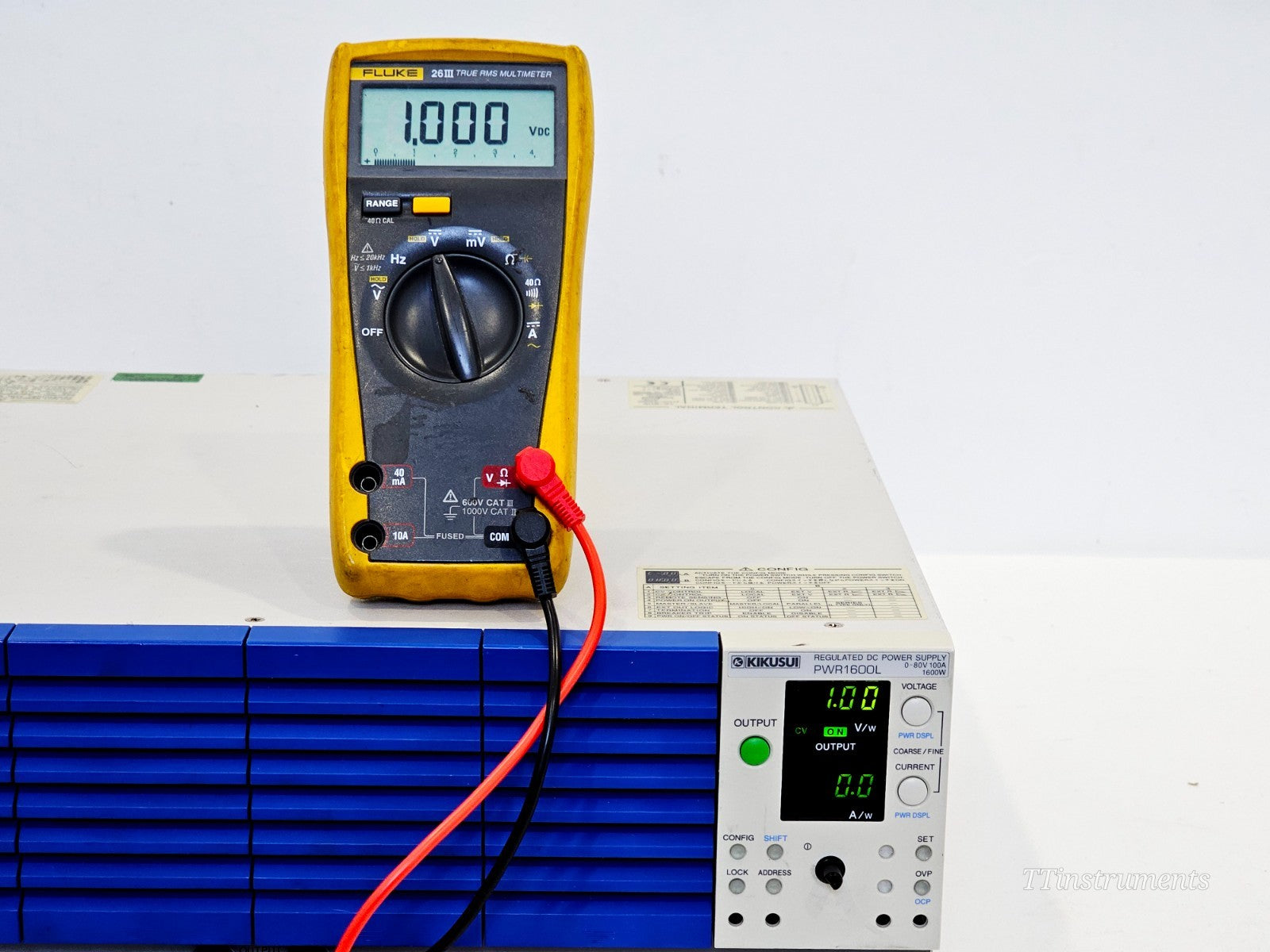

This Kikusui PWR1600L is in used condition. One of the front panel dials is broken; all other controls and functions are fully operational. The unit has been fully tested and confirmed working accurately across the output range from 1 V to 80 V at 5 A, passing within manufacturer specifications throughout.

What's included:
• Kikusui PWR1600L DC Power Supply unit (one front dial is broken)
• UK mains power lead
• Output test leads (red and black banana plug leads)

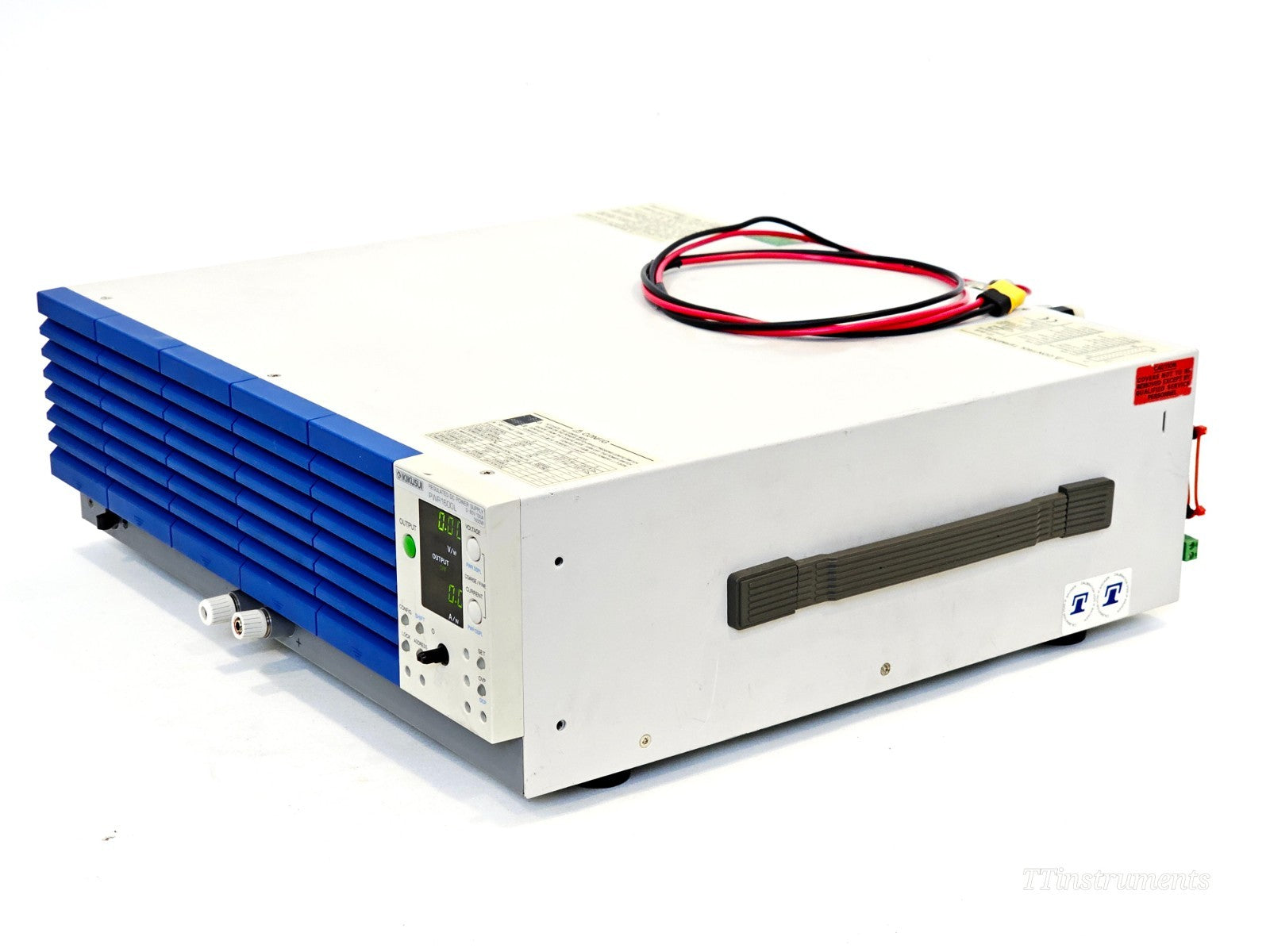

The Kikusui PWR1600L is a 1600 W wide-range CV/CC automatic crossover DC power supply, designed to combine a wide range of voltages and currents within a single output power rating — making it equivalent to three to six conventional fixed-range DC power supplies in one instrument.

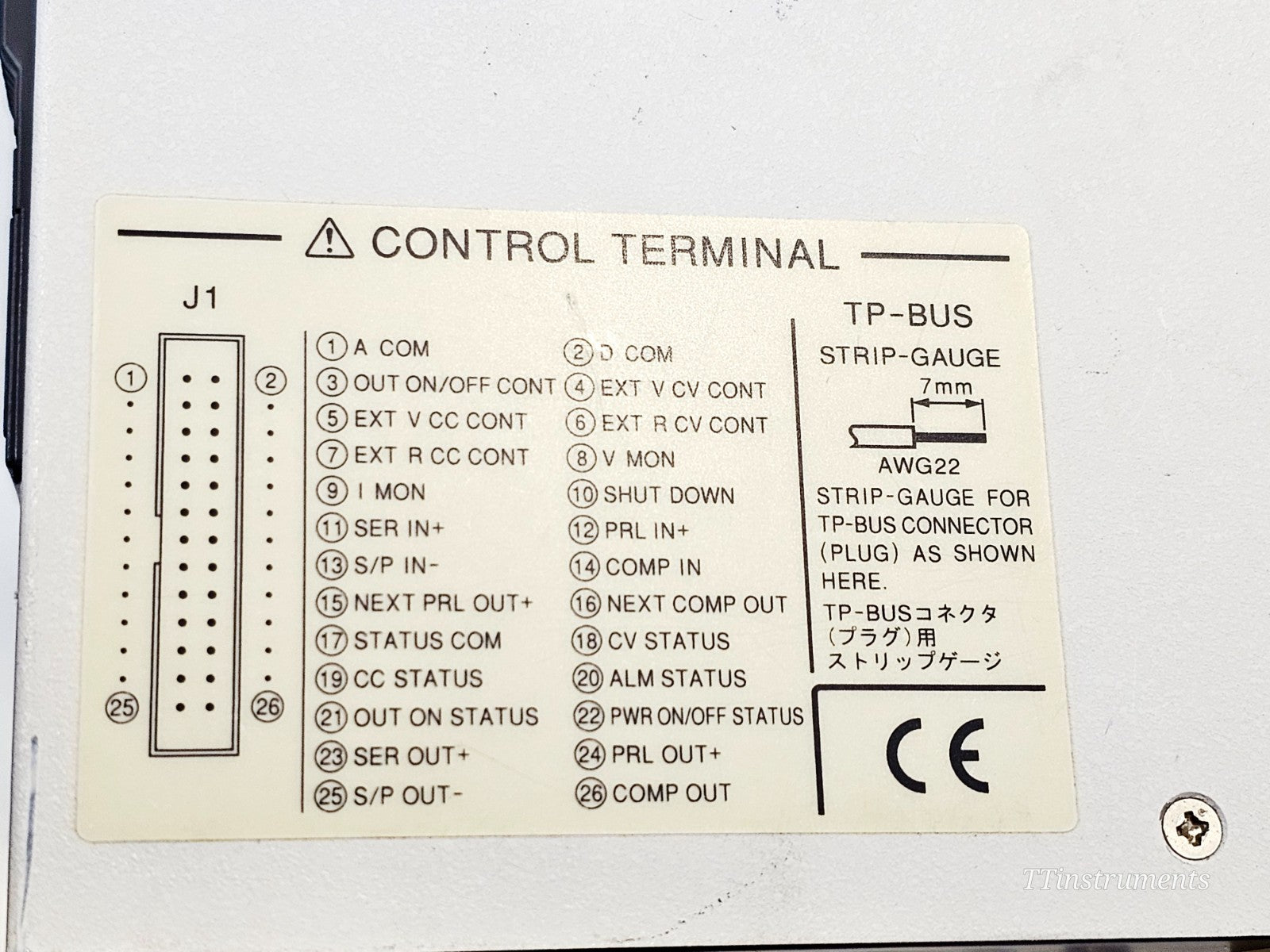

The PWR1600L (L type) covers 0–80 V and 0–100 A within its 1600 W power envelope, with seamless operation from 80 V / 20 A down to 16 V / 100 A. The L type provides an extended operating area capable of outputting up to 160% of the rated current, enabling continuous output up to 120% and intermittent (up to 10 minutes) output up to 160% — ideal for motor start-up testing and high-inrush applications. Multiple units can be connected in parallel for up to 8 kW total output, or in series for up to 160 V. Standard TP-BUS digital communication and a comprehensive J1 analogue control interface provide full remote control capability. Protection functions include OVP, OCP, over-power, over-temperature, and power limit. CE marked and Made in Japan.

Output Power: 1600 W
Output Voltage (CV): 0 – 80 V
Output Current (CC): 0 – 100 A rated; 160 A max (extended)
AC Input: 100 – 240 VAC, 50/60 Hz, single phase, 2500 VA max
Output Ripple (CV): 20 mVrms
Ground Isolation: ±600 V max (L type)
Display: Dual LED, V/W and A/W
Display Accuracy: ±(2% of reading + 5 digits)
Protection: OVP, OCP, over-power, over-temperature, power limit
Digital Interface: TP-BUS (standard)
Compliance: CE; Made in Japan
