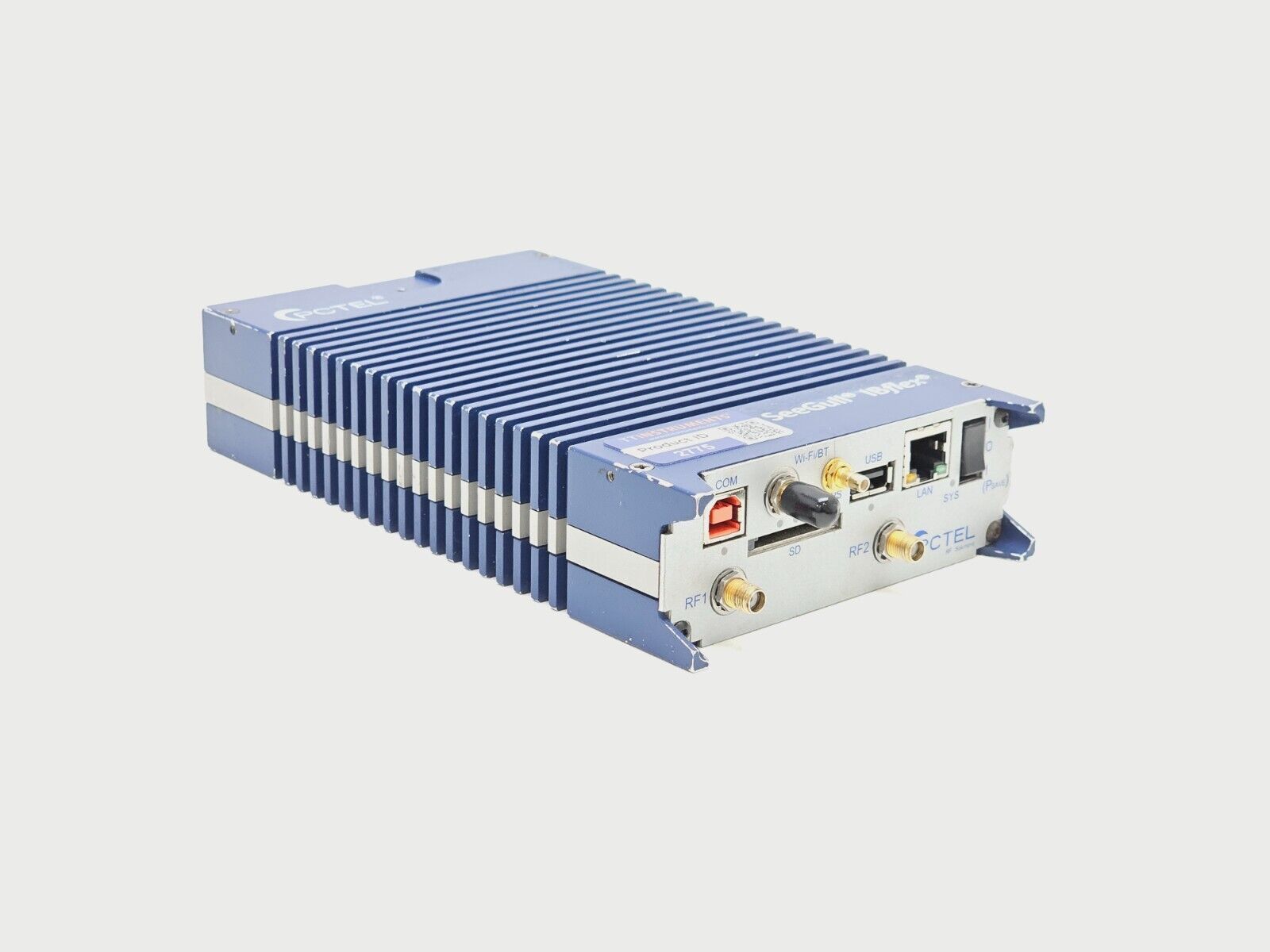

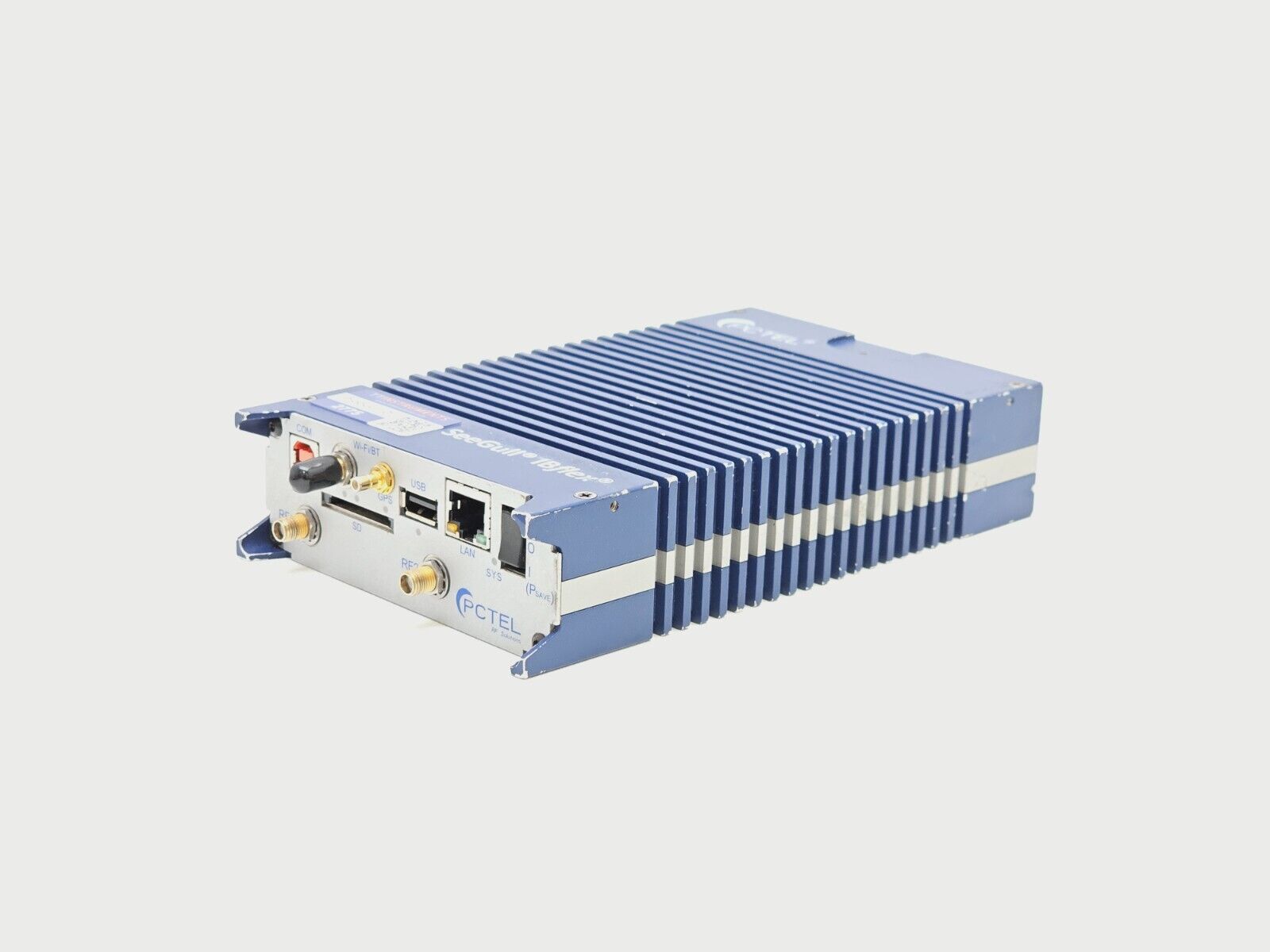

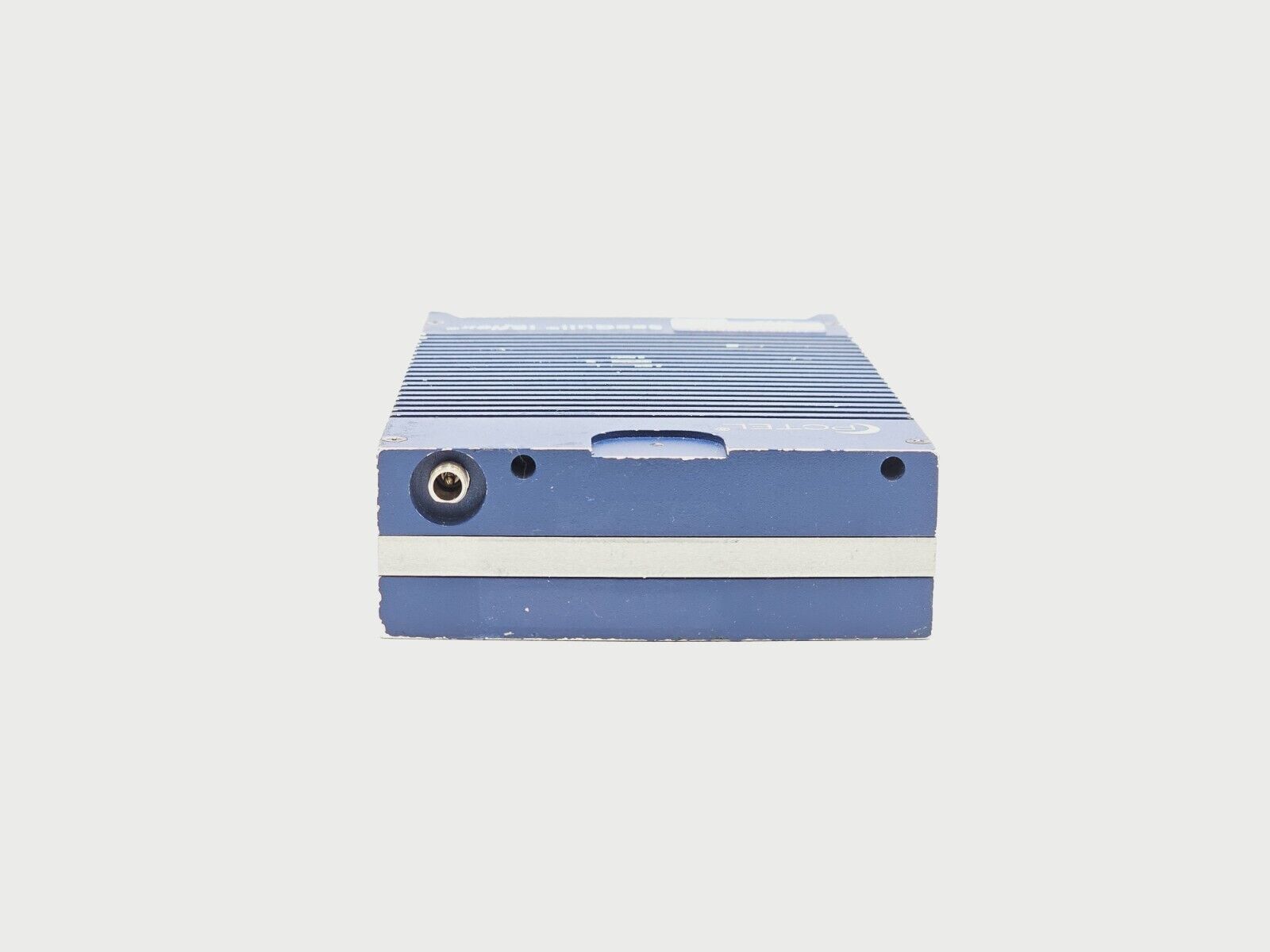

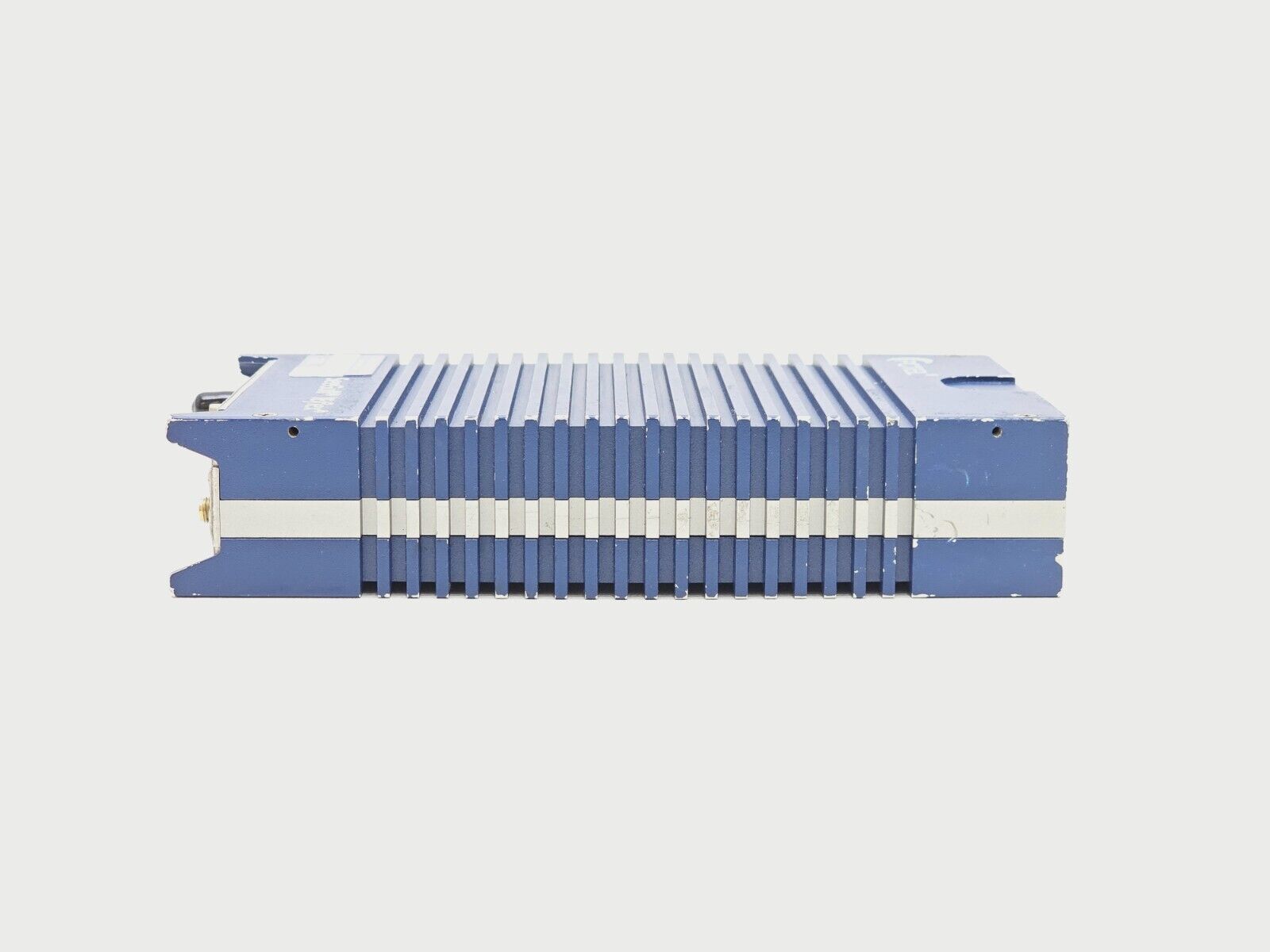

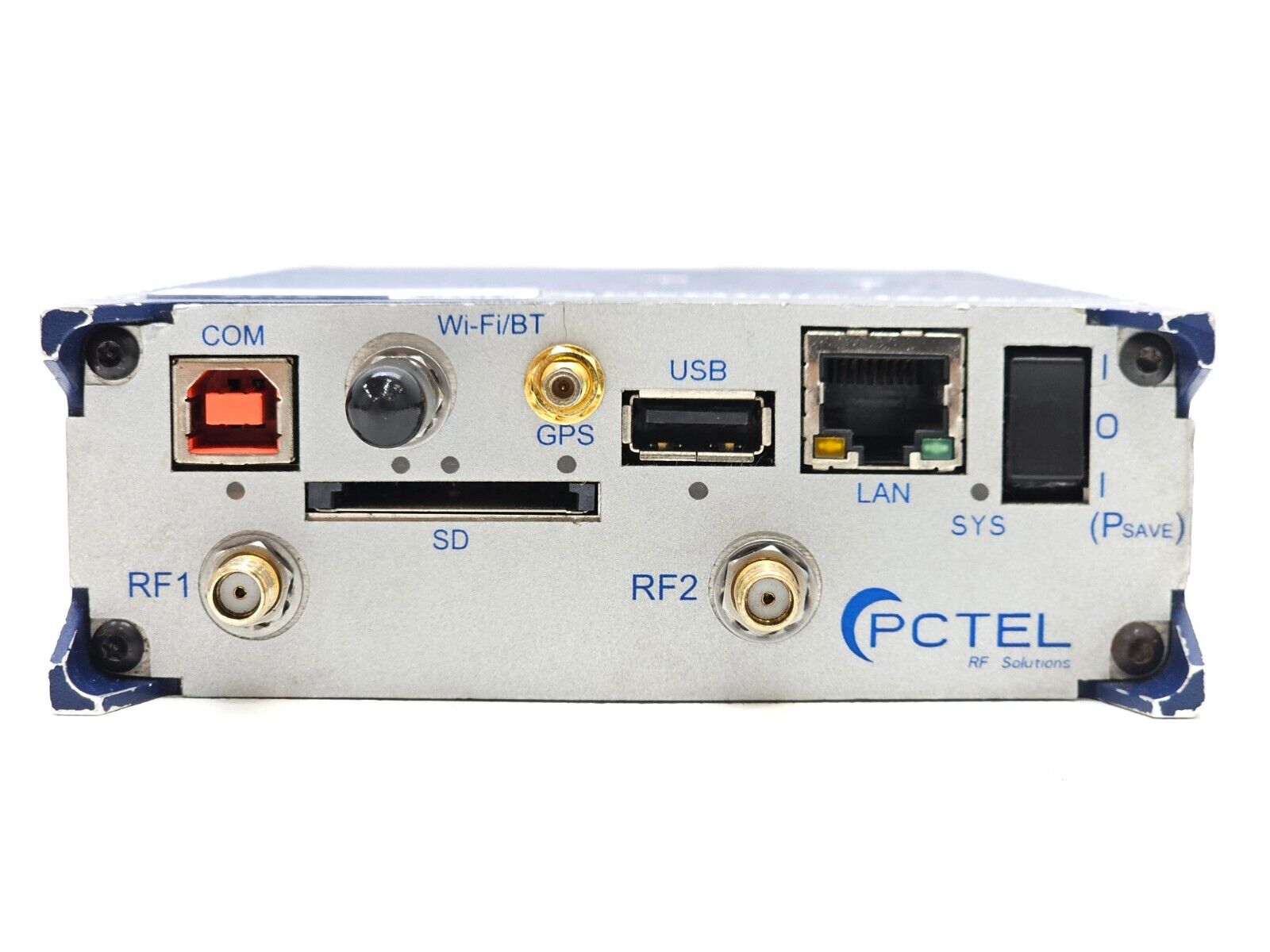

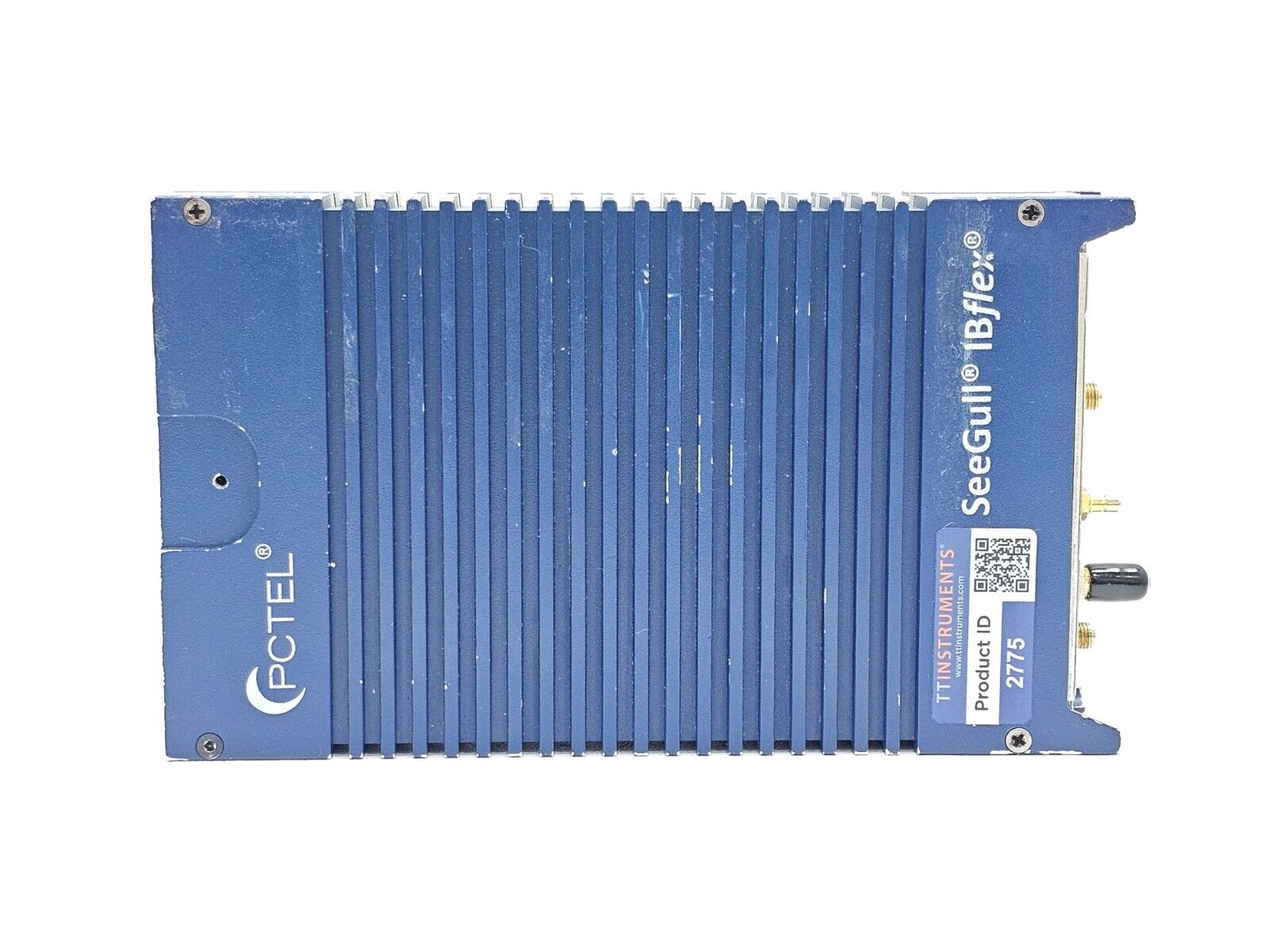

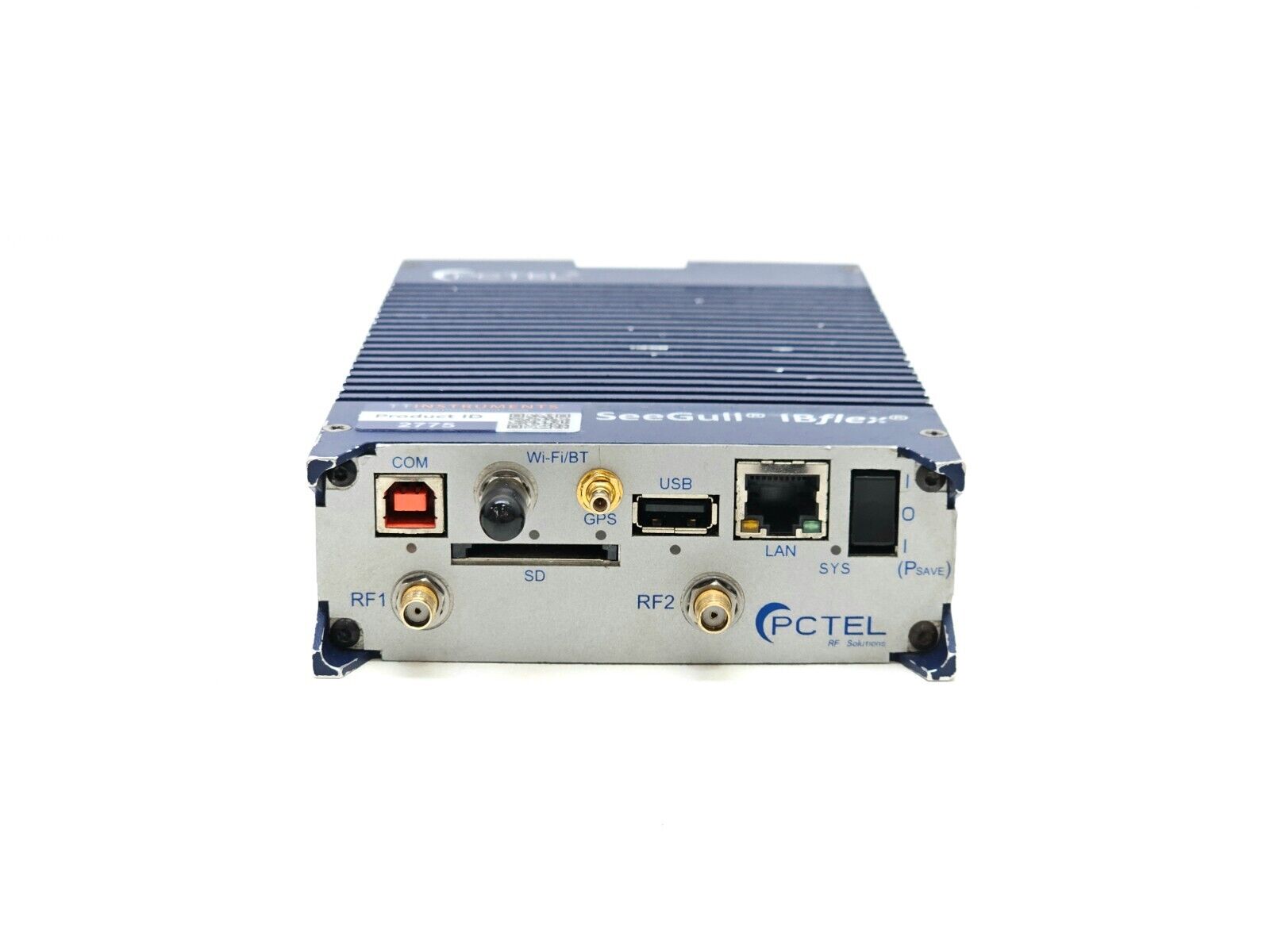

PCTel SeeGull IBflex 570 - 3800 MHz 08900S-E Multiple Band Scanner with Options
Model: SeeGull IBflex
Condition: Used
In stock: 1
SKU: 2775 7F01
- Mobile Network Scanners
- Offers Accepted
- RF & Microwave
Make us an offer, name your price!
Thank you for your interest in this product! If the price of this product is slightly beyond your budget we may be able to adjust our price for you as long as your offer is close enough. Leave your details below and we will come back to you within 24 hours.
Choose options
Condition: Used
Multiple options enabled as per images and description below. Note this device was tested with a trial software from PCTel, you will need to purchase your own software to use the device.
Included in the sale:

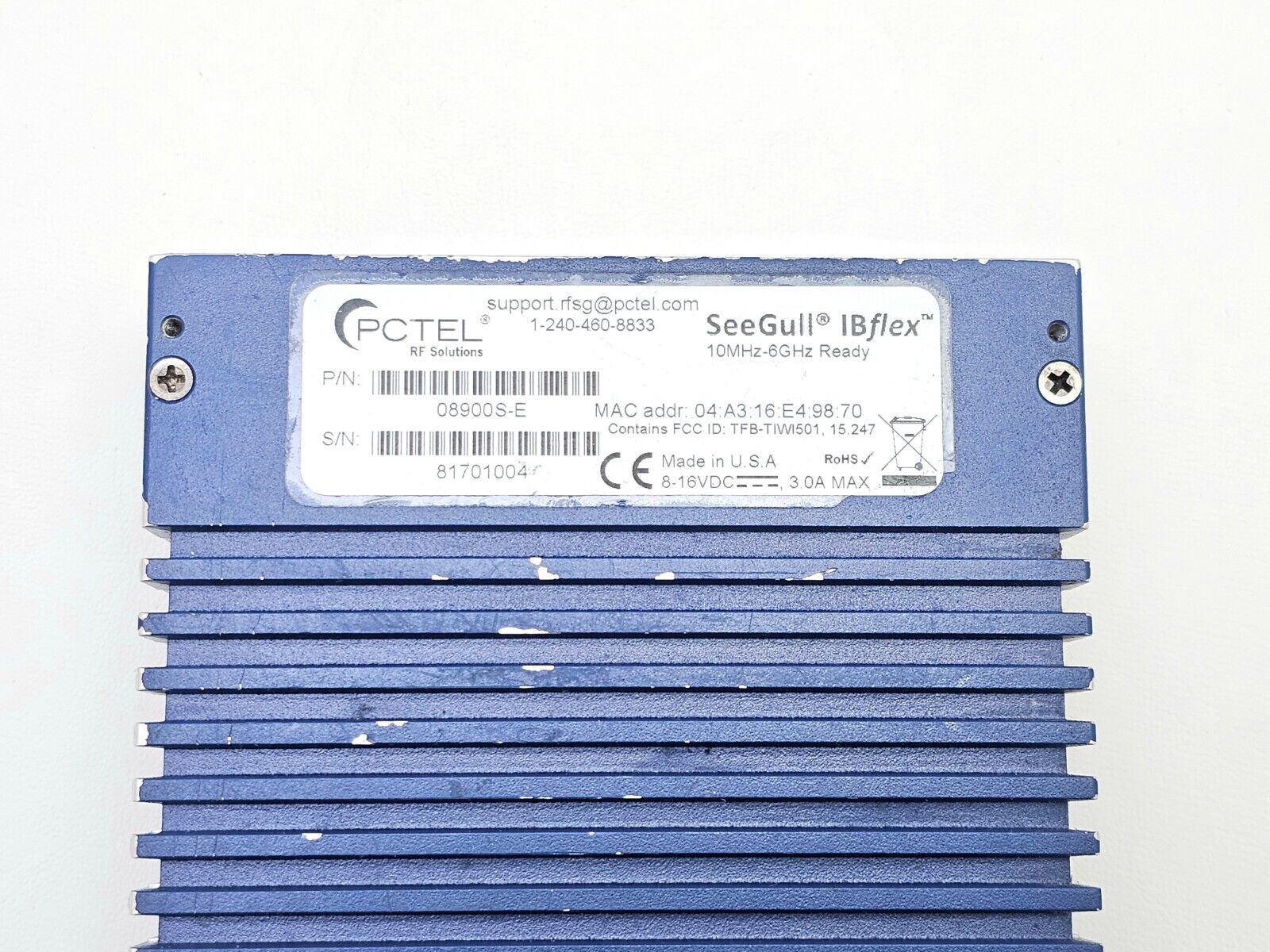

IBflex 570 - 3800 MHz 08900S-E

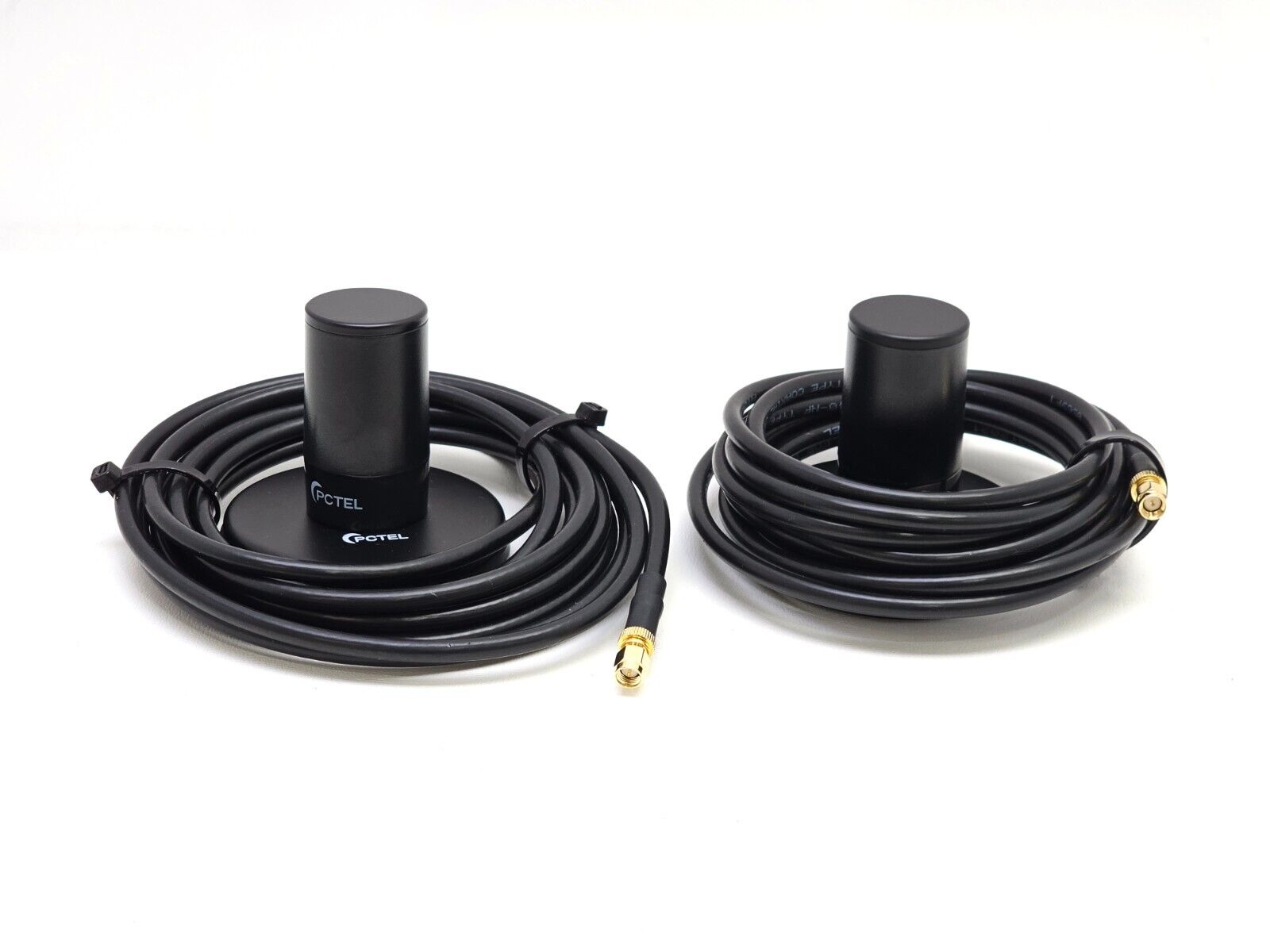

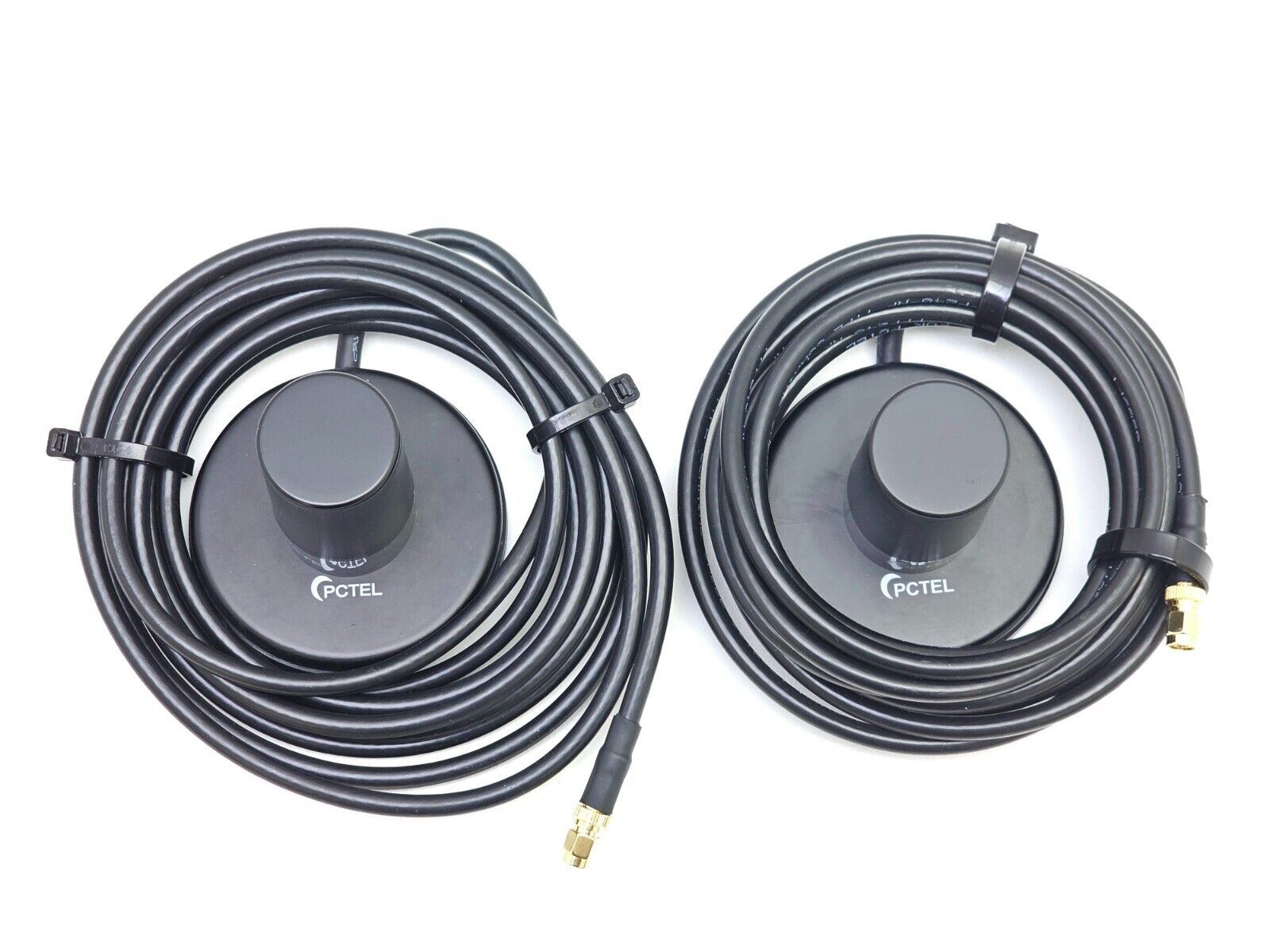

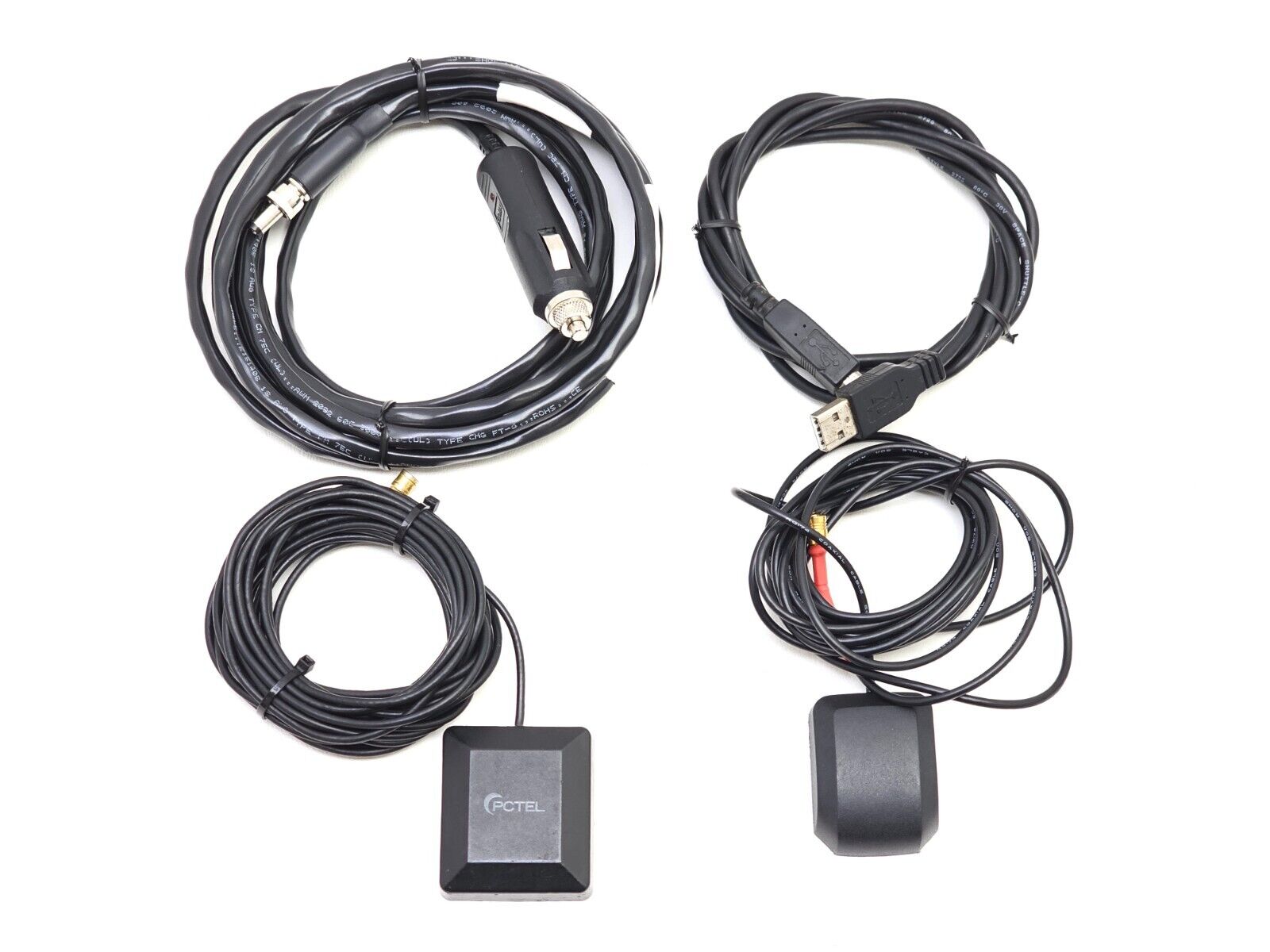

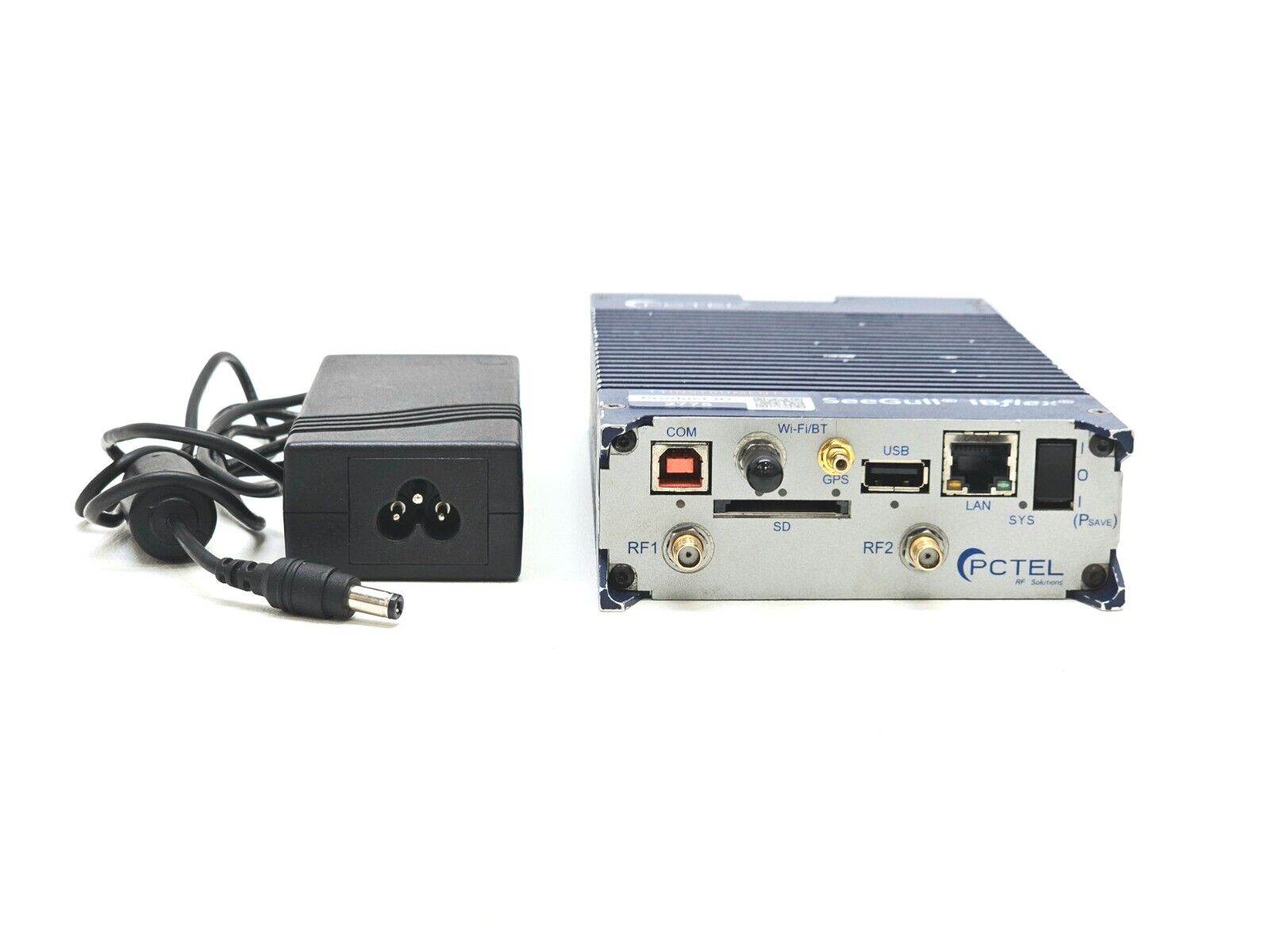

2 GPS receiver, 2x PCTel 698 to 3800 MHz antennas, USB data cable, power adapter, in car charger, can connect wirelessly to mobile devices and pc's.
Please see below information we have extracted from the system and INSTALLED OPTIONS.

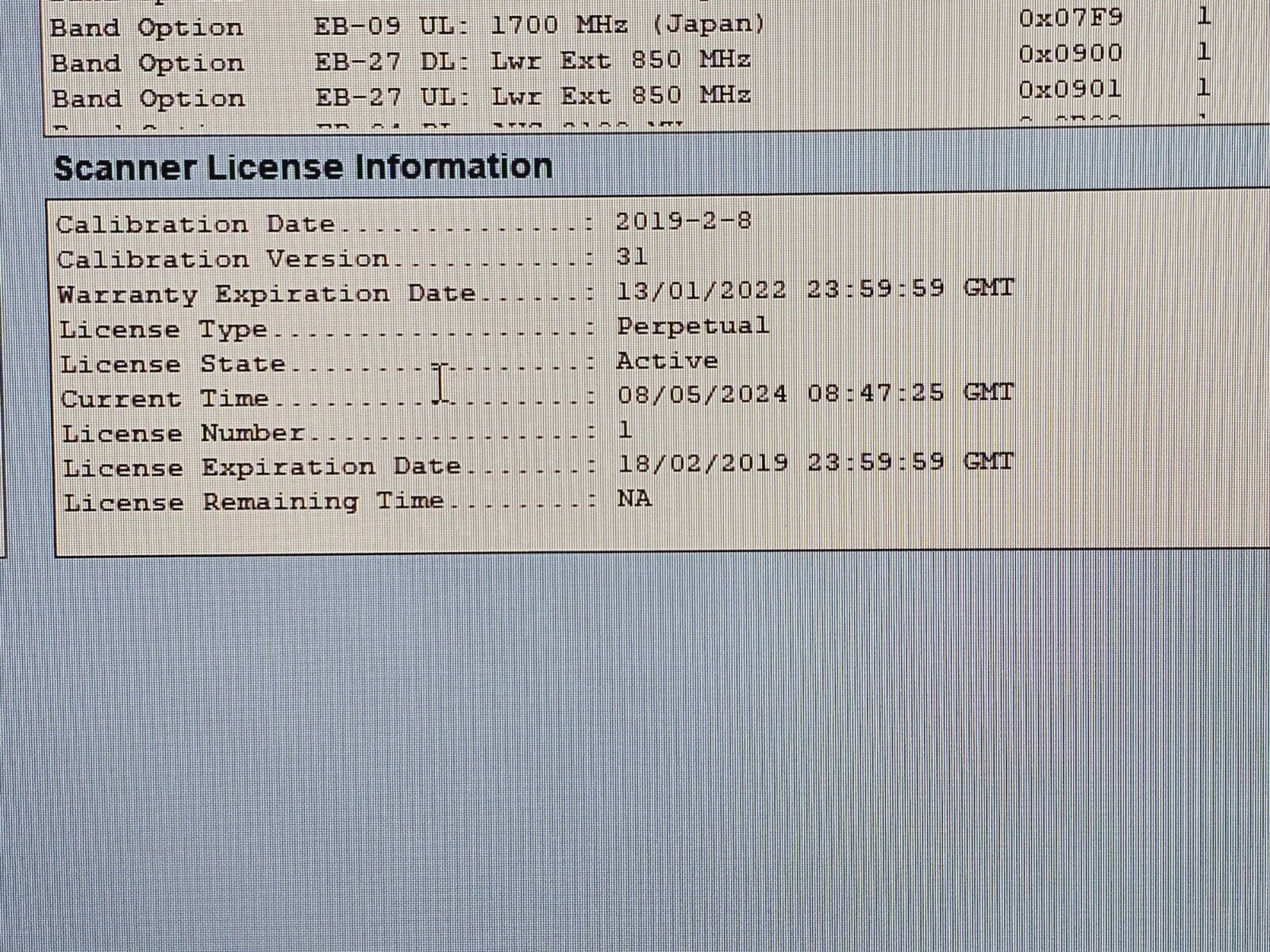

License Information -------------------------------------------------------- Calibration Date..............: 2019-2-8 Calibration Version...........: 31 Warranty Expiration Date......: 13/01/2022 23:59:59 GMT
License Type..................: Perpetual
License State.................: Active Current Time..................: 18/04/2024 10:36:58 GMT License Number................: 1 License Expiration Date.......: 18/02/2019 23:59:59 GMT License Remaining Time........: NA
File Name: Version: PCTEL? Upgrade Assistant 3.2.1.0 ScannerInterface.dll 1.7.0.1 SGACommon.dll 1.3.0.0 SeeGullMaster.dll 3.4.0.0 winusb.dll 6.0.6000.16386 (vista_rtm.061101-2205) SplashScreen.dll 1.0.0.0 DevComponents.DotNetBar2.dll 8.9.0.2
Unit Level Information --------------------------------------------------------------------- PCTEL Device Type..................: IBflex Unit ESN...........................: 0000-0000-8170-1004 Number of Options..................: 40 Interfaces.........................: USB, Bluetooth, AOA, Ethernet Product Reference Version..........: 1.1.31.0 API Version........................: 2.3.2.0 Software Release Version...........: 3.3.3.0 ASN.1 ICD Version..................: 2.3.1.0 Calibration Date...................: 08/02/2019 Bootup Status......................: Passed
Supported Configurations Protocol Band Band Code Port ---------------------------------------------------------------------
Band Option EB-05 DL: American Cellular 0x0100 1
Band Option EB-05 UL: American Cellular 0x0101 1 Band Option EB-02 DL: American PCS 0x0200 1 Band Option EB-02 UL: American PCS 0x0201 1 Band Option EB-01 DL: 2100 (IMT-2000) 0x0300 1 Band Option EB-01 UL: 2100 (IMT-2000) 0x0301 1 Band Option EB-08 DL: European 900 MHz 0x0600 1 Band Option EB-08 UL: European 900 MHz 0x0601 1 Band Option EB-03 DL: 1800 MHz (DCS) 0x0700 1 Band Option EB-03 UL: 1800 MHz (DCS) 0x0701 1 Band Option EB-09 DL: 1700 MHz (Japan) 0x07F8 1 Band Option EB-09 UL: 1700 MHz (Japan) 0x07F9 1 Band Option EB-27 DL: Lwr Ext 850 MHz 0x0900 1 Band Option EB-27 UL: Lwr Ext 850 MHz 0x0901 1 Band Option EB-04 DL: AWS 2100 MHz 0x0B00 1 Band Option EB-04 UL: AWS 2100 MHz 0x0B01 1 Band Option EB-13/14L DL: US 700 Upp C/D 0x1000 1 Band Option EB-13/14L UL: US 700 Upp C/D 0x1001 1 Band Option EB-13 DL: US 700 Upp C 0x1010 1 Band Option EB-13 UL: US 700 Upp C 0x1011 1 Band Option EB-14 DL: Upper 700 D 0x1020 1 Band Option EB-14 UL: Upper 700 D 0x1021 1 Band Option EB-12 DL: US Lwr 700 A/B/C 0x1100 1 Band Option EB-12 UL: US Lwr 700 A/B/C 0x1101 1 Band Option EB-17 DL: US Lwr 700 B/C 0x11F8 1 Band Option EB-17 UL: US Lwr 700 B/C 0x11F9 1 Band Option EB-07 DL: 2600 IMT Extension 0x1200 1 Band Option EB-07 UL: 2600 IMT Extension 0x1201 1 Band Option EB-11 DL: 1500 MHz 0x1300 1 Band Option EB-11 UL: 1500 MHz 0x1301 1 Band Option EB-21 DL: Ext 1500 MHz 0x1400 1 Band Option EB-21 UL: Ext 1500 MHz 0x1401 1 Band Option EB-25 DL: Ext US PCS 0x1500 1 Band Option EB-25 UL: Ext US PCS 0x1501 1 Band Option EB-06 DL: 800 MHz 0x1600 1 Band Option EB-06 UL: 800 MHz 0x1601 1 Band Option EB-18 DL: Japan Lwr 800 0x1700 1 Band Option EB-18 UL: Japan Lwr 800 0x1701 1 Band Option EB-19 DL: Japan Uppr 800 0x1800 1 Band Option EB-19 UL: Japan Uppr 800 0x1801 1 Band Option EB-20 DL: European 800 MHz 0x1A00 1 Band Option EB-20 UL: European 800 MHz 0x1A01 1 Band Option EB-24 DL: 1600 MHz 0x1B00 1 Band Option EB-24 UL: 1600 MHz 0x1B01 1 Band Option EB-38: TDD 2.6 GHz 0x1C03 1 Band Option EB-40: TDD 2.3 GHz 0x1D03 1 Band Option EB-41: TDD 2.5 GHz 0x1E03 1 Band Option EB-41 TDD 2.5 GHz Lower 0x1EC3 1 Band Option EB-39: TDD 1.9 GHz 0x1F03 1 Band Option EB-26 DL: Uppr Ext 850 MHz 0x2100 1 Band Option EB-26 UL: Uppr Ext 850 MHz 0x2101 1 Band Option EB-28 DL: 700 APAC (CALA) 0x2200 1 Band Option EB-28 UL: 700 APAC (CALA) 0x2201 1 Band Option EB-42: TDD 3.4 GHz 0x2303 1 Band Option EB-43: TDD 3.6 GHz 0x2403 1 Band Option EB-44: TDD 700 MHz 0x2503 1 Band Option EB-33: TDD 2000 MHz 0x2603 1 Band Option EB-34: Chinese TDD 2000 MHz 0x2703 1 Band Option EB-35: TDD 1900 (PCS) Lower 0x2803 1 Band Option EB-36: TDD 1900 (PCS) Upper 0x2903 1 Band Option EB-37: TDD 1900 (PCS) Center Gap 0x2A03 1 Band Option EB-10 DL: Ext 2100 (AWS) 0x2B00 1 Band Option EB-10 UL: Ext 2100 (AWS) 0x2B01 1 Band Option EB-22 DL: 3.5 GHz 0x2C00 1 Band Option EB-22 UL: 3.5 GHz 0x2C01 1 Band Option EB-29 DL: US 700 MHz 0x2D00 1 Band Option R-GSM 900 MHz DL 0x2E00 1 Band Option R-GSM 900 MHz UL 0x2E01 1 Band Option EB-23 DL: S-Band 2 GHz 0x3100 1 Band Option EB-23 UL: S-Band 2 GHz 0x3101 1 Band Option EB-30 DL: 2.3 GHz (WCS A/B) 0x3200 1 Band Option EB-30 UL: 2.3 GHz (WCS A/B) 0x3201 1 Band Option WiFi: Device Band 0x3303 1 Band Option EB-32 DL: 1500 (L-Band) 0x3400 1 Band Option ER-GSM: 900 MHz DL 0x3500 1 Band Option ER-GSM: 900 MHz UL 0x3501 1 Band Option EB-66 AWS-3 DL:(2110-2200 MHz) 0x3800 1 Band Option EB-66 AWS-3 UL:(1710-1800 MHz) 0x3801 1 Band Option EB-45 TDD: (1447-1467 MHz) 0x3903 1 Band Option EB-65 DL: (2110-2200 MHz) 0x3C00 1 Band Option EB-65 UL: (1920-2010 MHz) 0x3C01 1 Band Option EB-67 DL: (738-758 MHz) 0x3D00 1 Band Option EB-68 DL: (753-783 MHz) 0x3E00 1 Band Option EB-68 UL: (698-728 MHz) 0x3E01 1 Band Option 570-3800 MHz 0x7030 1 GSM EB-05 DL: American Cellular 0x0100 1 GSM EB-05 UL: American Cellular 0x0101 1 GSM EB-02 DL: American PCS 0x0200 1 GSM EB-02 UL: American PCS 0x0201 1 GSM EB-08 DL: European 900 MHz 0x0600 1 GSM EB-08 UL: European 900 MHz 0x0601 1 GSM EB-03 DL: 1800 MHz (DCS) 0x0700 1 GSM EB-03 UL: 1800 MHz (DCS) 0x0701 1 GSM R-GSM 900 MHz DL 0x2E00 1 GSM R-GSM 900 MHz UL 0x2E01 1 GSM ER-GSM: 900 MHz DL 0x3500 1 GSM ER-GSM: 900 MHz UL 0x3501 1 CDMA(95) EB-05 DL: American Cellular 0x0100 1 CDMA(95) EB-05 UL: American Cellular 0x0101 1 CDMA(95) EB-02 DL: American PCS 0x0200 1 CDMA(95) EB-02 UL: American PCS 0x0201 1 CDMA(95) EB-01 DL: 2100 (IMT-2000) 0x0300 1 CDMA(95) EB-01 UL: 2100 (IMT-2000) 0x0301 1 CDMA(95) EB-03 DL: 1800 MHz (DCS) 0x0700 1 CDMA(95) EB-03 UL: 1800 MHz (DCS) 0x0701 1 CDMA(95) EB-27 DL: Lwr Ext 850 MHz 0x0900 1 CDMA(95) EB-27 UL: Lwr Ext 850 MHz 0x0901 1 CDMA(95) EB-04 DL: AWS 2100 MHz 0x0B00 1 CDMA(95) EB-04 UL: AWS 2100 MHz 0x0B01 1 CDMA(95) EB-25 DL: Ext US PCS 0x1500 1 CDMA(95) EB-25 UL: Ext US PCS 0x1501 1 CDMA(95) EB-24 DL: 1600 MHz 0x1B00 1 CDMA(95) EB-24 UL: 1600 MHz 0x1B01 1 WCDMA EB-05 DL: American Cellular 0x0100 1 WCDMA EB-05 UL: American Cellular 0x0101 1 WCDMA EB-02 DL: American PCS 0x0200 1 WCDMA EB-02 UL: American PCS 0x0201 1 WCDMA EB-01 DL: 2100 (IMT-2000) 0x0300 1 WCDMA EB-01 UL: 2100 (IMT-2000) 0x0301 1 WCDMA EB-08 DL: European 900 MHz 0x0600 1 WCDMA EB-08 UL: European 900 MHz 0x0601 1 WCDMA EB-03 DL: 1800 MHz (DCS) 0x0700 1 WCDMA EB-03 UL: 1800 MHz (DCS) 0x0701 1 WCDMA EB-09 DL: 1700 MHz (Japan) 0x07F8 1 WCDMA EB-09 UL: 1700 MHz (Japan) 0x07F9 1 WCDMA EB-04 DL: AWS 2100 MHz 0x0B00 1 WCDMA EB-04 UL: AWS 2100 MHz 0x0B01 1 WCDMA EB-07 DL: 2600 IMT Extension 0x1200 1 WCDMA EB-07 UL: 2600 IMT Extension 0x1201 1 WCDMA EB-11 DL: 1500 MHz 0x1300 1 WCDMA EB-11 UL: 1500 MHz 0x1301 1 WCDMA EB-21 DL: Ext 1500 MHz 0x1400 1 WCDMA EB-21 UL: Ext 1500 MHz 0x1401 1 WCDMA EB-25 DL: Ext US PCS 0x1500 1 WCDMA EB-25 UL: Ext US PCS 0x1501 1 WCDMA EB-06 DL: 800 MHz 0x1600 1 WCDMA EB-06 UL: 800 MHz 0x1601 1 WCDMA EB-19 DL: Japan Uppr 800 0x1800 1 WCDMA EB-19 UL: Japan Uppr 800 0x1801 1 WCDMA EB-10 DL: Ext 2100 (AWS) 0x2B00 1 WCDMA EB-10 UL: Ext 2100 (AWS) 0x2B01 1 CDMA EB-05 DL: American Cellular 0x0100 1 CDMA EB-05 UL: American Cellular 0x0101 1 CDMA EB-02 DL: American PCS 0x0200 1 CDMA EB-02 UL: American PCS 0x0201 1 CDMA EB-01 DL: 2100 (IMT-2000) 0x0300 1 CDMA EB-01 UL: 2100 (IMT-2000) 0x0301 1 CDMA EB-03 DL: 1800 MHz (DCS) 0x0700 1 CDMA EB-03 UL: 1800 MHz (DCS) 0x0701 1 CDMA EB-27 DL: Lwr Ext 850 MHz 0x0900 1 CDMA EB-27 UL: Lwr Ext 850 MHz 0x0901 1 CDMA EB-04 DL: AWS 2100 MHz 0x0B00 1 CDMA EB-04 UL: AWS 2100 MHz 0x0B01 1 CDMA EB-25 DL: Ext US PCS 0x1500 1 CDMA EB-25 UL: Ext US PCS 0x1501 1 CDMA EB-24 DL: 1600 MHz 0x1B00 1 CDMA EB-24 UL: 1600 MHz 0x1B01 1 EV-DO EB-05 DL: American Cellular 0x0100 1 EV-DO EB-05 UL: American Cellular 0x0101 1 EV-DO EB-02 DL: American PCS 0x0200 1 EV-DO EB-02 UL: American PCS 0x0201 1 EV-DO EB-01 DL: 2100 (IMT-2000) 0x0300 1 EV-DO EB-01 UL: 2100 (IMT-2000) 0x0301 1 EV-DO EB-03 DL: 1800 MHz (DCS) 0x0700 1 EV-DO EB-03 UL: 1800 MHz (DCS) 0x0701 1 EV-DO EB-27 DL: Lwr Ext 850 MHz 0x0900 1 EV-DO EB-27 UL: Lwr Ext 850 MHz 0x0901 1 EV-DO EB-04 DL: AWS 2100 MHz 0x0B00 1 EV-DO EB-04 UL: AWS 2100 MHz 0x0B01 1 EV-DO EB-25 DL: Ext US PCS 0x1500 1 EV-DO EB-25 UL: Ext US PCS 0x1501 1 EV-DO EB-24 DL: 1600 MHz 0x1B00 1 EV-DO EB-24 UL: 1600 MHz 0x1B01 1 TDSCDMA EB-40: TDD 2.3 GHz 0x1D03 1 TDSCDMA EB-39: TDD 1.9 GHz 0x1F03 1 TDSCDMA EB-34: Chinese TDD 2000 MHz 0x2703 1 LTE EB-05 DL: American Cellular 0x0100 1 LTE EB-05 UL: American Cellular 0x0101 1 LTE EB-02 DL: American PCS 0x0200 1 LTE EB-02 UL: American PCS 0x0201 1 LTE EB-01 DL: 2100 (IMT-2000) 0x0300 1 LTE EB-01 UL: 2100 (IMT-2000) 0x0301 1 LTE EB-08 DL: European 900 MHz 0x0600 1 LTE EB-08 UL: European 900 MHz 0x0601 1 LTE EB-03 DL: 1800 MHz (DCS) 0x0700 1 LTE EB-03 UL: 1800 MHz (DCS) 0x0701 1 LTE EB-09 DL: 1700 MHz (Japan) 0x07F8 1 LTE EB-09 UL: 1700 MHz (Japan) 0x07F9 1 LTE EB-27 DL: Lwr Ext 850 MHz 0x0900 1 LTE EB-27 UL: Lwr Ext 850 MHz 0x0901 1 LTE EB-04 DL: AWS 2100 MHz 0x0B00 1 LTE EB-04 UL: AWS 2100 MHz 0x0B01 1 LTE EB-13/14L DL: US 700 Upp C/D 0x1000 1 LTE EB-13/14L UL: US 700 Upp C/D 0x1001 1 LTE EB-13 DL: US 700 Upp C 0x1010 1 LTE EB-13 UL: US 700 Upp C 0x1011 1 LTE EB-14 DL: Upper 700 D 0x1020 1 LTE EB-14 UL: Upper 700 D 0x1021 1 LTE EB-12 DL: US Lwr 700 A/B/C 0x1100 1 LTE EB-12 UL: US Lwr 700 A/B/C 0x1101 1 LTE EB-17 DL: US Lwr 700 B/C 0x11F8 1 LTE EB-17 UL: US Lwr 700 B/C 0x11F9 1 LTE EB-07 DL: 2600 IMT Extension 0x1200 1 LTE EB-07 UL: 2600 IMT Extension 0x1201 1 LTE EB-11 DL: 1500 MHz 0x1300 1 LTE EB-11 UL: 1500 MHz 0x1301 1 LTE EB-21 DL: Ext 1500 MHz 0x1400 1 LTE EB-21 UL: Ext 1500 MHz 0x1401 1 LTE EB-25 DL: Ext US PCS 0x1500 1 LTE EB-25 UL: Ext US PCS 0x1501 1 LTE EB-06 DL: 800 MHz 0x1600 1 LTE EB-06 UL: 800 MHz 0x1601 1 LTE EB-18 DL: Japan Lwr 800 0x1700 1 LTE EB-18 UL: Japan Lwr 800 0x1701 1 LTE EB-19 DL: Japan Uppr 800 0x1800 1 LTE EB-19 UL: Japan Uppr 800 0x1801 1 LTE EB-20 DL: European 800 MHz 0x1A00 1 LTE EB-20 UL: European 800 MHz 0x1A01 1 LTE EB-24 DL: 1600 MHz 0x1B00 1 LTE EB-24 UL: 1600 MHz 0x1B01 1 LTE EB-26 DL: Uppr Ext 850 MHz 0x2100 1 LTE EB-26 UL: Uppr Ext 850 MHz 0x2101 1 LTE EB-28 DL: 700 APAC (CALA) 0x2200 1 LTE EB-28 UL: 700 APAC (CALA) 0x2201 1 LTE EB-10 DL: Ext 2100 (AWS) 0x2B00 1 LTE EB-10 UL: Ext 2100 (AWS) 0x2B01 1 LTE EB-22 DL: 3.5 GHz 0x2C00 1 LTE EB-22 UL: 3.5 GHz 0x2C01 1 LTE EB-29 DL: US 700 MHz 0x2D00 1 LTE EB-23 DL: S-Band 2 GHz 0x3100 1 LTE EB-23 UL: S-Band 2 GHz 0x3101 1 LTE EB-30 DL: 2.3 GHz (WCS A/B) 0x3200 1 LTE EB-30 UL: 2.3 GHz (WCS A/B) 0x3201 1 LTE EB-32 DL: 1500 (L-Band) 0x3400 1 LTE EB-66 AWS-3 DL:(2110-2200 MHz) 0x3800 1 LTE EB-66 AWS-3 UL:(1710-1800 MHz) 0x3801 1 LTE EB-65 DL: (2110-2200 MHz) 0x3C00 1 LTE EB-65 UL: (1920-2010 MHz) 0x3C01 1 LTE EB-67 DL: (738-758 MHz) 0x3D00 1 LTE EB-68 DL: (753-783 MHz) 0x3E00 1 LTE EB-68 UL: (698-728 MHz) 0x3E01 1 LTE 570-3800 MHz 0x7030 1 TD-LTE EB-38: TDD 2.6 GHz 0x1C03 1 TD-LTE EB-40: TDD 2.3 GHz 0x1D03 1 TD-LTE EB-41: TDD 2.5 GHz 0x1E03 1 TD-LTE EB-41 TDD 2.5 GHz Lower 0x1EC3 1 TD-LTE EB-39: TDD 1.9 GHz 0x1F03 1 TD-LTE EB-42: TDD 3.4 GHz 0x2303 1 TD-LTE EB-43: TDD 3.6 GHz 0x2403 1 TD-LTE EB-44: TDD 700 MHz 0x2503 1 TD-LTE EB-33: TDD 2000 MHz 0x2603 1 TD-LTE EB-34: Chinese TDD 2000 MHz 0x2703 1 TD-LTE EB-35: TDD 1900 (PCS) Lower 0x2803 1 TD-LTE EB-36: TDD 1900 (PCS) Upper 0x2903 1 TD-LTE EB-37: TDD 1900 (PCS) Center Gap 0x2A03 1 TD-LTE EB-45 TDD: (1447-1467 MHz) 0x3903 1 TD-LTE 570-3800 MHz 0x7030 1 Wi-Fi WiFi: Device Band 0x3303 1 Protocol/Band Summary Protocol Count --------------------------------------------------------------------- Band Option.......: 85 GSM...............: 12 CDMA(95)..........: 16 WCDMA.............: 28 CDMA..............: 16 EV-DO.............: 16 TDSCDMA...........: 3 LTE...............: 66 TD-LTE............: 15 Wi-Fi.............: 1

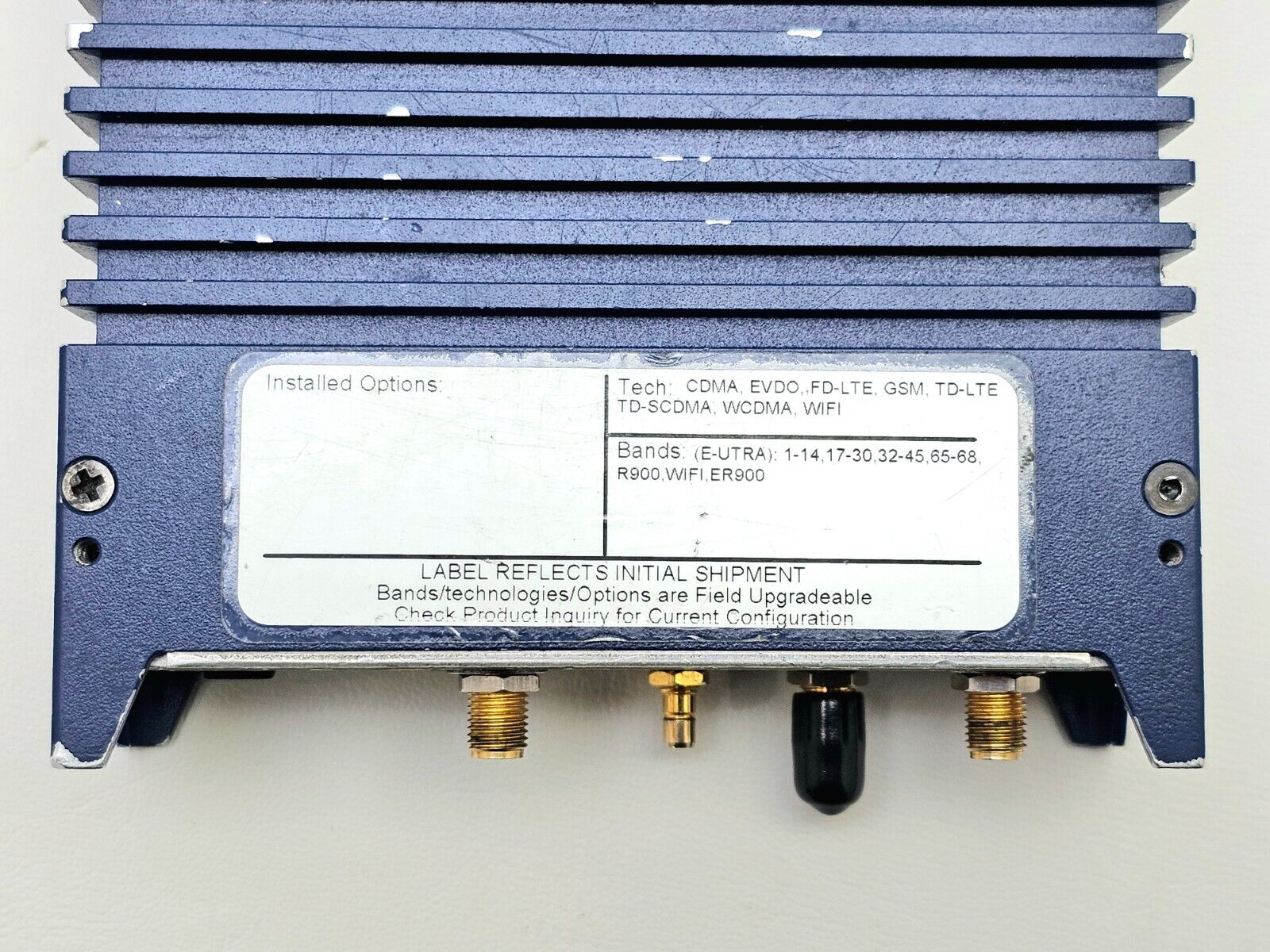

Installed Options ---------------------------------------------------------------------
10MHz-6000MHz Capability............................: 7700-0000 Dual RF Port........................................: 000F-0000 Recording to SD Card................................: 000A-0000
570MHz-3800MHz Model................................: 7031-0000 GPS Navigation......................................: 0001-0000 Absolute Time Stamp.................................: 0005-0000 WiFi USB Adaptor....................................: 0009-0000 Bluetooth Interface.................................: 0007-0000 Ethernet Interface..................................: 000C-0000 GSM Blind Scan......................................: 000B-0001 IS-95 Blind Scan....................................: 000B-0003 WCDMA Blind Scan....................................: 000B-0004 CDMA Blind Scan.....................................: 000B-0005 EVDO Blind Scan.....................................: 000B-0006 LTE Blind Scan......................................: 000B-000A TDLTE Blind Scan....................................: 000B-000B TDSCDMA Blind Scan..................................: 000B-0008 WiFi Support........................................: 0001-000C WiFi Blind Scan.....................................: 000B-000C LTE Support.........................................: 0001-000A IS-95 Support.......................................: 0001-0003 IS-95 Pilot.........................................: 0003-0003 IS-95 Extended Dynamic Range........................: 0008-0003 CDMA Support........................................: 0001-0005 CDMA Pilot..........................................: 0003-0005 CDMA Extended Dynamic Range.........................: 0008-0005 EVDO Support........................................: 0001-0006 EVDO Pilot..........................................: 0003-0006 EVDO Extended Dynamic Range.........................: 0008-0006 TDSCDMA Support.....................................: 0001-0008 TDSCDMA Pilot.......................................: 0003-0008 LTE Enhanced Signal Scan............................: 000C-000A TDLTE Support.......................................: 0001-000B TDLTE Enhanced Signal Scan..........................: 000C-000B GSM Support.........................................: 0001-0001 GSM BSIC............................................: 0002-0001 GSM BCCH C/I........................................: 0004-0001 WCDMA Support.......................................: 0001-0004 WCDMA Pilot.........................................: 0003-0004 WCDMA Extended Dynamic Range........................: 0008-0004
In-Building and Outdoor Network Testing
The PCTEL® IBflex scanning receiver combines portability and accuracy with the power to test multiple technologies and bands simultaneously. It can be used to deploy 5G New Radio networks in sub-6 GHz spectrum, verify public safety coverage, optimize dense small cell deployments, and improve the reliability of IoT systems. Low power consumption and a hot-swap battery system make the IBflex scanner a convenient tool for a long day of walk testing or interference hunting.
BANDS: 5G: 3GPP FR1 • All existing 2G, 3G, and 4G • CBRS • Public safety • WiFi (2.4 and 5 GHz) • Other bands currently deployed around the world B
Features: • 4G/5G Dynamic Spectrum Sharing (DSS) • Dual polarization beamforming measurements • 2x2 and 4x2 LTE MIMO measurements • Hot-swap battery system • Windows® laptop and Android™ tablet support • Connect with Bluetooth® or USB • Blind Scan for automatic channel detection • LMR active channel scan F
Technologies: • 5G NR • LTE FDD • TD-LTE • NB-IoT • UMTS • GSM Custom Channel Power Measurements for additional technologies • CDMA • EV-DO • WiFi • LAA • P25 • DMR • TETRA
For the manufacturer datasheet, please click here
