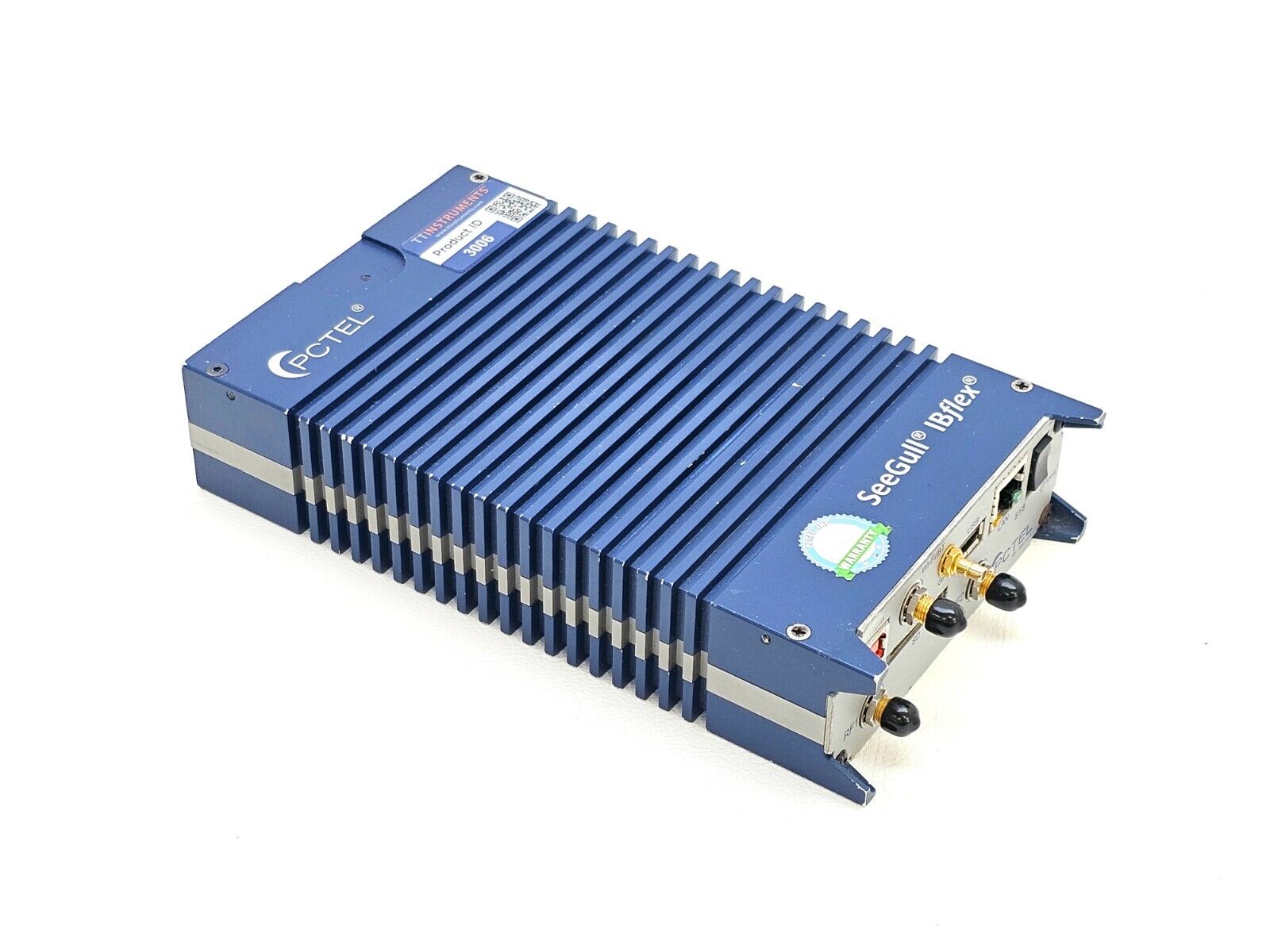

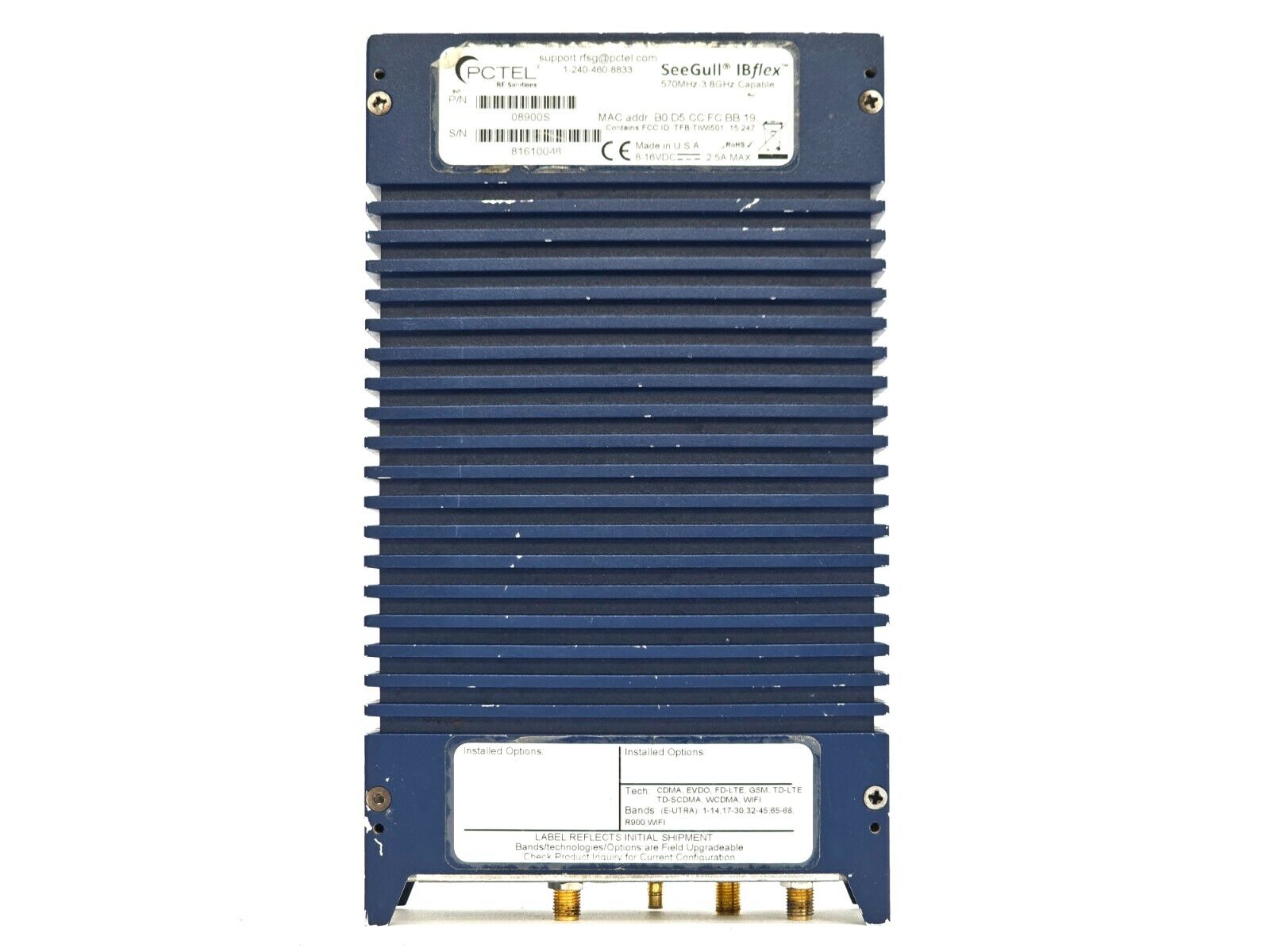

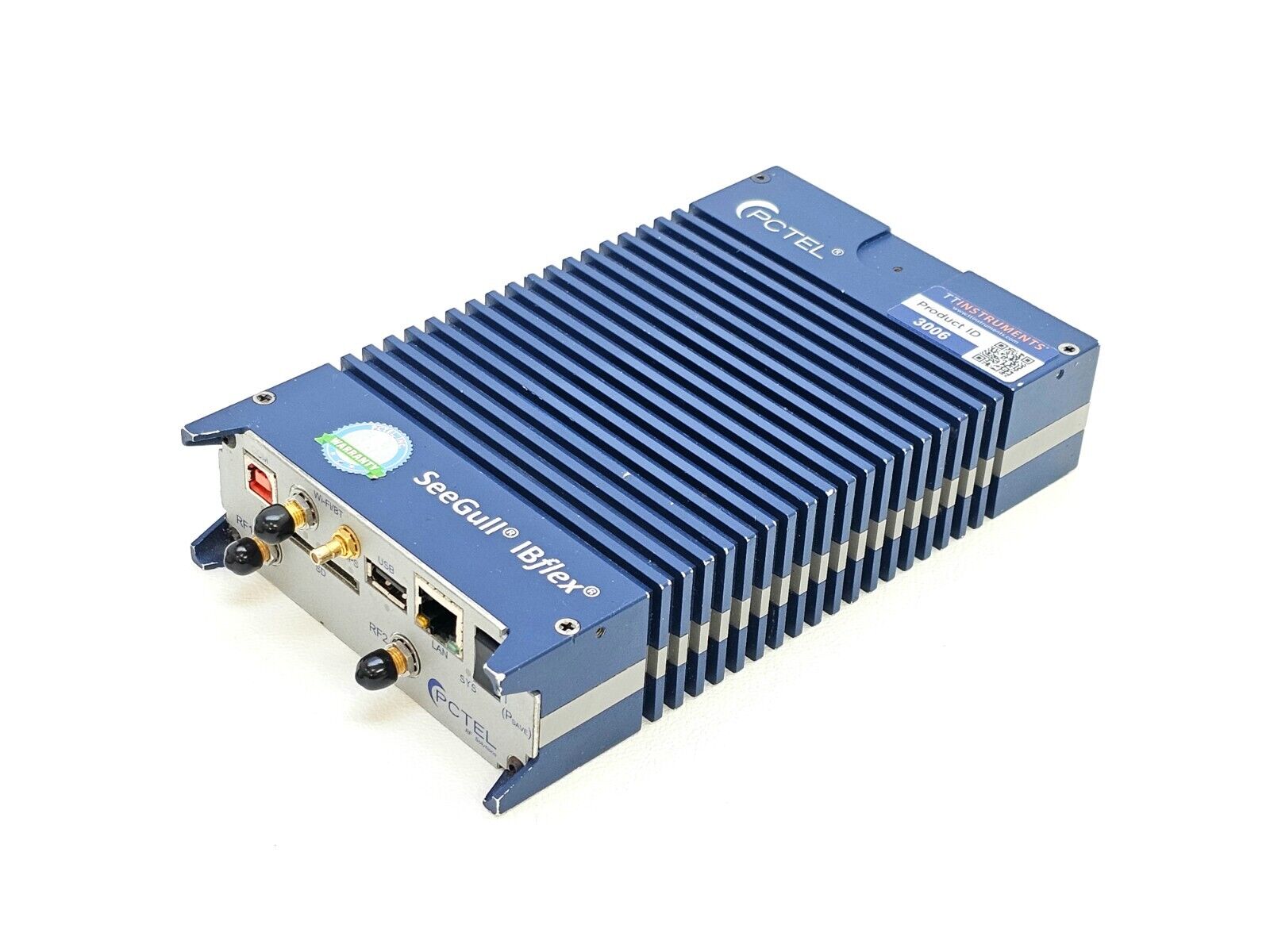

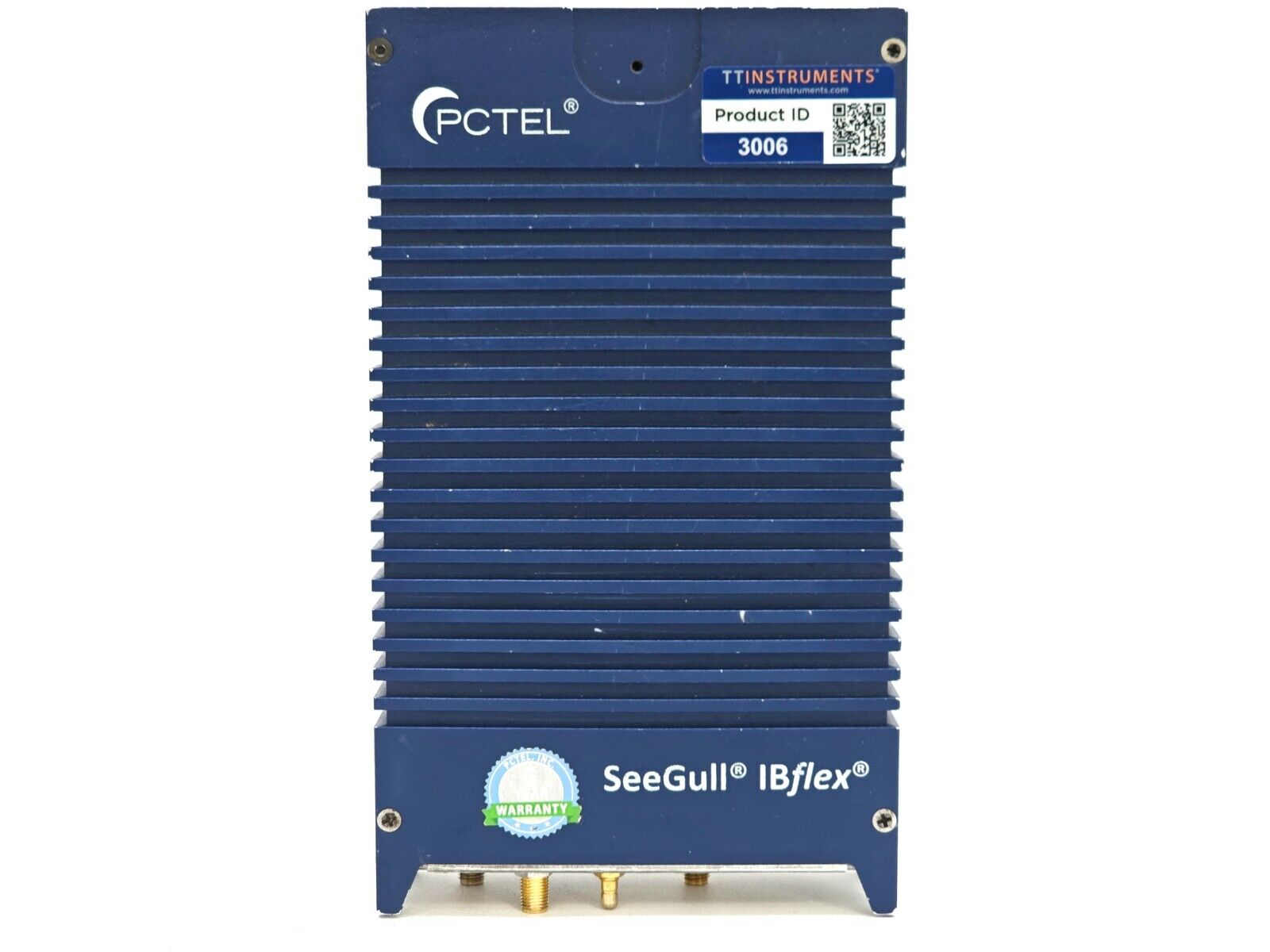

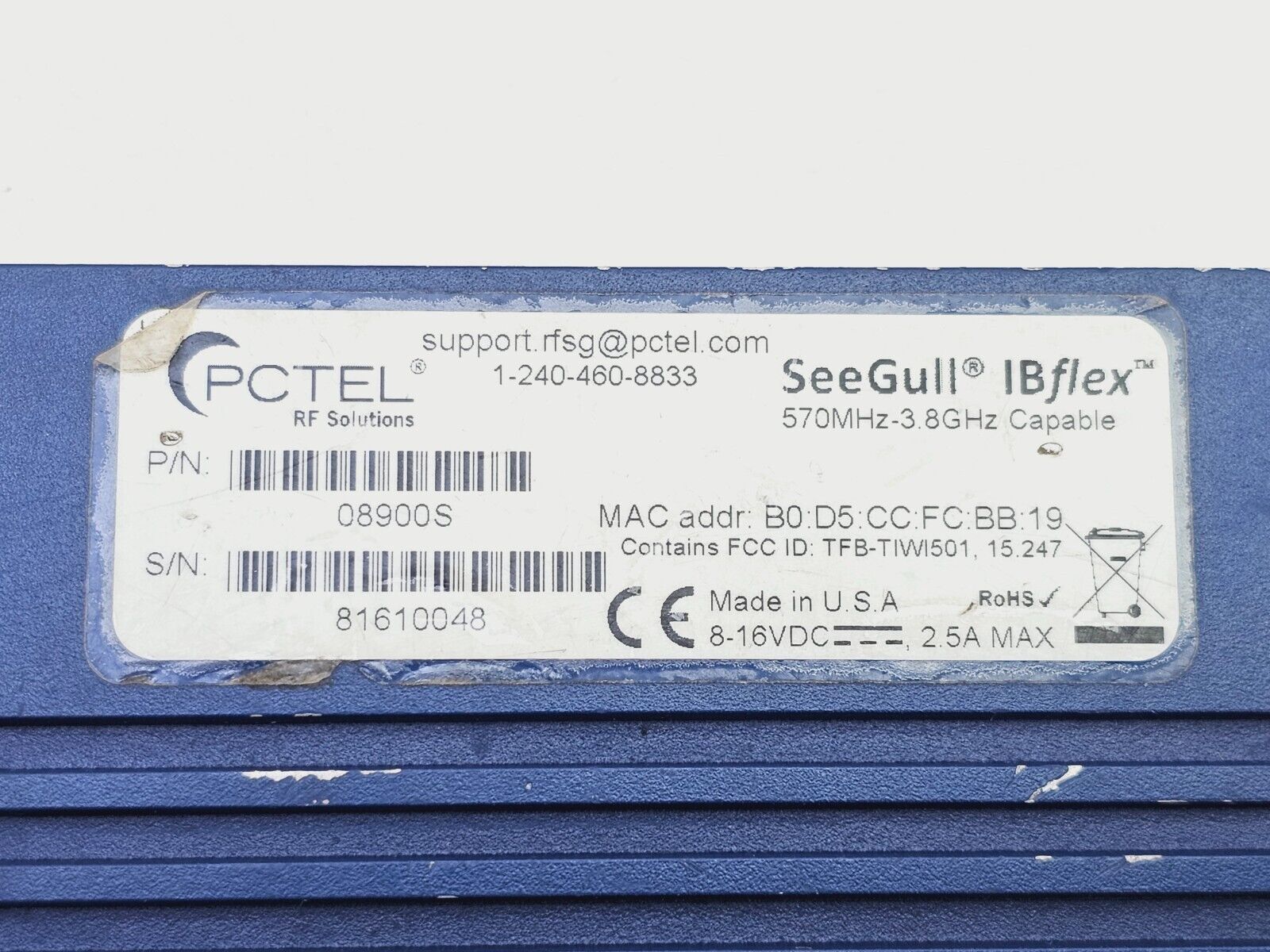

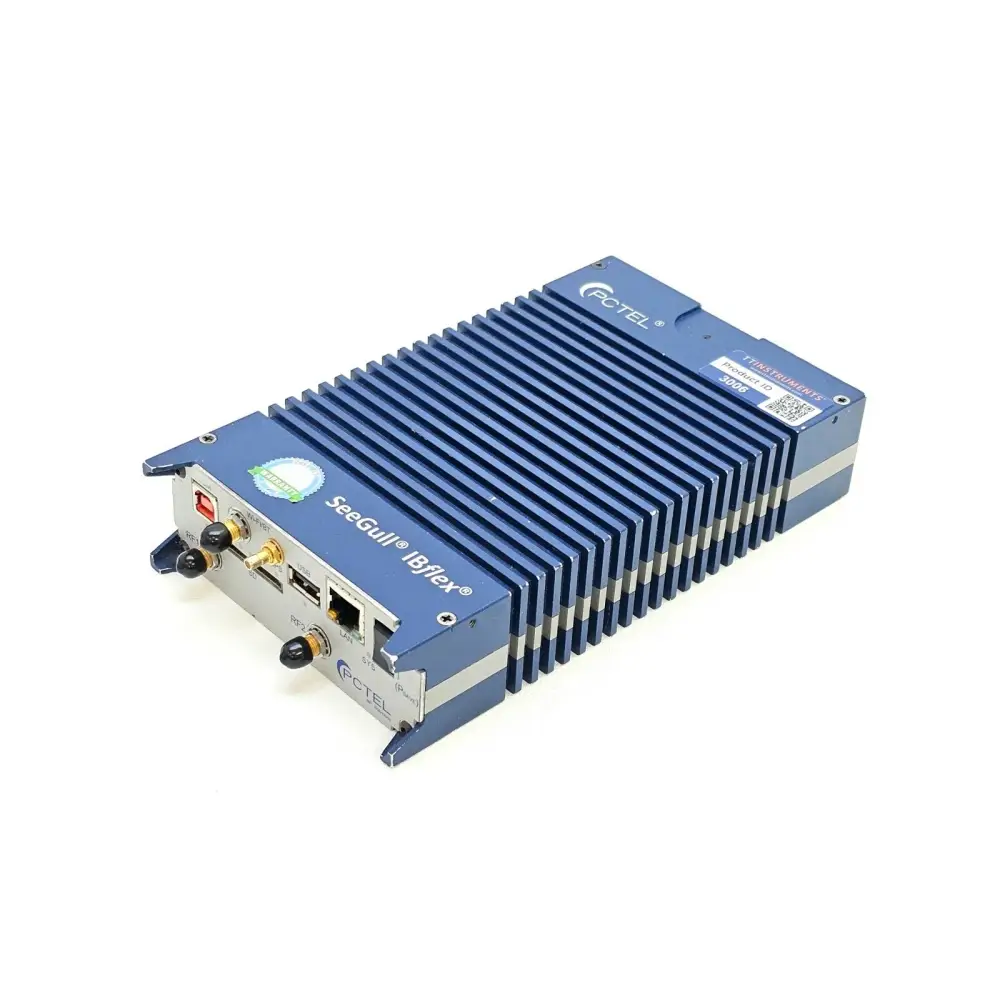

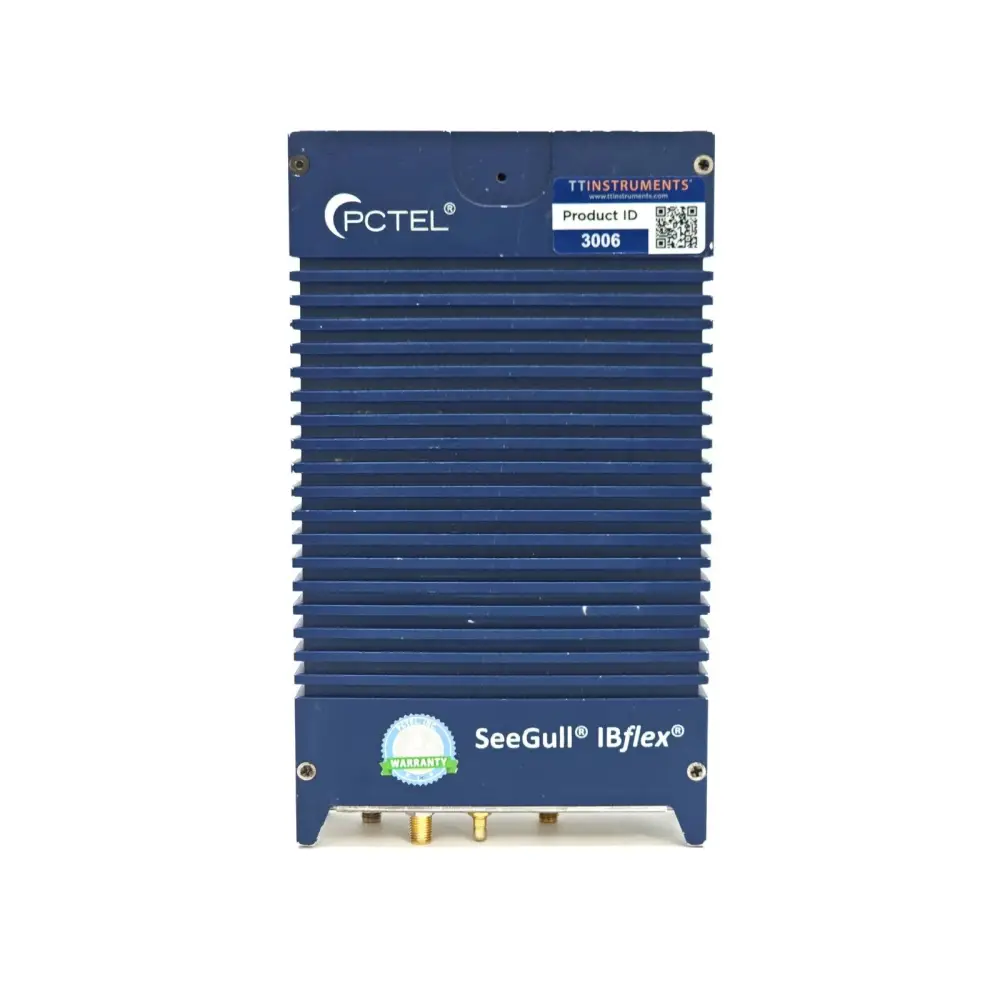

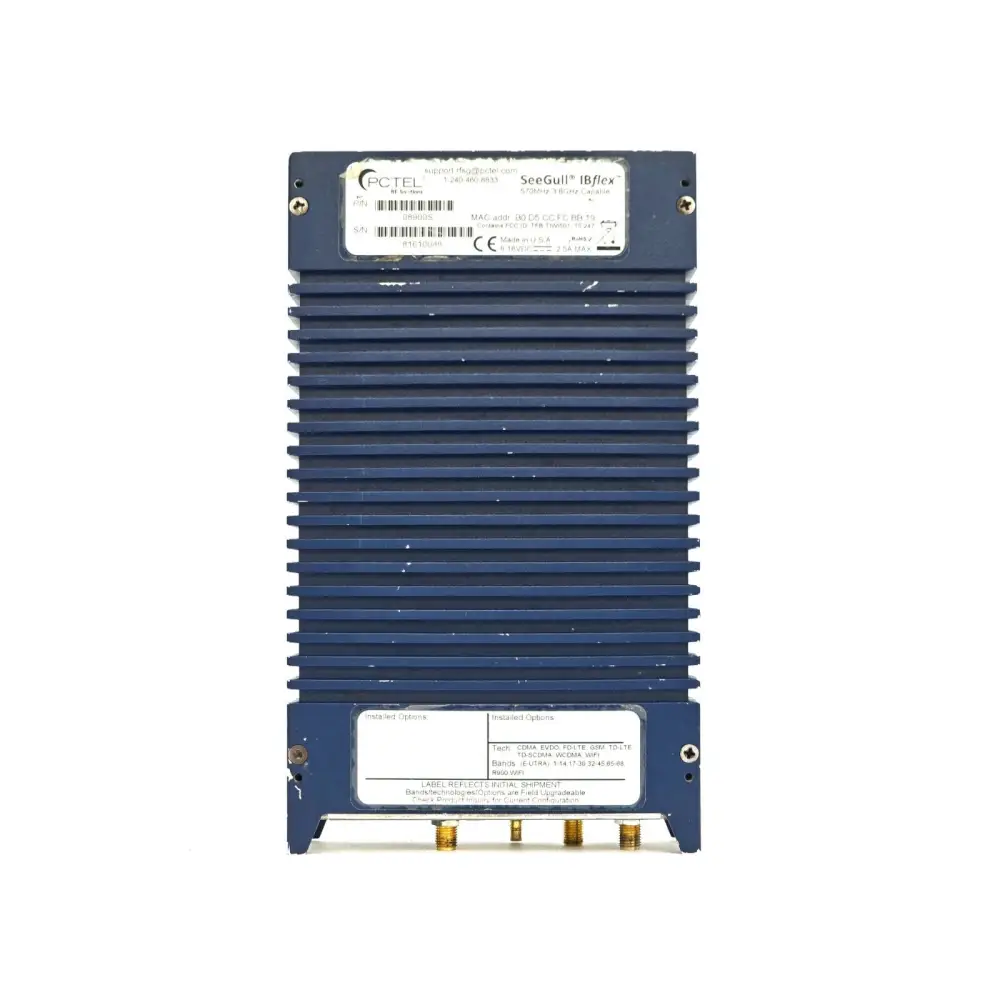

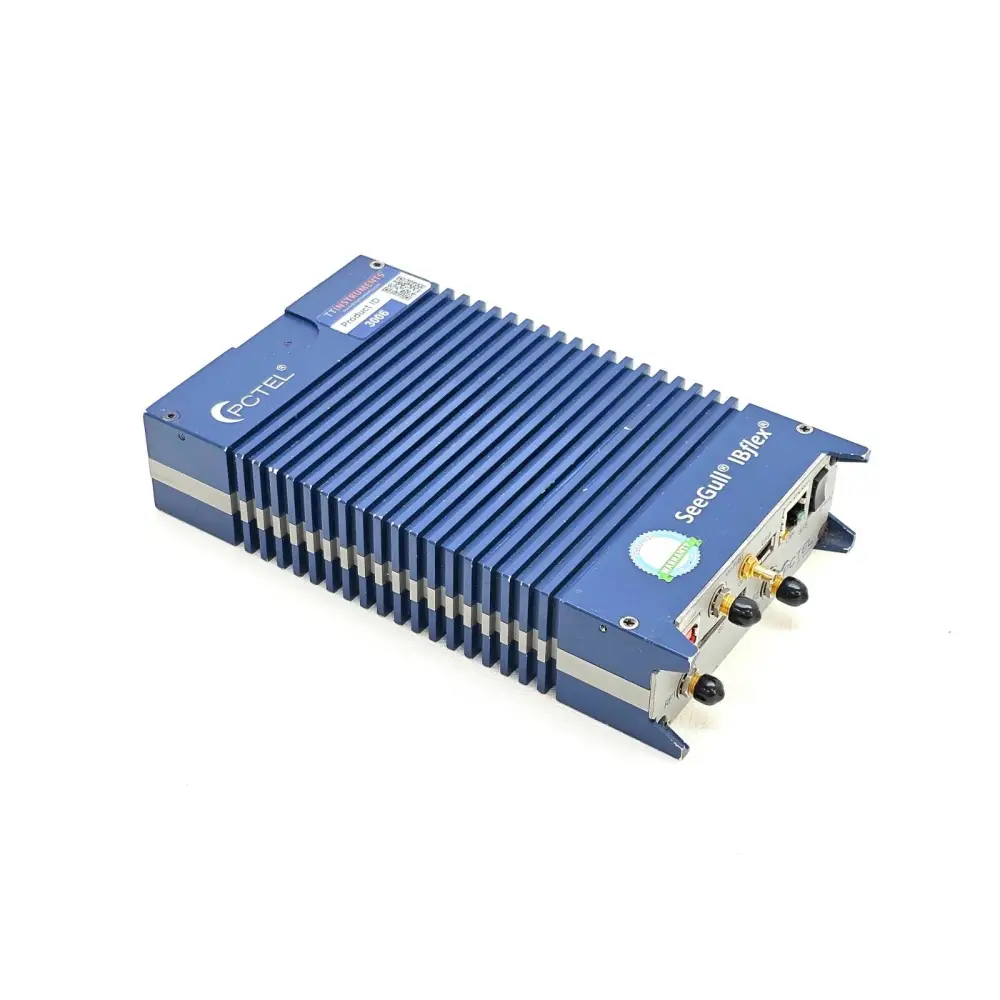

PCTel SeeGull IBflex 570 MHz - 3.8 GHz Scanning Receiver 08900S Loaded 95 Option
Model: IBflex
Condition: Used
In stock: 1
SKU: 3006 5B04
- Mobile Network Scanners
- RF & Microwave
Choose options
Condition: Used
In excellent working condition, tested. Multiple options enabled as per images and description below.
Included in the sale:

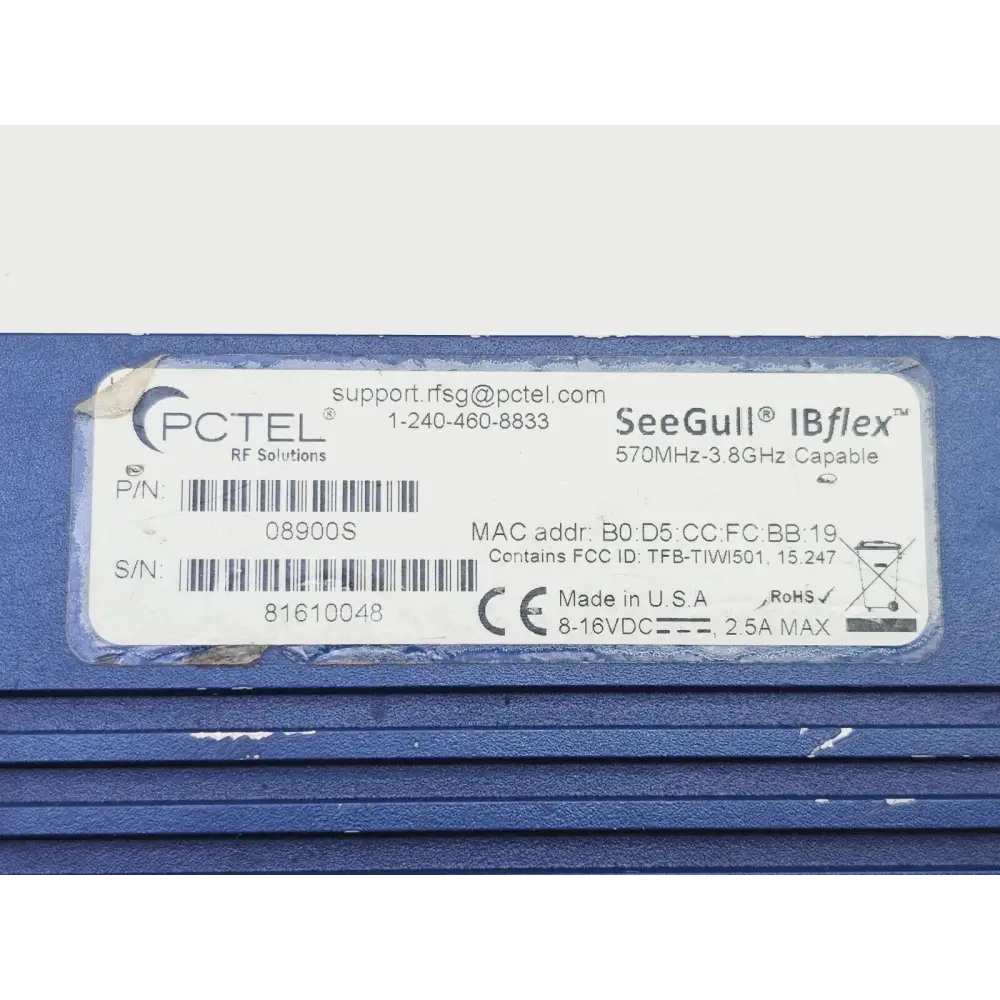

- IBflex 570 MHz - 3.8 GHz 08900S

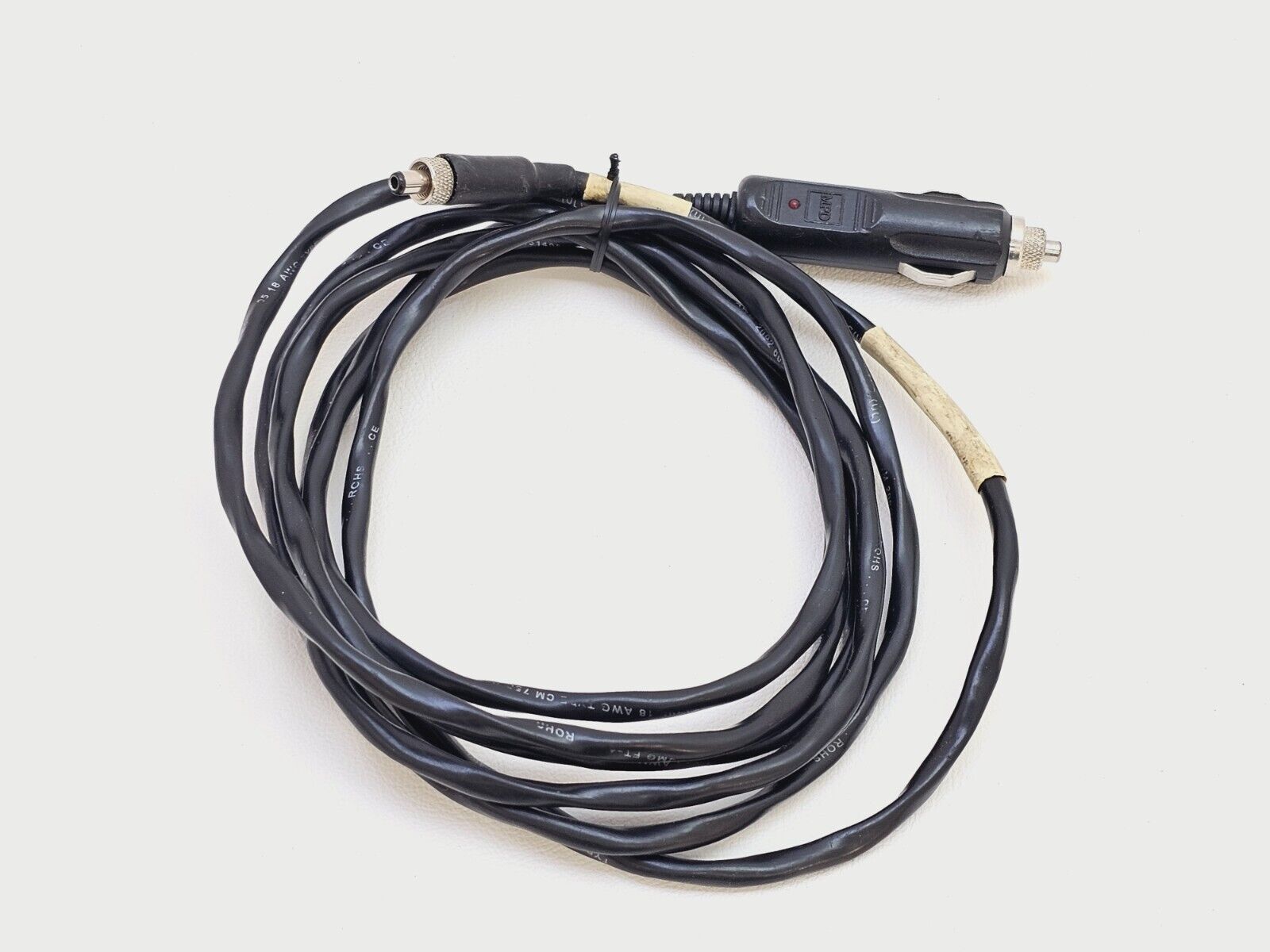

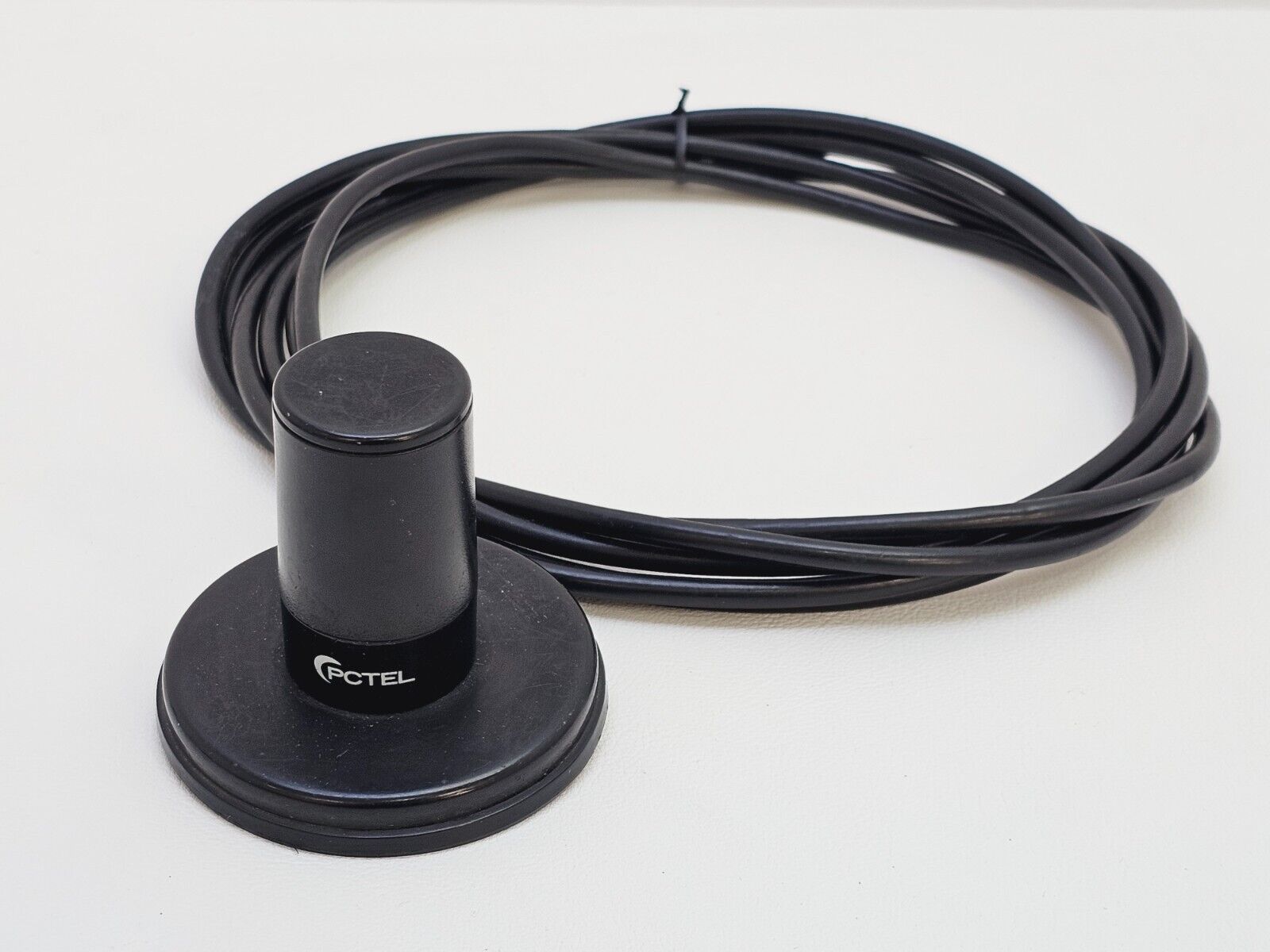

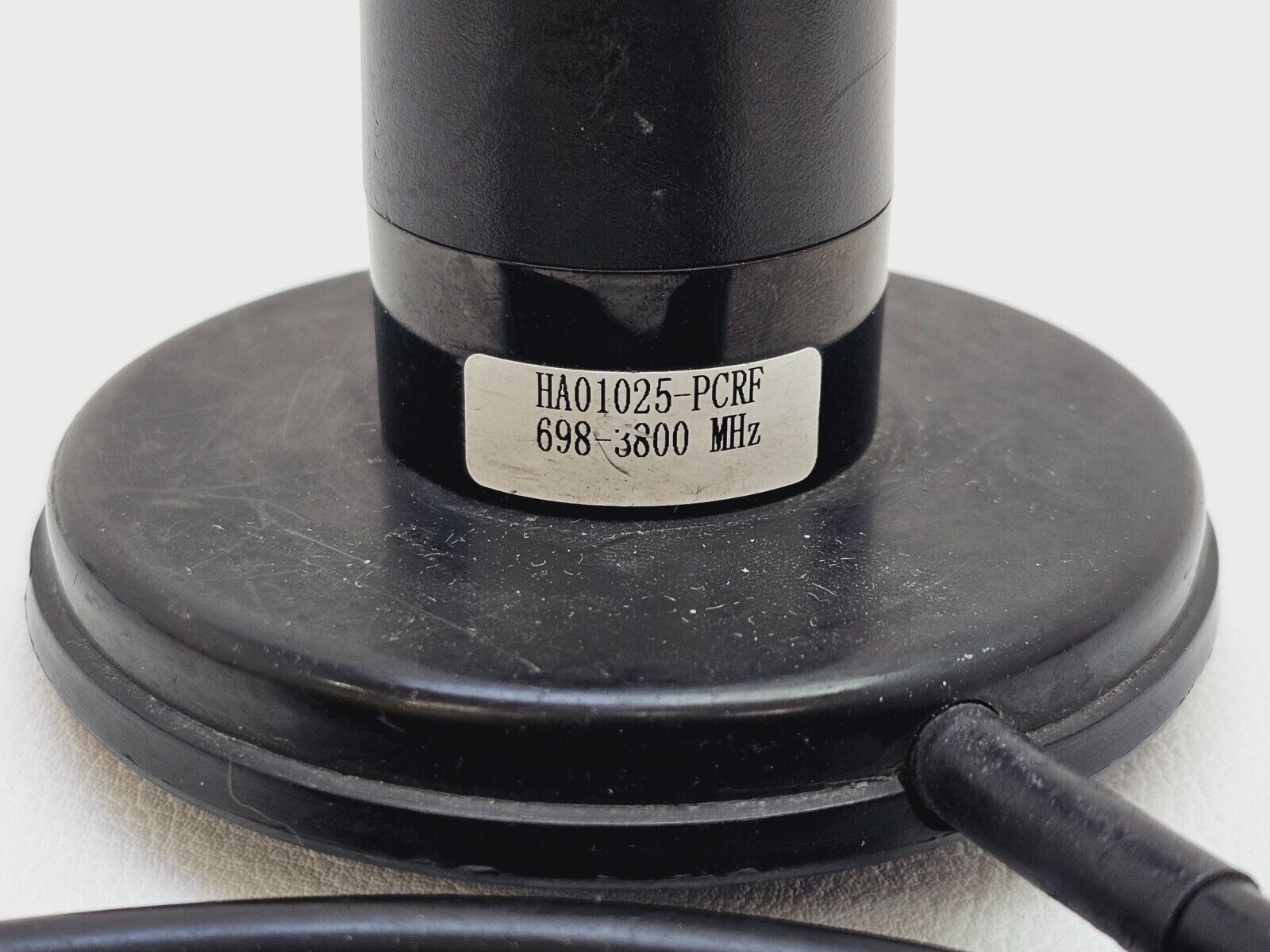

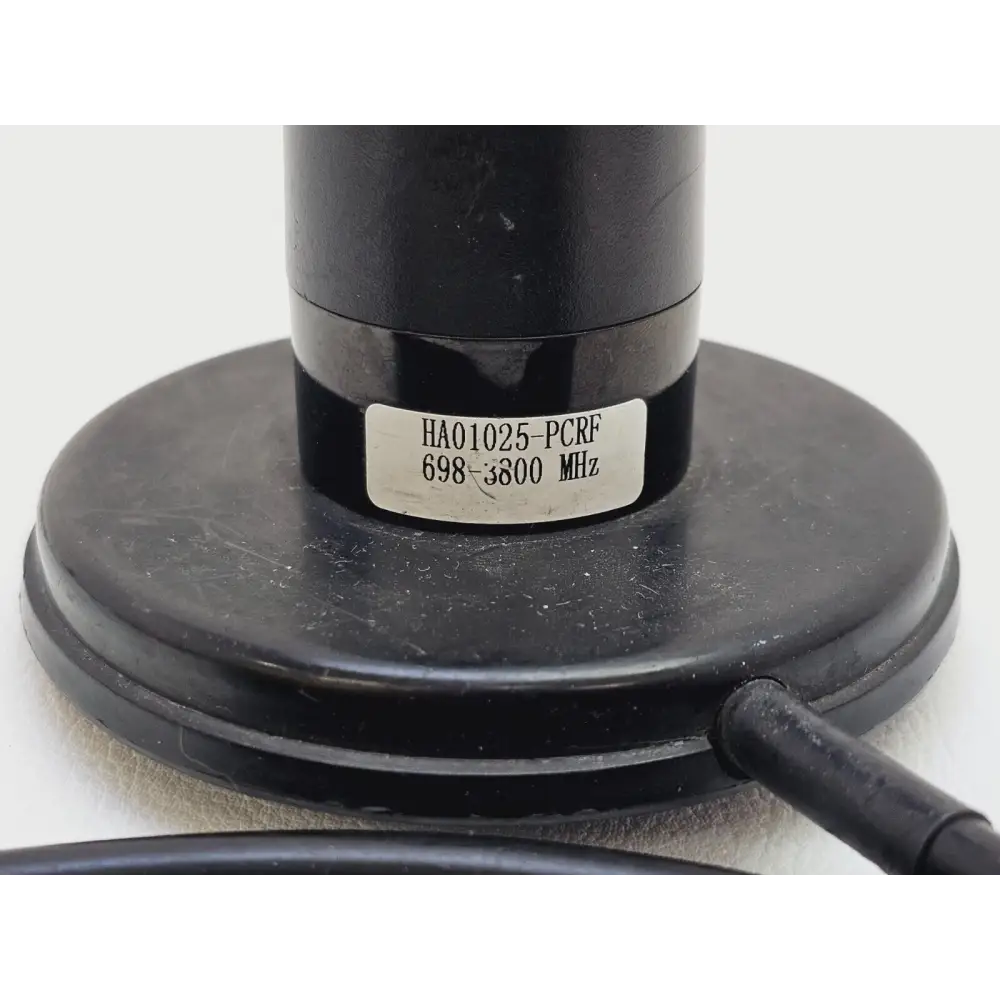

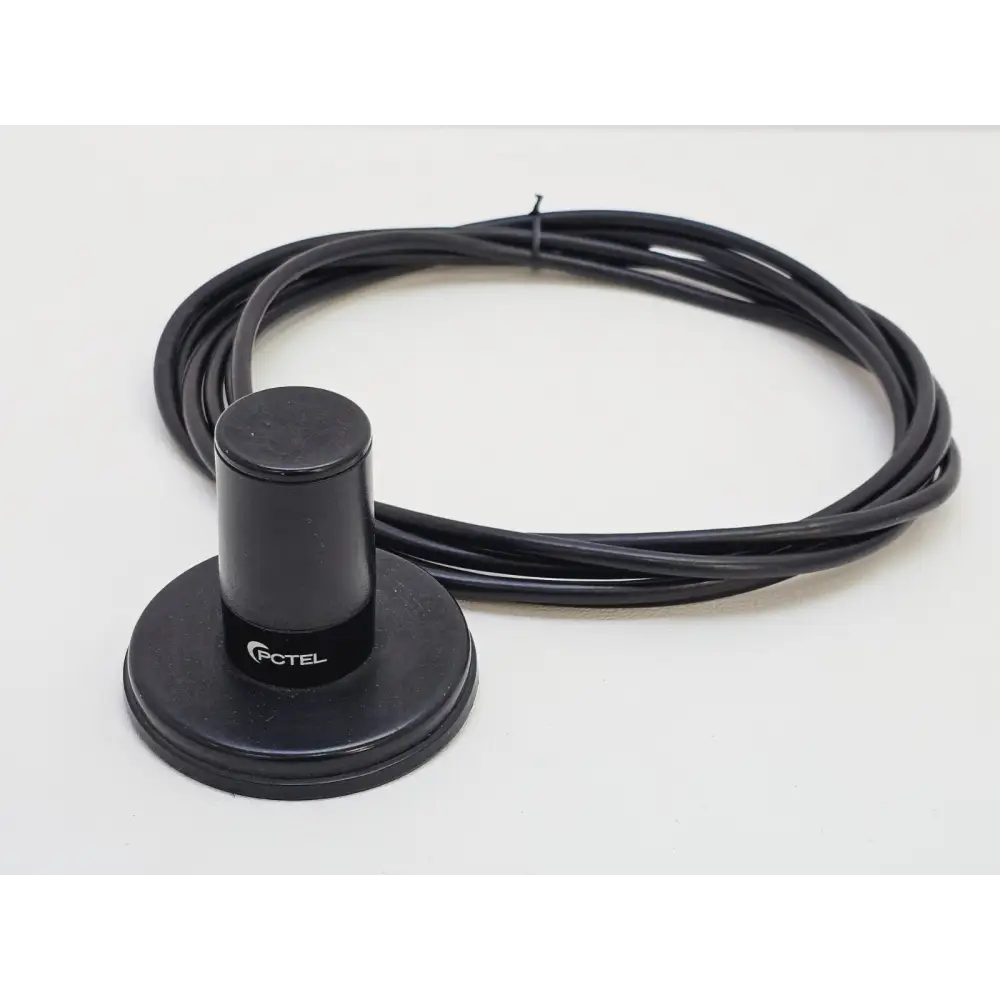

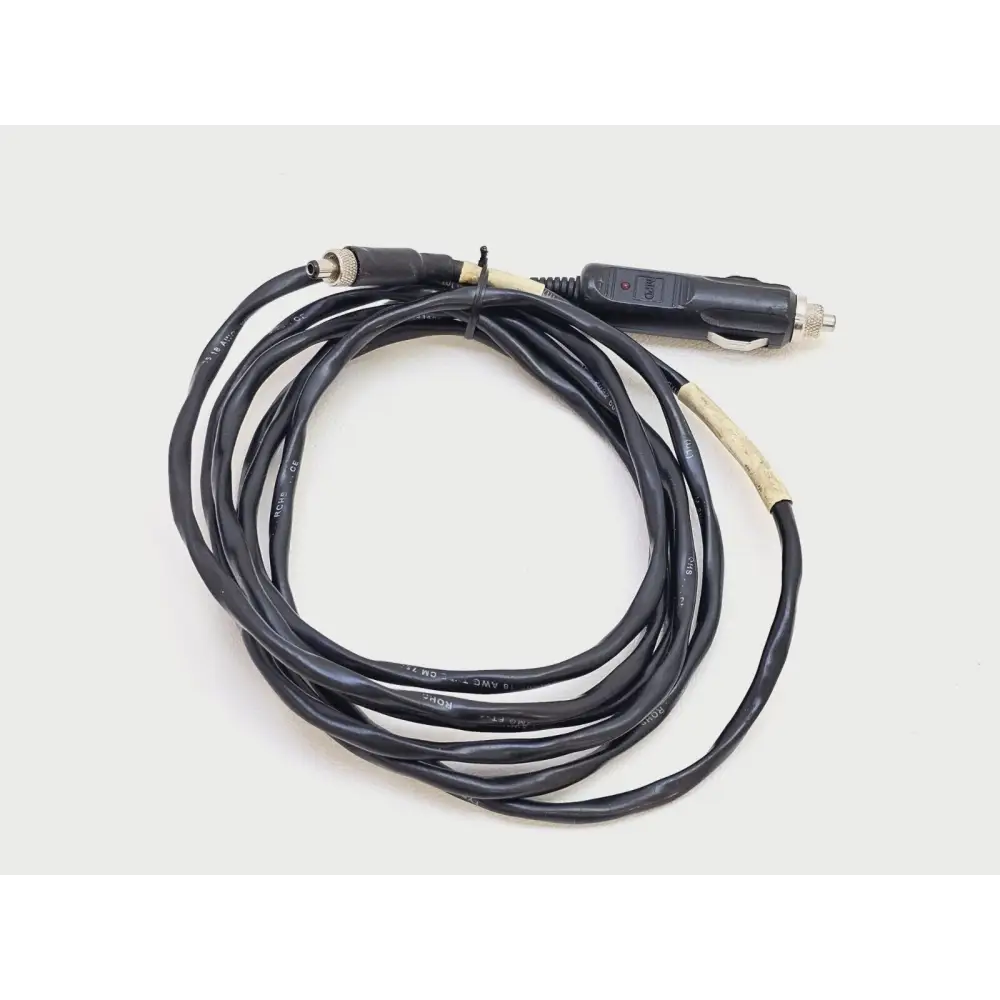

- 2x PCTel 698 to 3800 MHz antennas, USB data cable, power adapter/in car charger.
Please see below information we have extracted from the system and INSTALLED OPTIONS.

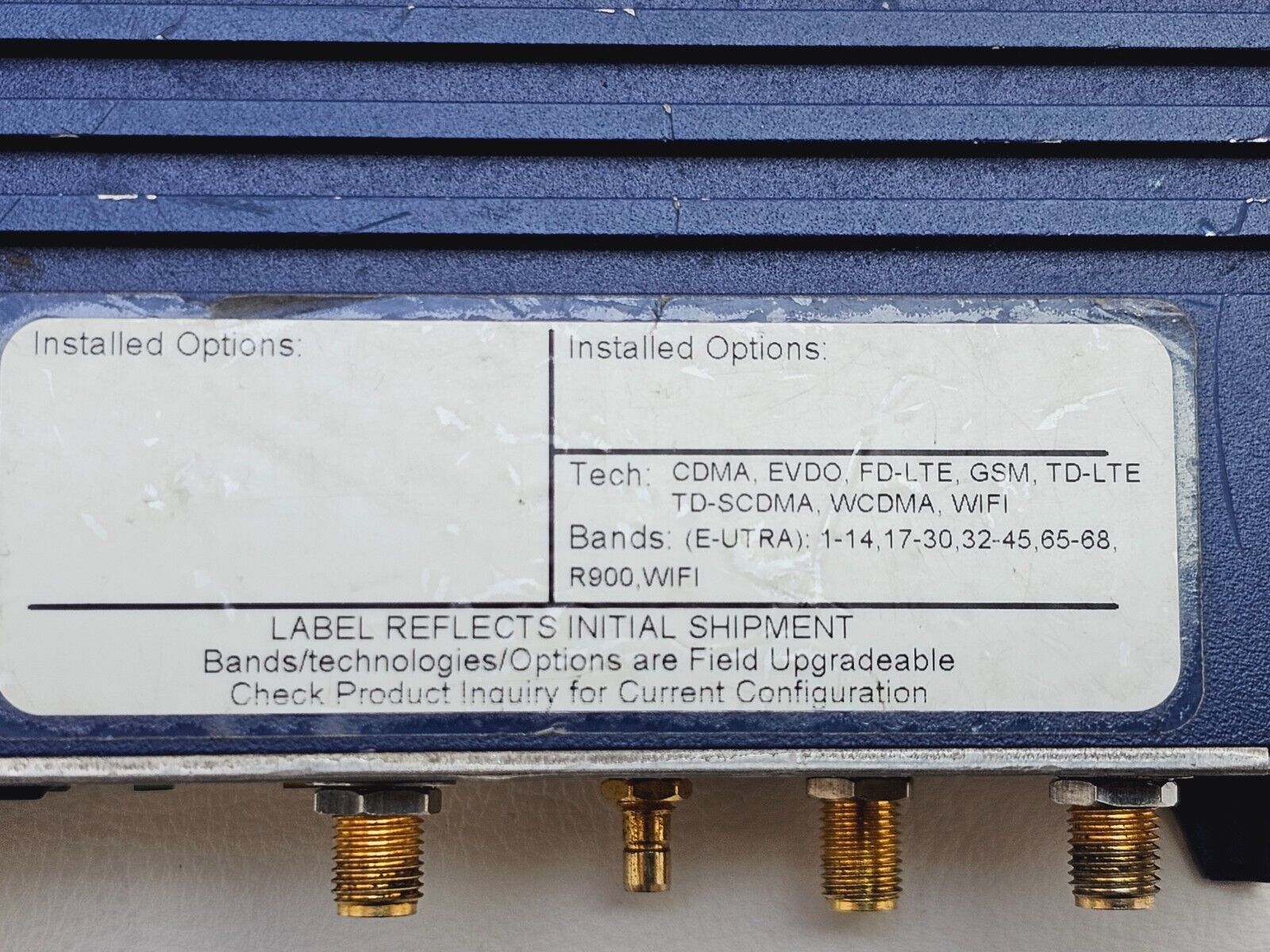

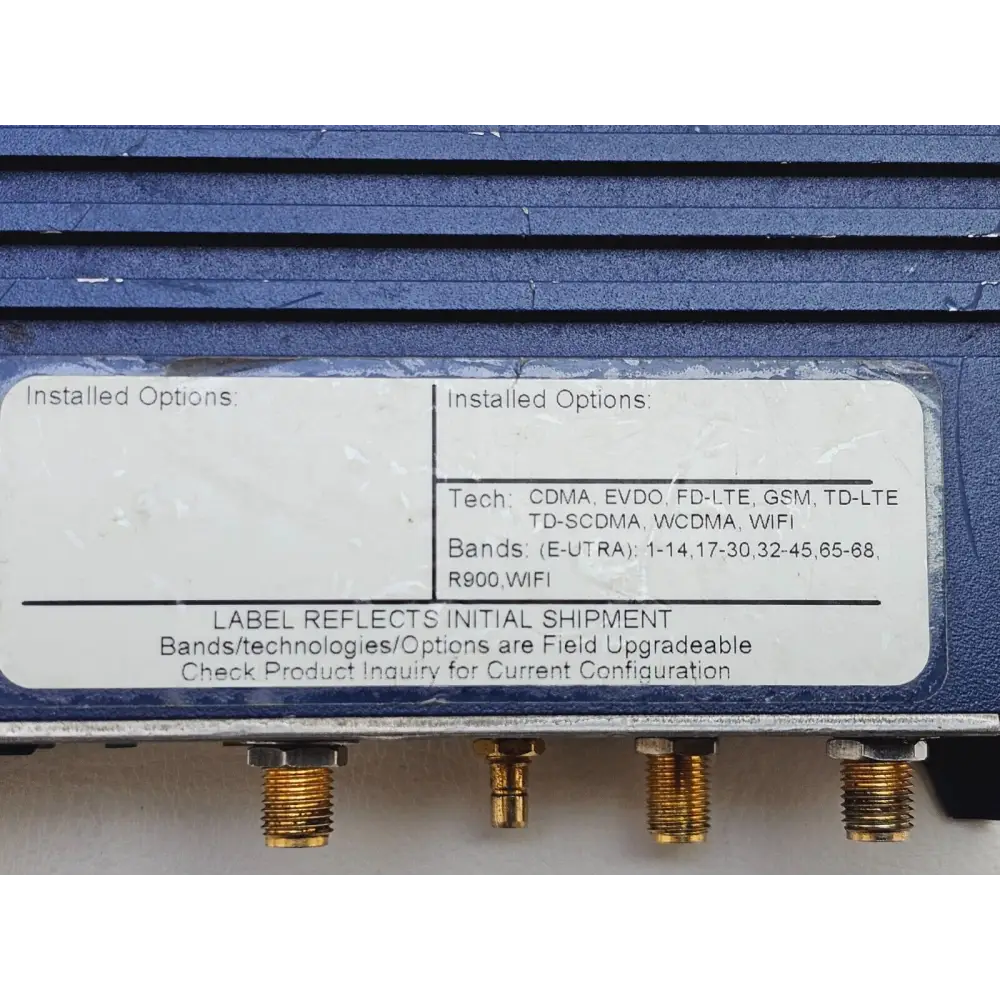

Installed Options
---------------------------------------------------------------------
570MHz-3800MHz Capability...........................: 7030-0000

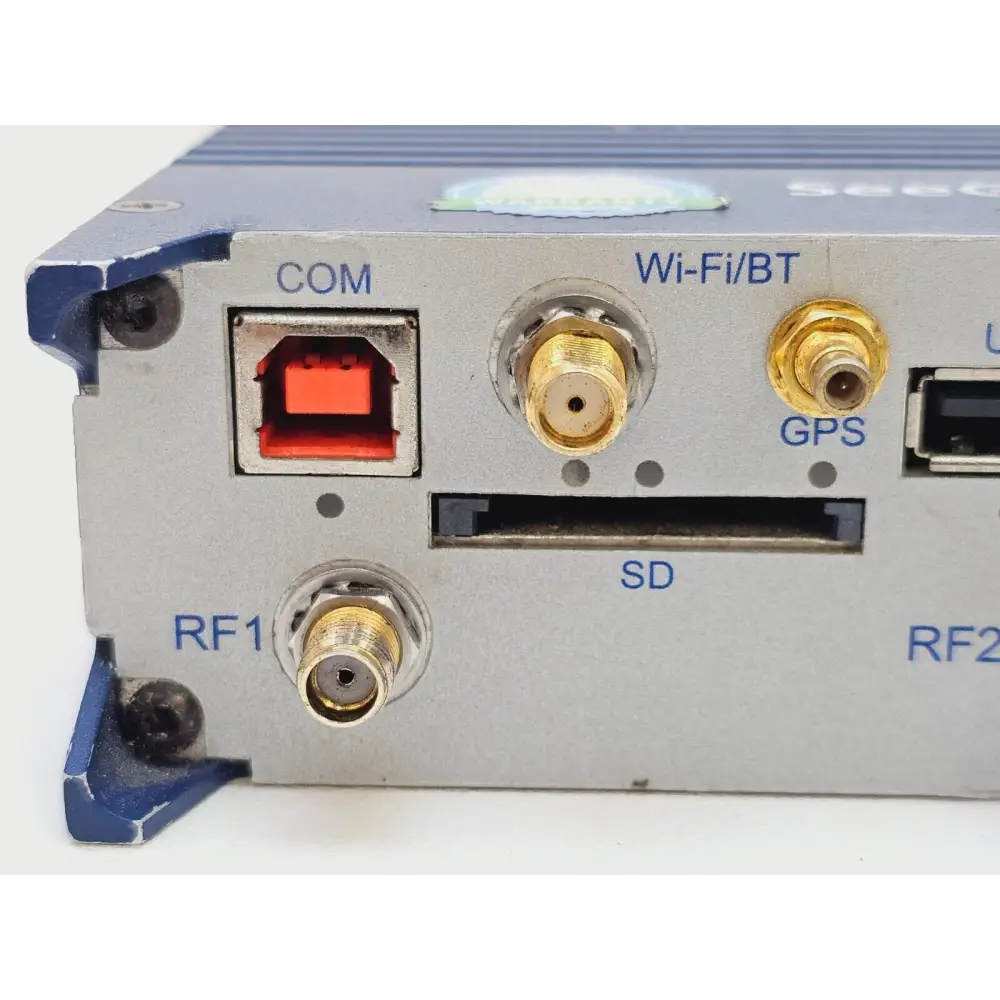

Dual RF Port........................................: 000F-0000
Recording to SD Card................................: 000A-0000
GPS Navigation......................................: 0001-0000
Absolute Time Stamp.................................: 0005-0000
WiFi USB Adaptor....................................: 0009-0000
Ethernet Interface..................................: 000C-0000
GSM Blind Scan......................................: 000B-0001
IS-95 Blind Scan....................................: 000B-0003
WCDMA Blind Scan....................................: 000B-0004
CDMA Blind Scan.....................................: 000B-0005
EVDO Blind Scan.....................................: 000B-0006
LTE Blind Scan......................................: 000B-000A
TDLTE Blind Scan....................................: 000B-000B
TDSCDMA Blind Scan..................................: 000B-0008
WiFi Support........................................: 0001-000C
WiFi Blind Scan.....................................: 000B-000C
LTE Support.........................................: 0001-000A
IS-95 Support.......................................: 0001-0003
IS-95 Pilot.........................................: 0003-0003
IS-95 Extended Dynamic Range........................: 0008-0003
CDMA Support........................................: 0001-0005
CDMA Pilot..........................................: 0003-0005
CDMA Extended Dynamic Range.........................: 0008-0005
EVDO Support........................................: 0001-0006
EVDO Pilot..........................................: 0003-0006
EVDO Extended Dynamic Range.........................: 0008-0006
LTE Enhanced Signal Scan............................: 000C-000A
TDLTE Support.......................................: 0001-000B
TDLTE Enhanced Signal Scan..........................: 000C-000B
GSM Support.........................................: 0001-0001
GSM BSIC............................................: 0002-0001
WCDMA Support.......................................: 0001-0004
WCDMA Pilot.........................................: 0003-0004
WCDMA Extended Dynamic Range........................: 0008-0004
Protocol/Band Summary
Protocol Count
---------------------------------------------------------------------
Band Option.......: 85
GSM...............: 12
CDMA(95)..........: 16
WCDMA.............: 28
CDMA..............: 16
EV-DO.............: 16
TDSCDMA...........: 3
LTE...............: 65
TD-LTE............: 14
Wi-Fi.............: 1
Unit Level Information
---------------------------------------------------------------------
PCTEL Device Type..................: IBflex
Unit ESN...........................: 0000-0000-8161-0048
Number of Options..................: 35

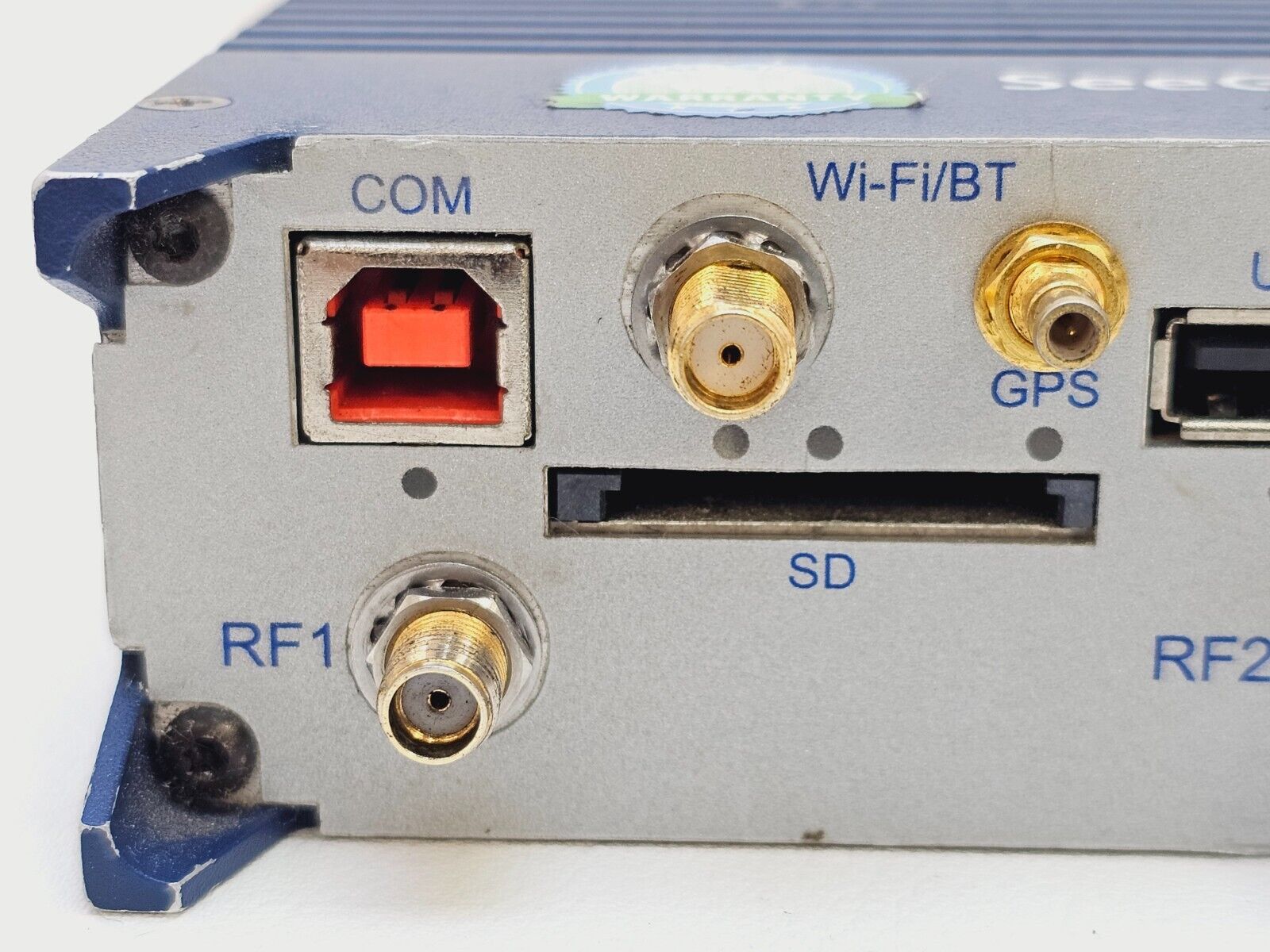

Interfaces.........................: USB, AOA, Ethernet
Product Reference Version..........: 1.1.32.0
API Version........................: 2.4.0.4
Software Release Version...........: 3.4.0.0
ASN.1 ICD Version..................: 2.4.0.4
Calibration Date...................: 11/11/2016
Bootup Status......................: Passed
Supported Configurations
Protocol Band Band Code Port
---------------------------------------------------------------------
Band Option EB-05 DL: American Cellular 0x0100 1
Band Option EB-05 UL: American Cellular 0x0101 1
Band Option EB-02 DL: American PCS 0x0200 1
Band Option EB-02 UL: American PCS 0x0201 1
Band Option EB-01 DL: 2100 (IMT-2000) 0x0300 1
Band Option EB-01 UL: 2100 (IMT-2000) 0x0301 1
Band Option EB-08 DL: European 900 MHz 0x0600 1
Band Option EB-08 UL: European 900 MHz 0x0601 1
Band Option EB-03 DL: 1800 MHz (DCS) 0x0700 1
Band Option EB-03 UL: 1800 MHz (DCS) 0x0701 1
Band Option EB-09 DL: 1700 MHz (Japan) 0x07F8 1
Band Option EB-09 UL: 1700 MHz (Japan) 0x07F9 1
Band Option EB-27 DL: Lwr Ext 850 MHz 0x0900 1
Band Option EB-27 UL: Lwr Ext 850 MHz 0x0901 1
Band Option EB-04 DL: AWS 2100 MHz 0x0B00 1
Band Option EB-04 UL: AWS 2100 MHz 0x0B01 1
Band Option EB-13/14L DL: US 700 Upp C/D 0x1000 1
Band Option EB-13/14L UL: US 700 Upp C/D 0x1001 1
Band Option EB-13 DL: US 700 Upp C 0x1010 1
and Option EB-13 UL: US 700 Upp C 0x1011 1
Band Option EB-14 DL: Upper 700 D 0x1020 1
Band Option EB-14 UL: Upper 700 D 0x1021 1
Band Option EB-12 DL: US Lwr 700 A/B/C 0x1100 1
Band Option EB-12 UL: US Lwr 700 A/B/C 0x1101 1
Band Option EB-17 DL: US Lwr 700 B/C 0x11F8 1
Band Option EB-17 UL: US Lwr 700 B/C 0x11F9 1
Band Option EB-07 DL: 2600 IMT Extension 0x1200 1
Band Option EB-07 UL: 2600 IMT Extension 0x1201 1
Band Option EB-11 DL: 1500 MHz 0x1300 1
Band Option EB-11 UL: 1500 MHz 0x1301 1
Band Option EB-21 DL: Ext 1500 MHz 0x1400 1
Band Option EB-21 UL: Ext 1500 MHz 0x1401 1
Band Option EB-25 DL: Ext US PCS 0x1500 1
Band Option EB-25 UL: Ext US PCS 0x1501 1
Band Option EB-06 DL: 800 MHz 0x1600 1
Band Option EB-06 UL: 800 MHz 0x1601 1
Band Option EB-18 DL: Japan Lwr 800 0x1700 1
Band Option EB-18 UL: Japan Lwr 800 0x1701 1
Band Option EB-19 DL: Japan Uppr 800 0x1800 1
Band Option EB-19 UL: Japan Uppr 800 0x1801 1
Band Option EB-20 DL: European 800 MHz 0x1A00 1
Band Option EB-20 UL: European 800 MHz 0x1A01 1
Band Option EB-24 DL: 1600 MHz 0x1B00 1
Band Option EB-24 UL: 1600 MHz 0x1B01 1
Band Option EB-38: TDD 2.6 GHz 0x1C03 1
Band Option EB-40: TDD 2.3 GHz 0x1D03 1
Band Option EB-41: TDD 2.5 GHz 0x1E03 1
Band Option EB-41 TDD 2.5 GHz Lower 0x1EC3 1
Band Option EB-39: TDD 1.9 GHz 0x1F03 1
Band Option EB-26 DL: Uppr Ext 850 MHz 0x2100 1
Band Option EB-26 UL: Uppr Ext 850 MHz 0x2101 1
Band Option EB-28 DL: 700 APAC (CALA) 0x2200 1
Band Option EB-28 UL: 700 APAC (CALA) 0x2201 1
Band Option EB-42: TDD 3.4 GHz 0x2303 1
Band Option EB-43: TDD 3.6 GHz 0x2403 1
Band Option EB-44: TDD 700 MHz 0x2503 1
Band Option EB-33: TDD 2000 MHz 0x2603 1
Band Option EB-34: Chinese TDD 2000 MHz 0x2703 1
Band Option EB-35: TDD 1900 (PCS) Lower 0x2803 1
Band Option EB-36: TDD 1900 (PCS) Upper 0x2903 1
Band Option EB-37: TDD 1900 (PCS) Center Gap 0x2A03 1
Band Option EB-10 DL: Ext 2100 (AWS) 0x2B00 1
Band Option EB-10 UL: Ext 2100 (AWS) 0x2B01 1
Band Option EB-22 DL: 3.5 GHz 0x2C00 1
Band Option EB-22 UL: 3.5 GHz 0x2C01 1
Band Option EB-29 DL: US 700 MHz 0x2D00 1
Band Option R-GSM 900 MHz DL 0x2E00 1
Band Option R-GSM 900 MHz UL 0x2E01 1
Band Option EB-23 DL: S-Band 2 GHz 0x3100 1
Band Option EB-23 UL: S-Band 2 GHz 0x3101 1
Band Option EB-30 DL: 2.3 GHz (WCS A/B) 0x3200 1
Band Option EB-30 UL: 2.3 GHz (WCS A/B) 0x3201 1
Band Option WiFi: Device Band 0x3303 1
Band Option EB-32 DL: 1500 (L-Band) 0x3400 1
Band Option ER-GSM: 900 MHz DL 0x3500 1
Band Option ER-GSM: 900 MHz UL 0x3501 1
Band Option EB-66 AWS-3 DL:(2110-2200 MHz) 0x3800 1
Band Option EB-66 AWS-3 UL:(1710-1800 MHz) 0x3801 1
Band Option EB-45 TDD: (1447-1467 MHz) 0x3903 1
Band Option EB-65 DL: (2110-2200 MHz) 0x3C00 1
Band Option EB-65 UL: (1920-2010 MHz) 0x3C01 1
Band Option EB-67 DL: (738-758 MHz) 0x3D00 1
Band Option EB-68 DL: (753-783 MHz) 0x3E00 1
Band Option EB-68 UL: (698-728 MHz) 0x3E01 1
Band Option 570-3800 MHz 0x7030 1
GSM EB-05 DL: American Cellular 0x0100 1
GSM EB-05 UL: American Cellular 0x0101 1
GSM EB-02 DL: American PCS 0x0200 1
GSM EB-02 UL: American PCS 0x0201 1
GSM EB-08 DL: European 900 MHz 0x0600 1
GSM EB-08 UL: European 900 MHz 0x0601 1
GSM EB-03 DL: 1800 MHz (DCS) 0x0700 1
GSM EB-03 UL: 1800 MHz (DCS) 0x0701 1
GSM R-GSM 900 MHz DL 0x2E00 1
GSM R-GSM 900 MHz UL 0x2E01 1
GSM ER-GSM: 900 MHz DL 0x3500 1
GSM ER-GSM: 900 MHz UL 0x3501 1
CDMA(95) EB-05 DL: American Cellular 0x0100 1
CDMA(95) EB-05 UL: American Cellular 0x0101 1
CDMA(95) EB-02 DL: American PCS 0x0200 1
CDMA(95) EB-02 UL: American PCS 0x0201 1
CDMA(95) EB-01 DL: 2100 (IMT-2000) 0x0300 1
CDMA(95) EB-01 UL: 2100 (IMT-2000) 0x0301 1
CDMA(95) EB-03 DL: 1800 MHz (DCS) 0x0700 1
CDMA(95) EB-03 UL: 1800 MHz (DCS) 0x0701 1
CDMA(95) EB-27 DL: Lwr Ext 850 MHz 0x0900 1
CDMA(95) EB-27 UL: Lwr Ext 850 MHz 0x0901 1
CDMA(95) EB-04 DL: AWS 2100 MHz 0x0B00 1
CDMA(95) EB-04 UL: AWS 2100 MHz 0x0B01 1
CDMA(95) EB-25 DL: Ext US PCS 0x1500 1
CDMA(95) EB-25 UL: Ext US PCS 0x1501 1
CDMA(95) EB-24 DL: 1600 MHz 0x1B00 1
CDMA(95) EB-24 UL: 1600 MHz 0x1B01 1
WCDMA EB-05 DL: American Cellular 0x0100 1
WCDMA EB-05 UL: American Cellular 0x0101 1
WCDMA EB-02 DL: American PCS 0x0200 1
WCDMA EB-02 UL: American PCS 0x0201 1
WCDMA EB-01 DL: 2100 (IMT-2000) 0x0300 1
WCDMA EB-01 UL: 2100 (IMT-2000) 0x0301 1
WCDMA EB-08 DL: European 900 MHz 0x0600 1
WCDMA EB-08 UL: European 900 MHz 0x0601 1
WCDMA EB-03 DL: 1800 MHz (DCS) 0x0700 1
WCDMA EB-03 UL: 1800 MHz (DCS) 0x0701 1
WCDMA EB-09 DL: 1700 MHz (Japan) 0x07F8 1
WCDMA EB-09 UL: 1700 MHz (Japan) 0x07F9 1
WCDMA EB-04 DL: AWS 2100 MHz 0x0B00 1
WCDMA EB-04 UL: AWS 2100 MHz 0x0B01 1
WCDMA EB-07 DL: 2600 IMT Extension 0x1200 1
WCDMA EB-07 UL: 2600 IMT Extension 0x1201 1
WCDMA EB-11 DL: 1500 MHz 0x1300 1
WCDMA EB-11 UL: 1500 MHz 0x1301 1
WCDMA EB-21 DL: Ext 1500 MHz 0x1400 1
WCDMA EB-21 UL: Ext 1500 MHz 0x1401 1
WCDMA EB-25 DL: Ext US PCS 0x1500 1
WCDMA EB-25 UL: Ext US PCS 0x1501 1
WCDMA EB-06 DL: 800 MHz 0x1600 1
WCDMA EB-06 UL: 800 MHz 0x1601 1 WCDMA EB-19 DL: Japan Uppr 800 0x1800 1
WCDMA EB-19 UL: Japan Uppr 800 0x1801 1
WCDMA EB-10 DL: Ext 2100 (AWS) 0x2B00 1
WCDMA EB-10 UL: Ext 2100 (AWS) 0x2B01 1
CDMA EB-05 DL: American Cellular 0x0100 1
CDMA EB-05 UL: American Cellular 0x0101 1
CDMA EB-02 DL: American PCS 0x0200 1
CDMA EB-02 UL: American PCS 0x0201 1
CDMA EB-01 DL: 2100 (IMT-2000) 0x0300 1
CDMA EB-01 UL: 2100 (IMT-2000) 0x0301 1
CDMA EB-03 DL: 1800 MHz (DCS) 0x0700 1
CDMA EB-03 UL: 1800 MHz (DCS) 0x0701 1
CDMA EB-27 DL: Lwr Ext 850 MHz 0x0900 1
CDMA EB-27 UL: Lwr Ext 850 MHz 0x0901 1
CDMA EB-04 DL: AWS 2100 MHz 0x0B00 1
CDMA EB-04 UL: AWS 2100 MHz 0x0B01 1
CDMA EB-25 DL: Ext US PCS 0x1500 1
CDMA EB-25 UL: Ext US PCS 0x1501 1
CDMA EB-24 DL: 1600 MHz 0x1B00 1
CDMA EB-24 UL: 1600 MHz 0x1B01 1
EV-DO EB-05 DL: American Cellular 0x0100 1
EV-DO EB-05 UL: American Cellular 0x0101 1
EV-DO EB-02 DL: American PCS 0x0200 1
EV-DO EB-02 UL: American PCS 0x0201 1
EV-DO EB-01 DL: 2100 (IMT-2000) 0x0300 1
EV-DO EB-01 UL: 2100 (IMT-2000) 0x0301 1
EV-DO EB-03 DL: 1800 MHz (DCS) 0x0700 1
EV-DO EB-03 UL: 1800 MHz (DCS) 0x0701 1
EV-DO EB-27 DL: Lwr Ext 850 MHz 0x0900 1
EV-DO EB-27 UL: Lwr Ext 850 MHz 0x0901 1
EV-DO EB-04 DL: AWS 2100 MHz 0x0B00 1
EV-DO EB-04 UL: AWS 2100 MHz 0x0B01 1
EV-DO EB-25 DL: Ext US PCS 0x1500 1
EV-DO EB-25 UL: Ext US PCS 0x1501 1
EV-DO EB-24 DL: 1600 MHz 0x1B00 1
EV-DO EB-24 UL: 1600 MHz 0x1B01 1
TDSCDMA EB-40: TDD 2.3 GHz 0x1D03 1
TDSCDMA EB-39: TDD 1.9 GHz 0x1F03 1
TDSCDMA EB-34: Chinese TDD 2000 MHz 0x2703 1
LTE EB-05 DL: American Cellular 0x0100 1
LTE EB-05 UL: American Cellular 0x0101 1
LTE EB-02 DL: American PCS 0x0200 1
LTE EB-02 UL: American PCS 0x0201 1
LTE EB-01 DL: 2100 (IMT-2000) 0x0300 1
LTE EB-01 UL: 2100 (IMT-2000) 0x0301 1
LTE EB-08 DL: European 900 MHz 0x0600 1
LTE EB-08 UL: European 900 MHz 0x0601 1
LTE EB-03 DL: 1800 MHz (DCS) 0x0700 1
LTE EB-03 UL: 1800 MHz (DCS) 0x0701 1
LTE EB-09 DL: 1700 MHz (Japan) 0x07F8 1
LTE EB-09 UL: 1700 MHz (Japan) 0x07F9 1
LTE EB-27 DL: Lwr Ext 850 MHz 0x0900 1
LTE EB-27 UL: Lwr Ext 850 MHz 0x0901 1
LTE EB-04 DL: AWS 2100 MHz 0x0B00 1
LTE EB-04 UL: AWS 2100 MHz 0x0B01 1
LTE EB-13/14L DL: US 700 Upp C/D 0x1000 1
LTE EB-13/14L UL: US 700 Upp C/D 0x1001 1
LTE EB-13 DL: US 700 Upp C 0x1010 1
LTE EB-13 UL: US 700 Upp C 0x1011 1
LTE EB-14 DL: Upper 700 D 0x1020 1
LTE EB-14 UL: Upper 700 D 0x1021 1
LTE EB-12 DL: US Lwr 700 A/B/C 0x1100 1
LTE EB-12 UL: US Lwr 700 A/B/C 0x1101 1
LTE EB-17 DL: US Lwr 700 B/C 0x11F8 1
LTE EB-17 UL: US Lwr 700 B/C 0x11F9 1
LTE EB-07 DL: 2600 IMT Extension 0x1200 1
LTE EB-07 UL: 2600 IMT Extension 0x1201 1
LTE EB-11 DL: 1500 MHz 0x1300 1
LTE EB-11 UL: 1500 MHz 0x1301 1
LTE EB-21 DL: Ext 1500 MHz 0x1400 1
LTE EB-21 UL: Ext 1500 MHz 0x1401 1
LTE EB-25 DL: Ext US PCS 0x1500 1
LTE EB-25 UL: Ext US PCS 0x1501 1
LTE EB-06 DL: 800 MHz 0x1600 1
LTE EB-06 UL: 800 MHz 0x1601 1
LTE EB-18 DL: Japan Lwr 800 0x1700 1
LTE EB-18 UL: Japan Lwr 800 0x1701 1
LTE EB-19 DL: Japan Uppr 800 0x1800 1
LTE EB-19 UL: Japan Uppr 800 0x1801 1
LTE EB-20 DL: European 800 MHz 0x1A00 1
LTE EB-20 UL: European 800 MHz 0x1A01 1
LTE EB-24 DL: 1600 MHz 0x1B00 1
LTE EB-24 UL: 1600 MHz 0x1B01 1
LTE EB-26 DL: Uppr Ext 850 MHz 0x2100 1
LTE EB-26 UL: Uppr Ext 850 MHz 0x2101 1
LTE EB-28 DL: 700 APAC (CALA) 0x2200 1
LTE EB-28 UL: 700 APAC (CALA) 0x2201 1
LTE EB-10 DL: Ext 2100 (AWS) 0x2B00 1
LTE EB-10 UL: Ext 2100 (AWS) 0x2B01 1
LTE EB-22 DL: 3.5 GHz 0x2C00 1
LTE EB-22 UL: 3.5 GHz 0x2C01 1
LTE EB-29 DL: US 700 MHz 0x2D00 1
LTE EB-23 DL: S-Band 2 GHz 0x3100 1
LTE EB-23 UL: S-Band 2 GHz 0x3101 1
LTE EB-30 DL: 2.3 GHz (WCS A/B) 0x3200 1
LTE EB-30 UL: 2.3 GHz (WCS A/B) 0x3201 1
LTE EB-32 DL: 1500 (L-Band) 0x3400 1
LTE EB-66 AWS-3 DL:(2110-2200 MHz) 0x3800 1
LTE EB-66 AWS-3 UL:(1710-1800 MHz) 0x3801 1
LTE EB-65 DL: (2110-2200 MHz) 0x3C00 1
LTE EB-65 UL: (1920-2010 MHz) 0x3C01 1
LTE EB-67 DL: (738-758 MHz) 0x3D00 1
LTE EB-68 DL: (753-783 MHz) 0x3E00 1
LTE EB-68 UL: (698-728 MHz) 0x3E01 1
TD-LTE EB-38: TDD 2.6 GHz 0x1C03 1
TD-LTE EB-40: TDD 2.3 GHz 0x1D03 1
TD-LTE EB-41: TDD 2.5 GHz 0x1E03 1
TD-LTE EB-41 TDD 2.5 GHz Lower 0x1EC3 1
TD-LTE EB-39: TDD 1.9 GHz 0x1F03 1
TD-LTE EB-42: TDD 3.4 GHz 0x2303 1
TD-LTE EB-43: TDD 3.6 GHz 0x2403 1
TD-LTE EB-44: TDD 700 MHz 0x2503 1
TD-LTE EB-33: TDD 2000 MHz 0x2603 1
TD-LTE EB-34: Chinese TDD 2000 MHz 0x2703 1
TD-LTE EB-35: TDD 1900 (PCS) Lower 0x2803 1
TD-LTE EB-36: TDD 1900 (PCS) Upper 0x2903 1
TD-LTE EB-37: TDD 1900 (PCS) Center Gap 0x2A03 1
TD-LTE EB-45 TDD: (1447-1467 MHz) 0x3903 1
Wi-Fi WiFi: Device Band 0x3303 1
From the manufacturer:
In-Building and Outdoor Network Testing
The PCTEL® IBflex scanning receiver combines portability and accuracy with the power to test multiple technologies and bands simultaneously. It can be used to deploy 5G New Radio networks in sub-6 GHz spectrum, verify public safety coverage, optimize dense small cell deployments, and improve the reliability of IoT systems. Low power consumption and a hot-swap battery system make the IBflex scanner a convenient tool for a long day of walk testing or interference hunting.
BANDS: 5G: 3GPP FR1 • All existing 2G, 3G, and 4G • CBRS • Public safety • WiFi (2.4 and 5 GHz) • Other bands currently deployed around the world B
Features: • 4G/5G Dynamic Spectrum Sharing (DSS) • Dual polarization beamforming measurements • 2x2 and 4x2 LTE MIMO measurements • Hot-swap battery system • Windows® laptop and Android™ tablet support • Connect with Bluetooth® or USB • Blind Scan for automatic channel detection • LMR active channel scan F
Technologies: • 5G NR • LTE FDD • TD-LTE • NB-IoT • UMTS • GSM Custom Channel Power Measurements for additional technologies • CDMA • EV-DO • WiFi • LAA • P25 • DMR • TETRA
Shipping & Returns Policy
Shipping Policy
- Processing Time: Orders are typically processed and dispatched within 1 business day.
- Shipping Methods: We offer Expedited Shipping to all destinations using UPS/DHL/Fedex/Royal Mail and other reputable carriers.
- Shipping Times: Mainland UK: 1-2 Business Days / Mainland Europe and USA: 2-3 Business Days / Rest of the World 5-7 Business Days.
- Shipping Costs: These are calculated at checkout based on the shipping method, destination and package dimensions.
- CUSTOMS AND TAXES: It is YOUR responsibility to liaise with customs in your country and ensure your package is cleared and any taxes are paid.
- Shipping Destinations: We ship worldwide.
- Tracking: Once your order is shipped, we will provide you with a tracking number via email.
- Insurance: All shipments are insured. In case of damage, please contact us via email within 48 hours of receiving the product with photographic evidence, please also ensure a report is logged with the delivery driver.
Returns Policy
- Return Period: In the event of an item being received which is 'not as specified', you can return your purchase within 14 days of delivery.
- Condition of Items: Items must be returned unused and in their original packaging.
- Return Method: All returns must be notified in writing to hello@ttinstruments.com, the email should accompany the order number, date and reason for return and must be within 14 days of delivery.
- Restocking Fees: A restocking fee of up-to 20% is applicable for items returned for any reason other than 'not as specified'.
- Refund Method: Refunds are processed to the original method of payment within 5 business days of receiving the return.
- Exchanges: We do not offer exchanges. It will either be a replacement or a refund.
- Return Shipping Costs: Return shipping costs will be borne by the customer unless the item is 'not as specified', in this case we will arrange for the return by way of a prepaid shipping label.
Product Overview
Condition: Used
In excellent working condition, tested. Multiple options enabled as per images and description below.
Included in the sale:

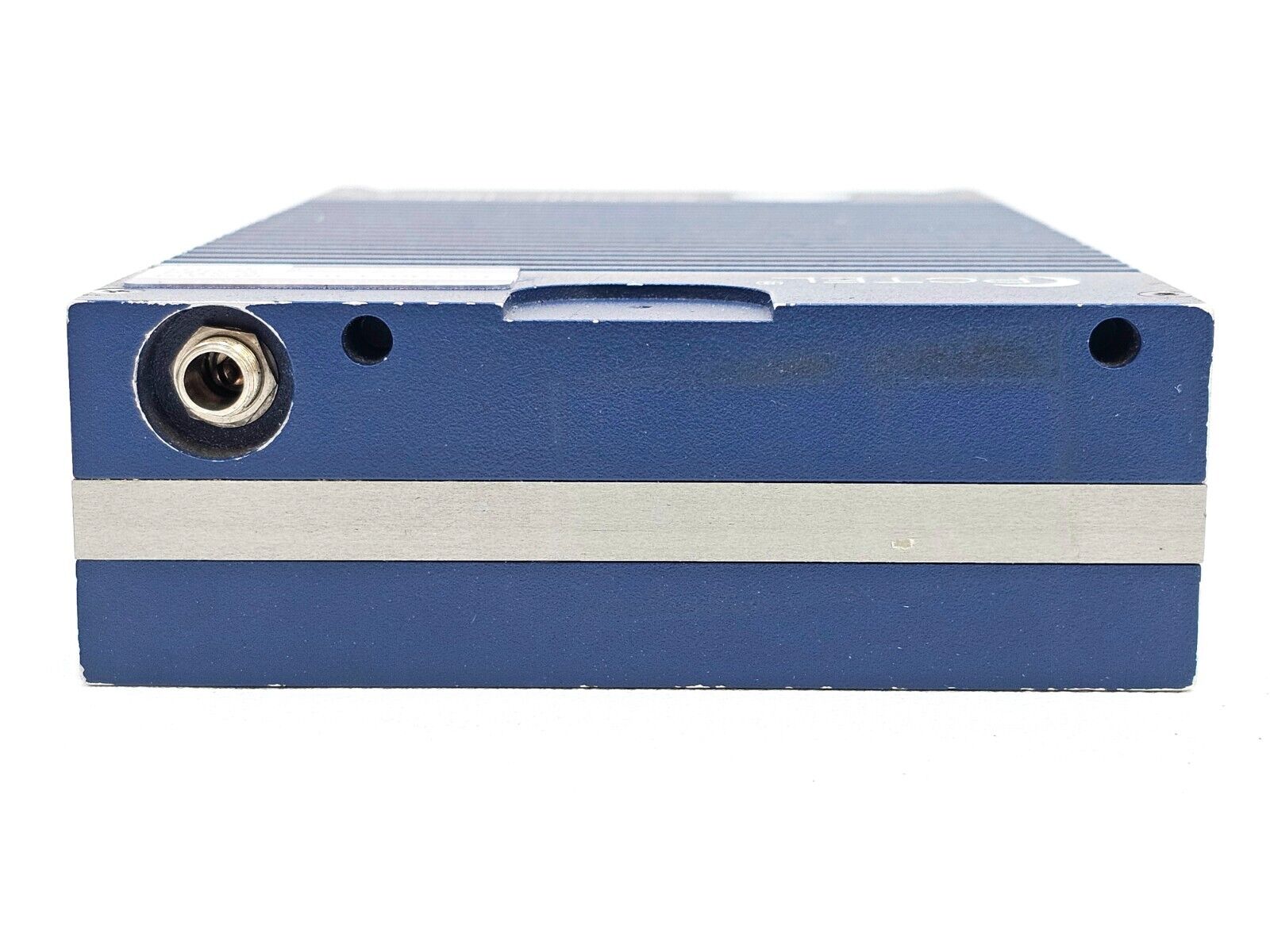

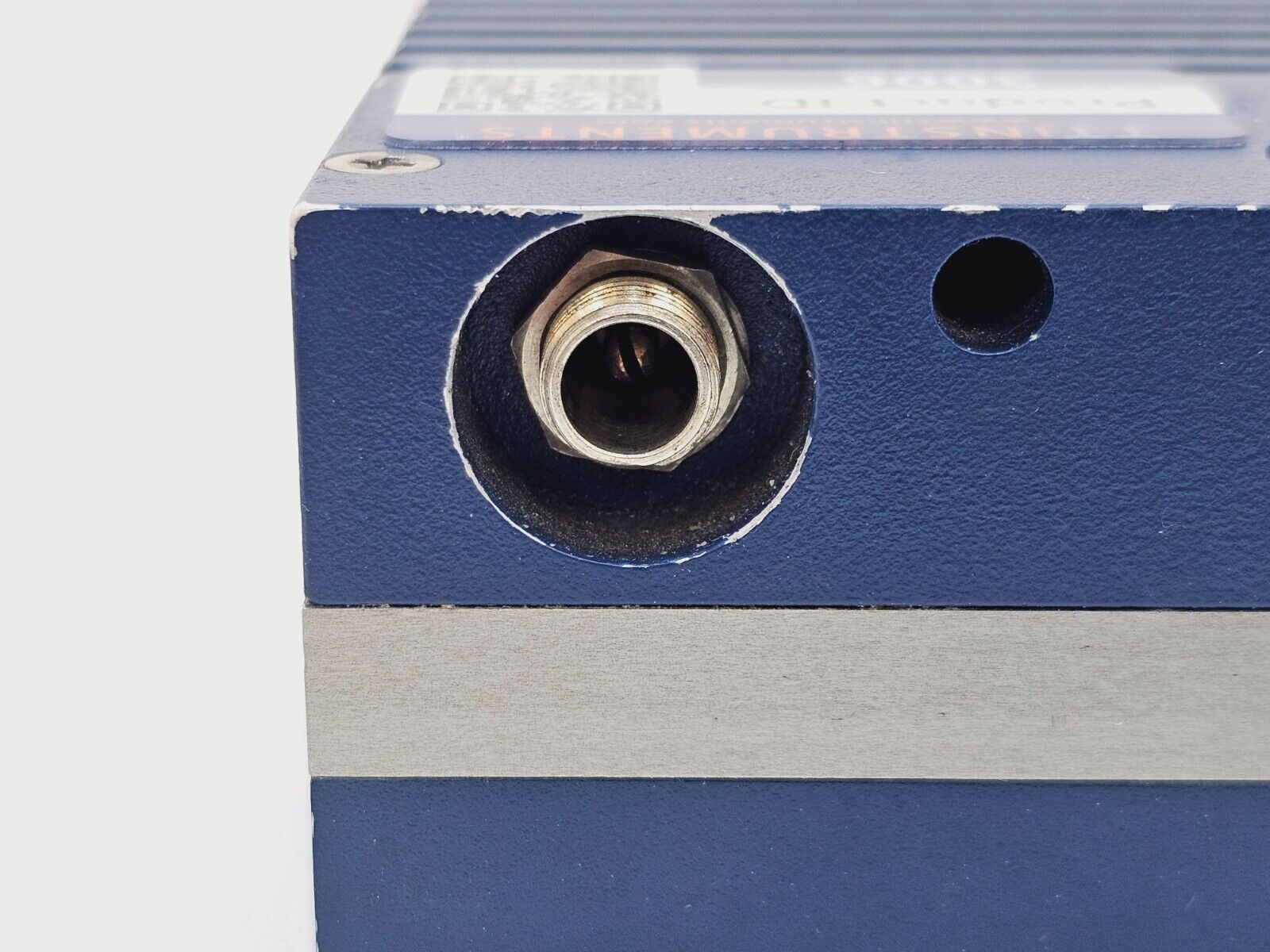

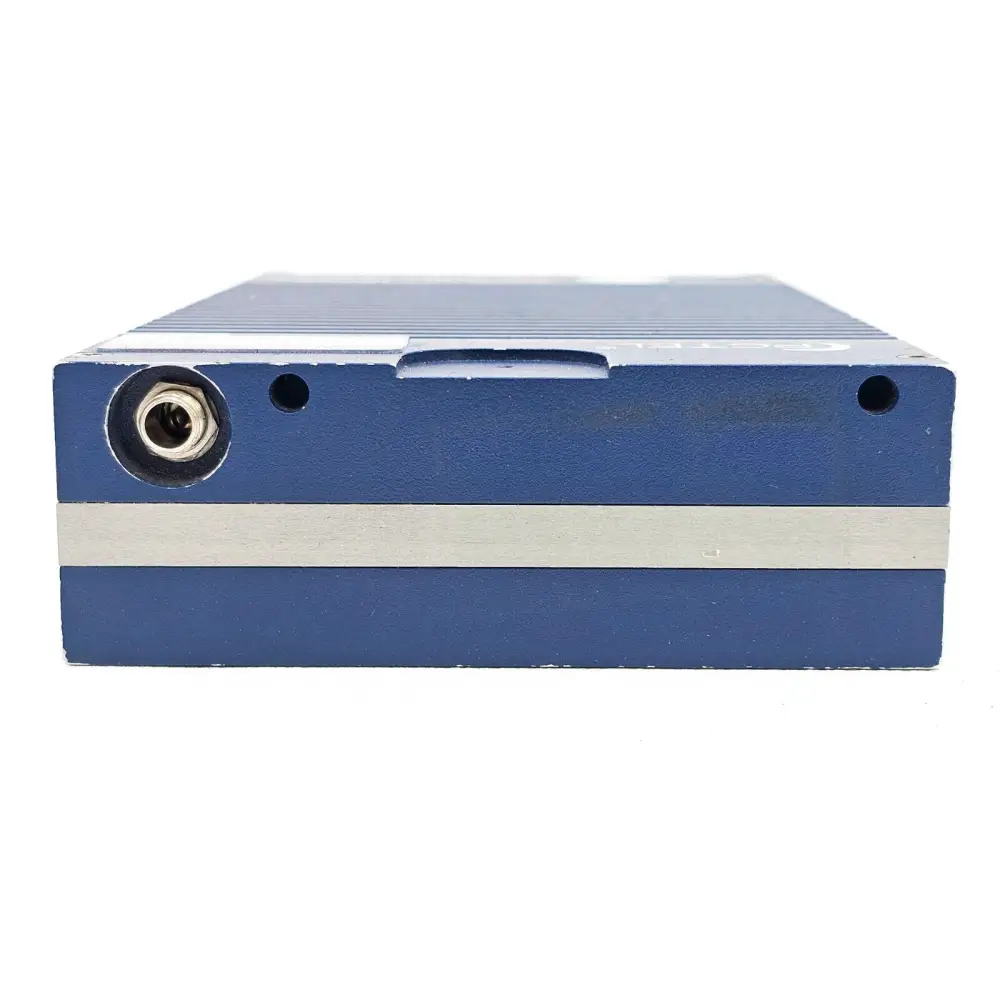

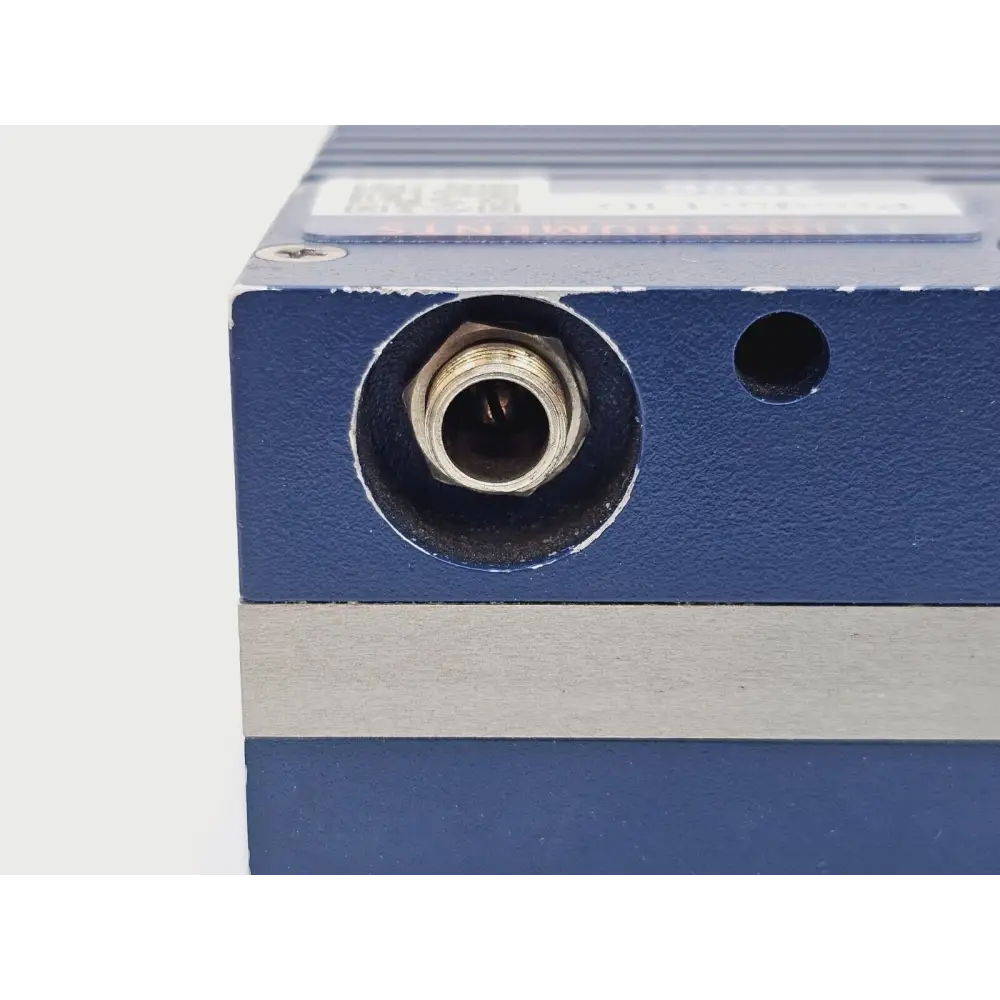

- IBflex 570 MHz - 3.8 GHz 08900S
- 2x PCTel 698 to 3800 MHz antennas, USB data cable, power adapter/in car charger.
Please see below information we have extracted from the system and INSTALLED OPTIONS.
Installed Options
---------------------------------------------------------------------
570MHz-3800MHz Capability...........................: 7030-0000
Dual RF Port........................................: 000F-0000
Recording to SD Card................................: 000A-0000
GPS Navigation......................................: 0001-0000
Absolute Time Stamp.................................: 0005-0000
WiFi USB Adaptor....................................: 0009-0000
Ethernet Interface..................................: 000C-0000
GSM Blind Scan......................................: 000B-0001
IS-95 Blind Scan....................................: 000B-0003
WCDMA Blind Scan....................................: 000B-0004
CDMA Blind Scan.....................................: 000B-0005
EVDO Blind Scan.....................................: 000B-0006
LTE Blind Scan......................................: 000B-000A
TDLTE Blind Scan....................................: 000B-000B
TDSCDMA Blind Scan..................................: 000B-0008
WiFi Support........................................: 0001-000C
WiFi Blind Scan.....................................: 000B-000C
LTE Support.........................................: 0001-000A
IS-95 Support.......................................: 0001-0003
IS-95 Pilot.........................................: 0003-0003
IS-95 Extended Dynamic Range........................: 0008-0003
CDMA Support........................................: 0001-0005
CDMA Pilot..........................................: 0003-0005
CDMA Extended Dynamic Range.........................: 0008-0005
EVDO Support........................................: 0001-0006
EVDO Pilot..........................................: 0003-0006
EVDO Extended Dynamic Range.........................: 0008-0006
LTE Enhanced Signal Scan............................: 000C-000A
TDLTE Support.......................................: 0001-000B
TDLTE Enhanced Signal Scan..........................: 000C-000B
GSM Support.........................................: 0001-0001
GSM BSIC............................................: 0002-0001
WCDMA Support.......................................: 0001-0004
WCDMA Pilot.........................................: 0003-0004
WCDMA Extended Dynamic Range........................: 0008-0004
Protocol/Band Summary
Protocol Count
---------------------------------------------------------------------
Band Option.......: 85
GSM...............: 12
CDMA(95)..........: 16
WCDMA.............: 28
CDMA..............: 16
EV-DO.............: 16
TDSCDMA...........: 3
LTE...............: 65
TD-LTE............: 14
Wi-Fi.............: 1
Unit Level Information
---------------------------------------------------------------------
PCTEL Device Type..................: IBflex
Unit ESN...........................: 0000-0000-8161-0048
Number of Options..................: 35
Interfaces.........................: USB, AOA, Ethernet
Product Reference Version..........: 1.1.32.0
API Version........................: 2.4.0.4
Software Release Version...........: 3.4.0.0
ASN.1 ICD Version..................: 2.4.0.4
Calibration Date...................: 11/11/2016
Bootup Status......................: Passed
Supported Configurations
Protocol Band Band Code Port
---------------------------------------------------------------------
Band Option EB-05 DL: American Cellular 0x0100 1
Band Option EB-05 UL: American Cellular 0x0101 1
Band Option EB-02 DL: American PCS 0x0200 1
Band Option EB-02 UL: American PCS 0x0201 1
Band Option EB-01 DL: 2100 (IMT-2000) 0x0300 1
Band Option EB-01 UL: 2100 (IMT-2000) 0x0301 1
Band Option EB-08 DL: European 900 MHz 0x0600 1
Band Option EB-08 UL: European 900 MHz 0x0601 1
Band Option EB-03 DL: 1800 MHz (DCS) 0x0700 1
Band Option EB-03 UL: 1800 MHz (DCS) 0x0701 1
Band Option EB-09 DL: 1700 MHz (Japan) 0x07F8 1
Band Option EB-09 UL: 1700 MHz (Japan) 0x07F9 1
Band Option EB-27 DL: Lwr Ext 850 MHz 0x0900 1
Band Option EB-27 UL: Lwr Ext 850 MHz 0x0901 1
Band Option EB-04 DL: AWS 2100 MHz 0x0B00 1
Band Option EB-04 UL: AWS 2100 MHz 0x0B01 1
Band Option EB-13/14L DL: US 700 Upp C/D 0x1000 1
Band Option EB-13/14L UL: US 700 Upp C/D 0x1001 1
Band Option EB-13 DL: US 700 Upp C 0x1010 1
and Option EB-13 UL: US 700 Upp C 0x1011 1
Band Option EB-14 DL: Upper 700 D 0x1020 1
Band Option EB-14 UL: Upper 700 D 0x1021 1
Band Option EB-12 DL: US Lwr 700 A/B/C 0x1100 1
Band Option EB-12 UL: US Lwr 700 A/B/C 0x1101 1
Band Option EB-17 DL: US Lwr 700 B/C 0x11F8 1
Band Option EB-17 UL: US Lwr 700 B/C 0x11F9 1
Band Option EB-07 DL: 2600 IMT Extension 0x1200 1
Band Option EB-07 UL: 2600 IMT Extension 0x1201 1
Band Option EB-11 DL: 1500 MHz 0x1300 1
Band Option EB-11 UL: 1500 MHz 0x1301 1
Band Option EB-21 DL: Ext 1500 MHz 0x1400 1
Band Option EB-21 UL: Ext 1500 MHz 0x1401 1
Band Option EB-25 DL: Ext US PCS 0x1500 1
Band Option EB-25 UL: Ext US PCS 0x1501 1
Band Option EB-06 DL: 800 MHz 0x1600 1
Band Option EB-06 UL: 800 MHz 0x1601 1
Band Option EB-18 DL: Japan Lwr 800 0x1700 1
Band Option EB-18 UL: Japan Lwr 800 0x1701 1
Band Option EB-19 DL: Japan Uppr 800 0x1800 1
Band Option EB-19 UL: Japan Uppr 800 0x1801 1
Band Option EB-20 DL: European 800 MHz 0x1A00 1
Band Option EB-20 UL: European 800 MHz 0x1A01 1
Band Option EB-24 DL: 1600 MHz 0x1B00 1
Band Option EB-24 UL: 1600 MHz 0x1B01 1
Band Option EB-38: TDD 2.6 GHz 0x1C03 1
Band Option EB-40: TDD 2.3 GHz 0x1D03 1
Band Option EB-41: TDD 2.5 GHz 0x1E03 1
Band Option EB-41 TDD 2.5 GHz Lower 0x1EC3 1
Band Option EB-39: TDD 1.9 GHz 0x1F03 1
Band Option EB-26 DL: Uppr Ext 850 MHz 0x2100 1
Band Option EB-26 UL: Uppr Ext 850 MHz 0x2101 1
Band Option EB-28 DL: 700 APAC (CALA) 0x2200 1
Band Option EB-28 UL: 700 APAC (CALA) 0x2201 1
Band Option EB-42: TDD 3.4 GHz 0x2303 1
Band Option EB-43: TDD 3.6 GHz 0x2403 1
Band Option EB-44: TDD 700 MHz 0x2503 1
Band Option EB-33: TDD 2000 MHz 0x2603 1
Band Option EB-34: Chinese TDD 2000 MHz 0x2703 1
Band Option EB-35: TDD 1900 (PCS) Lower 0x2803 1
Band Option EB-36: TDD 1900 (PCS) Upper 0x2903 1
Band Option EB-37: TDD 1900 (PCS) Center Gap 0x2A03 1
Band Option EB-10 DL: Ext 2100 (AWS) 0x2B00 1
Band Option EB-10 UL: Ext 2100 (AWS) 0x2B01 1
Band Option EB-22 DL: 3.5 GHz 0x2C00 1
Band Option EB-22 UL: 3.5 GHz 0x2C01 1
Band Option EB-29 DL: US 700 MHz 0x2D00 1
Band Option R-GSM 900 MHz DL 0x2E00 1
Band Option R-GSM 900 MHz UL 0x2E01 1
Band Option EB-23 DL: S-Band 2 GHz 0x3100 1
Band Option EB-23 UL: S-Band 2 GHz 0x3101 1
Band Option EB-30 DL: 2.3 GHz (WCS A/B) 0x3200 1
Band Option EB-30 UL: 2.3 GHz (WCS A/B) 0x3201 1
Band Option WiFi: Device Band 0x3303 1
Band Option EB-32 DL: 1500 (L-Band) 0x3400 1
Band Option ER-GSM: 900 MHz DL 0x3500 1
Band Option ER-GSM: 900 MHz UL 0x3501 1
Band Option EB-66 AWS-3 DL:(2110-2200 MHz) 0x3800 1
Band Option EB-66 AWS-3 UL:(1710-1800 MHz) 0x3801 1
Band Option EB-45 TDD: (1447-1467 MHz) 0x3903 1
Band Option EB-65 DL: (2110-2200 MHz) 0x3C00 1
Band Option EB-65 UL: (1920-2010 MHz) 0x3C01 1
Band Option EB-67 DL: (738-758 MHz) 0x3D00 1
Band Option EB-68 DL: (753-783 MHz) 0x3E00 1
Band Option EB-68 UL: (698-728 MHz) 0x3E01 1
Band Option 570-3800 MHz 0x7030 1
GSM EB-05 DL: American Cellular 0x0100 1
GSM EB-05 UL: American Cellular 0x0101 1
GSM EB-02 DL: American PCS 0x0200 1
GSM EB-02 UL: American PCS 0x0201 1
GSM EB-08 DL: European 900 MHz 0x0600 1
GSM EB-08 UL: European 900 MHz 0x0601 1
GSM EB-03 DL: 1800 MHz (DCS) 0x0700 1
GSM EB-03 UL: 1800 MHz (DCS) 0x0701 1
GSM R-GSM 900 MHz DL 0x2E00 1
GSM R-GSM 900 MHz UL 0x2E01 1
GSM ER-GSM: 900 MHz DL 0x3500 1
GSM ER-GSM: 900 MHz UL 0x3501 1
CDMA(95) EB-05 DL: American Cellular 0x0100 1
CDMA(95) EB-05 UL: American Cellular 0x0101 1
CDMA(95) EB-02 DL: American PCS 0x0200 1
CDMA(95) EB-02 UL: American PCS 0x0201 1
CDMA(95) EB-01 DL: 2100 (IMT-2000) 0x0300 1
CDMA(95) EB-01 UL: 2100 (IMT-2000) 0x0301 1
CDMA(95) EB-03 DL: 1800 MHz (DCS) 0x0700 1
CDMA(95) EB-03 UL: 1800 MHz (DCS) 0x0701 1
CDMA(95) EB-27 DL: Lwr Ext 850 MHz 0x0900 1
CDMA(95) EB-27 UL: Lwr Ext 850 MHz 0x0901 1
CDMA(95) EB-04 DL: AWS 2100 MHz 0x0B00 1
CDMA(95) EB-04 UL: AWS 2100 MHz 0x0B01 1
CDMA(95) EB-25 DL: Ext US PCS 0x1500 1
CDMA(95) EB-25 UL: Ext US PCS 0x1501 1
CDMA(95) EB-24 DL: 1600 MHz 0x1B00 1
CDMA(95) EB-24 UL: 1600 MHz 0x1B01 1
WCDMA EB-05 DL: American Cellular 0x0100 1
WCDMA EB-05 UL: American Cellular 0x0101 1
WCDMA EB-02 DL: American PCS 0x0200 1
WCDMA EB-02 UL: American PCS 0x0201 1
WCDMA EB-01 DL: 2100 (IMT-2000) 0x0300 1
WCDMA EB-01 UL: 2100 (IMT-2000) 0x0301 1
WCDMA EB-08 DL: European 900 MHz 0x0600 1
WCDMA EB-08 UL: European 900 MHz 0x0601 1
WCDMA EB-03 DL: 1800 MHz (DCS) 0x0700 1
WCDMA EB-03 UL: 1800 MHz (DCS) 0x0701 1
WCDMA EB-09 DL: 1700 MHz (Japan) 0x07F8 1
WCDMA EB-09 UL: 1700 MHz (Japan) 0x07F9 1
WCDMA EB-04 DL: AWS 2100 MHz 0x0B00 1
WCDMA EB-04 UL: AWS 2100 MHz 0x0B01 1
WCDMA EB-07 DL: 2600 IMT Extension 0x1200 1
WCDMA EB-07 UL: 2600 IMT Extension 0x1201 1
WCDMA EB-11 DL: 1500 MHz 0x1300 1
WCDMA EB-11 UL: 1500 MHz 0x1301 1
WCDMA EB-21 DL: Ext 1500 MHz 0x1400 1
WCDMA EB-21 UL: Ext 1500 MHz 0x1401 1
WCDMA EB-25 DL: Ext US PCS 0x1500 1
WCDMA EB-25 UL: Ext US PCS 0x1501 1
WCDMA EB-06 DL: 800 MHz 0x1600 1
WCDMA EB-06 UL: 800 MHz 0x1601 1 WCDMA EB-19 DL: Japan Uppr 800 0x1800 1
WCDMA EB-19 UL: Japan Uppr 800 0x1801 1
WCDMA EB-10 DL: Ext 2100 (AWS) 0x2B00 1
WCDMA EB-10 UL: Ext 2100 (AWS) 0x2B01 1
CDMA EB-05 DL: American Cellular 0x0100 1
CDMA EB-05 UL: American Cellular 0x0101 1
CDMA EB-02 DL: American PCS 0x0200 1
CDMA EB-02 UL: American PCS 0x0201 1
CDMA EB-01 DL: 2100 (IMT-2000) 0x0300 1
CDMA EB-01 UL: 2100 (IMT-2000) 0x0301 1
CDMA EB-03 DL: 1800 MHz (DCS) 0x0700 1
CDMA EB-03 UL: 1800 MHz (DCS) 0x0701 1
CDMA EB-27 DL: Lwr Ext 850 MHz 0x0900 1
CDMA EB-27 UL: Lwr Ext 850 MHz 0x0901 1
CDMA EB-04 DL: AWS 2100 MHz 0x0B00 1
CDMA EB-04 UL: AWS 2100 MHz 0x0B01 1
CDMA EB-25 DL: Ext US PCS 0x1500 1
CDMA EB-25 UL: Ext US PCS 0x1501 1
CDMA EB-24 DL: 1600 MHz 0x1B00 1
CDMA EB-24 UL: 1600 MHz 0x1B01 1
EV-DO EB-05 DL: American Cellular 0x0100 1
EV-DO EB-05 UL: American Cellular 0x0101 1
EV-DO EB-02 DL: American PCS 0x0200 1
EV-DO EB-02 UL: American PCS 0x0201 1
EV-DO EB-01 DL: 2100 (IMT-2000) 0x0300 1
EV-DO EB-01 UL: 2100 (IMT-2000) 0x0301 1
EV-DO EB-03 DL: 1800 MHz (DCS) 0x0700 1
EV-DO EB-03 UL: 1800 MHz (DCS) 0x0701 1
EV-DO EB-27 DL: Lwr Ext 850 MHz 0x0900 1
EV-DO EB-27 UL: Lwr Ext 850 MHz 0x0901 1
EV-DO EB-04 DL: AWS 2100 MHz 0x0B00 1
EV-DO EB-04 UL: AWS 2100 MHz 0x0B01 1
EV-DO EB-25 DL: Ext US PCS 0x1500 1
EV-DO EB-25 UL: Ext US PCS 0x1501 1
EV-DO EB-24 DL: 1600 MHz 0x1B00 1
EV-DO EB-24 UL: 1600 MHz 0x1B01 1
TDSCDMA EB-40: TDD 2.3 GHz 0x1D03 1
TDSCDMA EB-39: TDD 1.9 GHz 0x1F03 1
TDSCDMA EB-34: Chinese TDD 2000 MHz 0x2703 1
LTE EB-05 DL: American Cellular 0x0100 1
LTE EB-05 UL: American Cellular 0x0101 1
LTE EB-02 DL: American PCS 0x0200 1
LTE EB-02 UL: American PCS 0x0201 1
LTE EB-01 DL: 2100 (IMT-2000) 0x0300 1
LTE EB-01 UL: 2100 (IMT-2000) 0x0301 1
LTE EB-08 DL: European 900 MHz 0x0600 1
LTE EB-08 UL: European 900 MHz 0x0601 1
LTE EB-03 DL: 1800 MHz (DCS) 0x0700 1
LTE EB-03 UL: 1800 MHz (DCS) 0x0701 1
LTE EB-09 DL: 1700 MHz (Japan) 0x07F8 1
LTE EB-09 UL: 1700 MHz (Japan) 0x07F9 1
LTE EB-27 DL: Lwr Ext 850 MHz 0x0900 1
LTE EB-27 UL: Lwr Ext 850 MHz 0x0901 1
LTE EB-04 DL: AWS 2100 MHz 0x0B00 1
LTE EB-04 UL: AWS 2100 MHz 0x0B01 1
LTE EB-13/14L DL: US 700 Upp C/D 0x1000 1
LTE EB-13/14L UL: US 700 Upp C/D 0x1001 1
LTE EB-13 DL: US 700 Upp C 0x1010 1
LTE EB-13 UL: US 700 Upp C 0x1011 1
LTE EB-14 DL: Upper 700 D 0x1020 1
LTE EB-14 UL: Upper 700 D 0x1021 1
LTE EB-12 DL: US Lwr 700 A/B/C 0x1100 1
LTE EB-12 UL: US Lwr 700 A/B/C 0x1101 1
LTE EB-17 DL: US Lwr 700 B/C 0x11F8 1
LTE EB-17 UL: US Lwr 700 B/C 0x11F9 1
LTE EB-07 DL: 2600 IMT Extension 0x1200 1
LTE EB-07 UL: 2600 IMT Extension 0x1201 1
LTE EB-11 DL: 1500 MHz 0x1300 1
LTE EB-11 UL: 1500 MHz 0x1301 1
LTE EB-21 DL: Ext 1500 MHz 0x1400 1
LTE EB-21 UL: Ext 1500 MHz 0x1401 1
LTE EB-25 DL: Ext US PCS 0x1500 1
LTE EB-25 UL: Ext US PCS 0x1501 1
LTE EB-06 DL: 800 MHz 0x1600 1
LTE EB-06 UL: 800 MHz 0x1601 1
LTE EB-18 DL: Japan Lwr 800 0x1700 1
LTE EB-18 UL: Japan Lwr 800 0x1701 1
LTE EB-19 DL: Japan Uppr 800 0x1800 1
LTE EB-19 UL: Japan Uppr 800 0x1801 1
LTE EB-20 DL: European 800 MHz 0x1A00 1
LTE EB-20 UL: European 800 MHz 0x1A01 1
LTE EB-24 DL: 1600 MHz 0x1B00 1
LTE EB-24 UL: 1600 MHz 0x1B01 1
LTE EB-26 DL: Uppr Ext 850 MHz 0x2100 1
LTE EB-26 UL: Uppr Ext 850 MHz 0x2101 1
LTE EB-28 DL: 700 APAC (CALA) 0x2200 1
LTE EB-28 UL: 700 APAC (CALA) 0x2201 1
LTE EB-10 DL: Ext 2100 (AWS) 0x2B00 1
LTE EB-10 UL: Ext 2100 (AWS) 0x2B01 1
LTE EB-22 DL: 3.5 GHz 0x2C00 1
LTE EB-22 UL: 3.5 GHz 0x2C01 1
LTE EB-29 DL: US 700 MHz 0x2D00 1
LTE EB-23 DL: S-Band 2 GHz 0x3100 1
LTE EB-23 UL: S-Band 2 GHz 0x3101 1
LTE EB-30 DL: 2.3 GHz (WCS A/B) 0x3200 1
LTE EB-30 UL: 2.3 GHz (WCS A/B) 0x3201 1
LTE EB-32 DL: 1500 (L-Band) 0x3400 1
LTE EB-66 AWS-3 DL:(2110-2200 MHz) 0x3800 1
LTE EB-66 AWS-3 UL:(1710-1800 MHz) 0x3801 1
LTE EB-65 DL: (2110-2200 MHz) 0x3C00 1
LTE EB-65 UL: (1920-2010 MHz) 0x3C01 1
LTE EB-67 DL: (738-758 MHz) 0x3D00 1
LTE EB-68 DL: (753-783 MHz) 0x3E00 1
LTE EB-68 UL: (698-728 MHz) 0x3E01 1
TD-LTE EB-38: TDD 2.6 GHz 0x1C03 1
TD-LTE EB-40: TDD 2.3 GHz 0x1D03 1
TD-LTE EB-41: TDD 2.5 GHz 0x1E03 1
TD-LTE EB-41 TDD 2.5 GHz Lower 0x1EC3 1
TD-LTE EB-39: TDD 1.9 GHz 0x1F03 1
TD-LTE EB-42: TDD 3.4 GHz 0x2303 1
TD-LTE EB-43: TDD 3.6 GHz 0x2403 1
TD-LTE EB-44: TDD 700 MHz 0x2503 1
TD-LTE EB-33: TDD 2000 MHz 0x2603 1
TD-LTE EB-34: Chinese TDD 2000 MHz 0x2703 1
TD-LTE EB-35: TDD 1900 (PCS) Lower 0x2803 1
TD-LTE EB-36: TDD 1900 (PCS) Upper 0x2903 1
TD-LTE EB-37: TDD 1900 (PCS) Center Gap 0x2A03 1
TD-LTE EB-45 TDD: (1447-1467 MHz) 0x3903 1
Wi-Fi WiFi: Device Band 0x3303 1
Manufacturer's Description
From the manufacturer:
In-Building and Outdoor Network Testing
The PCTEL® IBflex scanning receiver combines portability and accuracy with the power to test multiple technologies and bands simultaneously. It can be used to deploy 5G New Radio networks in sub-6 GHz spectrum, verify public safety coverage, optimize dense small cell deployments, and improve the reliability of IoT systems. Low power consumption and a hot-swap battery system make the IBflex scanner a convenient tool for a long day of walk testing or interference hunting.
BANDS: 5G: 3GPP FR1 • All existing 2G, 3G, and 4G • CBRS • Public safety • WiFi (2.4 and 5 GHz) • Other bands currently deployed around the world B
Features: • 4G/5G Dynamic Spectrum Sharing (DSS) • Dual polarization beamforming measurements • 2x2 and 4x2 LTE MIMO measurements • Hot-swap battery system • Windows® laptop and Android™ tablet support • Connect with Bluetooth® or USB • Blind Scan for automatic channel detection • LMR active channel scan F
Technologies: • 5G NR • LTE FDD • TD-LTE • NB-IoT • UMTS • GSM Custom Channel Power Measurements for additional technologies • CDMA • EV-DO • WiFi • LAA • P25 • DMR • TETRA
Resources
Shipping & Returns
Shipping & Returns Policy
Shipping Policy
- Processing Time: Orders are typically processed and dispatched within 1 business day.
- Shipping Methods: We offer Expedited Shipping to all destinations using UPS/DHL/Fedex/Royal Mail and other reputable carriers.
- Shipping Times: Mainland UK: 1-2 Business Days / Mainland Europe and USA: 2-3 Business Days / Rest of the World 5-7 Business Days.
- Shipping Costs: These are calculated at checkout based on the shipping method, destination and package dimensions.
- CUSTOMS AND TAXES: It is YOUR responsibility to liaise with customs in your country and ensure your package is cleared and any taxes are paid.
- Shipping Destinations: We ship worldwide.
- Tracking: Once your order is shipped, we will provide you with a tracking number via email.
- Insurance: All shipments are insured. In case of damage, please contact us via email within 48 hours of receiving the product with photographic evidence, please also ensure a report is logged with the delivery driver.
Returns Policy
- Return Period: In the event of an item being received which is 'not as specified', you can return your purchase within 14 days of delivery.
- Condition of Items: Items must be returned unused and in their original packaging.
- Return Method: All returns must be notified in writing to hello@ttinstruments.com, the email should accompany the order number, date and reason for return and must be within 14 days of delivery.
- Restocking Fees: A restocking fee of up-to 20% is applicable for items returned for any reason other than 'not as specified'.
- Refund Method: Refunds are processed to the original method of payment within 5 business days of receiving the return.
- Exchanges: We do not offer exchanges. It will either be a replacement or a refund.
- Return Shipping Costs: Return shipping costs will be borne by the customer unless the item is 'not as specified', in this case we will arrange for the return by way of a prepaid shipping label.
ISO Certified
We are proud to hold the ISO 9001:2015 certification by a UKAS accredited body.
Sell Your Equipment
Receive best prices for your un-used/surplus equipment. Talk to one of our experts for a hassle-free transaction
Worldwide delivery
We deliver on an express service globally with most packages delivered in less than a week
Customer Satisfaction
We pride ourselves in providing an excellent service from start to finish.
Top Rated Seller
Our feedback says it all! We have shipped to over 100 countries all over the world and our customers couldn't be happier!
