PCTel SeeGull MXflex Scanning Receiver 07904S-U NR LTE TD-LTE FD-LTE WCDMA 6-GHz
Model: MXflex
Condition: Used
In stock: 0
SKU: 3020 4D03
- Mobile Network Scanners
- Newly-Listed
- RF & Microwave
Choose options
Condition: Used
In good condition. Multiple options enabled as per images and description below.
Software is not provided.
Included in the sale:

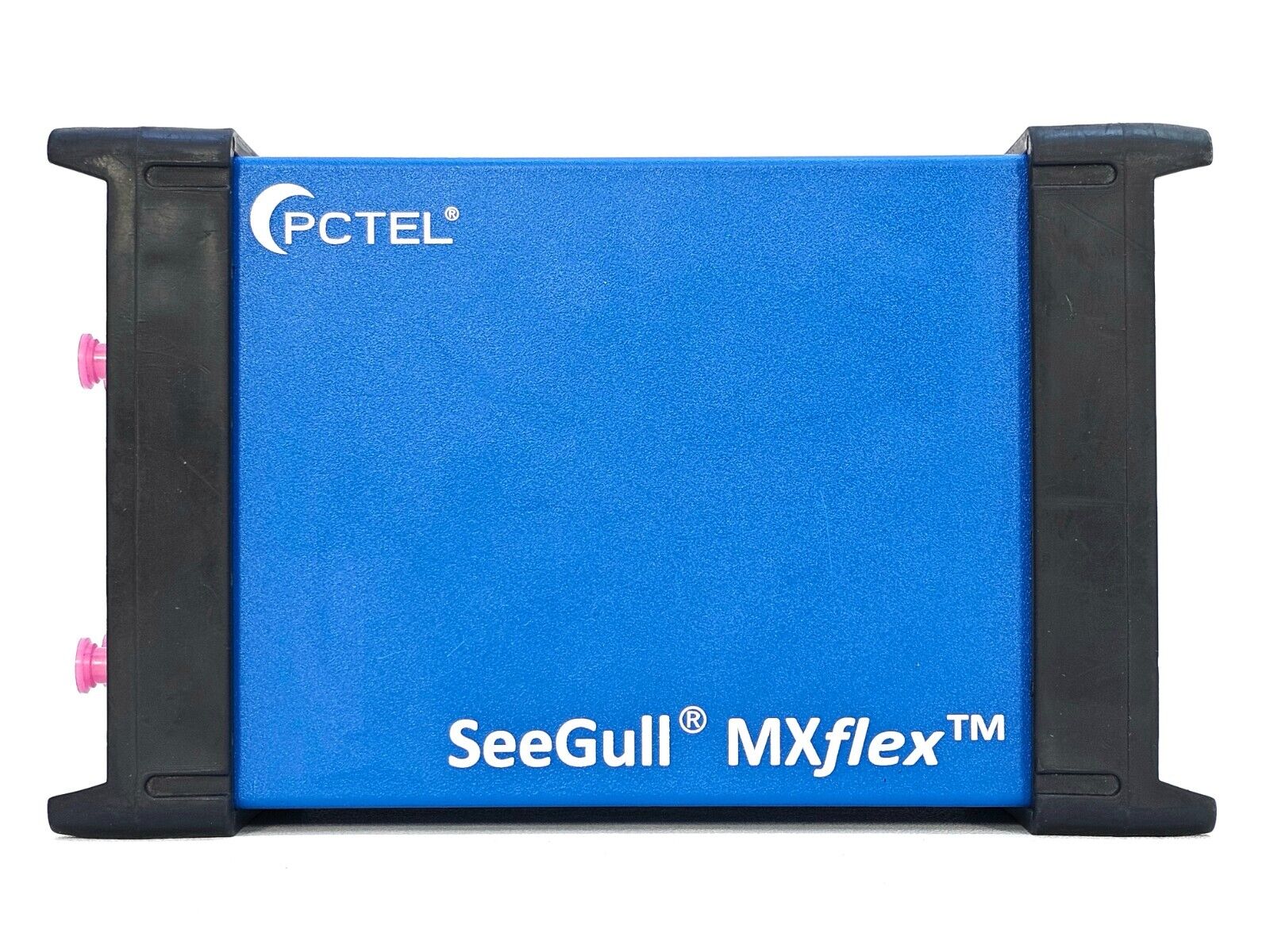

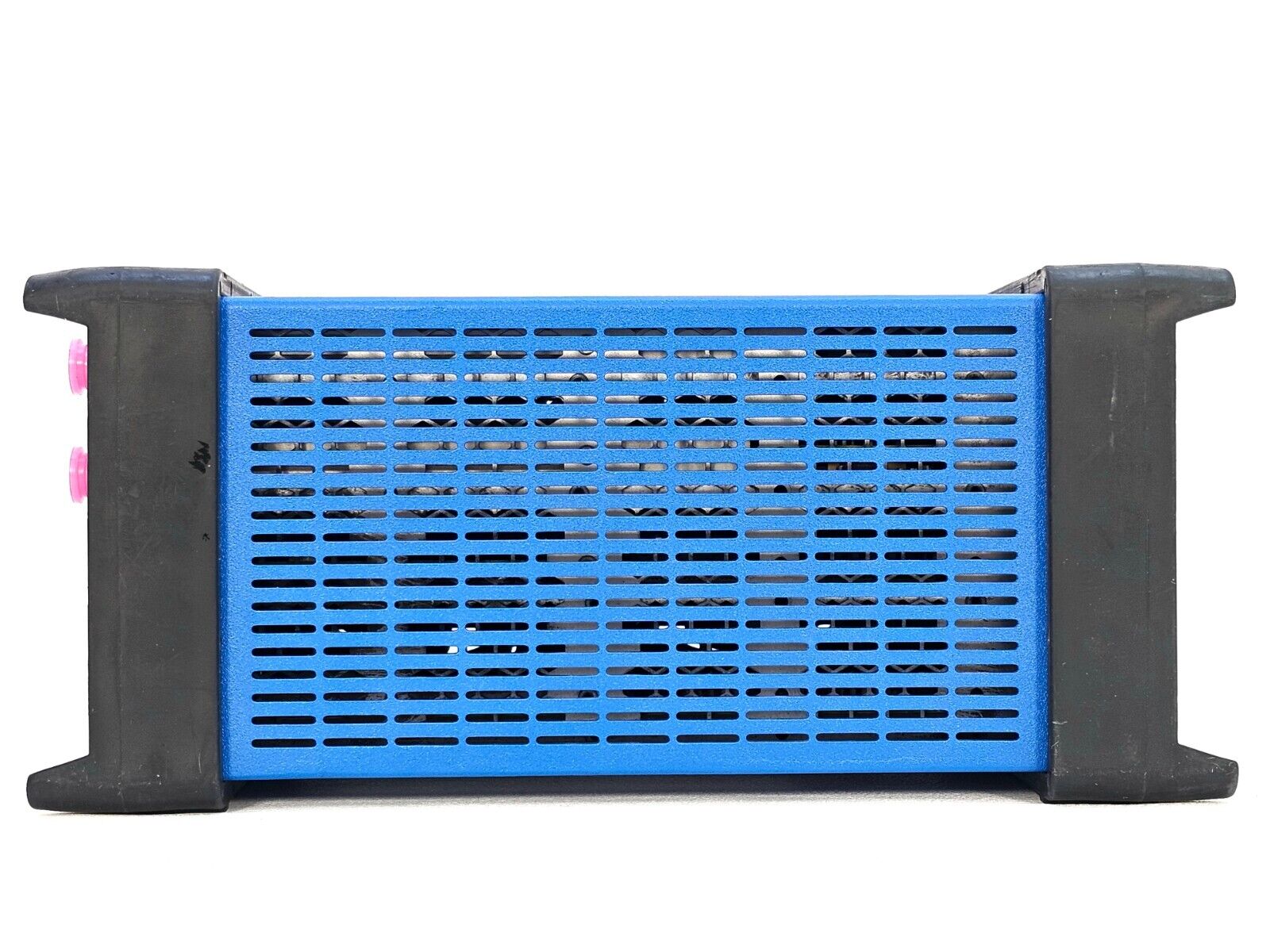

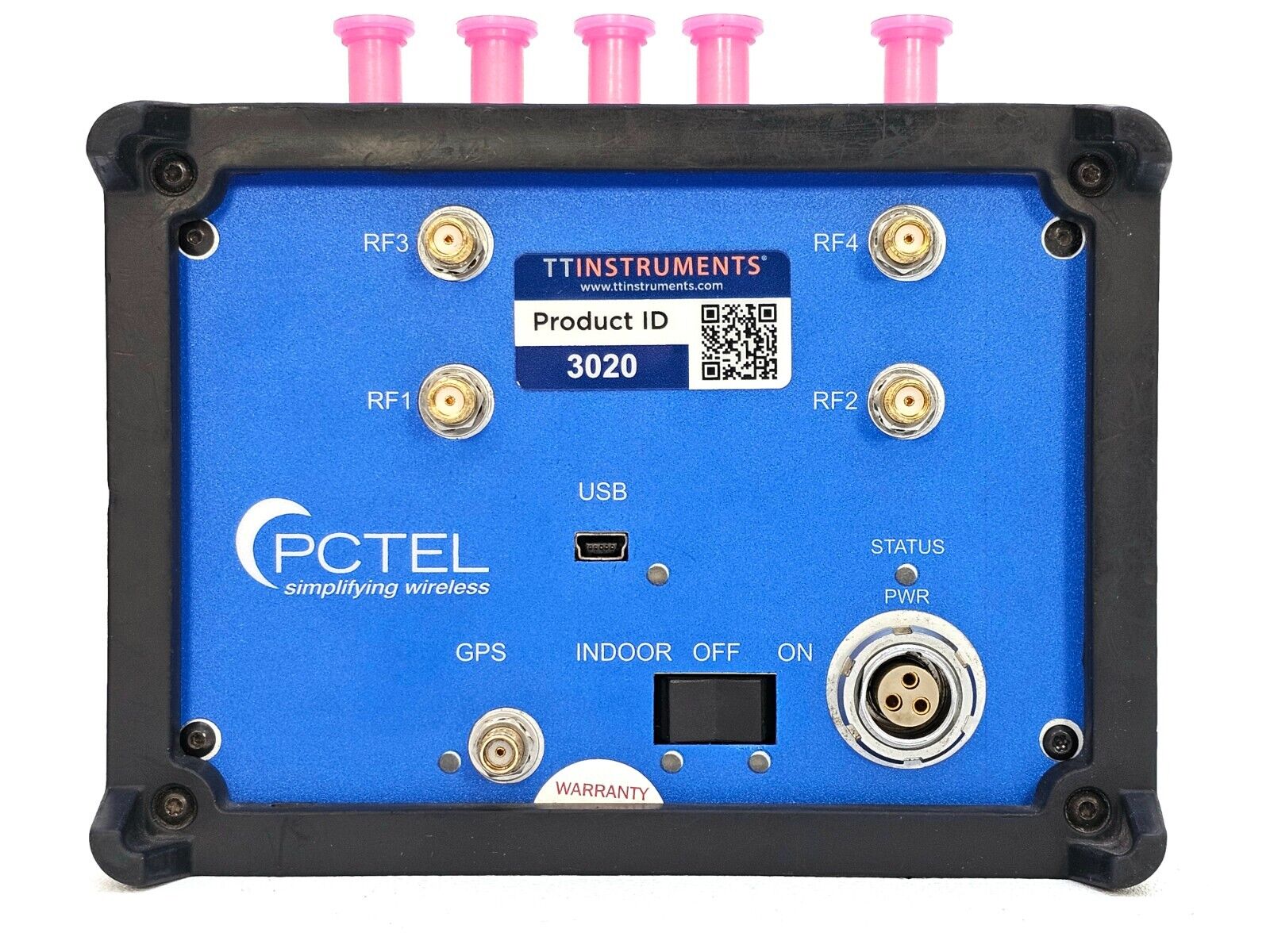

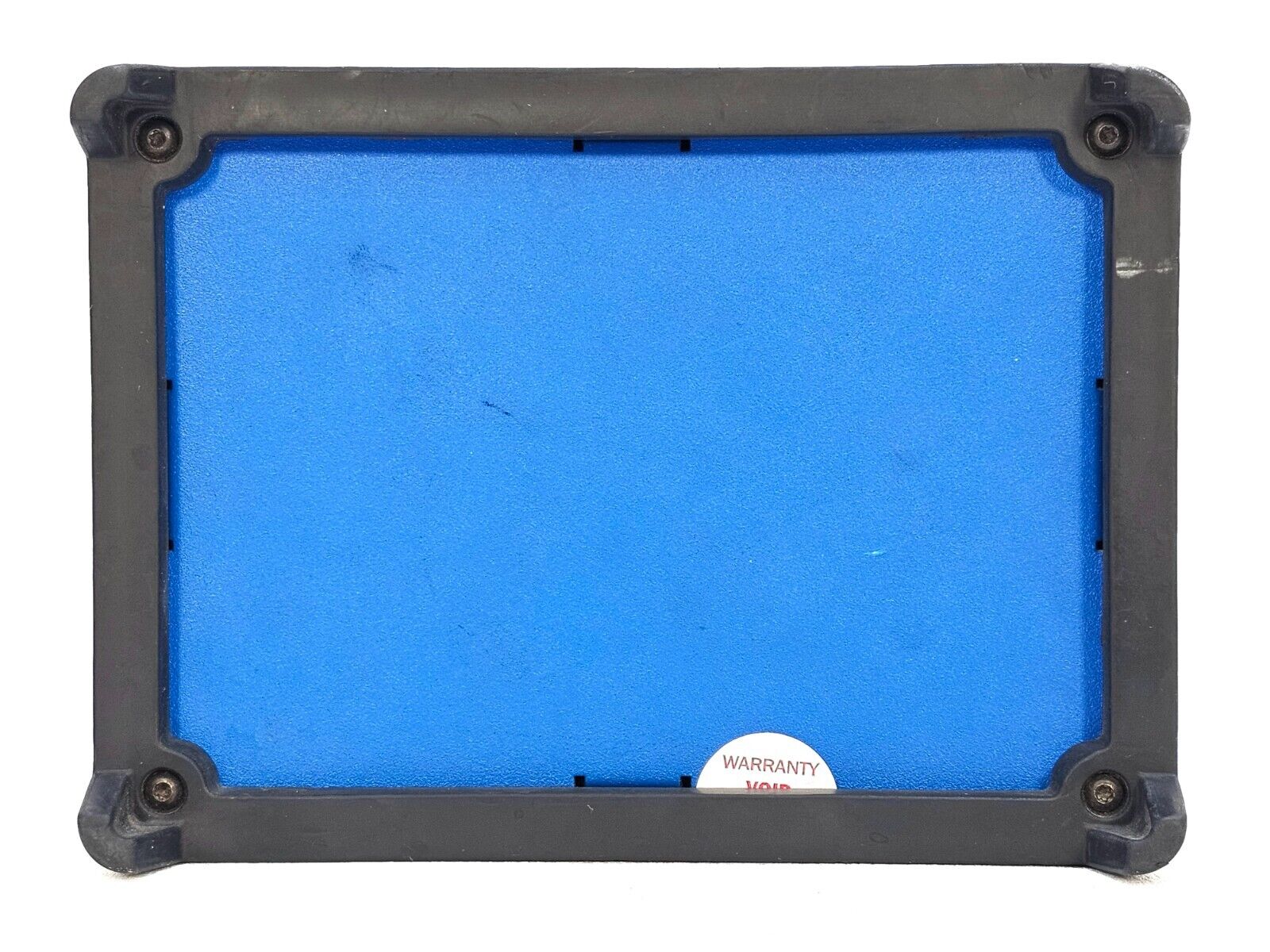

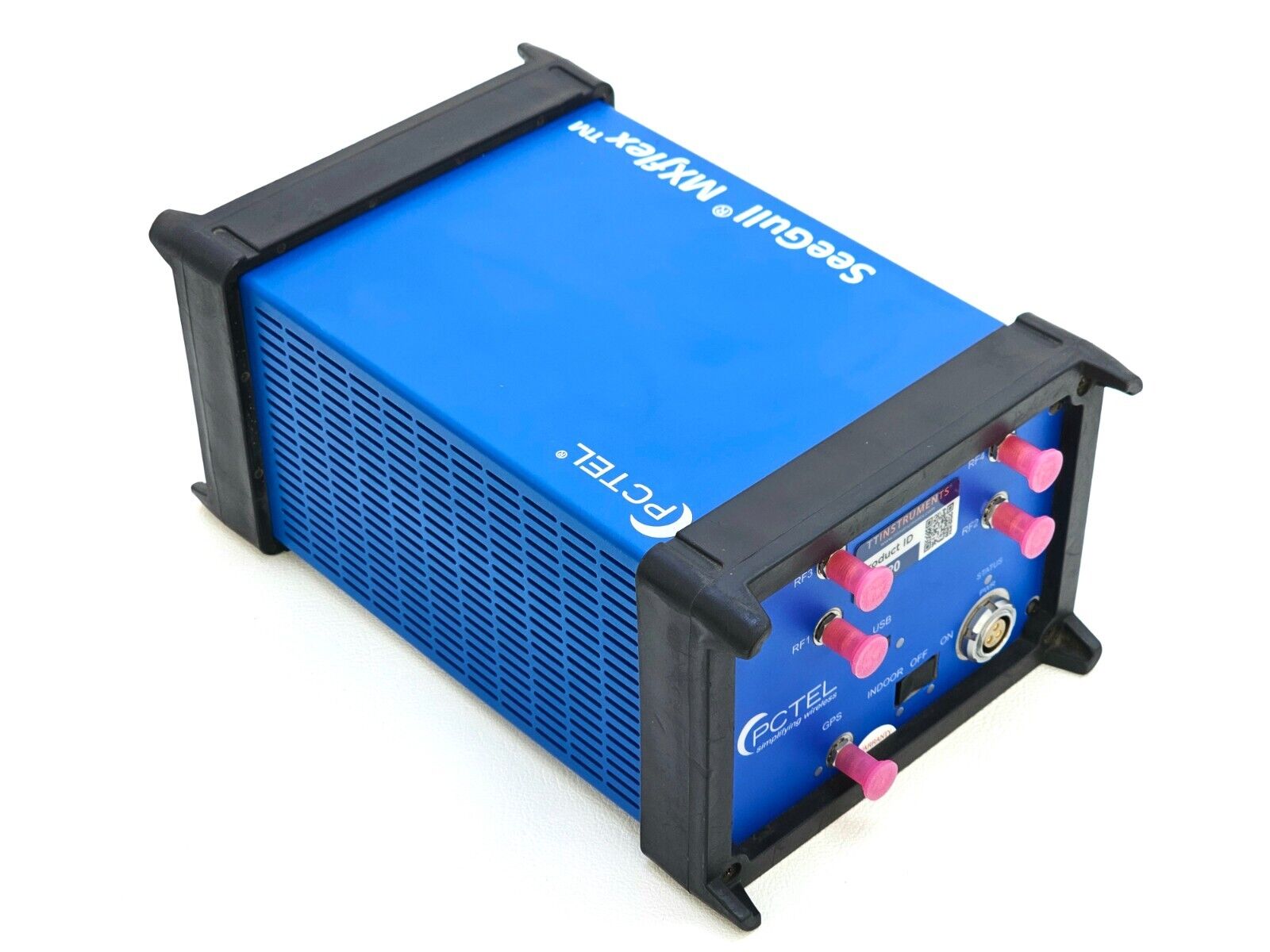

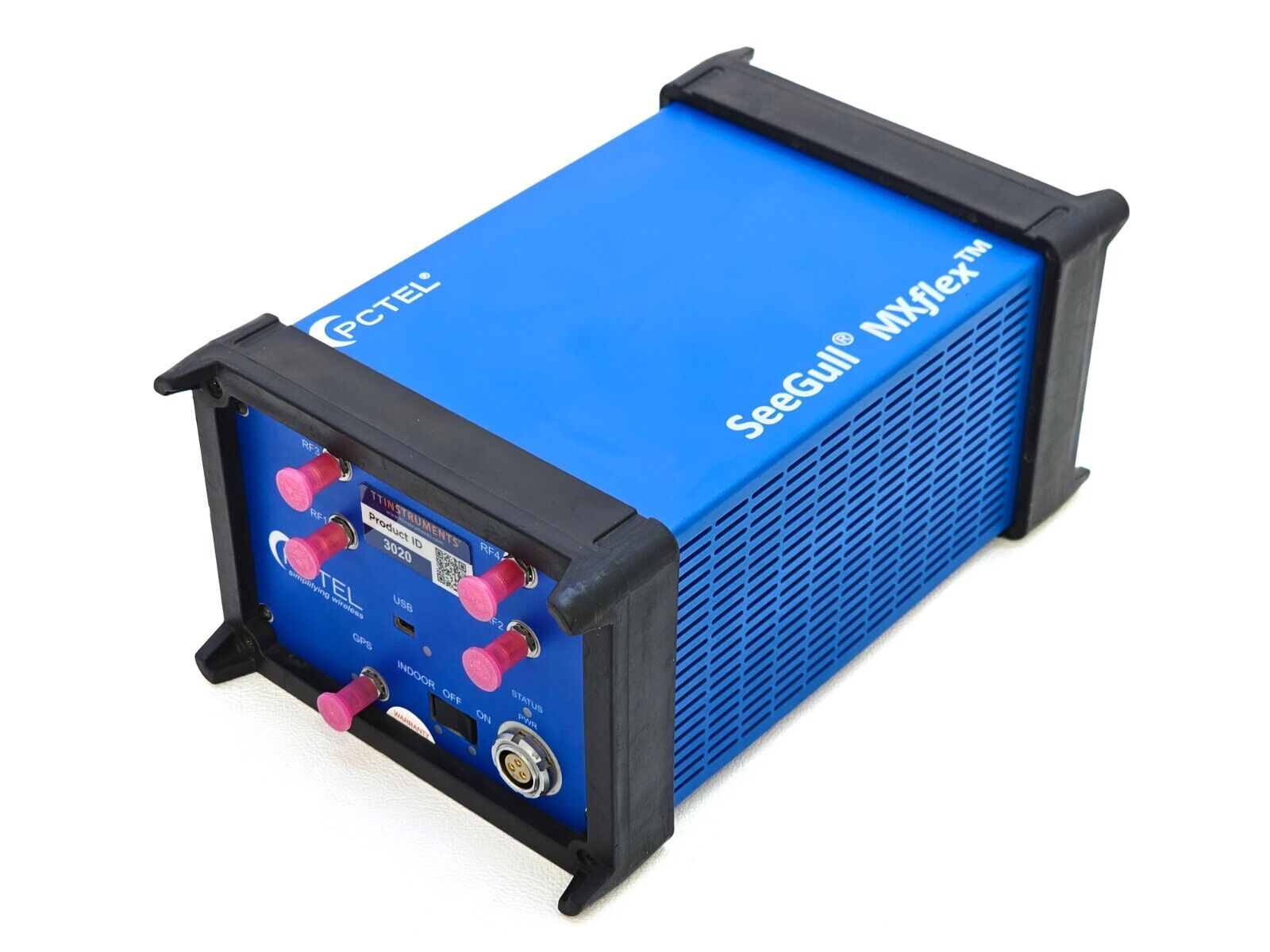

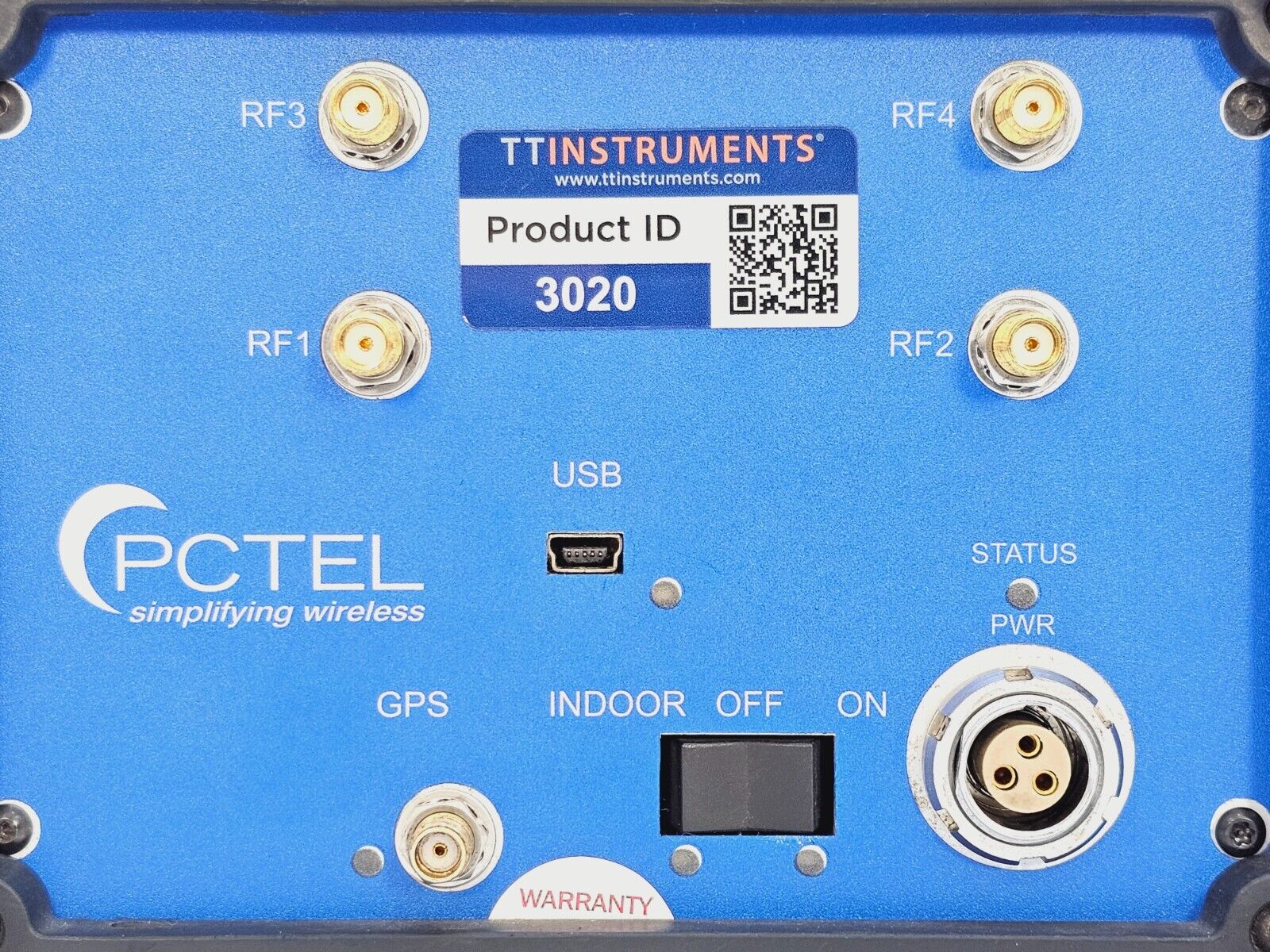

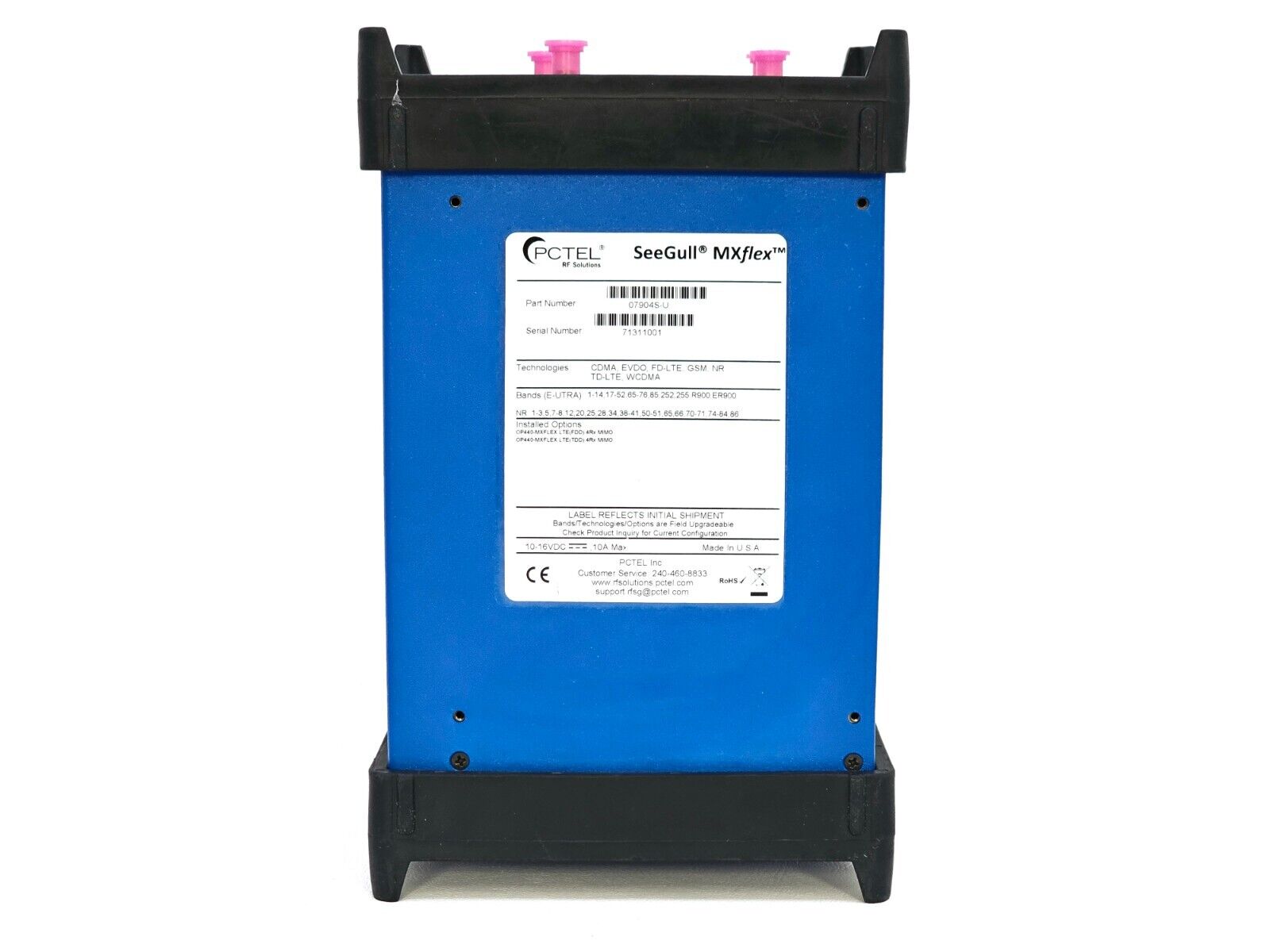

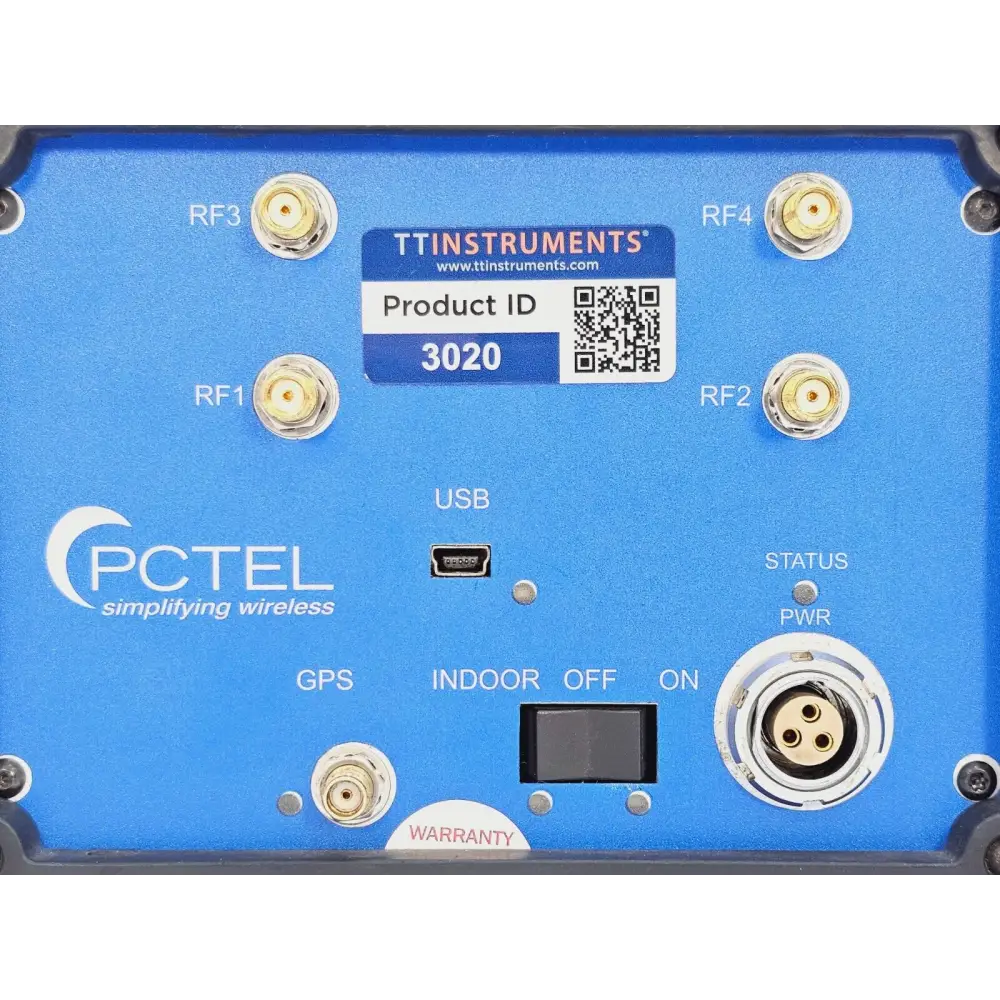

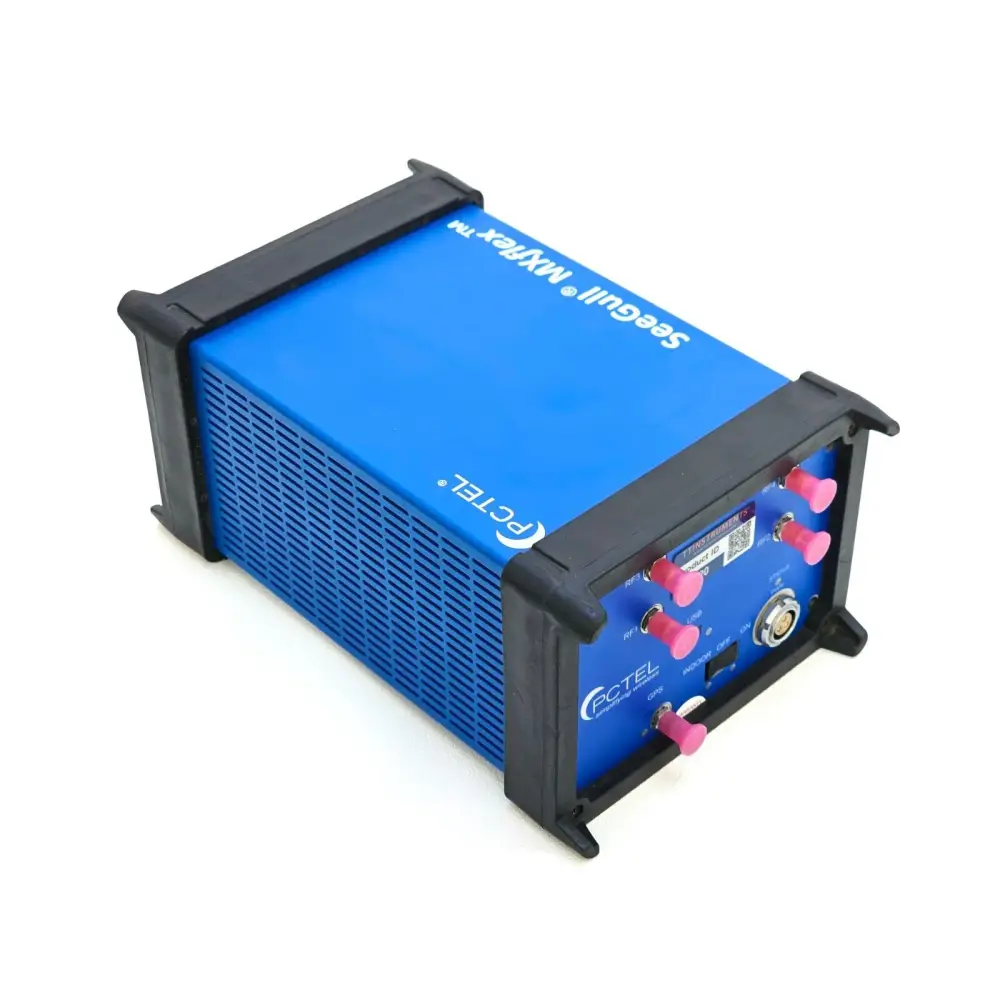

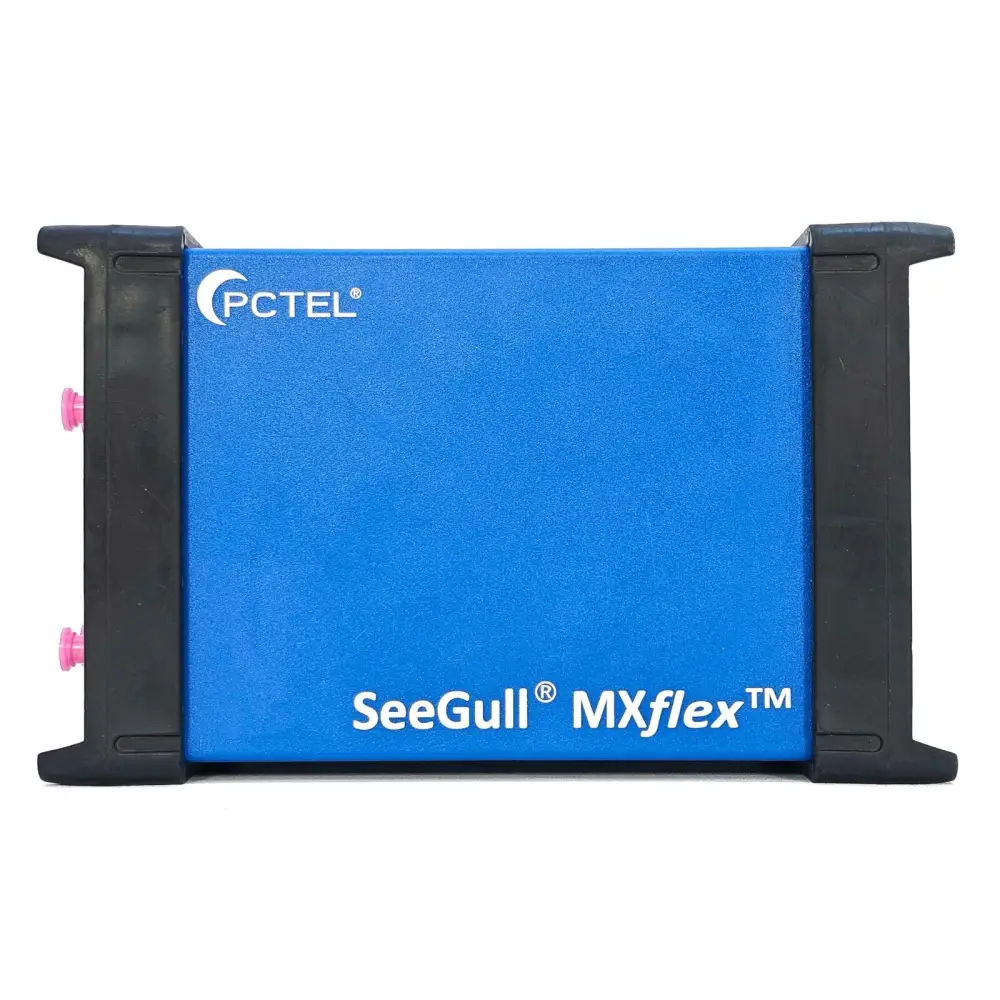

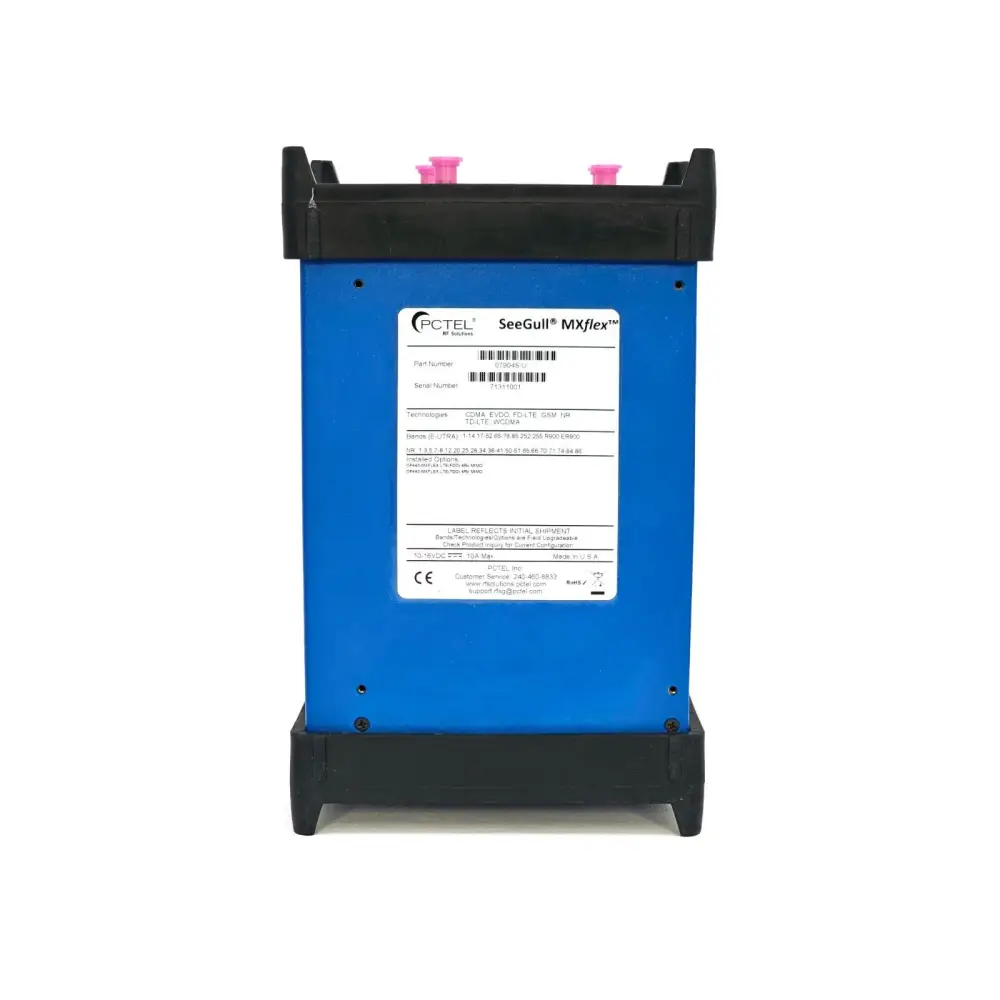

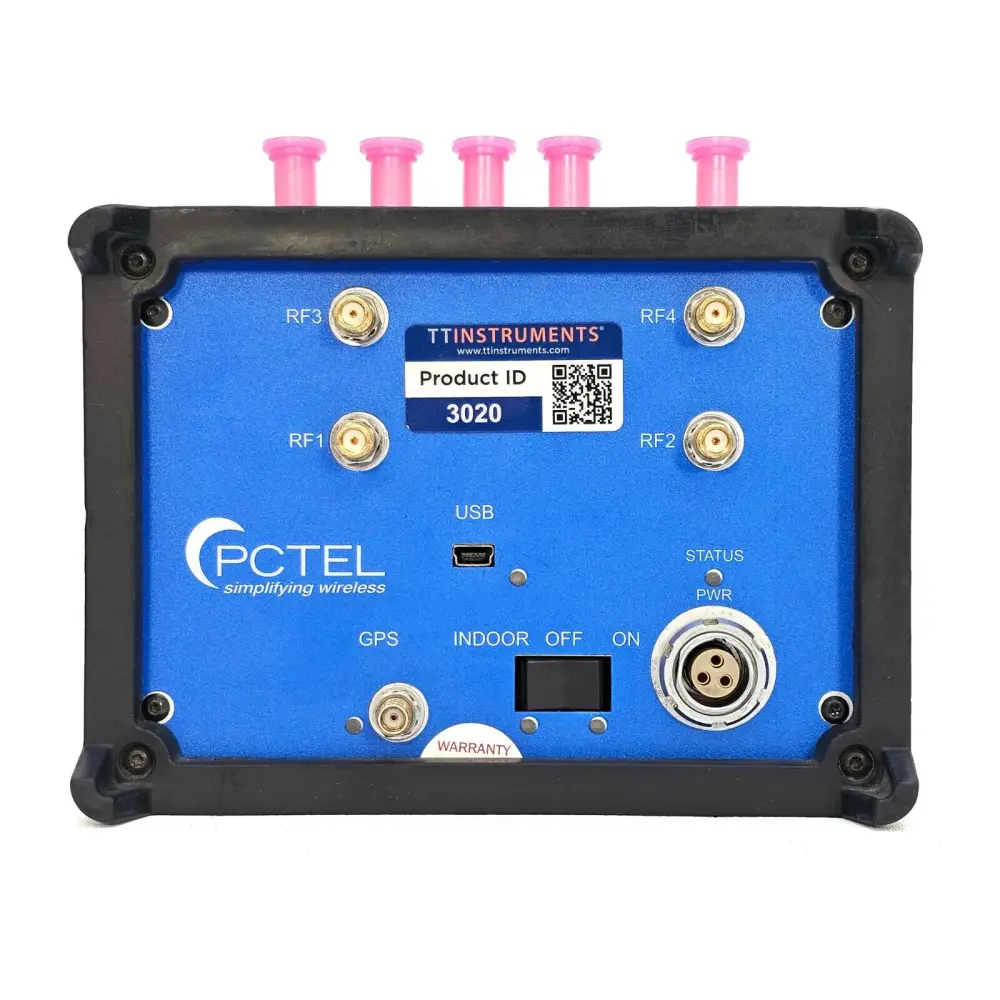

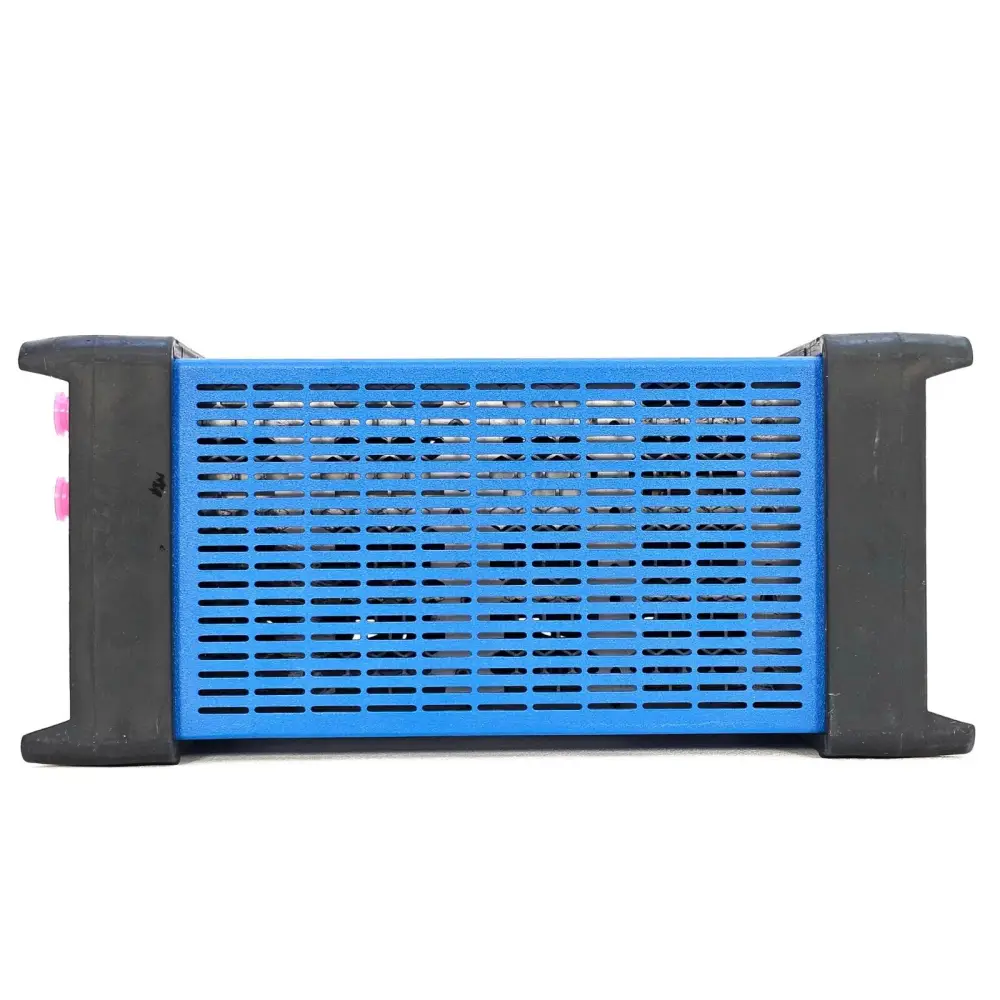

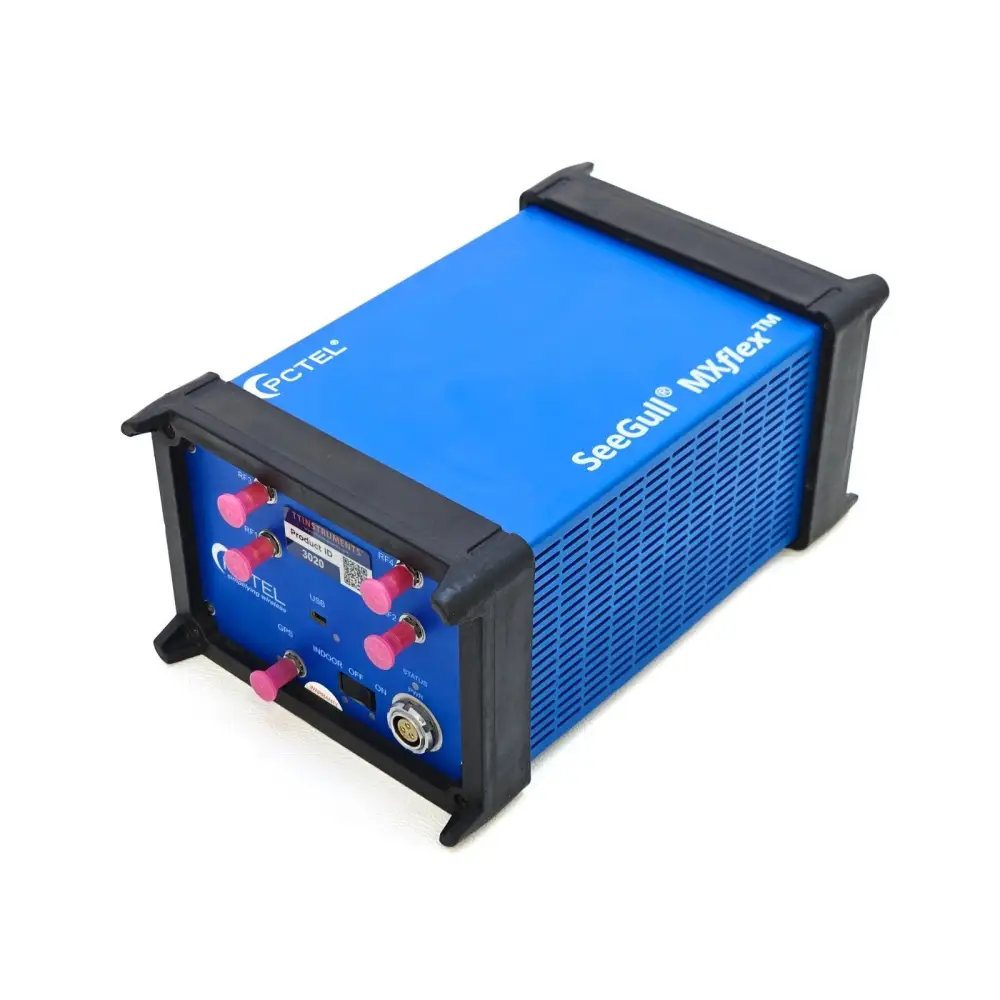

MXflex receiver

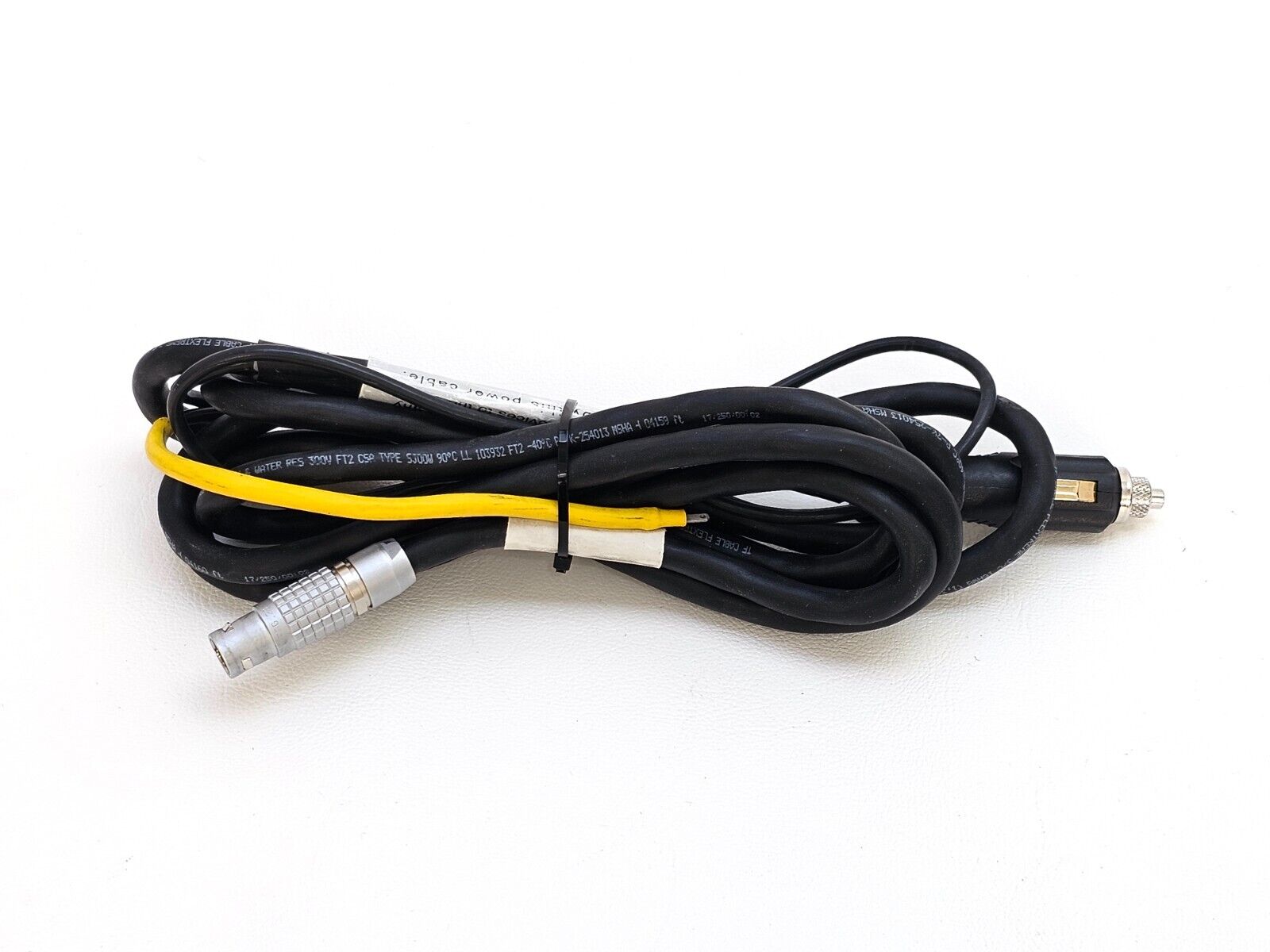

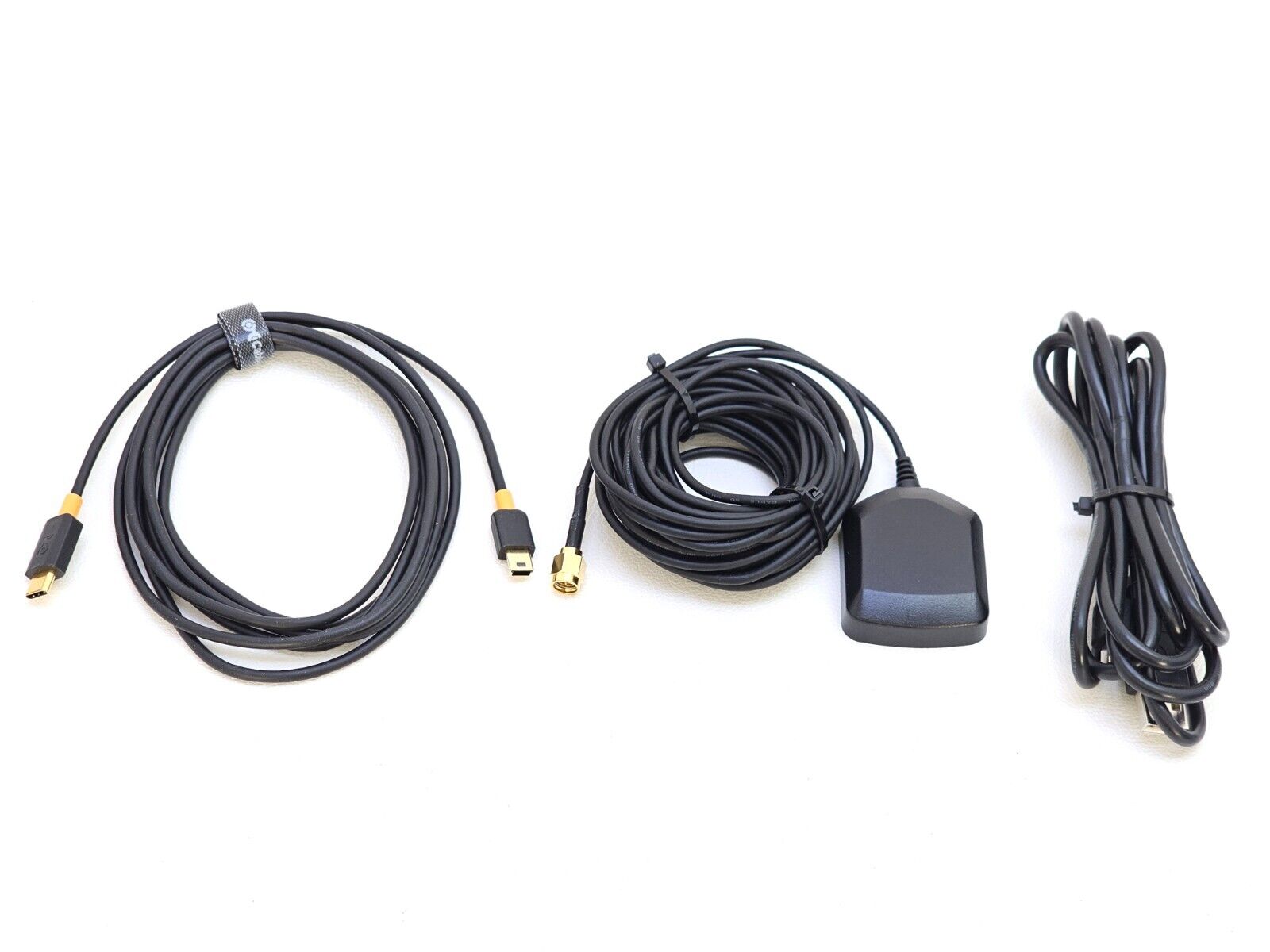

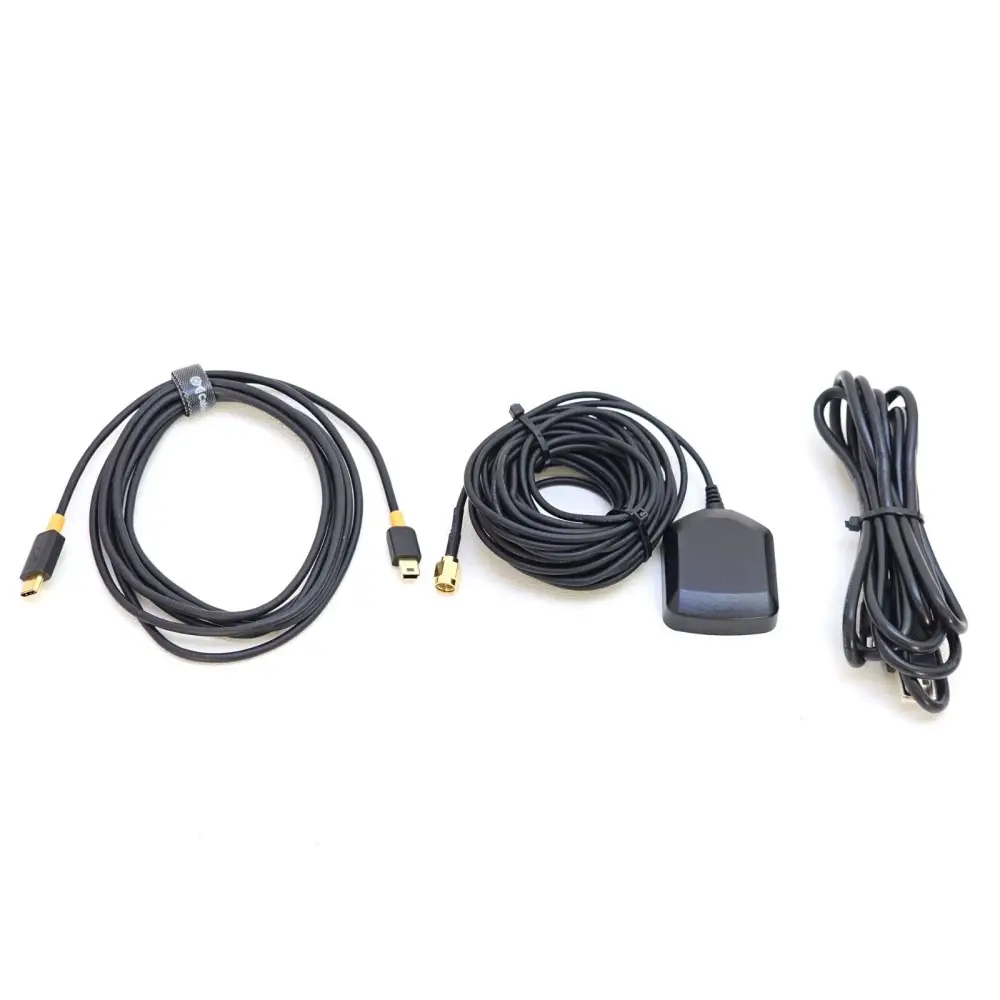

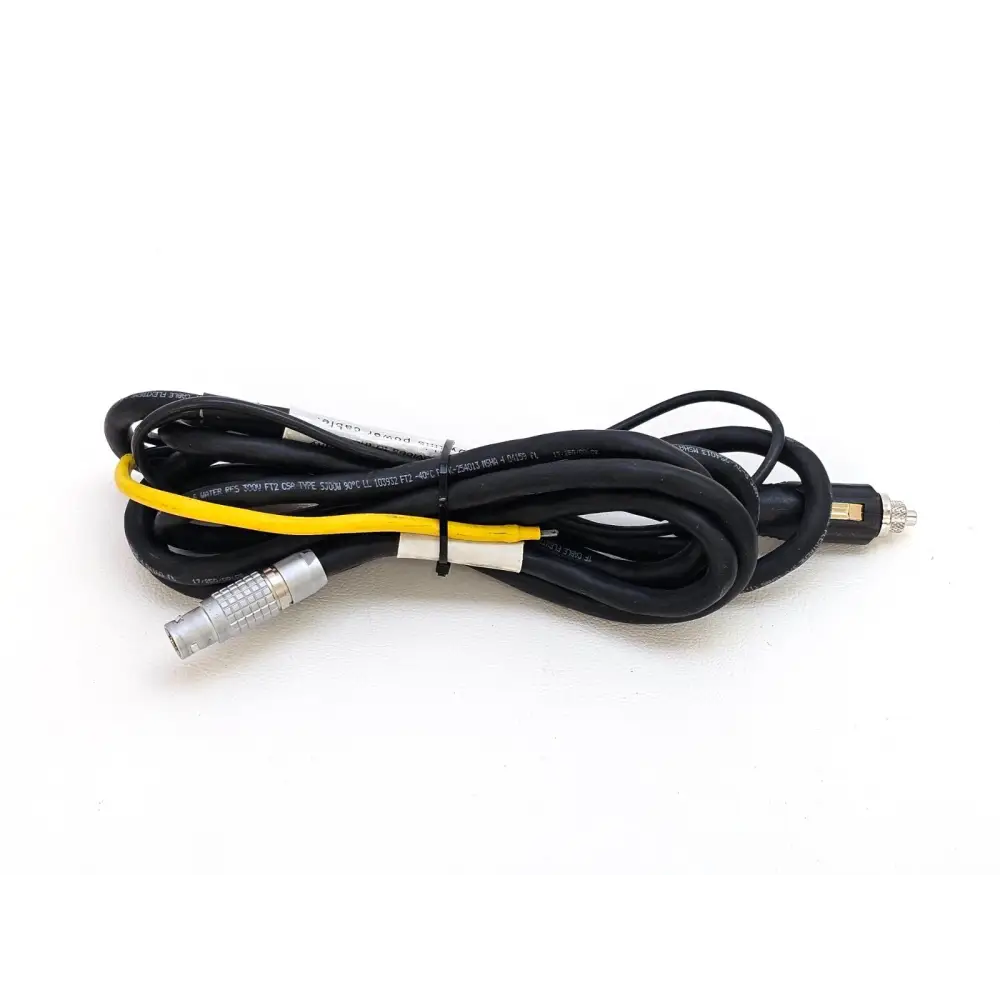

Accessories as pictured - antenna 4x, GPS 1x, in-car charger 1x,
Please see below information we have extracted from the system and INSTALLED OPTIONS.
Unit Level Information
---------------------------------------------------------------------
PCTEL Device Type..................: MXflex
Unit ESN...........................: 0000-0000-7131-1001
Number of Options..................: 36
Interfaces.........................: USB
Product Reference Version..........: 1.1.36.0
API Version........................: 2.5.0.0
Software Release Version...........: 5.7.1.0
ASN.1 ICD Version..................: 2.5.0.0
Calibration Date...................: 05/12/2019
Bootup Status......................: Passed
Protocol/Band Summary
Protocol Count
---------------------------------------------------------------------
Band Option.......: 159
GSM...............: 12
CDMA(95)..........: 18
WCDMA.............: 24
CDMA..............: 18
EV-DO.............: 18
LTE...............: 336
TD-LTE............: 88
NR................: 48
Installed Options
---------------------------------------------------------------------
GPS Navigation......................................: 0001-0000
Absolute Time Stamp.................................: 0005-0000
MIMO RF Ports 1 - 4.................................: 0014-0000
Ethernet Interface Not Available....................: 100C-0000
GSM Support.........................................: 0001-0001
GSM BSIC............................................: 0002-0001
GSM BCCH C/I........................................: 0004-0001
GSM BCCH Layer3.....................................: 0005-0001
IS-95 Support.......................................: 0001-0003
IS-95 Pilot.........................................: 0003-0003
IS-95 Extended Dynamic Range........................: 0008-0003
WCDMA Support.......................................: 0001-0004
WCDMA Pilot.........................................: 0003-0004
WCDMA BCH Decoding..................................: 0005-0004
WCDMA Extended Dynamic Range........................: 0008-0004
CDMA Support........................................: 0001-0005
CDMA Pilot..........................................: 0003-0005
CDMA Extended Dynamic Range.........................: 0008-0005
EVDO Support........................................: 0001-0006
EVDO Pilot..........................................: 0003-0006
EVDO Extended Dynamic Range.........................: 0008-0006
LTE Support.........................................: 0001-000A
LTE L3 Message Decoding.............................: 0005-000A
LTE Enhanced Signal Scan............................: 000C-000A
LTE 5G/4G Spectrum Sharing Signal...................: 000F-000A
LTE Enhanced Signal 4Rx MIMO........................: 004C-000A
TDLTE Support.......................................: 0001-000B
TDLTE L3 Message Decoding...........................: 0005-000B
TDLTE Enhanced Signal Scan..........................: 000C-000B
TDLTE 5G/4G Spectrum Sharing Signal.................: 000F-000B
TDLTE Enhanced Signal 4Rx MIMO......................: 004C-000B
New Radio support...................................: 0001-000F
New Radio MIB decoding..............................: 0005-000F
New Radio Blind Scan................................: 000B-000F
New Radio Top N signal scanning.....................: 000C-000F
30MHz-6000MHz Capability............................: 7000-0000
License Information
--------------------------------------------------------
Calibration Date..............: 2019-12-5
Calibration Version...........: 0
Warranty Expiration Date......: 18/12/2021 23:59:59 GMT
License Type..................: Perpetual
License State.................: Active
Current Time..................: 01/01/2000 23:59:59 GMT
License Number................: 1
License Expiration Date.......: 18/12/2019 23:59:59 GMT
License Remaining Time........: NA
Supported Configurations
Protocol Band Band Code Port
---------------------------------------------------------------------
Band Option FR1 FDD n1 DL 0x0001 1
Band Option FR1 FDD n2 DL 0x0002 1
Band Option FR1 FDD n3 DL 0x0003 1
Band Option FR1 FDD n5 DL 0x0005 1
Band Option FR1 FDD n7 DL 0x0007 1
Band Option FR1 FDD n8 DL 0x0008 1
Band Option FR1 FDD n12 DL 0x0012 1
Band Option FR1 FDD n20 DL 0x0020 1
Band Option FR1 FDD n25 DL 0x0025 1
Band Option FR1 FDD n28 DL 0x0028 1
Band Option FR1 TDD n34 0x0034 1
Band Option FR1 TDD n38 0x0038 1
Band Option FR1 TDD n39 0x0039 1
Band Option FR1 TDD n40 0x0040 1
Band Option FR1 TDD n41 and n90 0x0041 1
Band Option FR1 TDD n50 0x0050 1
Band Option FR1 TDD n51 0x0051 1
Band Option FR1 FDD n65 DL 0x0065 1
Band Option FR1 FDD n66 DL 0x0066 1
Band Option FR1 FDD n70 DL 0x0070 1
Band Option FR1 FDD n71 DL 0x0071 1
Band Option FR1 FDD n74 DL 0x0074 1
Band Option FR1 FDD n75 DL 0x0075 1
Band Option FR1 FDD n76 DL 0x0076 1
Band Option FR1 TDD n77 0x0077 1
Band Option FR1 TDD n78 0x0078 1
Band Option FR1 TDD n79 0x0079 1
Band Option EB-05 DL: American Cellular 0x0100 1
Band Option EB-05 UL: American Cellular 0x0101 1
Band Option EB-02 DL: American PCS 0x0200 1
Band Option EB-02 UL: American PCS 0x0201 1
Band Option EB-01 DL: 2100 (IMT-2000) 0x0300 1
Band Option EB-01 UL: 2100 (IMT-2000) 0x0301 1
Band Option EB-08 DL: European 900 MHz 0x0600 1
Band Option EB-08 UL: European 900 MHz 0x0601 1
Band Option EB-03 DL: 1800 MHz (DCS) 0x0700 1
Band Option EB-03 UL: 1800 MHz (DCS) 0x0701 1
Band Option EB-09 DL: 1700 MHz (Japan) 0x07F8 1
Band Option EB-09 UL: 1700 MHz (Japan) 0x07F9 1
Band Option EB-27 DL: Lwr Ext 850 MHz 0x0900 1
Band Option EB-27 UL: Lwr Ext 850 MHz 0x0901 1
Band Option EB-04 DL: AWS 2100 MHz 0x0B00 1
Band Option EB-04 UL: AWS 2100 MHz 0x0B01 1
Band Option EB-13/14L DL: US 700 Upp C/D 0x1000 1
Band Option EB-13/14L UL: US 700 Upp C/D 0x1001 1
Band Option FR1 FDD n2 UL 0x1002 1
Band Option FR1 FDD n3 UL 0x1003 1
Band Option FR1 FDD n5 UL 0x1005 1
Band Option FR1 FDD n7 UL 0x1007 1
Band Option FR1 FDD n8 UL 0x1008 1
Band Option EB-13 DL: US 700 Upp C 0x1010 1
Band Option EB-13 UL: US 700 Upp C 0x1011 1
Band Option FR1 FDD n12 UL 0x1012 1
Band Option EB-14 DL: Upper 700 D 0x1020 1
Band Option EB-14 UL: Upper 700 D 0x1021 1
Band Option FR1 FDD n25 UL 0x1025 1
Band Option FR1 FDD n28 UL 0x1028 1
Band Option FR1 FDD n65 UL 0x1065 1
Band Option FR1 FDD n66 UL 0x1066 1
Band Option FR1 FDD n70 UL 0x1070 1
Band Option FR1 FDD n71 UL 0x1071 1
Band Option FR1 FDD n74 UL 0x1074 1
Band Option FR1 SUL n80 0x1080 1
Band Option FR1 SUL n81 0x1081 1
Band Option FR1 SUL n82 0x1082 1
Band Option FR1 SUL n83 0x1083 1
Band Option FR1 SUL n84 0x1084 1
Band Option FR1 SUL n86 0x1086 1
Band Option EB-12 DL: US Lwr 700 A/B/C 0x1100 1
Band Option EB-12 UL: US Lwr 700 A/B/C 0x1101 1
Band Option FR1 FDD n20 UL 0x1120 1
Band Option EB-17 DL: US Lwr 700 B/C 0x11F8 1
Band Option EB-17 UL: US Lwr 700 B/C 0x11F9 1
Band Option EB-07 DL: 2600 IMT Extension 0x1200 1
Band Option EB-07 UL: 2600 IMT Extension 0x1201 1
Band Option EB-11 DL: 1500 MHz 0x1300 1
Band Option EB-11 UL: 1500 MHz 0x1301 1
Band Option EB-21 DL: Ext 1500 MHz 0x1400 1
Band Option EB-21 UL: Ext 1500 MHz 0x1401 1
Band Option EB-25 DL: Ext US PCS 0x1500 1
Band Option EB-25 UL: Ext US PCS 0x1501 1
Band Option EB-06 DL: 800 MHz 0x1600 1
Band Option EB-06 UL: 800 MHz 0x1601 1
Band Option EB-18 DL: Japan Lwr 800 0x1700 1
Band Option EB-18 UL: Japan Lwr 800 0x1701 1
Band Option EB-19 DL: Japan Uppr 800 0x1800 1
Band Option EB-19 UL: Japan Uppr 800 0x1801 1
Band Option EB-20 DL: European 800 MHz 0x1A00 1
Band Option EB-20 UL: European 800 MHz 0x1A01 1
Band Option FR1 FDD n1 UL 0x1AA1 1
Band Option EB-24 DL: 1600 MHz 0x1B00 1
Band Option EB-24 UL: 1600 MHz 0x1B01 1
Band Option EB-38: TDD 2.6 GHz 0x1C03 1
Band Option EB-40: TDD 2.3 GHz 0x1D03 1
Band Option EB-41: TDD 2.5 GHz 0x1E03 1
Band Option EB-41 TDD 2.5 GHz Upper 0x1E33 1
Band Option EB-41 TDD 2.5 GHz Lower 0x1EC3 1
Band Option EB-39: TDD 1.9 GHz 0x1F03 1
Band Option EB-26 DL: Uppr Ext 850 MHz 0x2100 1
Band Option EB-26 UL: Uppr Ext 850 MHz 0x2101 1
Band Option EB-28 DL: 700 APAC (CALA) 0x2200 1
Band Option EB-28 UL: 700 APAC (CALA) 0x2201 1
Band Option EB-42: TDD 3.4 GHz 0x2303 1
Band Option EB-43: TDD 3.6 GHz 0x2403 1
Band Option EB-44: TDD 700 MHz 0x2503 1
Band Option EB-33: TDD 2000 MHz 0x2603 1
Band Option EB-34: Chinese TDD 2000 MHz 0x2703 1
Band Option EB-35: TDD 1900 (PCS) Lower 0x2803 1
Band Option EB-36: TDD 1900 (PCS) Upper 0x2903 1
Band Option EB-37: TDD 1900 (PCS) Center Gap 0x2A03 1
Band Option EB-10 DL: Ext 2100 (AWS) 0x2B00 1
Band Option EB-10 UL: Ext 2100 (AWS) 0x2B01 1
Band Option EB-22 DL: 3.5 GHz 0x2C00 1
Band Option EB-22 UL: 3.5 GHz 0x2C01 1
Band Option EB-29 DL: US 700 MHz 0x2D00 1
Band Option R-GSM 900 MHz DL 0x2E00 1
Band Option R-GSM 900 MHz UL 0x2E01 1
Band Option EB-31 DL: 450 MHz 0x2F00 1
Band Option EB-31 UL: 450 MHz 0x2F01 1
Band Option EB-23 DL: S-Band 2 GHz 0x3100 1
Band Option EB-23 UL: S-Band 2 GHz 0x3101 1
Band Option EB-30 DL: 2.3 GHz (WCS A/B) 0x3200 1
Band Option EB-30 UL: 2.3 GHz (WCS A/B) 0x3201 1
Band Option EB-32 DL: 1500 (L-Band) 0x3400 1
Band Option ER-GSM: 900 MHz DL 0x3500 1
Band Option ER-GSM: 900 MHz UL 0x3501 1
Band Option EB-252 DL: U-NII-1 (LTE-U 5GHz) 0x3600 1
Band Option EB-255 DL: U-NII-3 (LTE-U 5GHz) 0x3700 1
Band Option EB-66 AWS-3 DL:(2110-2200 MHz) 0x3800 1
Band Option EB-66 AWS-3 UL:(1710-1800 MHz) 0x3801 1
Band Option EB-45 TDD: (1447-1467 MHz) 0x3903 1
Band Option EB-46 TDD: (5150-5925 MHz) 0x3A03 1
Band Option EB-65 DL: (2110-2200 MHz) 0x3C00 1
Band Option EB-65 UL: (1920-2010 MHz) 0x3C01 1
Band Option EB-67 DL: (738-758 MHz) 0x3D00 1
Band Option EB-68 DL: (753-783 MHz) 0x3E00 1
Band Option EB-68 UL: (698-728 MHz) 0x3E01 1
Band Option EB-48 TDD: (3550 - 3700 MHz) 0x5003 1
Band Option EB-47 TDD: (5855 - 5925 MHz) 0x5103 1
Band Option EB-69 FDD DL: (2570 - 2620 MHz) 0x5200 1
Band Option EB-50 TDD: (1432 - 1517 MHz) 0x5203 1
Band Option EB-70 FDD DL: (1995 - 2020 MHz) 0x5300 1
Band Option EB-70 FDD UL: (1695 - 1710 MHz) 0x5301 1
Band Option EB-51 TDD: (1437 - 1442 MHz) 0x5303 1
Band Option EB-71 FDD DL: (617 - 652 MHz) 0x5400 1
Band Option EB-71 FDD UL: (663 - 698 MHz) 0x5401 1
Band Option EB-72 FDD DL: (461 - 466 MHz) 0x5500 1
Band Option EB-72 FDD UL: (451 - 456 MHz) 0x5501 1
Band Option EB-74 FDD DL: (1475 - 1518 MHz) 0x5600 1
Band Option EB-74 FDD UL: (1427 - 1470 MHz) 0x5601 1
Band Option EB-75 FDD DL-CA: (1432 - 1517 MHz) 0x5700 1
Band Option EB-76 FDD DL-CA: (1427 - 1432 MHz) 0x5800 1
Band Option EB-73 FDD DL: (460 - 465 MHz) 0x5900 1
Band Option EB-73 FDD UL: (450 - 455 MHz) 0x5901 1
Band Option EB-49 TDD: (3550 - 3670 MHz) 0x5A03 1
Band Option EB-52 TDD: (3300 - 3400 MHz) 0x5B03 1
Band Option EB-85 FDD DL: (728 - 746 MHz) 0x5C00 1
Band Option EB-85 FDD UL: (698 - 716 MHz) 0x5C01 1
Band Option 30-6000 MHz 0x7000 1
GSM EB-05 DL: American Cellular 0x0100 1
GSM EB-05 UL: American Cellular 0x0101 1
GSM EB-02 DL: American PCS 0x0200 1
GSM EB-02 UL: American PCS 0x0201 1
GSM EB-08 DL: European 900 MHz 0x0600 1
GSM EB-08 UL: European 900 MHz 0x0601 1
GSM EB-03 DL: 1800 MHz (DCS) 0x0700 1
GSM EB-03 UL: 1800 MHz (DCS) 0x0701 1
GSM R-GSM 900 MHz DL 0x2E00 1
GSM R-GSM 900 MHz UL 0x2E01 1
GSM ER-GSM: 900 MHz DL 0x3500 1
GSM ER-GSM: 900 MHz UL 0x3501 1
CDMA(95) EB-05 DL: American Cellular 0x0100 1
CDMA(95) EB-05 UL: American Cellular 0x0101 1
CDMA(95) EB-02 DL: American PCS 0x0200 1
CDMA(95) EB-02 UL: American PCS 0x0201 1
CDMA(95) EB-01 DL: 2100 (IMT-2000) 0x0300 1
CDMA(95) EB-01 UL: 2100 (IMT-2000) 0x0301 1
CDMA(95) EB-03 DL: 1800 MHz (DCS) 0x0700 1
CDMA(95) EB-03 UL: 1800 MHz (DCS) 0x0701 1
CDMA(95) EB-27 DL: Lwr Ext 850 MHz 0x0900 1
CDMA(95) EB-27 UL: Lwr Ext 850 MHz 0x0901 1
CDMA(95) EB-04 DL: AWS 2100 MHz 0x0B00 1
CDMA(95) EB-04 UL: AWS 2100 MHz 0x0B01 1
CDMA(95) EB-25 DL: Ext US PCS 0x1500 1
CDMA(95) EB-25 UL: Ext US PCS 0x1501 1
CDMA(95) EB-24 DL: 1600 MHz 0x1B00 1
CDMA(95) EB-24 UL: 1600 MHz 0x1B01 1
CDMA(95) EB-31 DL: 450 MHz 0x2F00 1
CDMA(95) EB-31 UL: 450 MHz 0x2F01 1
WCDMA EB-05 DL: American Cellular 0x0100 1
WCDMA EB-05 UL: American Cellular 0x0101 1
WCDMA EB-02 DL: American PCS 0x0200 1
WCDMA EB-02 UL: American PCS 0x0201 1
WCDMA EB-01 DL: 2100 (IMT-2000) 0x0300 1
WCDMA EB-01 UL: 2100 (IMT-2000) 0x0301 1
WCDMA EB-08 DL: European 900 MHz 0x0600 1
WCDMA EB-08 UL: European 900 MHz 0x0601 1
WCDMA EB-03 DL: 1800 MHz (DCS) 0x0700 1
WCDMA EB-03 UL: 1800 MHz (DCS) 0x0701 1
WCDMA EB-09 DL: 1700 MHz (Japan) 0x07F8 1
WCDMA EB-09 UL: 1700 MHz (Japan) 0x07F9 1
WCDMA EB-04 DL: AWS 2100 MHz 0x0B00 1
WCDMA EB-04 UL: AWS 2100 MHz 0x0B01 1
WCDMA EB-11 DL: 1500 MHz 0x1300 1
WCDMA EB-11 UL: 1500 MHz 0x1301 1
WCDMA EB-21 DL: Ext 1500 MHz 0x1400 1
WCDMA EB-21 UL: Ext 1500 MHz 0x1401 1
WCDMA EB-25 DL: Ext US PCS 0x1500 1
WCDMA EB-25 UL: Ext US PCS 0x1501 1
WCDMA EB-06 DL: 800 MHz 0x1600 1
WCDMA EB-06 UL: 800 MHz 0x1601 1
WCDMA EB-19 DL: Japan Uppr 800 0x1800 1
WCDMA EB-19 UL: Japan Uppr 800 0x1801 1
CDMA EB-05 DL: American Cellular 0x0100 1
CDMA EB-05 UL: American Cellular 0x0101 1
CDMA EB-02 DL: American PCS 0x0200 1
CDMA EB-02 UL: American PCS 0x0201 1
CDMA EB-01 DL: 2100 (IMT-2000) 0x0300 1
CDMA EB-01 UL: 2100 (IMT-2000) 0x0301 1
CDMA EB-03 DL: 1800 MHz (DCS) 0x0700 1
CDMA EB-03 UL: 1800 MHz (DCS) 0x0701 1
CDMA EB-27 DL: Lwr Ext 850 MHz 0x0900 1
CDMA EB-27 UL: Lwr Ext 850 MHz 0x0901 1
CDMA EB-04 DL: AWS 2100 MHz 0x0B00 1
CDMA EB-04 UL: AWS 2100 MHz 0x0B01 1
CDMA EB-25 DL: Ext US PCS 0x1500 1
CDMA EB-25 UL: Ext US PCS 0x1501 1
CDMA EB-24 DL: 1600 MHz 0x1B00 1
CDMA EB-24 UL: 1600 MHz 0x1B01 1
CDMA EB-31 DL: 450 MHz 0x2F00 1
CDMA EB-31 UL: 450 MHz 0x2F01 1
EV-DO EB-05 DL: American Cellular 0x0100 1
EV-DO EB-05 UL: American Cellular 0x0101 1
EV-DO EB-02 DL: American PCS 0x0200 1
EV-DO EB-02 UL: American PCS 0x0201 1
EV-DO EB-01 DL: 2100 (IMT-2000) 0x0300 1
EV-DO EB-01 UL: 2100 (IMT-2000) 0x0301 1
EV-DO EB-03 DL: 1800 MHz (DCS) 0x0700 1
EV-DO EB-03 UL: 1800 MHz (DCS) 0x0701 1
EV-DO EB-27 DL: Lwr Ext 850 MHz 0x0900 1
EV-DO EB-27 UL: Lwr Ext 850 MHz 0x0901 1
EV-DO EB-04 DL: AWS 2100 MHz 0x0B00 1
EV-DO EB-04 UL: AWS 2100 MHz 0x0B01 1
EV-DO EB-25 DL: Ext US PCS 0x1500 1
EV-DO EB-25 UL: Ext US PCS 0x1501 1
EV-DO EB-24 DL: 1600 MHz 0x1B00 1
EV-DO EB-24 UL: 1600 MHz 0x1B01 1
EV-DO EB-31 DL: 450 MHz 0x2F00 1
EV-DO EB-31 UL: 450 MHz 0x2F01 1
LTE EB-05 DL: American Cellular 0x0100 2
LTE EB-05 DL: American Cellular 0x0100 3
LTE EB-05 DL: American Cellular 0x0100 4
LTE EB-05 DL: American Cellular 0x0100 1
LTE EB-05 UL: American Cellular 0x0101 1
LTE EB-05 UL: American Cellular 0x0101 2
LTE EB-05 UL: American Cellular 0x0101 4
LTE EB-05 UL: American Cellular 0x0101 3
LTE EB-02 DL: American PCS 0x0200 1
LTE EB-02 DL: American PCS 0x0200 4
LTE EB-02 DL: American PCS 0x0200 2
LTE EB-02 DL: American PCS 0x0200 3
LTE EB-02 UL: American PCS 0x0201 1
LTE EB-02 UL: American PCS 0x0201 3
LTE EB-02 UL: American PCS 0x0201 4
LTE EB-02 UL: American PCS 0x0201 2
LTE EB-01 DL: 2100 (IMT-2000) 0x0300 1
LTE EB-01 DL: 2100 (IMT-2000) 0x0300 2
LTE EB-01 DL: 2100 (IMT-2000) 0x0300 3
LTE EB-01 DL: 2100 (IMT-2000) 0x0300 4
LTE EB-01 UL: 2100 (IMT-2000) 0x0301 4
LTE EB-01 UL: 2100 (IMT-2000) 0x0301 1
LTE EB-01 UL: 2100 (IMT-2000) 0x0301 3
LTE EB-01 UL: 2100 (IMT-2000) 0x0301 2
LTE EB-08 DL: European 900 MHz 0x0600 4
LTE EB-08 DL: European 900 MHz 0x0600 3
LTE EB-08 DL: European 900 MHz 0x0600 2
LTE EB-08 DL: European 900 MHz 0x0600 1
LTE EB-08 UL: European 900 MHz 0x0601 4
LTE EB-08 UL: European 900 MHz 0x0601 1
LTE EB-08 UL: European 900 MHz 0x0601 3
LTE EB-08 UL: European 900 MHz 0x0601 2
LTE EB-03 DL: 1800 MHz (DCS) 0x0700 1
LTE EB-03 DL: 1800 MHz (DCS) 0x0700 2
LTE EB-03 DL: 1800 MHz (DCS) 0x0700 3
LTE EB-03 DL: 1800 MHz (DCS) 0x0700 4
LTE EB-03 UL: 1800 MHz (DCS) 0x0701 4
LTE EB-03 UL: 1800 MHz (DCS) 0x0701 1
LTE EB-03 UL: 1800 MHz (DCS) 0x0701 2
LTE EB-03 UL: 1800 MHz (DCS) 0x0701 3
LTE EB-09 DL: 1700 MHz (Japan) 0x07F8 2
LTE EB-09 DL: 1700 MHz (Japan) 0x07F8 3
LTE EB-09 DL: 1700 MHz (Japan) 0x07F8 1
LTE EB-09 DL: 1700 MHz (Japan) 0x07F8 4
LTE EB-09 UL: 1700 MHz (Japan) 0x07F9 1
LTE EB-09 UL: 1700 MHz (Japan) 0x07F9 2
LTE EB-09 UL: 1700 MHz (Japan) 0x07F9 3
LTE EB-09 UL: 1700 MHz (Japan) 0x07F9 4
LTE EB-27 DL: Lwr Ext 850 MHz 0x0900 1
LTE EB-27 DL: Lwr Ext 850 MHz 0x0900 4
LTE EB-27 DL: Lwr Ext 850 MHz 0x0900 3
LTE EB-27 DL: Lwr Ext 850 MHz 0x0900 2
LTE EB-27 UL: Lwr Ext 850 MHz 0x0901 1
LTE EB-27 UL: Lwr Ext 850 MHz 0x0901 2
LTE EB-27 UL: Lwr Ext 850 MHz 0x0901 3
LTE EB-27 UL: Lwr Ext 850 MHz 0x0901 4
LTE EB-04 DL: AWS 2100 MHz 0x0B00 1
LTE EB-04 DL: AWS 2100 MHz 0x0B00 2
LTE EB-04 DL: AWS 2100 MHz 0x0B00 3
LTE EB-04 DL: AWS 2100 MHz 0x0B00 4
LTE EB-04 UL: AWS 2100 MHz 0x0B01 3
LTE EB-04 UL: AWS 2100 MHz 0x0B01 4
LTE EB-04 UL: AWS 2100 MHz 0x0B01 2
LTE EB-04 UL: AWS 2100 MHz 0x0B01 1
LTE EB-13/14L DL: US 700 Upp C/D 0x1000 3
LTE EB-13/14L DL: US 700 Upp C/D 0x1000 4
LTE EB-13/14L DL: US 700 Upp C/D 0x1000 2
LTE EB-13/14L DL: US 700 Upp C/D 0x1000 1
LTE EB-13/14L UL: US 700 Upp C/D 0x1001 4
LTE EB-13/14L UL: US 700 Upp C/D 0x1001 3
LTE EB-13/14L UL: US 700 Upp C/D 0x1001 2
LTE EB-13/14L UL: US 700 Upp C/D 0x1001 1
LTE EB-13 DL: US 700 Upp C 0x1010 3
LTE EB-13 DL: US 700 Upp C 0x1010 1
LTE EB-13 DL: US 700 Upp C 0x1010 2
LTE EB-13 DL: US 700 Upp C 0x1010 4
LTE EB-13 UL: US 700 Upp C 0x1011 4
LTE EB-13 UL: US 700 Upp C 0x1011 1
LTE EB-13 UL: US 700 Upp C 0x1011 2
LTE EB-13 UL: US 700 Upp C 0x1011 3
LTE EB-14 DL: Upper 700 D 0x1020 4
LTE EB-14 DL: Upper 700 D 0x1020 2
LTE EB-14 DL: Upper 700 D 0x1020 1
LTE EB-14 DL: Upper 700 D 0x1020 3
LTE EB-14 UL: Upper 700 D 0x1021 2
LTE EB-14 UL: Upper 700 D 0x1021 1
LTE EB-14 UL: Upper 700 D 0x1021 4
LTE EB-14 UL: Upper 700 D 0x1021 3
LTE EB-12 DL: US Lwr 700 A/B/C 0x1100 4
LTE EB-12 DL: US Lwr 700 A/B/C 0x1100 2
LTE EB-12 DL: US Lwr 700 A/B/C 0x1100 1
LTE EB-12 DL: US Lwr 700 A/B/C 0x1100 3
LTE EB-12 UL: US Lwr 700 A/B/C 0x1101 2
LTE EB-12 UL: US Lwr 700 A/B/C 0x1101 1
LTE EB-12 UL: US Lwr 700 A/B/C 0x1101 4
LTE EB-12 UL: US Lwr 700 A/B/C 0x1101 3
LTE EB-17 DL: US Lwr 700 B/C 0x11F8 2
LTE EB-17 DL: US Lwr 700 B/C 0x11F8 3
LTE EB-17 DL: US Lwr 700 B/C 0x11F8 4
LTE EB-17 DL: US Lwr 700 B/C 0x11F8 1
LTE EB-17 UL: US Lwr 700 B/C 0x11F9 1
LTE EB-17 UL: US Lwr 700 B/C 0x11F9 2
LTE EB-17 UL: US Lwr 700 B/C 0x11F9 3
LTE EB-17 UL: US Lwr 700 B/C 0x11F9 4
LTE EB-07 DL: 2600 IMT Extension 0x1200 3
LTE EB-07 DL: 2600 IMT Extension 0x1200 1
LTE EB-07 DL: 2600 IMT Extension 0x1200 2
LTE EB-07 DL: 2600 IMT Extension 0x1200 4
LTE EB-07 UL: 2600 IMT Extension 0x1201 4
LTE EB-07 UL: 2600 IMT Extension 0x1201 3
LTE EB-07 UL: 2600 IMT Extension 0x1201 2
LTE EB-07 UL: 2600 IMT Extension 0x1201 1
LTE EB-11 DL: 1500 MHz 0x1300 3
LTE EB-11 DL: 1500 MHz 0x1300 1
LTE EB-11 DL: 1500 MHz 0x1300 2
LTE EB-11 DL: 1500 MHz 0x1300 4
LTE EB-11 UL: 1500 MHz 0x1301 2
LTE EB-11 UL: 1500 MHz 0x1301 3
LTE EB-11 UL: 1500 MHz 0x1301 4
LTE EB-11 UL: 1500 MHz 0x1301 1
LTE EB-21 DL: Ext 1500 MHz 0x1400 3
LTE EB-21 DL: Ext 1500 MHz 0x1400 2
LTE EB-21 DL: Ext 1500 MHz 0x1400 4
LTE EB-21 DL: Ext 1500 MHz 0x1400 1
LTE EB-21 UL: Ext 1500 MHz 0x1401 1
LTE EB-21 UL: Ext 1500 MHz 0x1401 2
LTE EB-21 UL: Ext 1500 MHz 0x1401 3
LTE EB-21 UL: Ext 1500 MHz 0x1401 4
LTE EB-25 DL: Ext US PCS 0x1500 1
LTE EB-25 DL: Ext US PCS 0x1500 2
LTE EB-25 DL: Ext US PCS 0x1500 3
LTE EB-25 DL: Ext US PCS 0x1500 4
LTE EB-25 UL: Ext US PCS 0x1501 1
LTE EB-25 UL: Ext US PCS 0x1501 3
LTE EB-25 UL: Ext US PCS 0x1501 4
LTE EB-25 UL: Ext US PCS 0x1501 2
LTE EB-06 DL: 800 MHz 0x1600 1
LTE EB-06 DL: 800 MHz 0x1600 2
LTE EB-06 DL: 800 MHz 0x1600 3
LTE EB-06 DL: 800 MHz 0x1600 4
LTE EB-06 UL: 800 MHz 0x1601 3
LTE EB-06 UL: 800 MHz 0x1601 4
LTE EB-06 UL: 800 MHz 0x1601 1
LTE EB-06 UL: 800 MHz 0x1601 2
LTE EB-18 DL: Japan Lwr 800 0x1700 3
LTE EB-18 DL: Japan Lwr 800 0x1700 4
LTE EB-18 DL: Japan Lwr 800 0x1700 1
LTE EB-18 DL: Japan Lwr 800 0x1700 2
LTE EB-18 UL: Japan Lwr 800 0x1701 1
LTE EB-18 UL: Japan Lwr 800 0x1701 2
LTE EB-18 UL: Japan Lwr 800 0x1701 3
LTE EB-18 UL: Japan Lwr 800 0x1701 4
LTE EB-19 DL: Japan Uppr 800 0x1800 4
LTE EB-19 DL: Japan Uppr 800 0x1800 2
LTE EB-19 DL: Japan Uppr 800 0x1800 1
LTE EB-19 DL: Japan Uppr 800 0x1800 3
LTE EB-19 UL: Japan Uppr 800 0x1801 1
LTE EB-19 UL: Japan Uppr 800 0x1801 3
LTE EB-19 UL: Japan Uppr 800 0x1801 4
LTE EB-19 UL: Japan Uppr 800 0x1801 2
LTE EB-20 DL: European 800 MHz 0x1A00 1
LTE EB-20 DL: European 800 MHz 0x1A00 2
LTE EB-20 DL: European 800 MHz 0x1A00 3
LTE EB-20 DL: European 800 MHz 0x1A00 4
LTE EB-20 UL: European 800 MHz 0x1A01 1
LTE EB-20 UL: European 800 MHz 0x1A01 4
LTE EB-20 UL: European 800 MHz 0x1A01 3
LTE EB-20 UL: European 800 MHz 0x1A01 2
LTE EB-24 DL: 1600 MHz 0x1B00 3
LTE EB-24 DL: 1600 MHz 0x1B00 4
LTE EB-24 DL: 1600 MHz 0x1B00 2
LTE EB-24 DL: 1600 MHz 0x1B00 1
LTE EB-24 UL: 1600 MHz 0x1B01 1
LTE EB-24 UL: 1600 MHz 0x1B01 4
LTE EB-24 UL: 1600 MHz 0x1B01 2
LTE EB-24 UL: 1600 MHz 0x1B01 3
LTE EB-26 DL: Uppr Ext 850 MHz 0x2100 3
LTE EB-26 DL: Uppr Ext 850 MHz 0x2100 2
LTE EB-26 DL: Uppr Ext 850 MHz 0x2100 1
LTE EB-26 DL: Uppr Ext 850 MHz 0x2100 4
LTE EB-26 UL: Uppr Ext 850 MHz 0x2101 1
LTE EB-26 UL: Uppr Ext 850 MHz 0x2101 3
LTE EB-26 UL: Uppr Ext 850 MHz 0x2101 4
LTE EB-26 UL: Uppr Ext 850 MHz 0x2101 2
LTE EB-28 DL: 700 APAC (CALA) 0x2200 4
LTE EB-28 DL: 700 APAC (CALA) 0x2200 1
LTE EB-28 DL: 700 APAC (CALA) 0x2200 2
LTE EB-28 DL: 700 APAC (CALA) 0x2200 3
LTE EB-28 UL: 700 APAC (CALA) 0x2201 4
LTE EB-28 UL: 700 APAC (CALA) 0x2201 3
LTE EB-28 UL: 700 APAC (CALA) 0x2201 2
LTE EB-28 UL: 700 APAC (CALA) 0x2201 1
LTE EB-10 DL: Ext 2100 (AWS) 0x2B00 1
LTE EB-10 DL: Ext 2100 (AWS) 0x2B00 2
LTE EB-10 DL: Ext 2100 (AWS) 0x2B00 3
LTE EB-10 DL: Ext 2100 (AWS) 0x2B00 4
LTE EB-10 UL: Ext 2100 (AWS) 0x2B01 1
LTE EB-10 UL: Ext 2100 (AWS) 0x2B01 2
LTE EB-10 UL: Ext 2100 (AWS) 0x2B01 3
LTE EB-10 UL: Ext 2100 (AWS) 0x2B01 4
LTE EB-22 DL: 3.5 GHz 0x2C00 1
LTE EB-22 DL: 3.5 GHz 0x2C00 2
LTE EB-22 DL: 3.5 GHz 0x2C00 3
LTE EB-22 DL: 3.5 GHz 0x2C00 4
LTE EB-22 UL: 3.5 GHz 0x2C01 1
LTE EB-22 UL: 3.5 GHz 0x2C01 2
LTE EB-22 UL: 3.5 GHz 0x2C01 4
LTE EB-22 UL: 3.5 GHz 0x2C01 3
LTE EB-29 DL: US 700 MHz 0x2D00 1
LTE EB-29 DL: US 700 MHz 0x2D00 4
LTE EB-29 DL: US 700 MHz 0x2D00 3
LTE EB-29 DL: US 700 MHz 0x2D00 2
LTE EB-31 DL: 450 MHz 0x2F00 1
LTE EB-31 DL: 450 MHz 0x2F00 2
LTE EB-31 DL: 450 MHz 0x2F00 3
LTE EB-31 DL: 450 MHz 0x2F00 4
LTE EB-31 UL: 450 MHz 0x2F01 1
LTE EB-31 UL: 450 MHz 0x2F01 2
LTE EB-31 UL: 450 MHz 0x2F01 3
LTE EB-31 UL: 450 MHz 0x2F01 4
LTE EB-23 DL: S-Band 2 GHz 0x3100 1
LTE EB-23 DL: S-Band 2 GHz 0x3100 2
LTE EB-23 DL: S-Band 2 GHz 0x3100 4
LTE EB-23 DL: S-Band 2 GHz 0x3100 3
LTE EB-23 UL: S-Band 2 GHz 0x3101 2
LTE EB-23 UL: S-Band 2 GHz 0x3101 3
LTE EB-23 UL: S-Band 2 GHz 0x3101 1
LTE EB-23 UL: S-Band 2 GHz 0x3101 4
LTE EB-30 DL: 2.3 GHz (WCS A/B) 0x3200 3
LTE EB-30 DL: 2.3 GHz (WCS A/B) 0x3200 2
LTE EB-30 DL: 2.3 GHz (WCS A/B) 0x3200 1
LTE EB-30 DL: 2.3 GHz (WCS A/B) 0x3200 4
LTE EB-30 UL: 2.3 GHz (WCS A/B) 0x3201 4
LTE EB-30 UL: 2.3 GHz (WCS A/B) 0x3201 3
LTE EB-30 UL: 2.3 GHz (WCS A/B) 0x3201 2
LTE EB-30 UL: 2.3 GHz (WCS A/B) 0x3201 1
LTE EB-32 DL: 1500 (L-Band) 0x3400 1
LTE EB-32 DL: 1500 (L-Band) 0x3400 2
LTE EB-32 DL: 1500 (L-Band) 0x3400 4
LTE EB-32 DL: 1500 (L-Band) 0x3400 3
LTE EB-252 DL: U-NII-1 (LTE-U 5GHz) 0x3600 3
LTE EB-252 DL: U-NII-1 (LTE-U 5GHz) 0x3600 4
LTE EB-252 DL: U-NII-1 (LTE-U 5GHz) 0x3600 2
LTE EB-252 DL: U-NII-1 (LTE-U 5GHz) 0x3600 1
LTE EB-255 DL: U-NII-3 (LTE-U 5GHz) 0x3700 2
LTE EB-255 DL: U-NII-3 (LTE-U 5GHz) 0x3700 1
LTE EB-255 DL: U-NII-3 (LTE-U 5GHz) 0x3700 3
LTE EB-255 DL: U-NII-3 (LTE-U 5GHz) 0x3700 4
LTE EB-66 AWS-3 DL:(2110-2200 MHz) 0x3800 4
LTE EB-66 AWS-3 DL:(2110-2200 MHz) 0x3800 3
LTE EB-66 AWS-3 DL:(2110-2200 MHz) 0x3800 2
LTE EB-66 AWS-3 DL:(2110-2200 MHz) 0x3800 1
LTE EB-66 AWS-3 UL:(1710-1800 MHz) 0x3801 4
LTE EB-66 AWS-3 UL:(1710-1800 MHz) 0x3801 2
LTE EB-66 AWS-3 UL:(1710-1800 MHz) 0x3801 1
LTE EB-66 AWS-3 UL:(1710-1800 MHz) 0x3801 3
LTE EB-65 DL: (2110-2200 MHz) 0x3C00 1
LTE EB-65 DL: (2110-2200 MHz) 0x3C00 4
LTE EB-65 DL: (2110-2200 MHz) 0x3C00 3
LTE EB-65 DL: (2110-2200 MHz) 0x3C00 2
LTE EB-65 UL: (1920-2010 MHz) 0x3C01 3
LTE EB-65 UL: (1920-2010 MHz) 0x3C01 2
LTE EB-65 UL: (1920-2010 MHz) 0x3C01 1
LTE EB-65 UL: (1920-2010 MHz) 0x3C01 4
LTE EB-67 DL: (738-758 MHz) 0x3D00 1
LTE EB-67 DL: (738-758 MHz) 0x3D00 2
LTE EB-67 DL: (738-758 MHz) 0x3D00 4
LTE EB-67 DL: (738-758 MHz) 0x3D00 3
LTE EB-68 DL: (753-783 MHz) 0x3E00 1
LTE EB-68 DL: (753-783 MHz) 0x3E00 2
LTE EB-68 DL: (753-783 MHz) 0x3E00 3
LTE EB-68 DL: (753-783 MHz) 0x3E00 4
LTE EB-68 UL: (698-728 MHz) 0x3E01 3
LTE EB-68 UL: (698-728 MHz) 0x3E01 4
LTE EB-68 UL: (698-728 MHz) 0x3E01 1
LTE EB-68 UL: (698-728 MHz) 0x3E01 2
LTE EB-69 FDD DL: (2570 - 2620 MHz) 0x5200 4
LTE EB-69 FDD DL: (2570 - 2620 MHz) 0x5200 3
LTE EB-69 FDD DL: (2570 - 2620 MHz) 0x5200 2
LTE EB-69 FDD DL: (2570 - 2620 MHz) 0x5200 1
LTE EB-70 FDD DL: (1995 - 2020 MHz) 0x5300 1
LTE EB-70 FDD DL: (1995 - 2020 MHz) 0x5300 4
LTE EB-70 FDD DL: (1995 - 2020 MHz) 0x5300 3
LTE EB-70 FDD DL: (1995 - 2020 MHz) 0x5300 2
LTE EB-70 FDD UL: (1695 - 1710 MHz) 0x5301 1
LTE EB-70 FDD UL: (1695 - 1710 MHz) 0x5301 3
LTE EB-70 FDD UL: (1695 - 1710 MHz) 0x5301 4
LTE EB-70 FDD UL: (1695 - 1710 MHz) 0x5301 2
LTE EB-71 FDD DL: (617 - 652 MHz) 0x5400 1
LTE EB-71 FDD DL: (617 - 652 MHz) 0x5400 2
LTE EB-71 FDD DL: (617 - 652 MHz) 0x5400 4
LTE EB-71 FDD DL: (617 - 652 MHz) 0x5400 3
LTE EB-71 FDD UL: (663 - 698 MHz) 0x5401 3
LTE EB-71 FDD UL: (663 - 698 MHz) 0x5401 4
LTE EB-71 FDD UL: (663 - 698 MHz) 0x5401 1
LTE EB-71 FDD UL: (663 - 698 MHz) 0x5401 2
LTE EB-72 FDD DL: (461 - 466 MHz) 0x5500 1
LTE EB-72 FDD DL: (461 - 466 MHz) 0x5500 4
LTE EB-72 FDD DL: (461 - 466 MHz) 0x5500 3
LTE EB-72 FDD DL: (461 - 466 MHz) 0x5500 2
LTE EB-72 FDD UL: (451 - 456 MHz) 0x5501 1
LTE EB-72 FDD UL: (451 - 456 MHz) 0x5501 2
LTE EB-72 FDD UL: (451 - 456 MHz) 0x5501 3
LTE EB-72 FDD UL: (451 - 456 MHz) 0x5501 4
LTE EB-74 FDD DL: (1475 - 1518 MHz) 0x5600 4
LTE EB-74 FDD DL: (1475 - 1518 MHz) 0x5600 1
LTE EB-74 FDD DL: (1475 - 1518 MHz) 0x5600 2
LTE EB-74 FDD DL: (1475 - 1518 MHz) 0x5600 3
LTE EB-74 FDD UL: (1427 - 1470 MHz) 0x5601 1
LTE EB-74 FDD UL: (1427 - 1470 MHz) 0x5601 3
LTE EB-74 FDD UL: (1427 - 1470 MHz) 0x5601 2
LTE EB-74 FDD UL: (1427 - 1470 MHz) 0x5601 4
LTE EB-75 FDD DL-CA: (1432 - 1517 MHz) 0x5700 1
LTE EB-75 FDD DL-CA: (1432 - 1517 MHz) 0x5700 2
LTE EB-75 FDD DL-CA: (1432 - 1517 MHz) 0x5700 3
LTE EB-75 FDD DL-CA: (1432 - 1517 MHz) 0x5700 4
LTE EB-76 FDD DL-CA: (1427 - 1432 MHz) 0x5800 1
LTE EB-76 FDD DL-CA: (1427 - 1432 MHz) 0x5800 3
LTE EB-76 FDD DL-CA: (1427 - 1432 MHz) 0x5800 4
LTE EB-76 FDD DL-CA: (1427 - 1432 MHz) 0x5800 2
LTE EB-73 FDD DL: (460 - 465 MHz) 0x5900 2
LTE EB-73 FDD DL: (460 - 465 MHz) 0x5900 3
LTE EB-73 FDD DL: (460 - 465 MHz) 0x5900 4
LTE EB-73 FDD DL: (460 - 465 MHz) 0x5900 1
LTE EB-73 FDD UL: (450 - 455 MHz) 0x5901 4
LTE EB-73 FDD UL: (450 - 455 MHz) 0x5901 3
LTE EB-73 FDD UL: (450 - 455 MHz) 0x5901 2
LTE EB-73 FDD UL: (450 - 455 MHz) 0x5901 1
LTE EB-85 FDD DL: (728 - 746 MHz) 0x5C00 2
LTE EB-85 FDD DL: (728 - 746 MHz) 0x5C00 1
LTE EB-85 FDD DL: (728 - 746 MHz) 0x5C00 4
LTE EB-85 FDD DL: (728 - 746 MHz) 0x5C00 3
LTE EB-85 FDD UL: (698 - 716 MHz) 0x5C01 1
LTE EB-85 FDD UL: (698 - 716 MHz) 0x5C01 2
LTE EB-85 FDD UL: (698 - 716 MHz) 0x5C01 3
LTE EB-85 FDD UL: (698 - 716 MHz) 0x5C01 4
TD-LTE EB-38: TDD 2.6 GHz 0x1C03 3
TD-LTE EB-38: TDD 2.6 GHz 0x1C03 2
TD-LTE EB-38: TDD 2.6 GHz 0x1C03 4
TD-LTE EB-38: TDD 2.6 GHz 0x1C03 1
TD-LTE EB-40: TDD 2.3 GHz 0x1D03 1
TD-LTE EB-40: TDD 2.3 GHz 0x1D03 4
TD-LTE EB-40: TDD 2.3 GHz 0x1D03 3
TD-LTE EB-40: TDD 2.3 GHz 0x1D03 2
TD-LTE EB-41: TDD 2.5 GHz 0x1E03 3
TD-LTE EB-41: TDD 2.5 GHz 0x1E03 4
TD-LTE EB-41: TDD 2.5 GHz 0x1E03 2
TD-LTE EB-41: TDD 2.5 GHz 0x1E03 1
TD-LTE EB-41 TDD 2.5 GHz Upper 0x1E33 1
TD-LTE EB-41 TDD 2.5 GHz Upper 0x1E33 2
TD-LTE EB-41 TDD 2.5 GHz Upper 0x1E33 4
TD-LTE EB-41 TDD 2.5 GHz Upper 0x1E33 3
TD-LTE EB-41 TDD 2.5 GHz Lower 0x1EC3 3
TD-LTE EB-41 TDD 2.5 GHz Lower 0x1EC3 2
TD-LTE EB-41 TDD 2.5 GHz Lower 0x1EC3 4
TD-LTE EB-41 TDD 2.5 GHz Lower 0x1EC3 1
TD-LTE EB-39: TDD 1.9 GHz 0x1F03 4
TD-LTE EB-39: TDD 1.9 GHz 0x1F03 2
TD-LTE EB-39: TDD 1.9 GHz 0x1F03 3
TD-LTE EB-39: TDD 1.9 GHz 0x1F03 1
TD-LTE EB-42: TDD 3.4 GHz 0x2303 3
TD-LTE EB-42: TDD 3.4 GHz 0x2303 4
TD-LTE EB-42: TDD 3.4 GHz 0x2303 2
TD-LTE EB-42: TDD 3.4 GHz 0x2303 1
TD-LTE EB-43: TDD 3.6 GHz 0x2403 1
TD-LTE EB-43: TDD 3.6 GHz 0x2403 4
TD-LTE EB-43: TDD 3.6 GHz 0x2403 3
TD-LTE EB-43: TDD 3.6 GHz 0x2403 2
TD-LTE EB-44: TDD 700 MHz 0x2503 1
TD-LTE EB-44: TDD 700 MHz 0x2503 3
TD-LTE EB-44: TDD 700 MHz 0x2503 2
TD-LTE EB-44: TDD 700 MHz 0x2503 4
TD-LTE EB-33: TDD 2000 MHz 0x2603 4
TD-LTE EB-33: TDD 2000 MHz 0x2603 3
TD-LTE EB-33: TDD 2000 MHz 0x2603 1
TD-LTE EB-33: TDD 2000 MHz 0x2603 2
TD-LTE EB-34: Chinese TDD 2000 MHz 0x2703 2
TD-LTE EB-34: Chinese TDD 2000 MHz 0x2703 1
TD-LTE EB-34: Chinese TDD 2000 MHz 0x2703 4
TD-LTE EB-34: Chinese TDD 2000 MHz 0x2703 3
TD-LTE EB-35: TDD 1900 (PCS) Lower 0x2803 4
TD-LTE EB-35: TDD 1900 (PCS) Lower 0x2803 2
TD-LTE EB-35: TDD 1900 (PCS) Lower 0x2803 3
TD-LTE EB-35: TDD 1900 (PCS) Lower 0x2803 1
TD-LTE EB-36: TDD 1900 (PCS) Upper 0x2903 4
TD-LTE EB-36: TDD 1900 (PCS) Upper 0x2903 1
TD-LTE EB-36: TDD 1900 (PCS) Upper 0x2903 2
TD-LTE EB-36: TDD 1900 (PCS) Upper 0x2903 3
TD-LTE EB-37: TDD 1900 (PCS) Center Gap 0x2A03 1
TD-LTE EB-37: TDD 1900 (PCS) Center Gap 0x2A03 2
TD-LTE EB-37: TDD 1900 (PCS) Center Gap 0x2A03 3
TD-LTE EB-37: TDD 1900 (PCS) Center Gap 0x2A03 4
TD-LTE EB-45 TDD: (1447-1467 MHz) 0x3903 4
TD-LTE EB-45 TDD: (1447-1467 MHz) 0x3903 2
TD-LTE EB-45 TDD: (1447-1467 MHz) 0x3903 1
TD-LTE EB-45 TDD: (1447-1467 MHz) 0x3903 3
TD-LTE EB-46 TDD: (5150-5925 MHz) 0x3A03 2
TD-LTE EB-46 TDD: (5150-5925 MHz) 0x3A03 3
TD-LTE EB-46 TDD: (5150-5925 MHz) 0x3A03 4
TD-LTE EB-46 TDD: (5150-5925 MHz) 0x3A03 1
TD-LTE EB-48 TDD: (3550 - 3700 MHz) 0x5003 3
TD-LTE EB-48 TDD: (3550 - 3700 MHz) 0x5003 4
TD-LTE EB-48 TDD: (3550 - 3700 MHz) 0x5003 1
TD-LTE EB-48 TDD: (3550 - 3700 MHz) 0x5003 2
TD-LTE EB-47 TDD: (5855 - 5925 MHz) 0x5103 1
TD-LTE EB-47 TDD: (5855 - 5925 MHz) 0x5103 2
TD-LTE EB-47 TDD: (5855 - 5925 MHz) 0x5103 3
TD-LTE EB-47 TDD: (5855 - 5925 MHz) 0x5103 4
TD-LTE EB-50 TDD: (1432 - 1517 MHz) 0x5203 1
TD-LTE EB-50 TDD: (1432 - 1517 MHz) 0x5203 2
TD-LTE EB-50 TDD: (1432 - 1517 MHz) 0x5203 3
TD-LTE EB-50 TDD: (1432 - 1517 MHz) 0x5203 4
TD-LTE EB-51 TDD: (1437 - 1442 MHz) 0x5303 1
TD-LTE EB-51 TDD: (1437 - 1442 MHz) 0x5303 2
TD-LTE EB-51 TDD: (1437 - 1442 MHz) 0x5303 3
TD-LTE EB-51 TDD: (1437 - 1442 MHz) 0x5303 4
TD-LTE EB-49 TDD: (3550 - 3670 MHz) 0x5A03 2
TD-LTE EB-49 TDD: (3550 - 3670 MHz) 0x5A03 3
TD-LTE EB-49 TDD: (3550 - 3670 MHz) 0x5A03 4
TD-LTE EB-49 TDD: (3550 - 3670 MHz) 0x5A03 1
TD-LTE EB-52 TDD: (3300 - 3400 MHz) 0x5B03 1
TD-LTE EB-52 TDD: (3300 - 3400 MHz) 0x5B03 2
TD-LTE EB-52 TDD: (3300 - 3400 MHz) 0x5B03 3
TD-LTE EB-52 TDD: (3300 - 3400 MHz) 0x5B03 4
NR FR1 FDD n1 DL 0x0001 1
NR FR1 FDD n2 DL 0x0002 1
NR FR1 FDD n3 DL 0x0003 1
NR FR1 FDD n5 DL 0x0005 1
NR FR1 FDD n7 DL 0x0007 1
NR FR1 FDD n8 DL 0x0008 1
NR FR1 FDD n12 DL 0x0012 1
NR FR1 FDD n20 DL 0x0020 1
NR FR1 FDD n25 DL 0x0025 1
NR FR1 FDD n28 DL 0x0028 1
NR FR1 TDD n34 0x0034 1
NR FR1 TDD n38 0x0038 1
NR FR1 TDD n39 0x0039 1
NR FR1 TDD n40 0x0040 1
NR FR1 TDD n41 and n90 0x0041 1
NR FR1 TDD n50 0x0050 1
NR FR1 TDD n51 0x0051 1
NR FR1 FDD n65 DL 0x0065 1
NR FR1 FDD n66 DL 0x0066 1
NR FR1 FDD n70 DL 0x0070 1
NR FR1 FDD n71 DL 0x0071 1
NR FR1 FDD n74 DL 0x0074 1
NR FR1 FDD n75 DL 0x0075 1
NR FR1 FDD n76 DL 0x0076 1
NR FR1 TDD n77 0x0077 1
NR FR1 TDD n78 0x0078 1
NR FR1 TDD n79 0x0079 1
NR FR1 FDD n2 UL 0x1002 1
NR FR1 FDD n3 UL 0x1003 1
NR FR1 FDD n5 UL 0x1005 1
NR FR1 FDD n7 UL 0x1007 1
NR FR1 FDD n8 UL 0x1008 1
NR FR1 FDD n12 UL 0x1012 1
NR FR1 FDD n25 UL 0x1025 1
NR FR1 FDD n28 UL 0x1028 1
NR FR1 FDD n65 UL 0x1065 1
NR FR1 FDD n66 UL 0x1066 1
NR FR1 FDD n70 UL 0x1070 1
NR FR1 FDD n71 UL 0x1071 1
NR FR1 FDD n74 UL 0x1074 1
NR FR1 SUL n80 0x1080 1
NR FR1 SUL n81 0x1081 1
NR FR1 SUL n82 0x1082 1
NR FR1 SUL n83 0x1083 1
NR FR1 SUL n84 0x1084 1
NR FR1 SUL n86 0x1086 1
NR FR1 FDD n20 UL 0x1120 1
NR FR1 FDD n1 UL 0x1AA1 1
Please refer to the manufacturer’s website for further information on this product.
Shipping & Returns Policy
Shipping Policy
- Processing Time: Orders are typically processed and dispatched within 1 business day.
- Shipping Methods: We offer Expedited Shipping to all destinations using UPS/DHL/Fedex/Royal Mail and other reputable carriers.
- Shipping Times: Mainland UK: 1-2 Business Days / Mainland Europe and USA: 2-3 Business Days / Rest of the World 5-7 Business Days.
- Shipping Costs: These are calculated at checkout based on the shipping method, destination and package dimensions.
- CUSTOMS AND TAXES: It is YOUR responsibility to liaise with customs in your country and ensure your package is cleared and any taxes are paid.
- Shipping Destinations: We ship worldwide.
- Tracking: Once your order is shipped, we will provide you with a tracking number via email.
- Insurance: All shipments are insured. In case of damage, please contact us via email within 48 hours of receiving the product with photographic evidence, please also ensure a report is logged with the delivery driver.
Returns Policy
- Return Period: In the event of an item being received which is 'not as specified', you can return your purchase within 14 days of delivery.
- Condition of Items: Items must be returned unused and in their original packaging.
- Return Method: All returns must be notified in writing to hello@ttinstruments.com, the email should accompany the order number, date and reason for return and must be within 14 days of delivery.
- Restocking Fees: A restocking fee of up-to 20% is applicable for items returned for any reason other than 'not as specified'.
- Refund Method: Refunds are processed to the original method of payment within 5 business days of receiving the return.
- Exchanges: We do not offer exchanges. It will either be a replacement or a refund.
- Return Shipping Costs: Return shipping costs will be borne by the customer unless the item is 'not as specified', in this case we will arrange for the return by way of a prepaid shipping label.
Product Overview
Condition: Used
In good condition. Multiple options enabled as per images and description below.
Software is not provided.
Included in the sale:

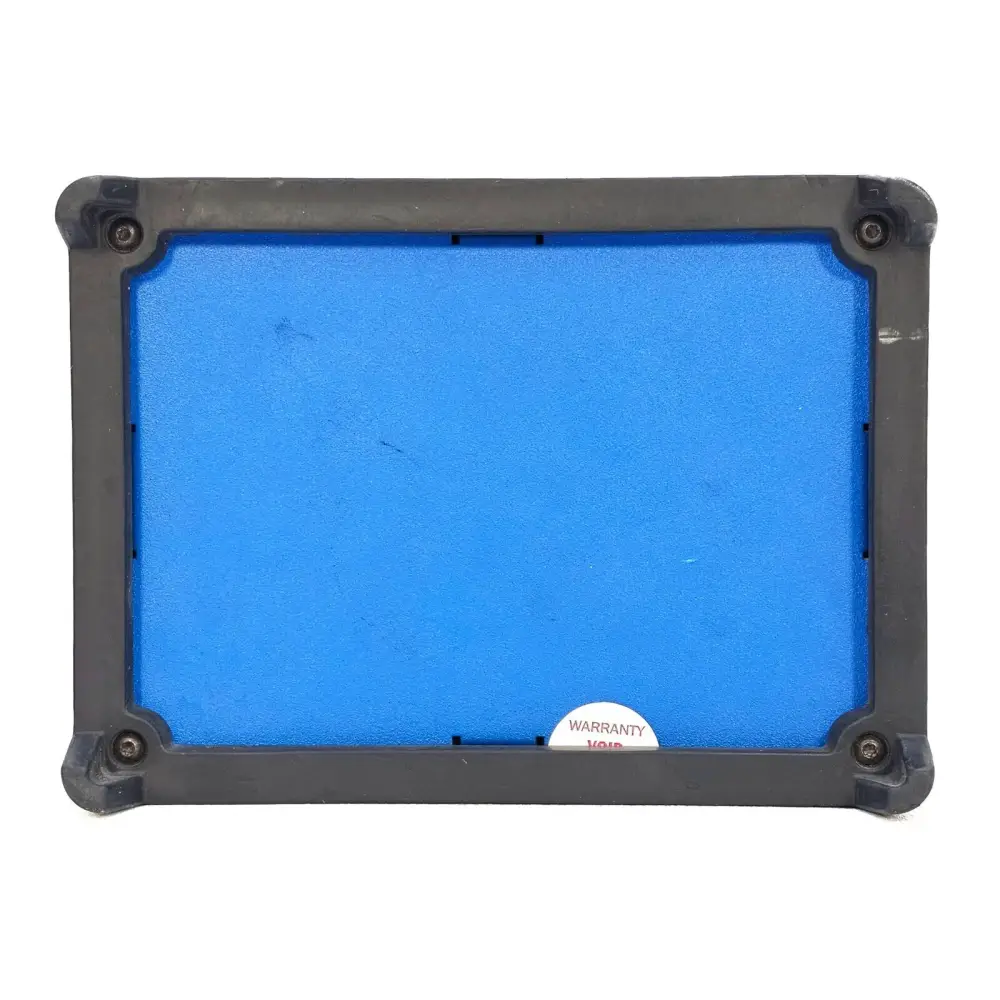

MXflex receiver
Accessories as pictured - antenna 4x, GPS 1x, in-car charger 1x,
Please see below information we have extracted from the system and INSTALLED OPTIONS.

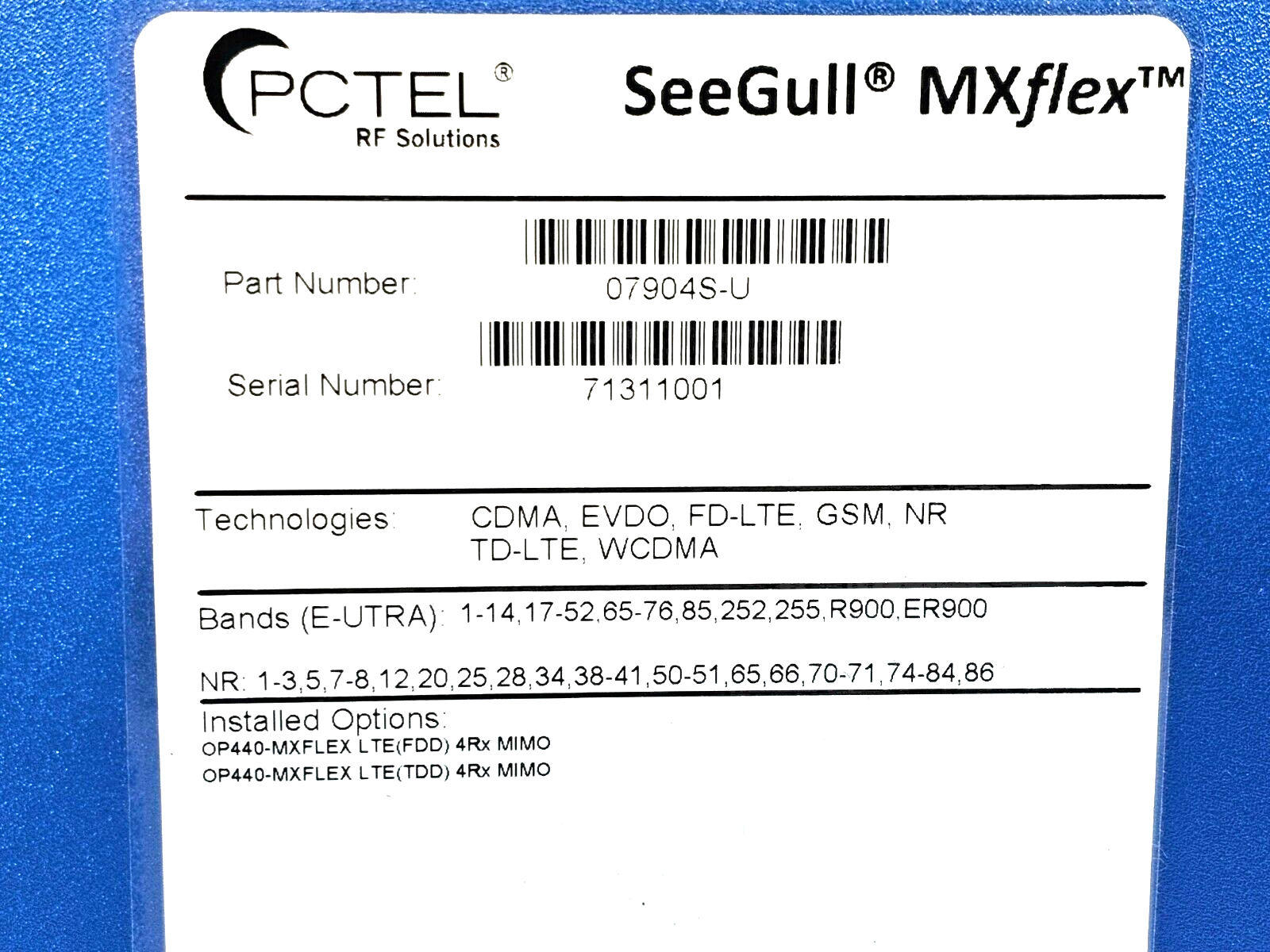

Unit Level Information
---------------------------------------------------------------------
PCTEL Device Type..................: MXflex
Unit ESN...........................: 0000-0000-7131-1001
Number of Options..................: 36
Interfaces.........................: USB
Product Reference Version..........: 1.1.36.0
API Version........................: 2.5.0.0
Software Release Version...........: 5.7.1.0
ASN.1 ICD Version..................: 2.5.0.0
Calibration Date...................: 05/12/2019
Bootup Status......................: Passed
Protocol/Band Summary
Protocol Count
---------------------------------------------------------------------
Band Option.......: 159
GSM...............: 12
CDMA(95)..........: 18
WCDMA.............: 24
CDMA..............: 18
EV-DO.............: 18
LTE...............: 336
TD-LTE............: 88
NR................: 48
Installed Options
---------------------------------------------------------------------
GPS Navigation......................................: 0001-0000
Absolute Time Stamp.................................: 0005-0000
MIMO RF Ports 1 - 4.................................: 0014-0000
Ethernet Interface Not Available....................: 100C-0000
GSM Support.........................................: 0001-0001
GSM BSIC............................................: 0002-0001
GSM BCCH C/I........................................: 0004-0001
GSM BCCH Layer3.....................................: 0005-0001
IS-95 Support.......................................: 0001-0003
IS-95 Pilot.........................................: 0003-0003
IS-95 Extended Dynamic Range........................: 0008-0003
WCDMA Support.......................................: 0001-0004
WCDMA Pilot.........................................: 0003-0004
WCDMA BCH Decoding..................................: 0005-0004
WCDMA Extended Dynamic Range........................: 0008-0004
CDMA Support........................................: 0001-0005
CDMA Pilot..........................................: 0003-0005
CDMA Extended Dynamic Range.........................: 0008-0005
EVDO Support........................................: 0001-0006
EVDO Pilot..........................................: 0003-0006
EVDO Extended Dynamic Range.........................: 0008-0006
LTE Support.........................................: 0001-000A
LTE L3 Message Decoding.............................: 0005-000A
LTE Enhanced Signal Scan............................: 000C-000A
LTE 5G/4G Spectrum Sharing Signal...................: 000F-000A
LTE Enhanced Signal 4Rx MIMO........................: 004C-000A
TDLTE Support.......................................: 0001-000B
TDLTE L3 Message Decoding...........................: 0005-000B
TDLTE Enhanced Signal Scan..........................: 000C-000B
TDLTE 5G/4G Spectrum Sharing Signal.................: 000F-000B
TDLTE Enhanced Signal 4Rx MIMO......................: 004C-000B
New Radio support...................................: 0001-000F
New Radio MIB decoding..............................: 0005-000F
New Radio Blind Scan................................: 000B-000F
New Radio Top N signal scanning.....................: 000C-000F
30MHz-6000MHz Capability............................: 7000-0000
License Information
--------------------------------------------------------
Calibration Date..............: 2019-12-5
Calibration Version...........: 0
Warranty Expiration Date......: 18/12/2021 23:59:59 GMT
License Type..................: Perpetual
License State.................: Active
Current Time..................: 01/01/2000 23:59:59 GMT
License Number................: 1
License Expiration Date.......: 18/12/2019 23:59:59 GMT
License Remaining Time........: NA
Supported Configurations
Protocol Band Band Code Port
---------------------------------------------------------------------
Band Option FR1 FDD n1 DL 0x0001 1
Band Option FR1 FDD n2 DL 0x0002 1
Band Option FR1 FDD n3 DL 0x0003 1
Band Option FR1 FDD n5 DL 0x0005 1
Band Option FR1 FDD n7 DL 0x0007 1
Band Option FR1 FDD n8 DL 0x0008 1
Band Option FR1 FDD n12 DL 0x0012 1
Band Option FR1 FDD n20 DL 0x0020 1
Band Option FR1 FDD n25 DL 0x0025 1
Band Option FR1 FDD n28 DL 0x0028 1
Band Option FR1 TDD n34 0x0034 1
Band Option FR1 TDD n38 0x0038 1
Band Option FR1 TDD n39 0x0039 1
Band Option FR1 TDD n40 0x0040 1
Band Option FR1 TDD n41 and n90 0x0041 1
Band Option FR1 TDD n50 0x0050 1
Band Option FR1 TDD n51 0x0051 1
Band Option FR1 FDD n65 DL 0x0065 1
Band Option FR1 FDD n66 DL 0x0066 1
Band Option FR1 FDD n70 DL 0x0070 1
Band Option FR1 FDD n71 DL 0x0071 1
Band Option FR1 FDD n74 DL 0x0074 1
Band Option FR1 FDD n75 DL 0x0075 1
Band Option FR1 FDD n76 DL 0x0076 1
Band Option FR1 TDD n77 0x0077 1
Band Option FR1 TDD n78 0x0078 1
Band Option FR1 TDD n79 0x0079 1
Band Option EB-05 DL: American Cellular 0x0100 1
Band Option EB-05 UL: American Cellular 0x0101 1
Band Option EB-02 DL: American PCS 0x0200 1
Band Option EB-02 UL: American PCS 0x0201 1
Band Option EB-01 DL: 2100 (IMT-2000) 0x0300 1
Band Option EB-01 UL: 2100 (IMT-2000) 0x0301 1
Band Option EB-08 DL: European 900 MHz 0x0600 1
Band Option EB-08 UL: European 900 MHz 0x0601 1
Band Option EB-03 DL: 1800 MHz (DCS) 0x0700 1
Band Option EB-03 UL: 1800 MHz (DCS) 0x0701 1
Band Option EB-09 DL: 1700 MHz (Japan) 0x07F8 1
Band Option EB-09 UL: 1700 MHz (Japan) 0x07F9 1
Band Option EB-27 DL: Lwr Ext 850 MHz 0x0900 1
Band Option EB-27 UL: Lwr Ext 850 MHz 0x0901 1
Band Option EB-04 DL: AWS 2100 MHz 0x0B00 1
Band Option EB-04 UL: AWS 2100 MHz 0x0B01 1
Band Option EB-13/14L DL: US 700 Upp C/D 0x1000 1
Band Option EB-13/14L UL: US 700 Upp C/D 0x1001 1
Band Option FR1 FDD n2 UL 0x1002 1
Band Option FR1 FDD n3 UL 0x1003 1
Band Option FR1 FDD n5 UL 0x1005 1
Band Option FR1 FDD n7 UL 0x1007 1
Band Option FR1 FDD n8 UL 0x1008 1
Band Option EB-13 DL: US 700 Upp C 0x1010 1
Band Option EB-13 UL: US 700 Upp C 0x1011 1
Band Option FR1 FDD n12 UL 0x1012 1
Band Option EB-14 DL: Upper 700 D 0x1020 1
Band Option EB-14 UL: Upper 700 D 0x1021 1
Band Option FR1 FDD n25 UL 0x1025 1
Band Option FR1 FDD n28 UL 0x1028 1
Band Option FR1 FDD n65 UL 0x1065 1
Band Option FR1 FDD n66 UL 0x1066 1
Band Option FR1 FDD n70 UL 0x1070 1
Band Option FR1 FDD n71 UL 0x1071 1
Band Option FR1 FDD n74 UL 0x1074 1
Band Option FR1 SUL n80 0x1080 1
Band Option FR1 SUL n81 0x1081 1
Band Option FR1 SUL n82 0x1082 1
Band Option FR1 SUL n83 0x1083 1
Band Option FR1 SUL n84 0x1084 1
Band Option FR1 SUL n86 0x1086 1
Band Option EB-12 DL: US Lwr 700 A/B/C 0x1100 1
Band Option EB-12 UL: US Lwr 700 A/B/C 0x1101 1
Band Option FR1 FDD n20 UL 0x1120 1
Band Option EB-17 DL: US Lwr 700 B/C 0x11F8 1
Band Option EB-17 UL: US Lwr 700 B/C 0x11F9 1
Band Option EB-07 DL: 2600 IMT Extension 0x1200 1
Band Option EB-07 UL: 2600 IMT Extension 0x1201 1
Band Option EB-11 DL: 1500 MHz 0x1300 1
Band Option EB-11 UL: 1500 MHz 0x1301 1
Band Option EB-21 DL: Ext 1500 MHz 0x1400 1
Band Option EB-21 UL: Ext 1500 MHz 0x1401 1
Band Option EB-25 DL: Ext US PCS 0x1500 1
Band Option EB-25 UL: Ext US PCS 0x1501 1
Band Option EB-06 DL: 800 MHz 0x1600 1
Band Option EB-06 UL: 800 MHz 0x1601 1
Band Option EB-18 DL: Japan Lwr 800 0x1700 1
Band Option EB-18 UL: Japan Lwr 800 0x1701 1
Band Option EB-19 DL: Japan Uppr 800 0x1800 1
Band Option EB-19 UL: Japan Uppr 800 0x1801 1
Band Option EB-20 DL: European 800 MHz 0x1A00 1
Band Option EB-20 UL: European 800 MHz 0x1A01 1
Band Option FR1 FDD n1 UL 0x1AA1 1
Band Option EB-24 DL: 1600 MHz 0x1B00 1
Band Option EB-24 UL: 1600 MHz 0x1B01 1
Band Option EB-38: TDD 2.6 GHz 0x1C03 1
Band Option EB-40: TDD 2.3 GHz 0x1D03 1
Band Option EB-41: TDD 2.5 GHz 0x1E03 1
Band Option EB-41 TDD 2.5 GHz Upper 0x1E33 1
Band Option EB-41 TDD 2.5 GHz Lower 0x1EC3 1
Band Option EB-39: TDD 1.9 GHz 0x1F03 1
Band Option EB-26 DL: Uppr Ext 850 MHz 0x2100 1
Band Option EB-26 UL: Uppr Ext 850 MHz 0x2101 1
Band Option EB-28 DL: 700 APAC (CALA) 0x2200 1
Band Option EB-28 UL: 700 APAC (CALA) 0x2201 1
Band Option EB-42: TDD 3.4 GHz 0x2303 1
Band Option EB-43: TDD 3.6 GHz 0x2403 1
Band Option EB-44: TDD 700 MHz 0x2503 1
Band Option EB-33: TDD 2000 MHz 0x2603 1
Band Option EB-34: Chinese TDD 2000 MHz 0x2703 1
Band Option EB-35: TDD 1900 (PCS) Lower 0x2803 1
Band Option EB-36: TDD 1900 (PCS) Upper 0x2903 1
Band Option EB-37: TDD 1900 (PCS) Center Gap 0x2A03 1
Band Option EB-10 DL: Ext 2100 (AWS) 0x2B00 1
Band Option EB-10 UL: Ext 2100 (AWS) 0x2B01 1
Band Option EB-22 DL: 3.5 GHz 0x2C00 1
Band Option EB-22 UL: 3.5 GHz 0x2C01 1
Band Option EB-29 DL: US 700 MHz 0x2D00 1
Band Option R-GSM 900 MHz DL 0x2E00 1
Band Option R-GSM 900 MHz UL 0x2E01 1
Band Option EB-31 DL: 450 MHz 0x2F00 1
Band Option EB-31 UL: 450 MHz 0x2F01 1
Band Option EB-23 DL: S-Band 2 GHz 0x3100 1
Band Option EB-23 UL: S-Band 2 GHz 0x3101 1
Band Option EB-30 DL: 2.3 GHz (WCS A/B) 0x3200 1
Band Option EB-30 UL: 2.3 GHz (WCS A/B) 0x3201 1
Band Option EB-32 DL: 1500 (L-Band) 0x3400 1
Band Option ER-GSM: 900 MHz DL 0x3500 1
Band Option ER-GSM: 900 MHz UL 0x3501 1
Band Option EB-252 DL: U-NII-1 (LTE-U 5GHz) 0x3600 1
Band Option EB-255 DL: U-NII-3 (LTE-U 5GHz) 0x3700 1
Band Option EB-66 AWS-3 DL:(2110-2200 MHz) 0x3800 1
Band Option EB-66 AWS-3 UL:(1710-1800 MHz) 0x3801 1
Band Option EB-45 TDD: (1447-1467 MHz) 0x3903 1
Band Option EB-46 TDD: (5150-5925 MHz) 0x3A03 1
Band Option EB-65 DL: (2110-2200 MHz) 0x3C00 1
Band Option EB-65 UL: (1920-2010 MHz) 0x3C01 1
Band Option EB-67 DL: (738-758 MHz) 0x3D00 1
Band Option EB-68 DL: (753-783 MHz) 0x3E00 1
Band Option EB-68 UL: (698-728 MHz) 0x3E01 1
Band Option EB-48 TDD: (3550 - 3700 MHz) 0x5003 1
Band Option EB-47 TDD: (5855 - 5925 MHz) 0x5103 1
Band Option EB-69 FDD DL: (2570 - 2620 MHz) 0x5200 1
Band Option EB-50 TDD: (1432 - 1517 MHz) 0x5203 1
Band Option EB-70 FDD DL: (1995 - 2020 MHz) 0x5300 1
Band Option EB-70 FDD UL: (1695 - 1710 MHz) 0x5301 1
Band Option EB-51 TDD: (1437 - 1442 MHz) 0x5303 1
Band Option EB-71 FDD DL: (617 - 652 MHz) 0x5400 1
Band Option EB-71 FDD UL: (663 - 698 MHz) 0x5401 1
Band Option EB-72 FDD DL: (461 - 466 MHz) 0x5500 1
Band Option EB-72 FDD UL: (451 - 456 MHz) 0x5501 1
Band Option EB-74 FDD DL: (1475 - 1518 MHz) 0x5600 1
Band Option EB-74 FDD UL: (1427 - 1470 MHz) 0x5601 1
Band Option EB-75 FDD DL-CA: (1432 - 1517 MHz) 0x5700 1
Band Option EB-76 FDD DL-CA: (1427 - 1432 MHz) 0x5800 1
Band Option EB-73 FDD DL: (460 - 465 MHz) 0x5900 1
Band Option EB-73 FDD UL: (450 - 455 MHz) 0x5901 1
Band Option EB-49 TDD: (3550 - 3670 MHz) 0x5A03 1
Band Option EB-52 TDD: (3300 - 3400 MHz) 0x5B03 1
Band Option EB-85 FDD DL: (728 - 746 MHz) 0x5C00 1
Band Option EB-85 FDD UL: (698 - 716 MHz) 0x5C01 1
Band Option 30-6000 MHz 0x7000 1
GSM EB-05 DL: American Cellular 0x0100 1
GSM EB-05 UL: American Cellular 0x0101 1
GSM EB-02 DL: American PCS 0x0200 1
GSM EB-02 UL: American PCS 0x0201 1
GSM EB-08 DL: European 900 MHz 0x0600 1
GSM EB-08 UL: European 900 MHz 0x0601 1
GSM EB-03 DL: 1800 MHz (DCS) 0x0700 1
GSM EB-03 UL: 1800 MHz (DCS) 0x0701 1
GSM R-GSM 900 MHz DL 0x2E00 1
GSM R-GSM 900 MHz UL 0x2E01 1
GSM ER-GSM: 900 MHz DL 0x3500 1
GSM ER-GSM: 900 MHz UL 0x3501 1
CDMA(95) EB-05 DL: American Cellular 0x0100 1
CDMA(95) EB-05 UL: American Cellular 0x0101 1
CDMA(95) EB-02 DL: American PCS 0x0200 1
CDMA(95) EB-02 UL: American PCS 0x0201 1
CDMA(95) EB-01 DL: 2100 (IMT-2000) 0x0300 1
CDMA(95) EB-01 UL: 2100 (IMT-2000) 0x0301 1
CDMA(95) EB-03 DL: 1800 MHz (DCS) 0x0700 1
CDMA(95) EB-03 UL: 1800 MHz (DCS) 0x0701 1
CDMA(95) EB-27 DL: Lwr Ext 850 MHz 0x0900 1
CDMA(95) EB-27 UL: Lwr Ext 850 MHz 0x0901 1
CDMA(95) EB-04 DL: AWS 2100 MHz 0x0B00 1
CDMA(95) EB-04 UL: AWS 2100 MHz 0x0B01 1
CDMA(95) EB-25 DL: Ext US PCS 0x1500 1
CDMA(95) EB-25 UL: Ext US PCS 0x1501 1
CDMA(95) EB-24 DL: 1600 MHz 0x1B00 1
CDMA(95) EB-24 UL: 1600 MHz 0x1B01 1
CDMA(95) EB-31 DL: 450 MHz 0x2F00 1
CDMA(95) EB-31 UL: 450 MHz 0x2F01 1
WCDMA EB-05 DL: American Cellular 0x0100 1
WCDMA EB-05 UL: American Cellular 0x0101 1
WCDMA EB-02 DL: American PCS 0x0200 1
WCDMA EB-02 UL: American PCS 0x0201 1
WCDMA EB-01 DL: 2100 (IMT-2000) 0x0300 1
WCDMA EB-01 UL: 2100 (IMT-2000) 0x0301 1
WCDMA EB-08 DL: European 900 MHz 0x0600 1
WCDMA EB-08 UL: European 900 MHz 0x0601 1
WCDMA EB-03 DL: 1800 MHz (DCS) 0x0700 1
WCDMA EB-03 UL: 1800 MHz (DCS) 0x0701 1
WCDMA EB-09 DL: 1700 MHz (Japan) 0x07F8 1
WCDMA EB-09 UL: 1700 MHz (Japan) 0x07F9 1
WCDMA EB-04 DL: AWS 2100 MHz 0x0B00 1
WCDMA EB-04 UL: AWS 2100 MHz 0x0B01 1
WCDMA EB-11 DL: 1500 MHz 0x1300 1
WCDMA EB-11 UL: 1500 MHz 0x1301 1
WCDMA EB-21 DL: Ext 1500 MHz 0x1400 1
WCDMA EB-21 UL: Ext 1500 MHz 0x1401 1
WCDMA EB-25 DL: Ext US PCS 0x1500 1
WCDMA EB-25 UL: Ext US PCS 0x1501 1
WCDMA EB-06 DL: 800 MHz 0x1600 1
WCDMA EB-06 UL: 800 MHz 0x1601 1
WCDMA EB-19 DL: Japan Uppr 800 0x1800 1
WCDMA EB-19 UL: Japan Uppr 800 0x1801 1
CDMA EB-05 DL: American Cellular 0x0100 1
CDMA EB-05 UL: American Cellular 0x0101 1
CDMA EB-02 DL: American PCS 0x0200 1
CDMA EB-02 UL: American PCS 0x0201 1
CDMA EB-01 DL: 2100 (IMT-2000) 0x0300 1
CDMA EB-01 UL: 2100 (IMT-2000) 0x0301 1
CDMA EB-03 DL: 1800 MHz (DCS) 0x0700 1
CDMA EB-03 UL: 1800 MHz (DCS) 0x0701 1
CDMA EB-27 DL: Lwr Ext 850 MHz 0x0900 1
CDMA EB-27 UL: Lwr Ext 850 MHz 0x0901 1
CDMA EB-04 DL: AWS 2100 MHz 0x0B00 1
CDMA EB-04 UL: AWS 2100 MHz 0x0B01 1
CDMA EB-25 DL: Ext US PCS 0x1500 1
CDMA EB-25 UL: Ext US PCS 0x1501 1
CDMA EB-24 DL: 1600 MHz 0x1B00 1
CDMA EB-24 UL: 1600 MHz 0x1B01 1
CDMA EB-31 DL: 450 MHz 0x2F00 1
CDMA EB-31 UL: 450 MHz 0x2F01 1
EV-DO EB-05 DL: American Cellular 0x0100 1
EV-DO EB-05 UL: American Cellular 0x0101 1
EV-DO EB-02 DL: American PCS 0x0200 1
EV-DO EB-02 UL: American PCS 0x0201 1
EV-DO EB-01 DL: 2100 (IMT-2000) 0x0300 1
EV-DO EB-01 UL: 2100 (IMT-2000) 0x0301 1
EV-DO EB-03 DL: 1800 MHz (DCS) 0x0700 1
EV-DO EB-03 UL: 1800 MHz (DCS) 0x0701 1
EV-DO EB-27 DL: Lwr Ext 850 MHz 0x0900 1
EV-DO EB-27 UL: Lwr Ext 850 MHz 0x0901 1
EV-DO EB-04 DL: AWS 2100 MHz 0x0B00 1
EV-DO EB-04 UL: AWS 2100 MHz 0x0B01 1
EV-DO EB-25 DL: Ext US PCS 0x1500 1
EV-DO EB-25 UL: Ext US PCS 0x1501 1
EV-DO EB-24 DL: 1600 MHz 0x1B00 1
EV-DO EB-24 UL: 1600 MHz 0x1B01 1
EV-DO EB-31 DL: 450 MHz 0x2F00 1
EV-DO EB-31 UL: 450 MHz 0x2F01 1
LTE EB-05 DL: American Cellular 0x0100 2
LTE EB-05 DL: American Cellular 0x0100 3
LTE EB-05 DL: American Cellular 0x0100 4
LTE EB-05 DL: American Cellular 0x0100 1
LTE EB-05 UL: American Cellular 0x0101 1
LTE EB-05 UL: American Cellular 0x0101 2
LTE EB-05 UL: American Cellular 0x0101 4
LTE EB-05 UL: American Cellular 0x0101 3
LTE EB-02 DL: American PCS 0x0200 1
LTE EB-02 DL: American PCS 0x0200 4
LTE EB-02 DL: American PCS 0x0200 2
LTE EB-02 DL: American PCS 0x0200 3
LTE EB-02 UL: American PCS 0x0201 1
LTE EB-02 UL: American PCS 0x0201 3
LTE EB-02 UL: American PCS 0x0201 4
LTE EB-02 UL: American PCS 0x0201 2
LTE EB-01 DL: 2100 (IMT-2000) 0x0300 1
LTE EB-01 DL: 2100 (IMT-2000) 0x0300 2
LTE EB-01 DL: 2100 (IMT-2000) 0x0300 3
LTE EB-01 DL: 2100 (IMT-2000) 0x0300 4
LTE EB-01 UL: 2100 (IMT-2000) 0x0301 4
LTE EB-01 UL: 2100 (IMT-2000) 0x0301 1
LTE EB-01 UL: 2100 (IMT-2000) 0x0301 3
LTE EB-01 UL: 2100 (IMT-2000) 0x0301 2
LTE EB-08 DL: European 900 MHz 0x0600 4
LTE EB-08 DL: European 900 MHz 0x0600 3
LTE EB-08 DL: European 900 MHz 0x0600 2
LTE EB-08 DL: European 900 MHz 0x0600 1
LTE EB-08 UL: European 900 MHz 0x0601 4
LTE EB-08 UL: European 900 MHz 0x0601 1
LTE EB-08 UL: European 900 MHz 0x0601 3
LTE EB-08 UL: European 900 MHz 0x0601 2
LTE EB-03 DL: 1800 MHz (DCS) 0x0700 1
LTE EB-03 DL: 1800 MHz (DCS) 0x0700 2
LTE EB-03 DL: 1800 MHz (DCS) 0x0700 3
LTE EB-03 DL: 1800 MHz (DCS) 0x0700 4
LTE EB-03 UL: 1800 MHz (DCS) 0x0701 4
LTE EB-03 UL: 1800 MHz (DCS) 0x0701 1
LTE EB-03 UL: 1800 MHz (DCS) 0x0701 2
LTE EB-03 UL: 1800 MHz (DCS) 0x0701 3
LTE EB-09 DL: 1700 MHz (Japan) 0x07F8 2
LTE EB-09 DL: 1700 MHz (Japan) 0x07F8 3
LTE EB-09 DL: 1700 MHz (Japan) 0x07F8 1
LTE EB-09 DL: 1700 MHz (Japan) 0x07F8 4
LTE EB-09 UL: 1700 MHz (Japan) 0x07F9 1
LTE EB-09 UL: 1700 MHz (Japan) 0x07F9 2
LTE EB-09 UL: 1700 MHz (Japan) 0x07F9 3
LTE EB-09 UL: 1700 MHz (Japan) 0x07F9 4
LTE EB-27 DL: Lwr Ext 850 MHz 0x0900 1
LTE EB-27 DL: Lwr Ext 850 MHz 0x0900 4
LTE EB-27 DL: Lwr Ext 850 MHz 0x0900 3
LTE EB-27 DL: Lwr Ext 850 MHz 0x0900 2
LTE EB-27 UL: Lwr Ext 850 MHz 0x0901 1
LTE EB-27 UL: Lwr Ext 850 MHz 0x0901 2
LTE EB-27 UL: Lwr Ext 850 MHz 0x0901 3
LTE EB-27 UL: Lwr Ext 850 MHz 0x0901 4
LTE EB-04 DL: AWS 2100 MHz 0x0B00 1
LTE EB-04 DL: AWS 2100 MHz 0x0B00 2
LTE EB-04 DL: AWS 2100 MHz 0x0B00 3
LTE EB-04 DL: AWS 2100 MHz 0x0B00 4
LTE EB-04 UL: AWS 2100 MHz 0x0B01 3
LTE EB-04 UL: AWS 2100 MHz 0x0B01 4
LTE EB-04 UL: AWS 2100 MHz 0x0B01 2
LTE EB-04 UL: AWS 2100 MHz 0x0B01 1
LTE EB-13/14L DL: US 700 Upp C/D 0x1000 3
LTE EB-13/14L DL: US 700 Upp C/D 0x1000 4
LTE EB-13/14L DL: US 700 Upp C/D 0x1000 2
LTE EB-13/14L DL: US 700 Upp C/D 0x1000 1
LTE EB-13/14L UL: US 700 Upp C/D 0x1001 4
LTE EB-13/14L UL: US 700 Upp C/D 0x1001 3
LTE EB-13/14L UL: US 700 Upp C/D 0x1001 2
LTE EB-13/14L UL: US 700 Upp C/D 0x1001 1
LTE EB-13 DL: US 700 Upp C 0x1010 3
LTE EB-13 DL: US 700 Upp C 0x1010 1
LTE EB-13 DL: US 700 Upp C 0x1010 2
LTE EB-13 DL: US 700 Upp C 0x1010 4
LTE EB-13 UL: US 700 Upp C 0x1011 4
LTE EB-13 UL: US 700 Upp C 0x1011 1
LTE EB-13 UL: US 700 Upp C 0x1011 2
LTE EB-13 UL: US 700 Upp C 0x1011 3
LTE EB-14 DL: Upper 700 D 0x1020 4
LTE EB-14 DL: Upper 700 D 0x1020 2
LTE EB-14 DL: Upper 700 D 0x1020 1
LTE EB-14 DL: Upper 700 D 0x1020 3
LTE EB-14 UL: Upper 700 D 0x1021 2
LTE EB-14 UL: Upper 700 D 0x1021 1
LTE EB-14 UL: Upper 700 D 0x1021 4
LTE EB-14 UL: Upper 700 D 0x1021 3
LTE EB-12 DL: US Lwr 700 A/B/C 0x1100 4
LTE EB-12 DL: US Lwr 700 A/B/C 0x1100 2
LTE EB-12 DL: US Lwr 700 A/B/C 0x1100 1
LTE EB-12 DL: US Lwr 700 A/B/C 0x1100 3
LTE EB-12 UL: US Lwr 700 A/B/C 0x1101 2
LTE EB-12 UL: US Lwr 700 A/B/C 0x1101 1
LTE EB-12 UL: US Lwr 700 A/B/C 0x1101 4
LTE EB-12 UL: US Lwr 700 A/B/C 0x1101 3
LTE EB-17 DL: US Lwr 700 B/C 0x11F8 2
LTE EB-17 DL: US Lwr 700 B/C 0x11F8 3
LTE EB-17 DL: US Lwr 700 B/C 0x11F8 4
LTE EB-17 DL: US Lwr 700 B/C 0x11F8 1
LTE EB-17 UL: US Lwr 700 B/C 0x11F9 1
LTE EB-17 UL: US Lwr 700 B/C 0x11F9 2
LTE EB-17 UL: US Lwr 700 B/C 0x11F9 3
LTE EB-17 UL: US Lwr 700 B/C 0x11F9 4
LTE EB-07 DL: 2600 IMT Extension 0x1200 3
LTE EB-07 DL: 2600 IMT Extension 0x1200 1
LTE EB-07 DL: 2600 IMT Extension 0x1200 2
LTE EB-07 DL: 2600 IMT Extension 0x1200 4
LTE EB-07 UL: 2600 IMT Extension 0x1201 4
LTE EB-07 UL: 2600 IMT Extension 0x1201 3
LTE EB-07 UL: 2600 IMT Extension 0x1201 2
LTE EB-07 UL: 2600 IMT Extension 0x1201 1
LTE EB-11 DL: 1500 MHz 0x1300 3
LTE EB-11 DL: 1500 MHz 0x1300 1
LTE EB-11 DL: 1500 MHz 0x1300 2
LTE EB-11 DL: 1500 MHz 0x1300 4
LTE EB-11 UL: 1500 MHz 0x1301 2
LTE EB-11 UL: 1500 MHz 0x1301 3
LTE EB-11 UL: 1500 MHz 0x1301 4
LTE EB-11 UL: 1500 MHz 0x1301 1
LTE EB-21 DL: Ext 1500 MHz 0x1400 3
LTE EB-21 DL: Ext 1500 MHz 0x1400 2
LTE EB-21 DL: Ext 1500 MHz 0x1400 4
LTE EB-21 DL: Ext 1500 MHz 0x1400 1
LTE EB-21 UL: Ext 1500 MHz 0x1401 1
LTE EB-21 UL: Ext 1500 MHz 0x1401 2
LTE EB-21 UL: Ext 1500 MHz 0x1401 3
LTE EB-21 UL: Ext 1500 MHz 0x1401 4
LTE EB-25 DL: Ext US PCS 0x1500 1
LTE EB-25 DL: Ext US PCS 0x1500 2
LTE EB-25 DL: Ext US PCS 0x1500 3
LTE EB-25 DL: Ext US PCS 0x1500 4
LTE EB-25 UL: Ext US PCS 0x1501 1
LTE EB-25 UL: Ext US PCS 0x1501 3
LTE EB-25 UL: Ext US PCS 0x1501 4
LTE EB-25 UL: Ext US PCS 0x1501 2
LTE EB-06 DL: 800 MHz 0x1600 1
LTE EB-06 DL: 800 MHz 0x1600 2
LTE EB-06 DL: 800 MHz 0x1600 3
LTE EB-06 DL: 800 MHz 0x1600 4
LTE EB-06 UL: 800 MHz 0x1601 3
LTE EB-06 UL: 800 MHz 0x1601 4
LTE EB-06 UL: 800 MHz 0x1601 1
LTE EB-06 UL: 800 MHz 0x1601 2
LTE EB-18 DL: Japan Lwr 800 0x1700 3
LTE EB-18 DL: Japan Lwr 800 0x1700 4
LTE EB-18 DL: Japan Lwr 800 0x1700 1
LTE EB-18 DL: Japan Lwr 800 0x1700 2
LTE EB-18 UL: Japan Lwr 800 0x1701 1
LTE EB-18 UL: Japan Lwr 800 0x1701 2
LTE EB-18 UL: Japan Lwr 800 0x1701 3
LTE EB-18 UL: Japan Lwr 800 0x1701 4
LTE EB-19 DL: Japan Uppr 800 0x1800 4
LTE EB-19 DL: Japan Uppr 800 0x1800 2
LTE EB-19 DL: Japan Uppr 800 0x1800 1
LTE EB-19 DL: Japan Uppr 800 0x1800 3
LTE EB-19 UL: Japan Uppr 800 0x1801 1
LTE EB-19 UL: Japan Uppr 800 0x1801 3
LTE EB-19 UL: Japan Uppr 800 0x1801 4
LTE EB-19 UL: Japan Uppr 800 0x1801 2
LTE EB-20 DL: European 800 MHz 0x1A00 1
LTE EB-20 DL: European 800 MHz 0x1A00 2
LTE EB-20 DL: European 800 MHz 0x1A00 3
LTE EB-20 DL: European 800 MHz 0x1A00 4
LTE EB-20 UL: European 800 MHz 0x1A01 1
LTE EB-20 UL: European 800 MHz 0x1A01 4
LTE EB-20 UL: European 800 MHz 0x1A01 3
LTE EB-20 UL: European 800 MHz 0x1A01 2
LTE EB-24 DL: 1600 MHz 0x1B00 3
LTE EB-24 DL: 1600 MHz 0x1B00 4
LTE EB-24 DL: 1600 MHz 0x1B00 2
LTE EB-24 DL: 1600 MHz 0x1B00 1
LTE EB-24 UL: 1600 MHz 0x1B01 1
LTE EB-24 UL: 1600 MHz 0x1B01 4
LTE EB-24 UL: 1600 MHz 0x1B01 2
LTE EB-24 UL: 1600 MHz 0x1B01 3
LTE EB-26 DL: Uppr Ext 850 MHz 0x2100 3
LTE EB-26 DL: Uppr Ext 850 MHz 0x2100 2
LTE EB-26 DL: Uppr Ext 850 MHz 0x2100 1
LTE EB-26 DL: Uppr Ext 850 MHz 0x2100 4
LTE EB-26 UL: Uppr Ext 850 MHz 0x2101 1
LTE EB-26 UL: Uppr Ext 850 MHz 0x2101 3
LTE EB-26 UL: Uppr Ext 850 MHz 0x2101 4
LTE EB-26 UL: Uppr Ext 850 MHz 0x2101 2
LTE EB-28 DL: 700 APAC (CALA) 0x2200 4
LTE EB-28 DL: 700 APAC (CALA) 0x2200 1
LTE EB-28 DL: 700 APAC (CALA) 0x2200 2
LTE EB-28 DL: 700 APAC (CALA) 0x2200 3
LTE EB-28 UL: 700 APAC (CALA) 0x2201 4
LTE EB-28 UL: 700 APAC (CALA) 0x2201 3
LTE EB-28 UL: 700 APAC (CALA) 0x2201 2
LTE EB-28 UL: 700 APAC (CALA) 0x2201 1
LTE EB-10 DL: Ext 2100 (AWS) 0x2B00 1
LTE EB-10 DL: Ext 2100 (AWS) 0x2B00 2
LTE EB-10 DL: Ext 2100 (AWS) 0x2B00 3
LTE EB-10 DL: Ext 2100 (AWS) 0x2B00 4
LTE EB-10 UL: Ext 2100 (AWS) 0x2B01 1
LTE EB-10 UL: Ext 2100 (AWS) 0x2B01 2
LTE EB-10 UL: Ext 2100 (AWS) 0x2B01 3
LTE EB-10 UL: Ext 2100 (AWS) 0x2B01 4
LTE EB-22 DL: 3.5 GHz 0x2C00 1
LTE EB-22 DL: 3.5 GHz 0x2C00 2
LTE EB-22 DL: 3.5 GHz 0x2C00 3
LTE EB-22 DL: 3.5 GHz 0x2C00 4
LTE EB-22 UL: 3.5 GHz 0x2C01 1
LTE EB-22 UL: 3.5 GHz 0x2C01 2
LTE EB-22 UL: 3.5 GHz 0x2C01 4
LTE EB-22 UL: 3.5 GHz 0x2C01 3
LTE EB-29 DL: US 700 MHz 0x2D00 1
LTE EB-29 DL: US 700 MHz 0x2D00 4
LTE EB-29 DL: US 700 MHz 0x2D00 3
LTE EB-29 DL: US 700 MHz 0x2D00 2
LTE EB-31 DL: 450 MHz 0x2F00 1
LTE EB-31 DL: 450 MHz 0x2F00 2
LTE EB-31 DL: 450 MHz 0x2F00 3
LTE EB-31 DL: 450 MHz 0x2F00 4
LTE EB-31 UL: 450 MHz 0x2F01 1
LTE EB-31 UL: 450 MHz 0x2F01 2
LTE EB-31 UL: 450 MHz 0x2F01 3
LTE EB-31 UL: 450 MHz 0x2F01 4
LTE EB-23 DL: S-Band 2 GHz 0x3100 1
LTE EB-23 DL: S-Band 2 GHz 0x3100 2
LTE EB-23 DL: S-Band 2 GHz 0x3100 4
LTE EB-23 DL: S-Band 2 GHz 0x3100 3
LTE EB-23 UL: S-Band 2 GHz 0x3101 2
LTE EB-23 UL: S-Band 2 GHz 0x3101 3
LTE EB-23 UL: S-Band 2 GHz 0x3101 1
LTE EB-23 UL: S-Band 2 GHz 0x3101 4
LTE EB-30 DL: 2.3 GHz (WCS A/B) 0x3200 3
LTE EB-30 DL: 2.3 GHz (WCS A/B) 0x3200 2
LTE EB-30 DL: 2.3 GHz (WCS A/B) 0x3200 1
LTE EB-30 DL: 2.3 GHz (WCS A/B) 0x3200 4
LTE EB-30 UL: 2.3 GHz (WCS A/B) 0x3201 4
LTE EB-30 UL: 2.3 GHz (WCS A/B) 0x3201 3
LTE EB-30 UL: 2.3 GHz (WCS A/B) 0x3201 2
LTE EB-30 UL: 2.3 GHz (WCS A/B) 0x3201 1
LTE EB-32 DL: 1500 (L-Band) 0x3400 1
LTE EB-32 DL: 1500 (L-Band) 0x3400 2
LTE EB-32 DL: 1500 (L-Band) 0x3400 4
LTE EB-32 DL: 1500 (L-Band) 0x3400 3
LTE EB-252 DL: U-NII-1 (LTE-U 5GHz) 0x3600 3
LTE EB-252 DL: U-NII-1 (LTE-U 5GHz) 0x3600 4
LTE EB-252 DL: U-NII-1 (LTE-U 5GHz) 0x3600 2
LTE EB-252 DL: U-NII-1 (LTE-U 5GHz) 0x3600 1
LTE EB-255 DL: U-NII-3 (LTE-U 5GHz) 0x3700 2
LTE EB-255 DL: U-NII-3 (LTE-U 5GHz) 0x3700 1
LTE EB-255 DL: U-NII-3 (LTE-U 5GHz) 0x3700 3
LTE EB-255 DL: U-NII-3 (LTE-U 5GHz) 0x3700 4
LTE EB-66 AWS-3 DL:(2110-2200 MHz) 0x3800 4
LTE EB-66 AWS-3 DL:(2110-2200 MHz) 0x3800 3
LTE EB-66 AWS-3 DL:(2110-2200 MHz) 0x3800 2
LTE EB-66 AWS-3 DL:(2110-2200 MHz) 0x3800 1
LTE EB-66 AWS-3 UL:(1710-1800 MHz) 0x3801 4
LTE EB-66 AWS-3 UL:(1710-1800 MHz) 0x3801 2
LTE EB-66 AWS-3 UL:(1710-1800 MHz) 0x3801 1
LTE EB-66 AWS-3 UL:(1710-1800 MHz) 0x3801 3
LTE EB-65 DL: (2110-2200 MHz) 0x3C00 1
LTE EB-65 DL: (2110-2200 MHz) 0x3C00 4
LTE EB-65 DL: (2110-2200 MHz) 0x3C00 3
LTE EB-65 DL: (2110-2200 MHz) 0x3C00 2
LTE EB-65 UL: (1920-2010 MHz) 0x3C01 3
LTE EB-65 UL: (1920-2010 MHz) 0x3C01 2
LTE EB-65 UL: (1920-2010 MHz) 0x3C01 1
LTE EB-65 UL: (1920-2010 MHz) 0x3C01 4
LTE EB-67 DL: (738-758 MHz) 0x3D00 1
LTE EB-67 DL: (738-758 MHz) 0x3D00 2
LTE EB-67 DL: (738-758 MHz) 0x3D00 4
LTE EB-67 DL: (738-758 MHz) 0x3D00 3
LTE EB-68 DL: (753-783 MHz) 0x3E00 1
LTE EB-68 DL: (753-783 MHz) 0x3E00 2
LTE EB-68 DL: (753-783 MHz) 0x3E00 3
LTE EB-68 DL: (753-783 MHz) 0x3E00 4
LTE EB-68 UL: (698-728 MHz) 0x3E01 3
LTE EB-68 UL: (698-728 MHz) 0x3E01 4
LTE EB-68 UL: (698-728 MHz) 0x3E01 1
LTE EB-68 UL: (698-728 MHz) 0x3E01 2
LTE EB-69 FDD DL: (2570 - 2620 MHz) 0x5200 4
LTE EB-69 FDD DL: (2570 - 2620 MHz) 0x5200 3
LTE EB-69 FDD DL: (2570 - 2620 MHz) 0x5200 2
LTE EB-69 FDD DL: (2570 - 2620 MHz) 0x5200 1
LTE EB-70 FDD DL: (1995 - 2020 MHz) 0x5300 1
LTE EB-70 FDD DL: (1995 - 2020 MHz) 0x5300 4
LTE EB-70 FDD DL: (1995 - 2020 MHz) 0x5300 3
LTE EB-70 FDD DL: (1995 - 2020 MHz) 0x5300 2
LTE EB-70 FDD UL: (1695 - 1710 MHz) 0x5301 1
LTE EB-70 FDD UL: (1695 - 1710 MHz) 0x5301 3
LTE EB-70 FDD UL: (1695 - 1710 MHz) 0x5301 4
LTE EB-70 FDD UL: (1695 - 1710 MHz) 0x5301 2
LTE EB-71 FDD DL: (617 - 652 MHz) 0x5400 1
LTE EB-71 FDD DL: (617 - 652 MHz) 0x5400 2
LTE EB-71 FDD DL: (617 - 652 MHz) 0x5400 4
LTE EB-71 FDD DL: (617 - 652 MHz) 0x5400 3
LTE EB-71 FDD UL: (663 - 698 MHz) 0x5401 3
LTE EB-71 FDD UL: (663 - 698 MHz) 0x5401 4
LTE EB-71 FDD UL: (663 - 698 MHz) 0x5401 1
LTE EB-71 FDD UL: (663 - 698 MHz) 0x5401 2
LTE EB-72 FDD DL: (461 - 466 MHz) 0x5500 1
LTE EB-72 FDD DL: (461 - 466 MHz) 0x5500 4
LTE EB-72 FDD DL: (461 - 466 MHz) 0x5500 3
LTE EB-72 FDD DL: (461 - 466 MHz) 0x5500 2
LTE EB-72 FDD UL: (451 - 456 MHz) 0x5501 1
LTE EB-72 FDD UL: (451 - 456 MHz) 0x5501 2
LTE EB-72 FDD UL: (451 - 456 MHz) 0x5501 3
LTE EB-72 FDD UL: (451 - 456 MHz) 0x5501 4
LTE EB-74 FDD DL: (1475 - 1518 MHz) 0x5600 4
LTE EB-74 FDD DL: (1475 - 1518 MHz) 0x5600 1
LTE EB-74 FDD DL: (1475 - 1518 MHz) 0x5600 2
LTE EB-74 FDD DL: (1475 - 1518 MHz) 0x5600 3
LTE EB-74 FDD UL: (1427 - 1470 MHz) 0x5601 1
LTE EB-74 FDD UL: (1427 - 1470 MHz) 0x5601 3
LTE EB-74 FDD UL: (1427 - 1470 MHz) 0x5601 2
LTE EB-74 FDD UL: (1427 - 1470 MHz) 0x5601 4
LTE EB-75 FDD DL-CA: (1432 - 1517 MHz) 0x5700 1
LTE EB-75 FDD DL-CA: (1432 - 1517 MHz) 0x5700 2
LTE EB-75 FDD DL-CA: (1432 - 1517 MHz) 0x5700 3
LTE EB-75 FDD DL-CA: (1432 - 1517 MHz) 0x5700 4
LTE EB-76 FDD DL-CA: (1427 - 1432 MHz) 0x5800 1
LTE EB-76 FDD DL-CA: (1427 - 1432 MHz) 0x5800 3
LTE EB-76 FDD DL-CA: (1427 - 1432 MHz) 0x5800 4
LTE EB-76 FDD DL-CA: (1427 - 1432 MHz) 0x5800 2
LTE EB-73 FDD DL: (460 - 465 MHz) 0x5900 2
LTE EB-73 FDD DL: (460 - 465 MHz) 0x5900 3
LTE EB-73 FDD DL: (460 - 465 MHz) 0x5900 4
LTE EB-73 FDD DL: (460 - 465 MHz) 0x5900 1
LTE EB-73 FDD UL: (450 - 455 MHz) 0x5901 4
LTE EB-73 FDD UL: (450 - 455 MHz) 0x5901 3
LTE EB-73 FDD UL: (450 - 455 MHz) 0x5901 2
LTE EB-73 FDD UL: (450 - 455 MHz) 0x5901 1
LTE EB-85 FDD DL: (728 - 746 MHz) 0x5C00 2
LTE EB-85 FDD DL: (728 - 746 MHz) 0x5C00 1
LTE EB-85 FDD DL: (728 - 746 MHz) 0x5C00 4
LTE EB-85 FDD DL: (728 - 746 MHz) 0x5C00 3
LTE EB-85 FDD UL: (698 - 716 MHz) 0x5C01 1
LTE EB-85 FDD UL: (698 - 716 MHz) 0x5C01 2
LTE EB-85 FDD UL: (698 - 716 MHz) 0x5C01 3
LTE EB-85 FDD UL: (698 - 716 MHz) 0x5C01 4
TD-LTE EB-38: TDD 2.6 GHz 0x1C03 3
TD-LTE EB-38: TDD 2.6 GHz 0x1C03 2
TD-LTE EB-38: TDD 2.6 GHz 0x1C03 4
TD-LTE EB-38: TDD 2.6 GHz 0x1C03 1
TD-LTE EB-40: TDD 2.3 GHz 0x1D03 1
TD-LTE EB-40: TDD 2.3 GHz 0x1D03 4
TD-LTE EB-40: TDD 2.3 GHz 0x1D03 3
TD-LTE EB-40: TDD 2.3 GHz 0x1D03 2
TD-LTE EB-41: TDD 2.5 GHz 0x1E03 3
TD-LTE EB-41: TDD 2.5 GHz 0x1E03 4
TD-LTE EB-41: TDD 2.5 GHz 0x1E03 2
TD-LTE EB-41: TDD 2.5 GHz 0x1E03 1
TD-LTE EB-41 TDD 2.5 GHz Upper 0x1E33 1
TD-LTE EB-41 TDD 2.5 GHz Upper 0x1E33 2
TD-LTE EB-41 TDD 2.5 GHz Upper 0x1E33 4
TD-LTE EB-41 TDD 2.5 GHz Upper 0x1E33 3
TD-LTE EB-41 TDD 2.5 GHz Lower 0x1EC3 3
TD-LTE EB-41 TDD 2.5 GHz Lower 0x1EC3 2
TD-LTE EB-41 TDD 2.5 GHz Lower 0x1EC3 4
TD-LTE EB-41 TDD 2.5 GHz Lower 0x1EC3 1
TD-LTE EB-39: TDD 1.9 GHz 0x1F03 4
TD-LTE EB-39: TDD 1.9 GHz 0x1F03 2
TD-LTE EB-39: TDD 1.9 GHz 0x1F03 3
TD-LTE EB-39: TDD 1.9 GHz 0x1F03 1
TD-LTE EB-42: TDD 3.4 GHz 0x2303 3
TD-LTE EB-42: TDD 3.4 GHz 0x2303 4
TD-LTE EB-42: TDD 3.4 GHz 0x2303 2
TD-LTE EB-42: TDD 3.4 GHz 0x2303 1
TD-LTE EB-43: TDD 3.6 GHz 0x2403 1
TD-LTE EB-43: TDD 3.6 GHz 0x2403 4
TD-LTE EB-43: TDD 3.6 GHz 0x2403 3
TD-LTE EB-43: TDD 3.6 GHz 0x2403 2
TD-LTE EB-44: TDD 700 MHz 0x2503 1
TD-LTE EB-44: TDD 700 MHz 0x2503 3
TD-LTE EB-44: TDD 700 MHz 0x2503 2
TD-LTE EB-44: TDD 700 MHz 0x2503 4
TD-LTE EB-33: TDD 2000 MHz 0x2603 4
TD-LTE EB-33: TDD 2000 MHz 0x2603 3
TD-LTE EB-33: TDD 2000 MHz 0x2603 1
TD-LTE EB-33: TDD 2000 MHz 0x2603 2
TD-LTE EB-34: Chinese TDD 2000 MHz 0x2703 2
TD-LTE EB-34: Chinese TDD 2000 MHz 0x2703 1
TD-LTE EB-34: Chinese TDD 2000 MHz 0x2703 4
TD-LTE EB-34: Chinese TDD 2000 MHz 0x2703 3
TD-LTE EB-35: TDD 1900 (PCS) Lower 0x2803 4
TD-LTE EB-35: TDD 1900 (PCS) Lower 0x2803 2
TD-LTE EB-35: TDD 1900 (PCS) Lower 0x2803 3
TD-LTE EB-35: TDD 1900 (PCS) Lower 0x2803 1
TD-LTE EB-36: TDD 1900 (PCS) Upper 0x2903 4
TD-LTE EB-36: TDD 1900 (PCS) Upper 0x2903 1
TD-LTE EB-36: TDD 1900 (PCS) Upper 0x2903 2
TD-LTE EB-36: TDD 1900 (PCS) Upper 0x2903 3
TD-LTE EB-37: TDD 1900 (PCS) Center Gap 0x2A03 1
TD-LTE EB-37: TDD 1900 (PCS) Center Gap 0x2A03 2
TD-LTE EB-37: TDD 1900 (PCS) Center Gap 0x2A03 3
TD-LTE EB-37: TDD 1900 (PCS) Center Gap 0x2A03 4
TD-LTE EB-45 TDD: (1447-1467 MHz) 0x3903 4
TD-LTE EB-45 TDD: (1447-1467 MHz) 0x3903 2
TD-LTE EB-45 TDD: (1447-1467 MHz) 0x3903 1
TD-LTE EB-45 TDD: (1447-1467 MHz) 0x3903 3
TD-LTE EB-46 TDD: (5150-5925 MHz) 0x3A03 2
TD-LTE EB-46 TDD: (5150-5925 MHz) 0x3A03 3
TD-LTE EB-46 TDD: (5150-5925 MHz) 0x3A03 4
TD-LTE EB-46 TDD: (5150-5925 MHz) 0x3A03 1
TD-LTE EB-48 TDD: (3550 - 3700 MHz) 0x5003 3
TD-LTE EB-48 TDD: (3550 - 3700 MHz) 0x5003 4
TD-LTE EB-48 TDD: (3550 - 3700 MHz) 0x5003 1
TD-LTE EB-48 TDD: (3550 - 3700 MHz) 0x5003 2
TD-LTE EB-47 TDD: (5855 - 5925 MHz) 0x5103 1
TD-LTE EB-47 TDD: (5855 - 5925 MHz) 0x5103 2
TD-LTE EB-47 TDD: (5855 - 5925 MHz) 0x5103 3
TD-LTE EB-47 TDD: (5855 - 5925 MHz) 0x5103 4
TD-LTE EB-50 TDD: (1432 - 1517 MHz) 0x5203 1
TD-LTE EB-50 TDD: (1432 - 1517 MHz) 0x5203 2
TD-LTE EB-50 TDD: (1432 - 1517 MHz) 0x5203 3
TD-LTE EB-50 TDD: (1432 - 1517 MHz) 0x5203 4
TD-LTE EB-51 TDD: (1437 - 1442 MHz) 0x5303 1
TD-LTE EB-51 TDD: (1437 - 1442 MHz) 0x5303 2
TD-LTE EB-51 TDD: (1437 - 1442 MHz) 0x5303 3
TD-LTE EB-51 TDD: (1437 - 1442 MHz) 0x5303 4
TD-LTE EB-49 TDD: (3550 - 3670 MHz) 0x5A03 2
TD-LTE EB-49 TDD: (3550 - 3670 MHz) 0x5A03 3
TD-LTE EB-49 TDD: (3550 - 3670 MHz) 0x5A03 4
TD-LTE EB-49 TDD: (3550 - 3670 MHz) 0x5A03 1
TD-LTE EB-52 TDD: (3300 - 3400 MHz) 0x5B03 1
TD-LTE EB-52 TDD: (3300 - 3400 MHz) 0x5B03 2
TD-LTE EB-52 TDD: (3300 - 3400 MHz) 0x5B03 3
TD-LTE EB-52 TDD: (3300 - 3400 MHz) 0x5B03 4
NR FR1 FDD n1 DL 0x0001 1
NR FR1 FDD n2 DL 0x0002 1
NR FR1 FDD n3 DL 0x0003 1
NR FR1 FDD n5 DL 0x0005 1
NR FR1 FDD n7 DL 0x0007 1
NR FR1 FDD n8 DL 0x0008 1
NR FR1 FDD n12 DL 0x0012 1
NR FR1 FDD n20 DL 0x0020 1
NR FR1 FDD n25 DL 0x0025 1
NR FR1 FDD n28 DL 0x0028 1
NR FR1 TDD n34 0x0034 1
NR FR1 TDD n38 0x0038 1
NR FR1 TDD n39 0x0039 1
NR FR1 TDD n40 0x0040 1
NR FR1 TDD n41 and n90 0x0041 1
NR FR1 TDD n50 0x0050 1
NR FR1 TDD n51 0x0051 1
NR FR1 FDD n65 DL 0x0065 1
NR FR1 FDD n66 DL 0x0066 1
NR FR1 FDD n70 DL 0x0070 1
NR FR1 FDD n71 DL 0x0071 1
NR FR1 FDD n74 DL 0x0074 1
NR FR1 FDD n75 DL 0x0075 1
NR FR1 FDD n76 DL 0x0076 1
NR FR1 TDD n77 0x0077 1
NR FR1 TDD n78 0x0078 1
NR FR1 TDD n79 0x0079 1
NR FR1 FDD n2 UL 0x1002 1
NR FR1 FDD n3 UL 0x1003 1
NR FR1 FDD n5 UL 0x1005 1
NR FR1 FDD n7 UL 0x1007 1
NR FR1 FDD n8 UL 0x1008 1
NR FR1 FDD n12 UL 0x1012 1
NR FR1 FDD n25 UL 0x1025 1
NR FR1 FDD n28 UL 0x1028 1
NR FR1 FDD n65 UL 0x1065 1
NR FR1 FDD n66 UL 0x1066 1
NR FR1 FDD n70 UL 0x1070 1
NR FR1 FDD n71 UL 0x1071 1
NR FR1 FDD n74 UL 0x1074 1
NR FR1 SUL n80 0x1080 1
NR FR1 SUL n81 0x1081 1
NR FR1 SUL n82 0x1082 1
NR FR1 SUL n83 0x1083 1
NR FR1 SUL n84 0x1084 1
NR FR1 SUL n86 0x1086 1
NR FR1 FDD n20 UL 0x1120 1
NR FR1 FDD n1 UL 0x1AA1 1
Manufacturer's Description
Please refer to the manufacturer’s website for further information on this product.
Resources
Shipping & Returns
Shipping & Returns Policy
Shipping Policy
- Processing Time: Orders are typically processed and dispatched within 1 business day.
- Shipping Methods: We offer Expedited Shipping to all destinations using UPS/DHL/Fedex/Royal Mail and other reputable carriers.
- Shipping Times: Mainland UK: 1-2 Business Days / Mainland Europe and USA: 2-3 Business Days / Rest of the World 5-7 Business Days.
- Shipping Costs: These are calculated at checkout based on the shipping method, destination and package dimensions.
- CUSTOMS AND TAXES: It is YOUR responsibility to liaise with customs in your country and ensure your package is cleared and any taxes are paid.
- Shipping Destinations: We ship worldwide.
- Tracking: Once your order is shipped, we will provide you with a tracking number via email.
- Insurance: All shipments are insured. In case of damage, please contact us via email within 48 hours of receiving the product with photographic evidence, please also ensure a report is logged with the delivery driver.
Returns Policy
- Return Period: In the event of an item being received which is 'not as specified', you can return your purchase within 14 days of delivery.
- Condition of Items: Items must be returned unused and in their original packaging.
- Return Method: All returns must be notified in writing to hello@ttinstruments.com, the email should accompany the order number, date and reason for return and must be within 14 days of delivery.
- Restocking Fees: A restocking fee of up-to 20% is applicable for items returned for any reason other than 'not as specified'.
- Refund Method: Refunds are processed to the original method of payment within 5 business days of receiving the return.
- Exchanges: We do not offer exchanges. It will either be a replacement or a refund.
- Return Shipping Costs: Return shipping costs will be borne by the customer unless the item is 'not as specified', in this case we will arrange for the return by way of a prepaid shipping label.
ISO Certified
We are proud to hold the ISO 9001:2015 certification by a UKAS accredited body.
Sell Your Equipment
Receive best prices for your un-used/surplus equipment. Talk to one of our experts for a hassle-free transaction
Worldwide delivery
We deliver on an express service globally with most packages delivered in less than a week
Customer Satisfaction
We pride ourselves in providing an excellent service from start to finish.
Top Rated Seller
Our feedback says it all! We have shipped to over 100 countries all over the world and our customers couldn't be happier!
