Condition: Used

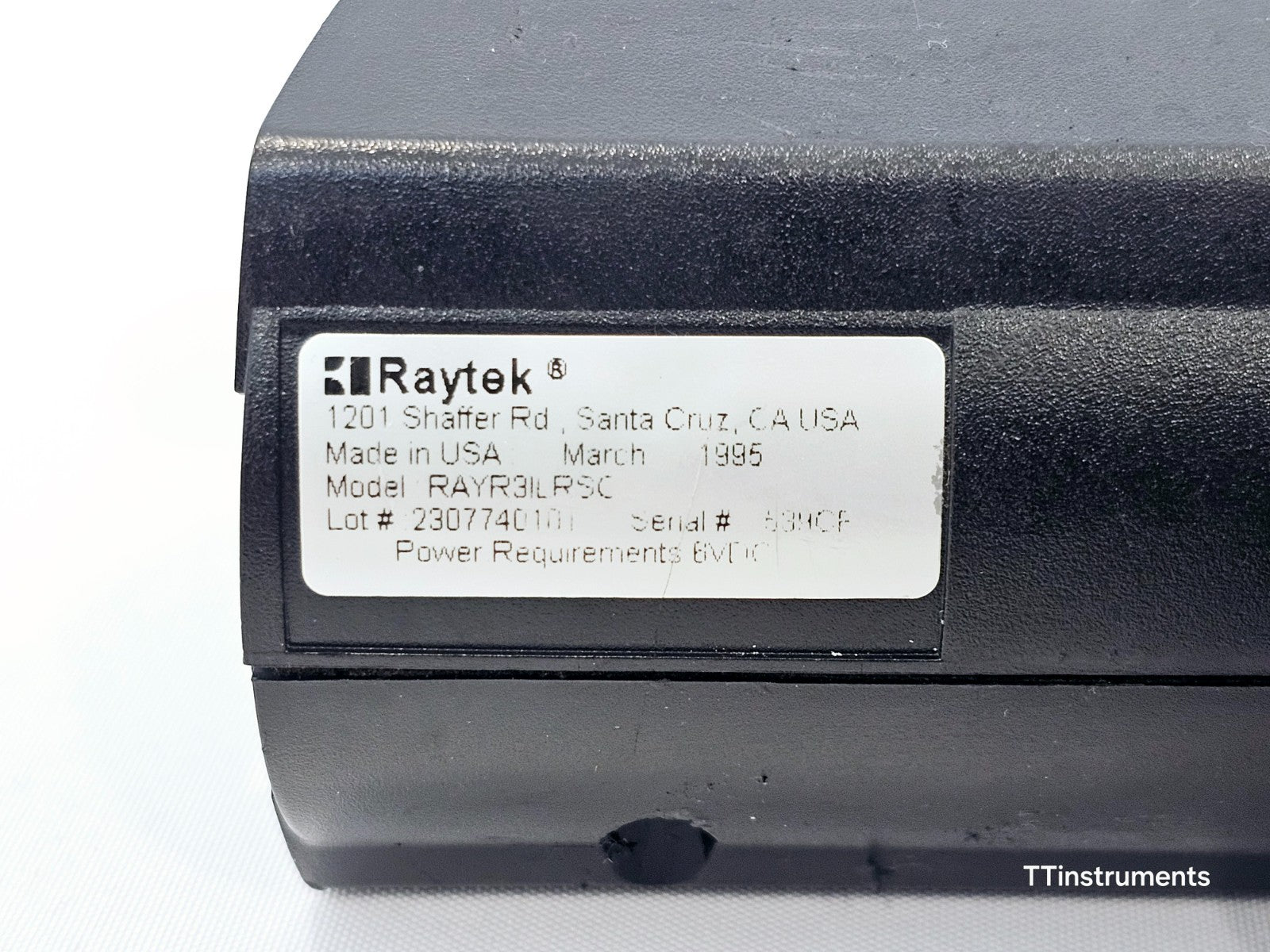

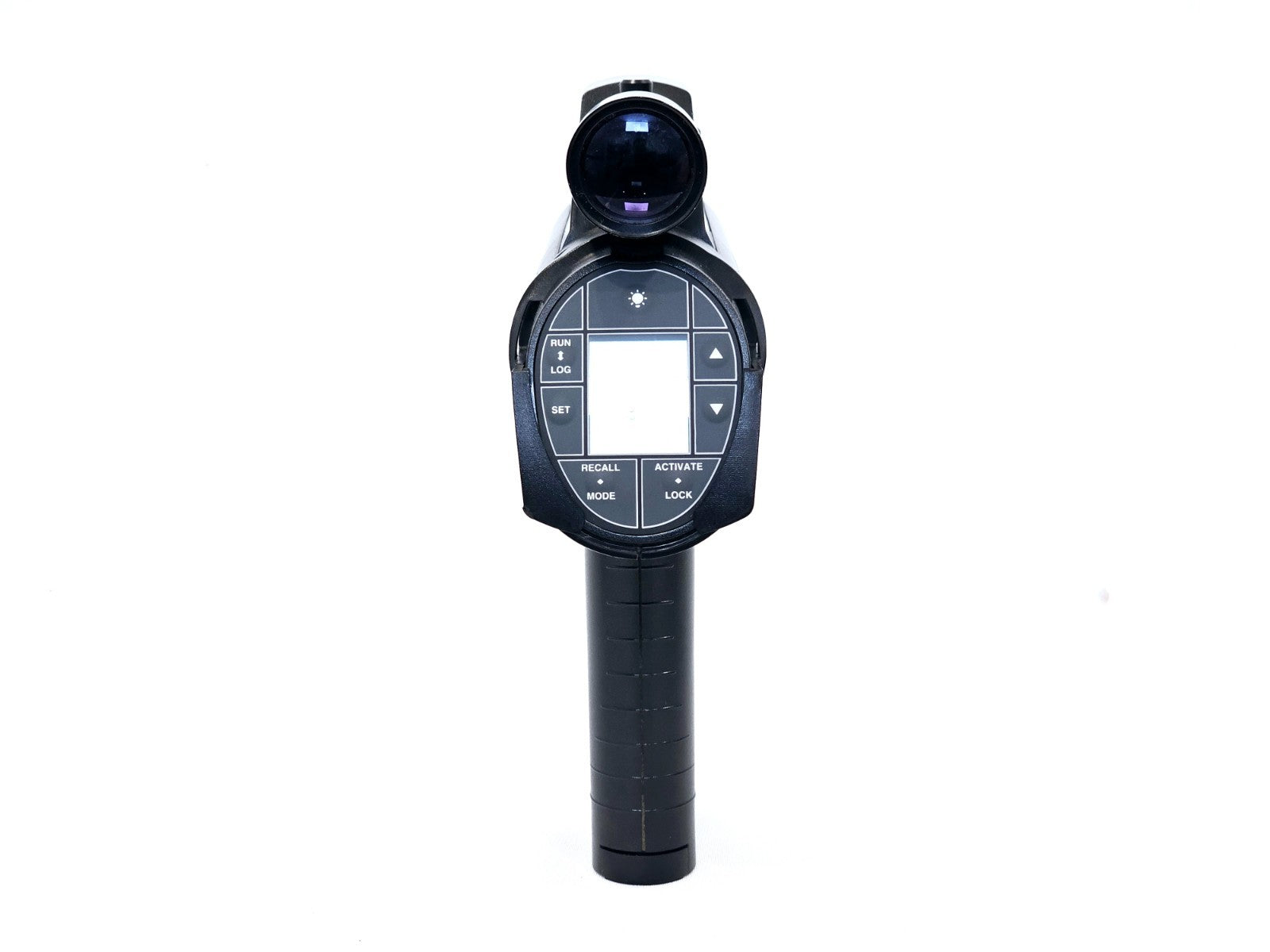

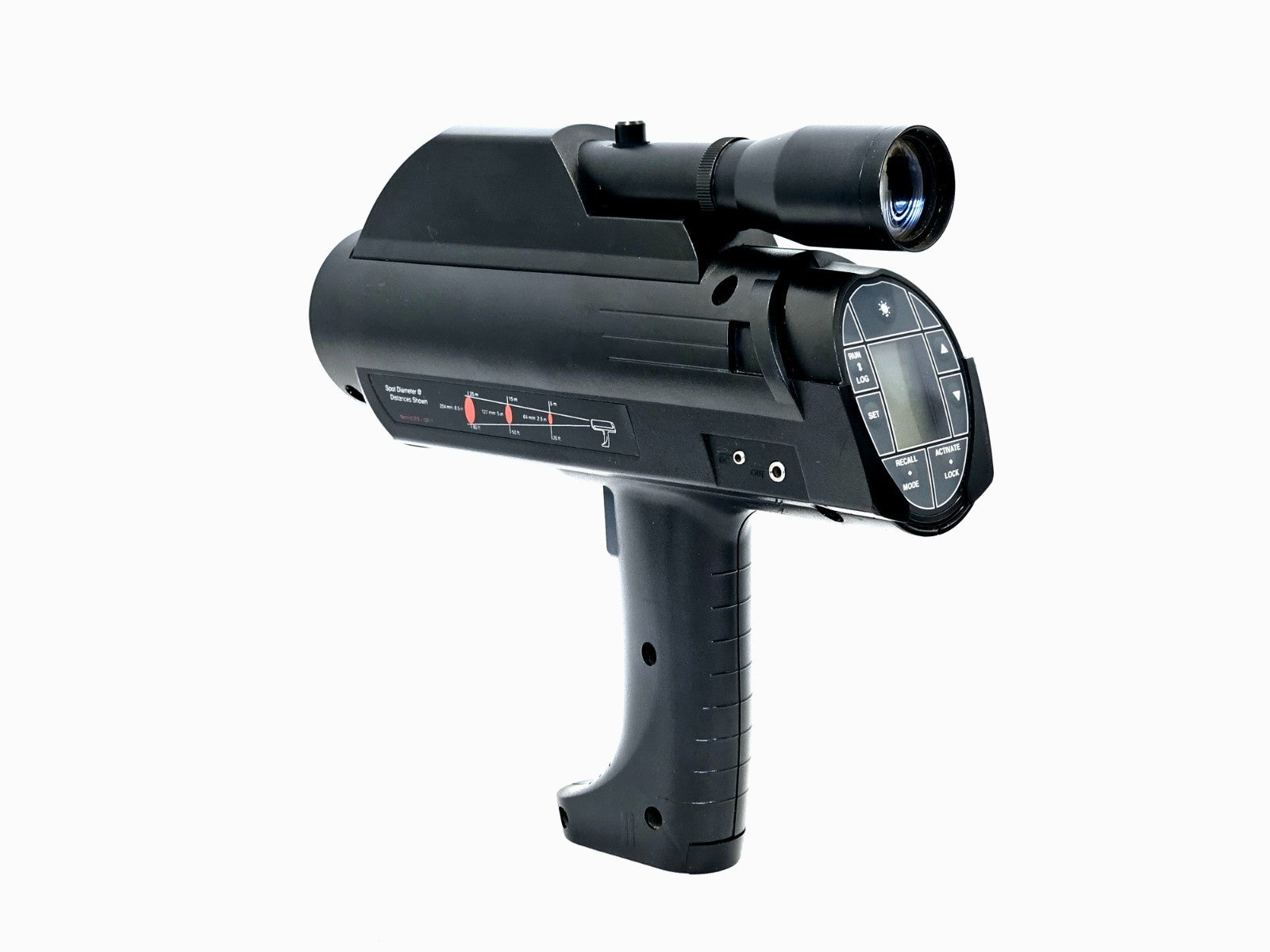

This is the Raytek Raynger 3i RAYR3ILRSC long-range handheld infrared thermometer in the scope-only variant (no laser). Manufactured in March 1995 (serial number visible on label), the unit features the telescopic sighting scope, membrane keypad with RUN/LOG/SET/RECALL/MODE/ACTIVATE/LOCK controls, and a spot size reference diagram on the side panel.

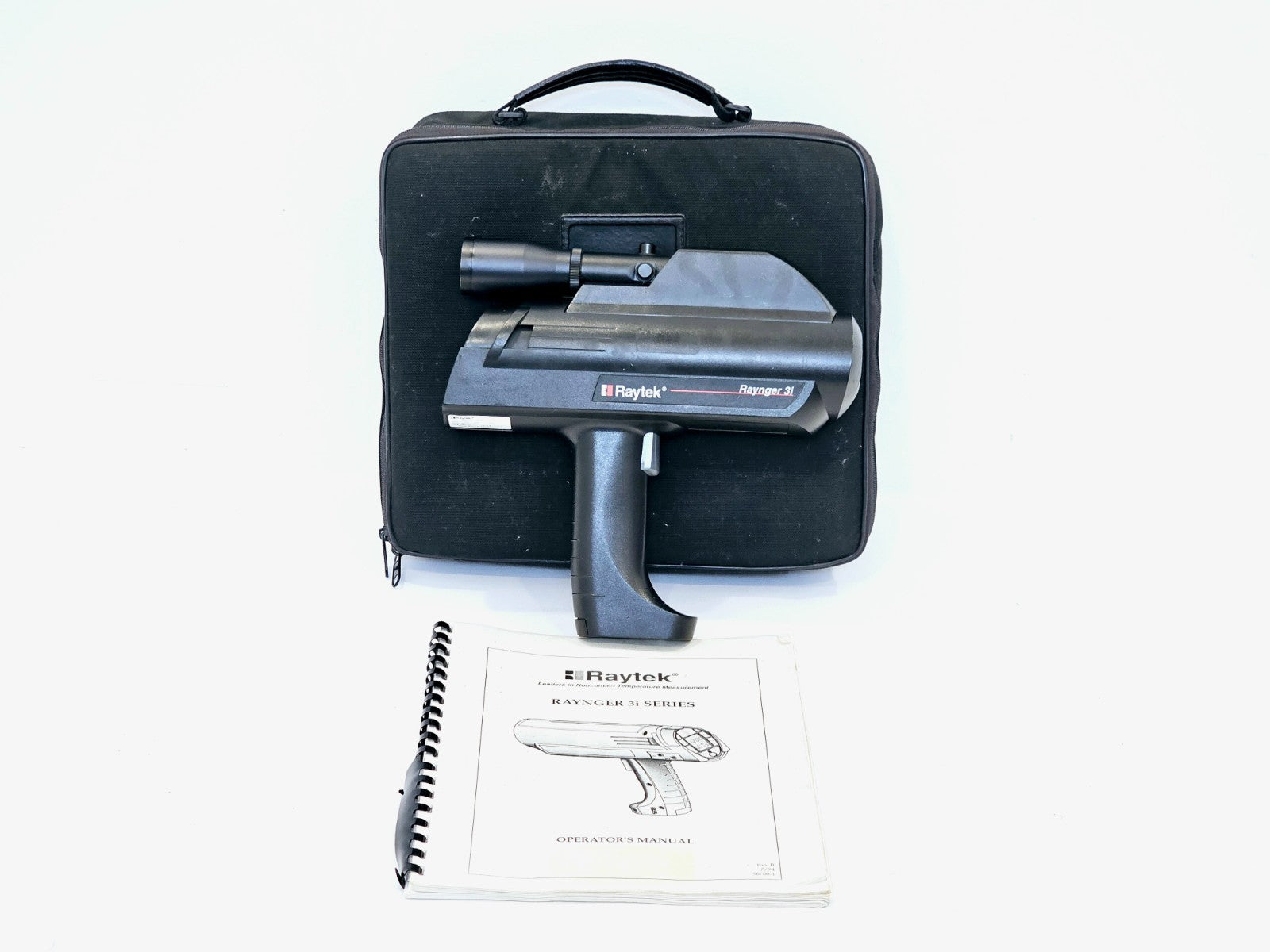

Included in the sale:
• Raytek Raynger 3i RAYR3ILRSC infrared thermometer with telescopic scope
• Hard zip carry case with handle
• Operator's manual (Raynger 3i Series, spiral-bound)

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

The Raytek Raynger 3i Series is a range of advanced handheld non-contact infrared thermometers designed to overcome the limitations of contact thermometers in manufacturing plants and industrial environments. The 3i thermometer compensates for energy reflected by the background around the target, allowing accurate measurement even when the measured area is reflecting energy from nearby objects with higher temperatures — for example, inside a furnace.

The LRSC (Long Range, Scope) model is optimised for maintenance and quality control applications requiring measurement of elevated or distant targets, such as electrical connectors on towers, overhead equipment, and hard-to-reach process points. The telescopic scope sighting system lets the operator see exactly what is being measured through the reticule.

With a choice of spectral responses, temperature ranges, laser and scope sighting options, and on-board datalogging capabilities, the Raytek 3i series meets the individual requirements of demanding users across utilities, electrical maintenance, plant maintenance, paper production, fire safety, and general industrial applications.

Model: RAYR3ILRSC
Temperature Range: -30 to 1200°C (-20 to 2200°F)
Spectral Response: 8 to 14 microns (thermopile detector)
Distance-to-Spot Ratio: Up to 120:1
Sighting System: Telescopic scope (no laser on SC variant)
Emissivity: 0.10 to 1.00, digitally adjustable in 0.01 increments
Data Logger: 100 locations
Display: 4-digit backlit LCD
Outputs: RS232 digital output (9600 baud), analogue output (1 mV/°C)
Power: 4 × AA alkaline or rechargeable batteries, or 6–9 V DC external supply
Dimensions: 244 mm (H) × 257 mm (L) × 71 mm (W)
Weight: 1000 g (2.21 lbs)
Operating Temperature: 0 to 50°C (32 to 122°F)
Modes: RUN, LOG, SET, RECALL — with MAX, MIN, DIF, AVG functions
Reflected Background Compensation: Yes (T. Ambient setting)
Hi/Lo Alarms: Yes
Trigger: Two-stage locking trigger
Tripod Mounting: Yes
Manufacturer: Raytek Corporation, 1201 Shaffer Rd, Santa Cruz, CA, USA

Raytek Raynger 3i Series operator's manual — full operating instructions, specifications and sighting systems: Download PDF

Raytek Raynger 3i LRSCL2 model operator's manual — covers LRSC variant operation and specifications: Download PDF

Raytek Raynger 3i Series product datasheet — LT and LR models, distance-to-spot ratios and application data: Download PDF

Transcat Raytek Raynger 3i Series product brochure — model overview and key features: Download PDF
