Condition: Used

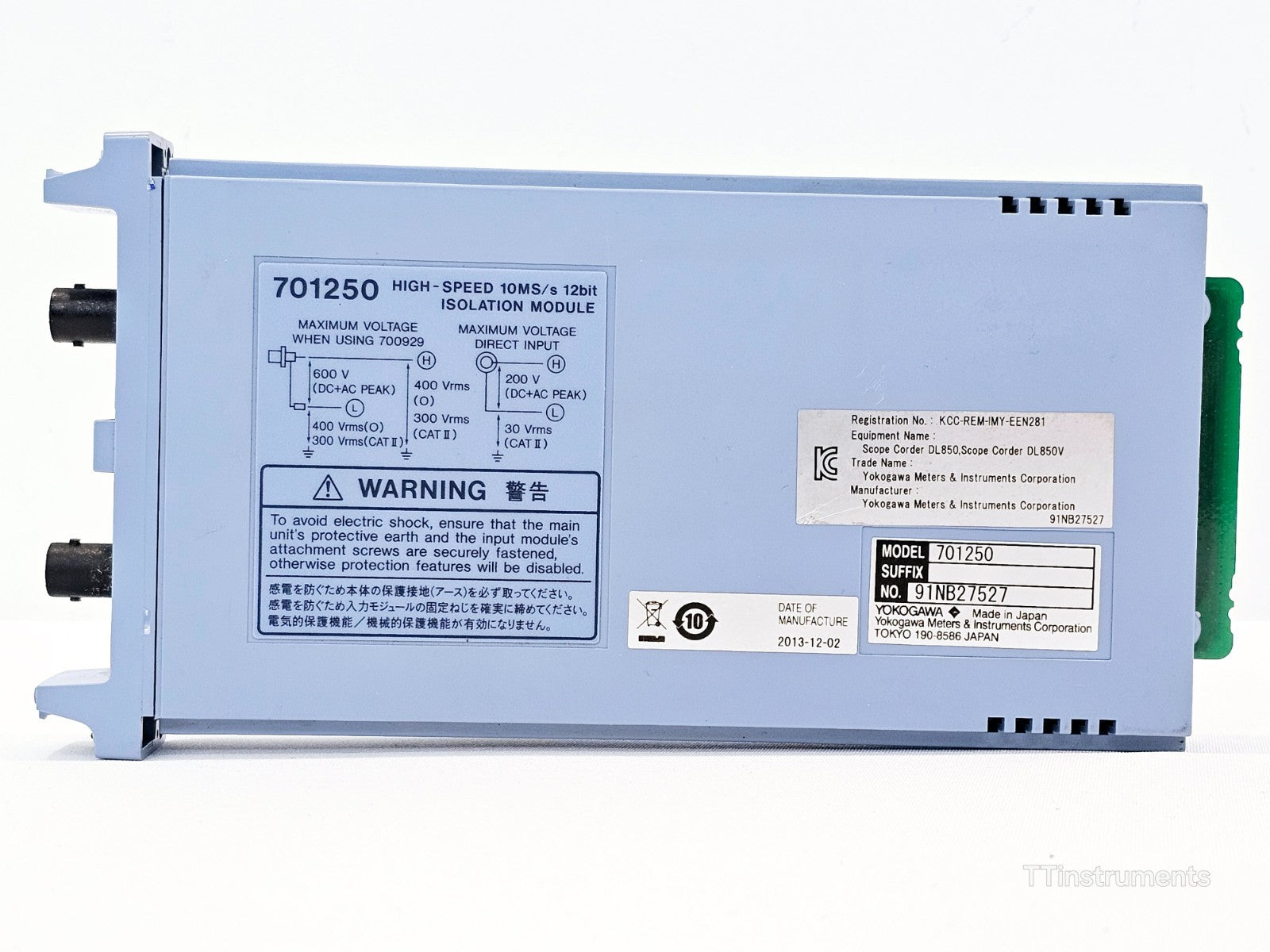

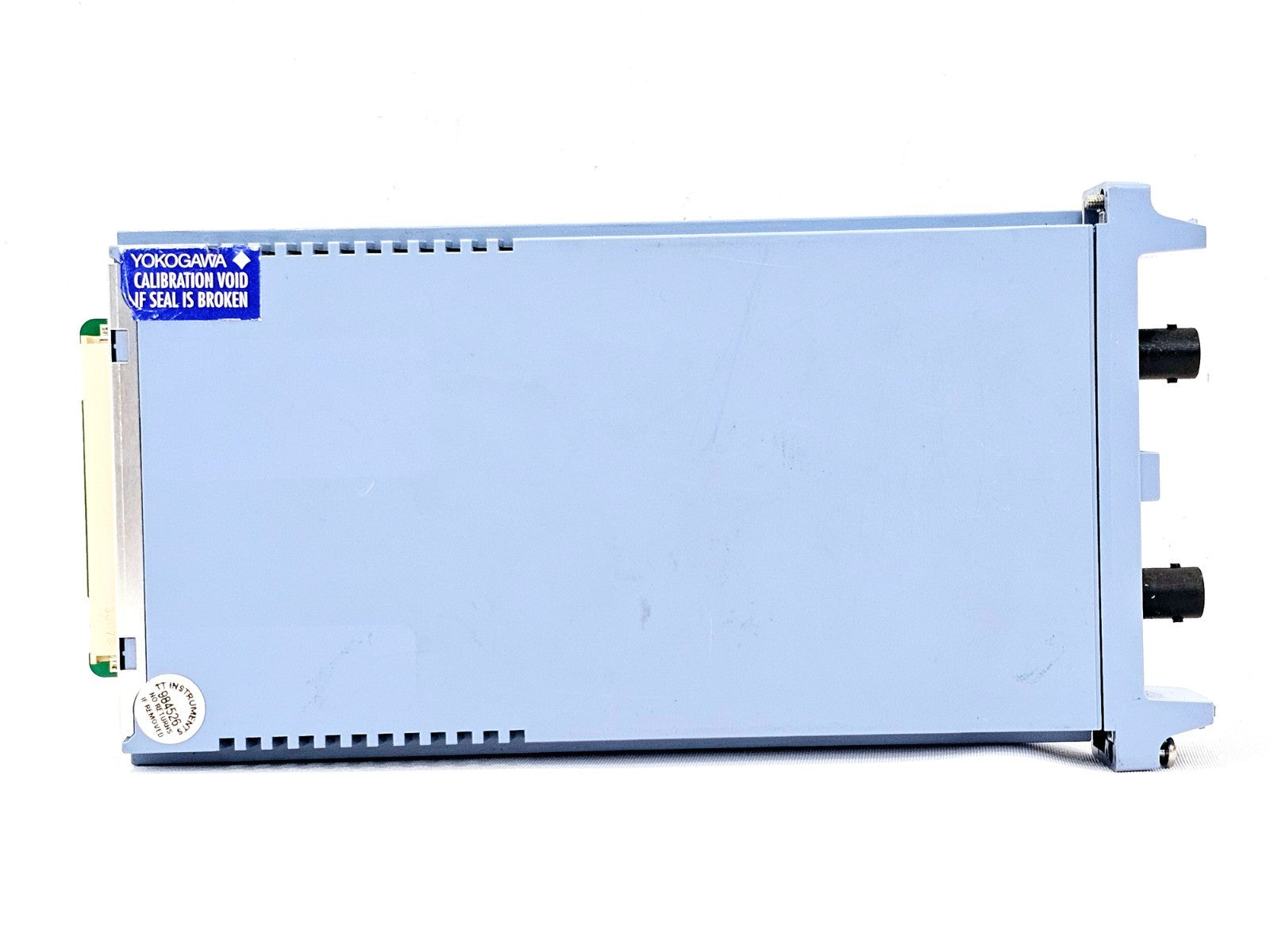

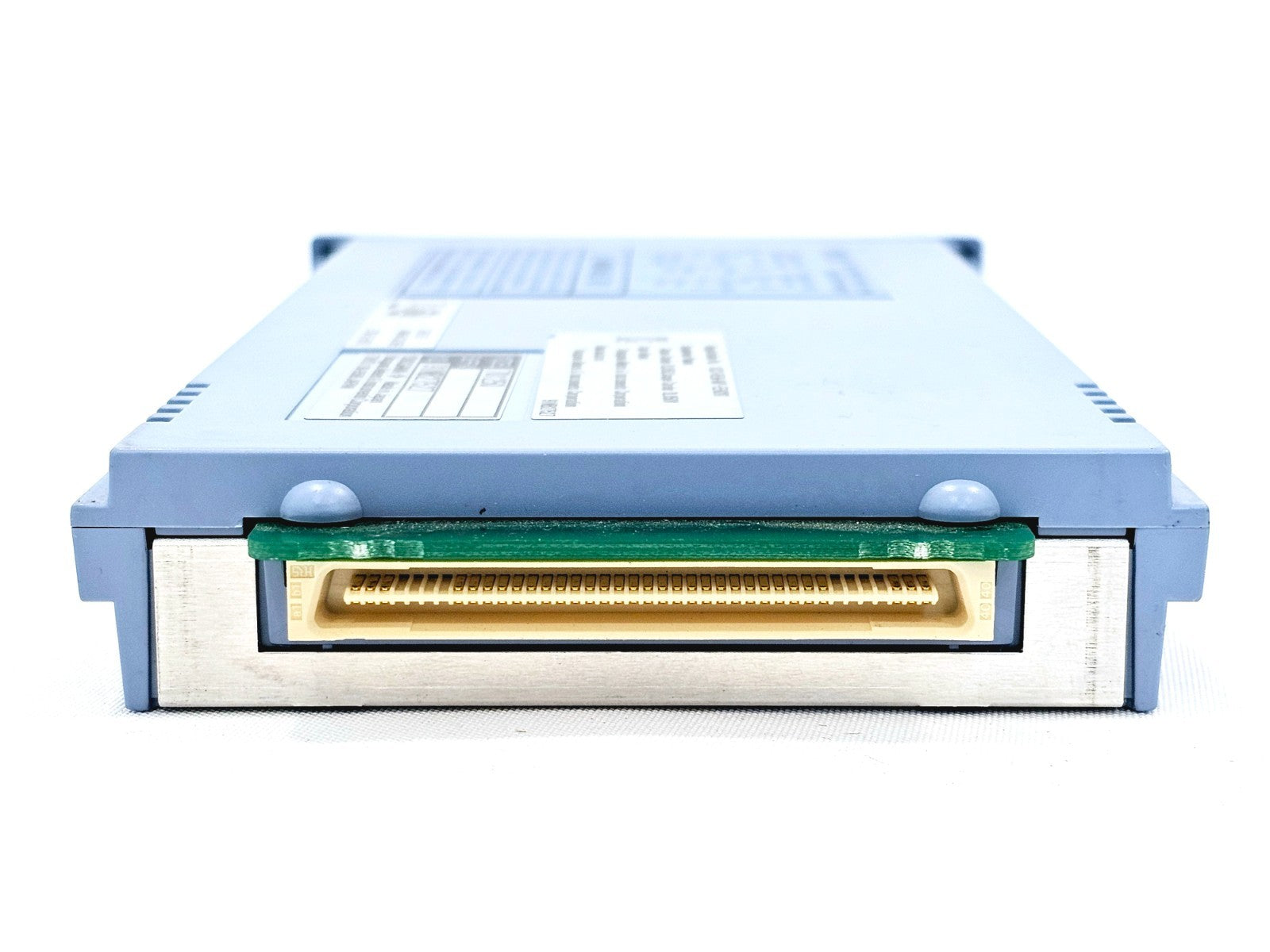

The Yokogawa 701250 High-Speed 10 MS/s 12-Bit Isolation Module (model code: HS10M12) is a 2-channel plug-in input module for the DL750 ScopeCorder. The rear label confirms serial number 91NB27527 and date of manufacture 2013-12-02. A Yokogawa calibration void seal is present and intact.

Included in the sale:
• Yokogawa 701250 High-Speed 10 MS/s 12-Bit Isolation Module (x1)

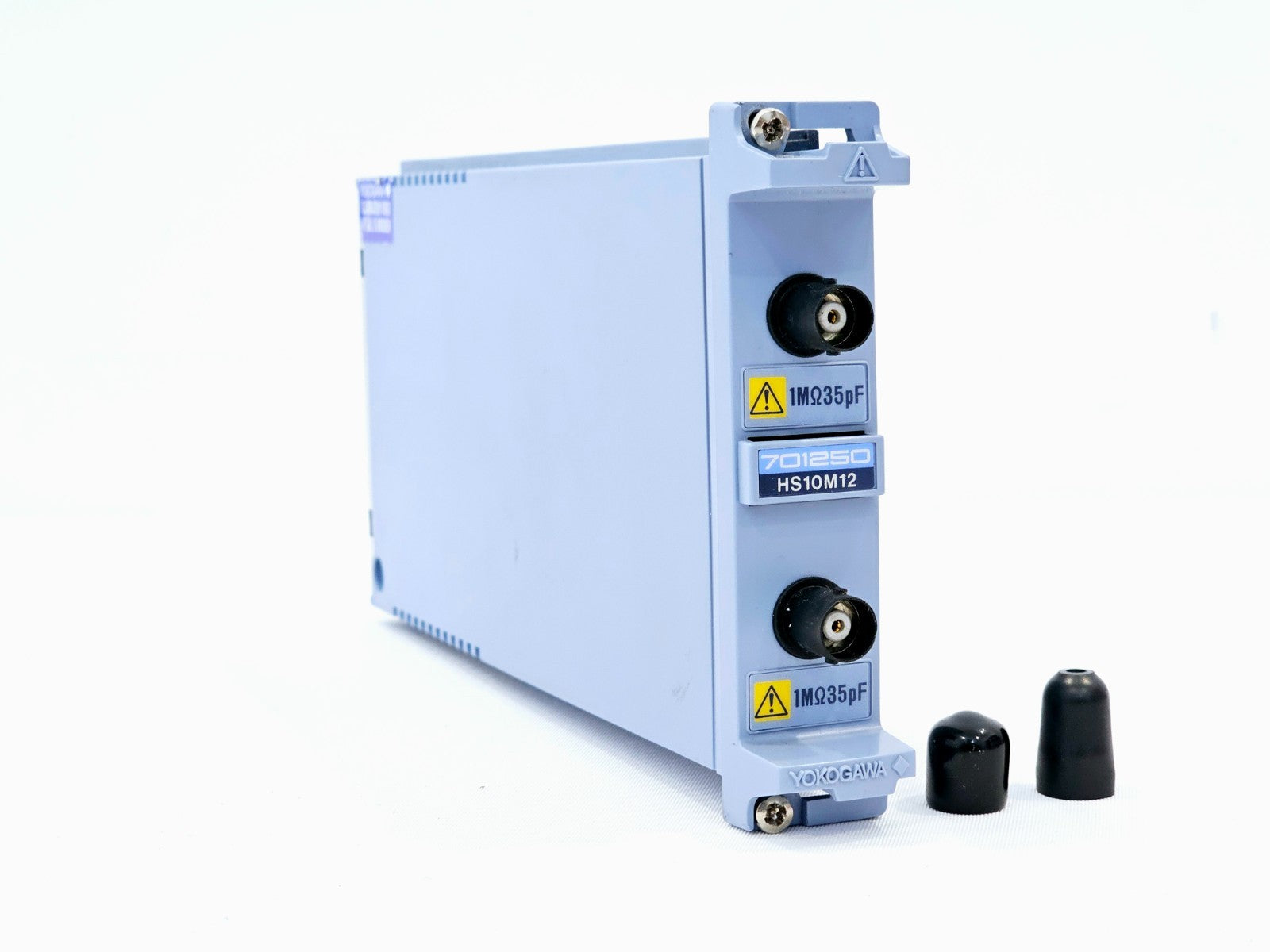

• BNC protective caps (x2)

Please note that we have multiple units in stock, and the images presented are of one of them, therefore the cosmetic condition of the exact item you will receive may slightly differ.

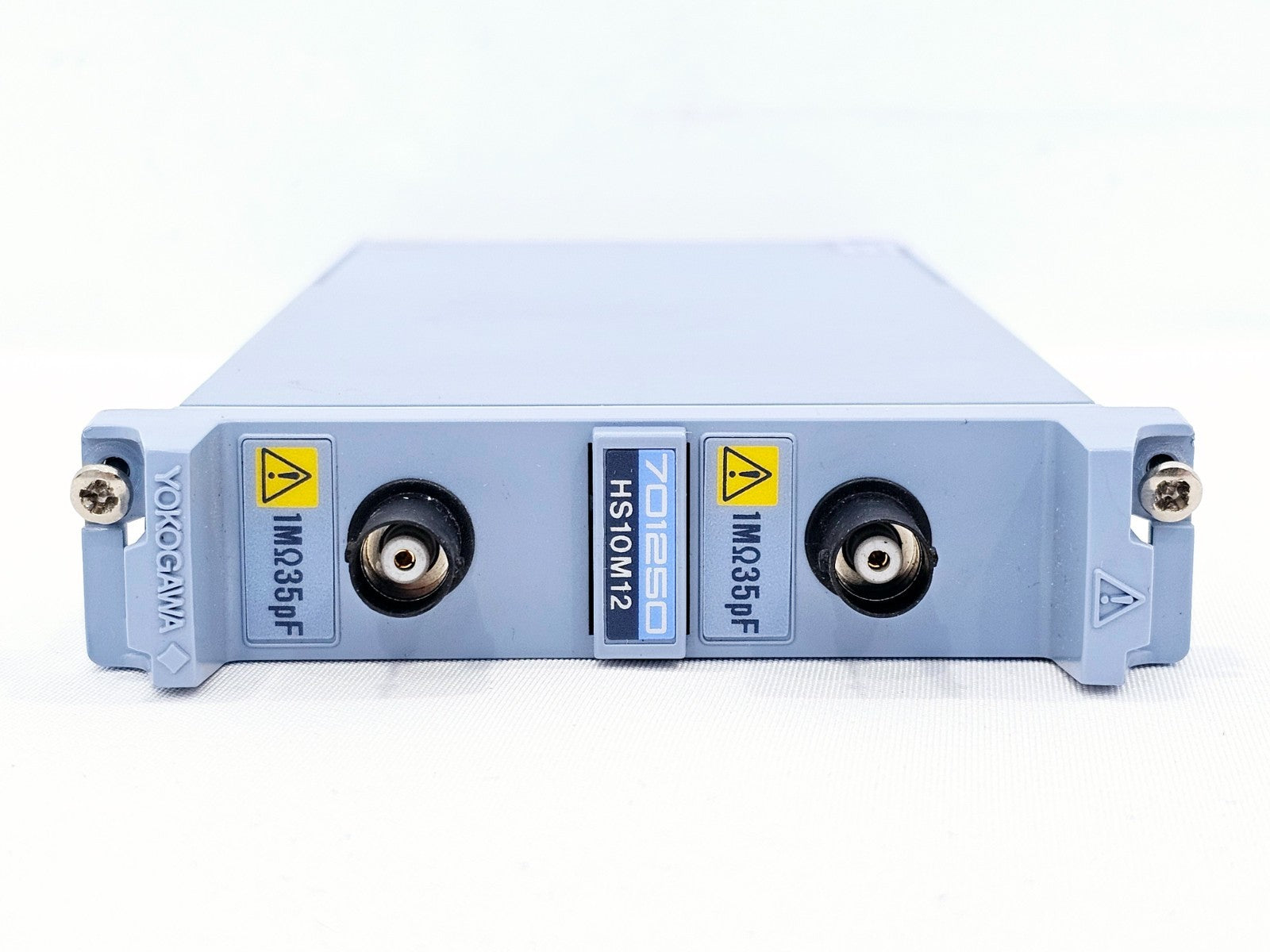

The Yokogawa 701250 is a High-Speed 10 MS/s, 12-Bit Isolation Module designed as a plug-in input module for the DL750/DL750P ScopeCorder and compatible mainframes. It provides two fully isolated analogue voltage input channels using high-speed optical fibre-based transmission technology, offering excellent noise immunity and protection against ground loops. Designed for demanding applications such as inverter and IGBT testing, power electronics, and electro-mechanical system characterisation, the 701250 delivers broad bandwidth and high accuracy in a compact module form factor.

The module is also compatible with the DL850, DL850V, SL1400, and SL1000 mainframes (subject to firmware version requirements).

Key Specifications:
Model: 701250
Abbreviated Name: HS10M12
Number of Channels: 2 (isolated)
Sampling Rate: 10 MS/s (maximum)
Vertical Resolution: 12-bit
Frequency Range (Bandwidth): DC to 3 MHz
Input Impedance: 1 MΩ ±1%, approx. 35 pF
Input Connector: Isolated BNC
Input Coupling: AC, DC, GND
Effective Measurement Range: 20 div (display range: 10 div)
Maximum Input Voltage (Direct): 200 V DC+AC peak
Maximum Input Voltage (with 700929 probe): 600 V DC+AC peak
Maximum Allowable Common Mode Voltage (Direct, 1 kHz or less): 30 Vrms (CAT II)
Maximum Allowable Common Mode Voltage (with 700929): 400 Vrms (O), 300 Vrms (CAT II)
DC Accuracy: 0.5%
Isolation Technology: High-speed optical fibre-based transmission
Approximate Weight: 250 g
Date of Manufacture (this unit): 2013-12-02
Compatible Mainframes: DL750, DL750P, DL850, DL850V, SL1400, SL1000

Note: This product was discontinued by Yokogawa on 29 September 2017. The successor product is the 720250 General Purpose Isolation Module.

Yokogawa 701250 product datasheet — key specifications and features: Download PDF

DL750/DL750P ScopeCorder plug-in modules specifications bulletin (includes 701250 full specs): Download PDF

DL850/DL850V plug-in modules specifications bulletin (includes 701250 compatibility notes): Download PDF

DL750/DL750P ScopeCorder Operation Guide (covers 701250 module setup and use): Download PDF

DL750/DL750P ScopeCorder User's Manual Part 2 (module specifications reference): Download PDF
